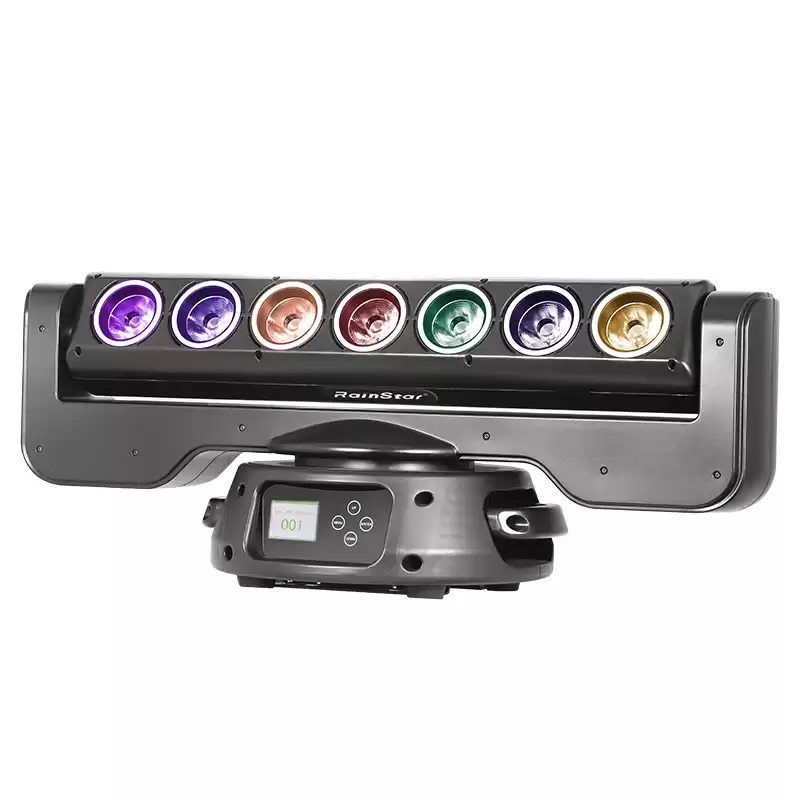

It is a brand new design with a unique appearance. Pan / tilt rotation is universal, 7*40W RGBW 4 in1 LEDs and 7 LED rings are mounted on the surface of the lens, with a high precision 54 diameter 5 degree lens. Makes the true consistency of the color of the light and the dynamic effect of the halo. On the stage, the light intensity of LCA035B filled the stage with light. The compact design is very suitable for unique location installation, plus 7 RGBW light sources and 7 halo can be controlled individually, making it a unique effect. A 32-bit circuit board is used to control the single point control of each LED and pan and tilt use of high-precision, fast-response three-phase motors. The control method uses DMX512 and Artnet. Easy to connect.
● Optics
. LED：
※ LED :7x40W 4 in 1 RGBW LED, uniform and delicate color mixing effect
※ 84x0.2W RGB LEDs, create 7 halo effects, which can be controlled individually.
. Beam angle: 5 °
. Excellent color mixing effect and rainbow effect
. Life Span : 50000H, low power consumption, energy saving and environmental protection
● Scanning
. Pan / tilt operation:
※ 8bit and 16bit fine-tuning
※ Smooth and precise positioning
※ Pan : 540 ° tilt 220 ° rotation
※ The scanning position can be memorized, and it will be reset automatically after no expected operation.
※ Pan and tilt with error correction function
● Colour
. Uniform RGBW color mixing system and rainbow effect
. White balance can be adjusted manually
. LED can be controlled by a single piece to create a more gorgeous chasing effect
. Halo horse race effect
● Specification
. 3 DMX channel modes: 26CH (Basic mode) / 28CH (Stand mode) / 70CH (Extend mode) international standard DMX512 channels
. 4 control modes: DMX512, Artnet, voice control, master-slave
. Spot angle: 5 °
. 0-20HZ strobe, pulse strobe, random strobe effect
. Dimming: 0-100% linear dimming, which can control the change of light and dark of 4 colors and light off at the same time
. 7 halo effects, you can chase, running effect.

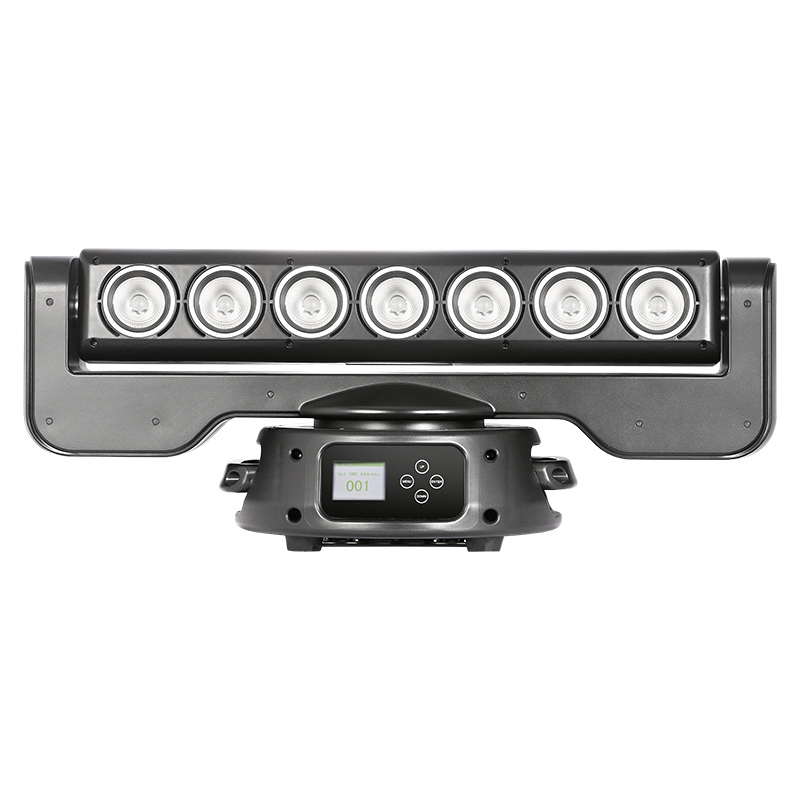

● Display
. 2.4-inch TFT color display
. High anti-interference four-button touch button
. The display board can be reversed by 180 °, which is suitable for installation in unreasonable positions.
● Software
. Software update :Update via DMX link
. Display the light usage time, which is convenient for customers to understand the light usage in time
. LED refresh frequency: 3000Hz
. 4 kinds of dimming curve:Linear Dimmer、Sqaure Dimmer、.Sqaure Dimmer、S-Curve Dimmer
● Other functions
. Setting and addressing: RDM
. RJ45 input and output
. Fan cooling (fan changes speed with temperature change)
. LED temperature detection system to protect the life of light

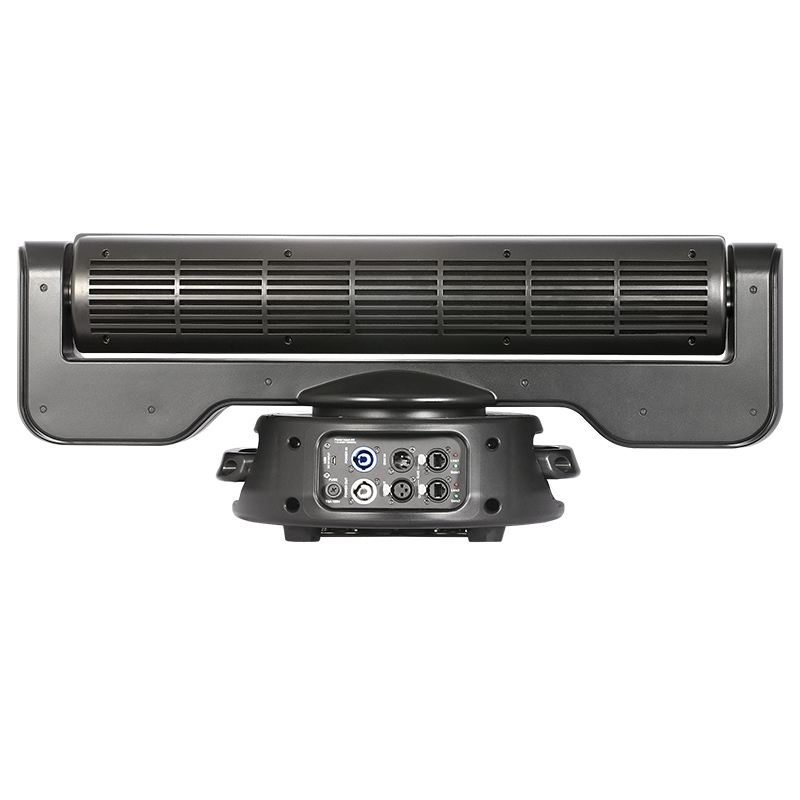

● Power / DMX connection
. Power connection: PowerCON power line input and output
. DMX XLR socket t: 3 Pin XLR socket input, output
● Power supply
. AC100-240V 50 / 60HZ
. Power consumption : 380W
● Protection class
. Housing material: ABS plastic fireproof material
. Waterproof level: IP20
● Working environment
. Indoor working temperature: -20 ° C～+ 40 ° C
● Size and weight
. Packing size: 935x370x360mm
. Net weight: 17KG
. Gross weight: 20KG
● Certification
. CE,ROHS
