It is exquisite design , using 7 x 40W RGBW LED as source, white color temperature 2700K ~ 6500K, 4 ° ~ 60 ° linear zoom, independent LED point control, RGBW color mixing, built-in color, strobe effect, perfect 16 bit dimming, flicker-free output, suitable for flicker-free video shooting, super fast and silent pan, tilt rotation speed, in addition to DMX control, there is a powerful RDM control and ArtNet network control technology.
● Optics
. LED type: 7x40W 4 in 1 RGBW LED, uniform and delicate color mixing effect

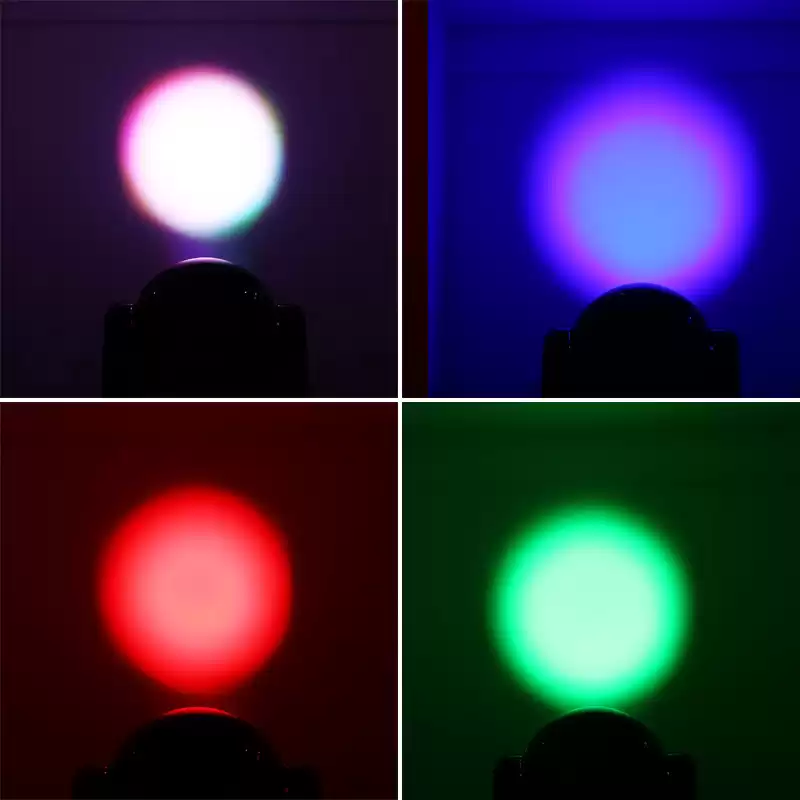

. Beam angle: 4-60 °
. Lens: 145mm high brightness PMMA lens
. Full brightness 5 meters Illumination 18000lux @ 4 °

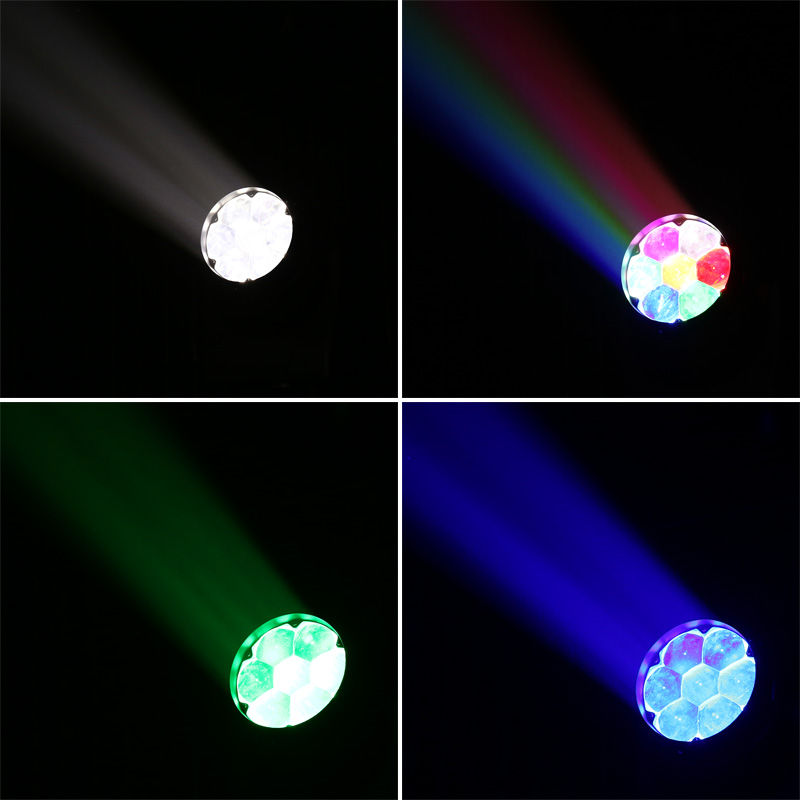

. Excellent color mixing effect and rainbow effect
. LED can be controlled separately, with chase and running effects.
. Life: 50000H, low power consumption, energy saving and environmental protection
● Scanning
. Pan / Tilt operation:：
※ 16bit fine-tuning
※ Smooth and precise positioning
※ Pan : 540 ° or 640 °, tilt220 °
※ Adjustable pan and tilt speed
※ The scan position can be memorized, and it will be reset automatically after no expected operation.
※ Pan and Tilt error correction
● Color

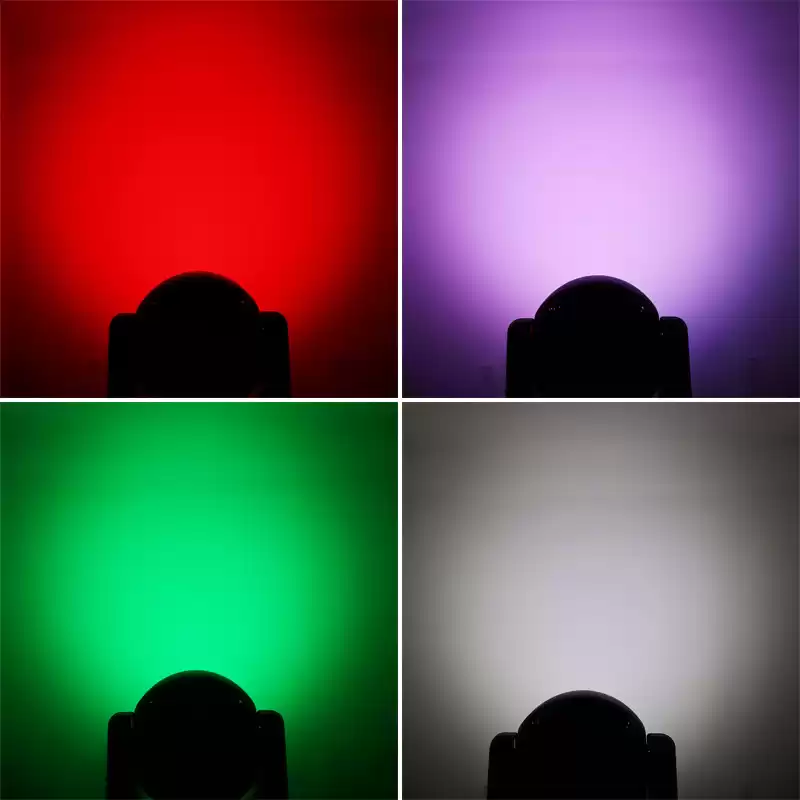

. Uniform RGBW color mixing system and rainbow effect
. White balance can be adjusted manually
● Specification
. 4 DMX channel modes: 19CH / 27CH / 45CH / 55 international standard DMX512 channels
. 4 control modes: DMX512, Artnet, voice control, master-slave
. Beam angle: 4-60 ° Zoom
. Strobe effect :Puls Random、Ramp up Random、Ramp down Random、Random strobe、Strobe Breakeffect, 5s…..1s、Strobe0-20Hz
. Dimming: 0-100% 16bit dimming, which can control the light and dark change and close light of 4 colors at the same time
● Display

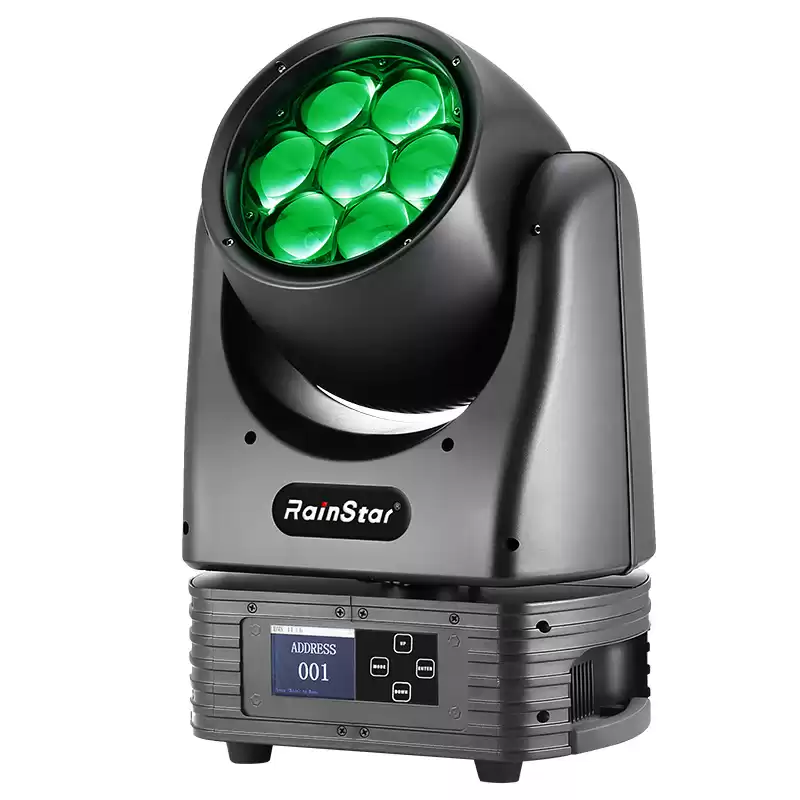

. 2.4-inch TFT color display
. High anti-interference four-button touch button
. Display board can be 180 ° inverted, suitable for installation in different positions
● Software
. Software update :Update via DMX link
. Display the use time of the lamp, so that customers can understand the use of the lamp in time
. LED refresh frequency: 800Hz / 1200/2000/3600 / 25000hz optional
. 4 kinds of dimming curve:Linear Dimmer、Sqaure Dimmer、.Sqaure Dimmer、S-Curve Dimmer
. Dimmer mode: 2 kinds.(LED and Halogen)
● Other functions
. Setting and addressing: RDM
. ArtNet control: RJ45 input and output
. Fan cooling (fan changes speed with temperature change)
. LED temperature detection system to protect the life of the LED

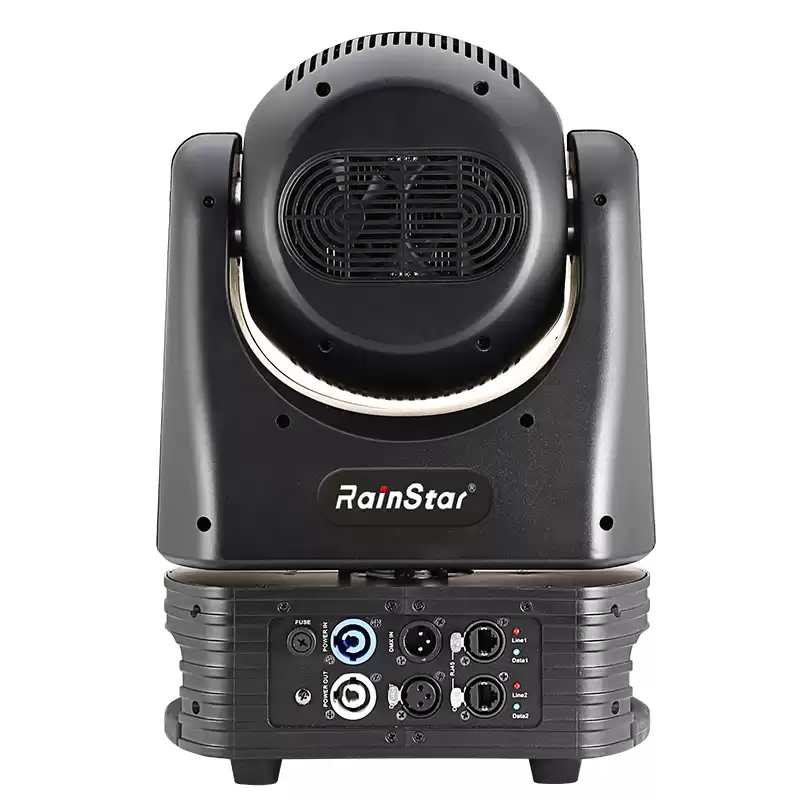

● Power / Signal connection
. Power connection: PowerCON power line input and output
. DMX card dragon seat: 3 Pin card dragon seat input, output
● Power
. AC100-240V 50 / 60HZ
. Power consumption: 320W
● Protection class
. Housing material: ABS plastic fireproof material
. Waterproof rating: IP20
● Working environment
. Indoor working temperature: -20 ° C ～ + 40 ° C
● Size/weight
. Packing size: 350x265x540mm
. Net weight:9.5kg
. Gross weight:10.8kg
● Certification
. CE,ROHS
