8" 800x600 Resolution Capacitive Resistive Touch IPS TFT LCD

Basic Info.


Resolution 800x600 Interface SPI
Control IC ST7796S AA 121.5x162mm
Backlight White LED Brightness 450cd/m2
Connector FPC View Angle IPS/TN
Operating Temp. -20°~70°C Operating Vol. 2.8V
Touch Panel Capacitive/Resistive Environmental Protection RoHS HSF
Origin China Trademark Jinhua
Transport Package Carton/Pallet HS Code 853120000
Productivity 600000 pcs/month MOQ 1000 pcs, negotiable




8" 800x600 Resolution Capacitive Resistive Touch IPS TFT LCD



It is a 8" TFT LCD display with 800x600 resolution equipped with either capacitive touch or resistive touch.

The brigthness of TFT LCD display could reach 400 cd/m2 normally, some could even reach over 1000 cd/m2 which to be applied to outdoors ambient.



Middle Size TFT Screen
Product Parameters
Display Type TFT Display
Display Size 8 Inch
View Angle IPS/TN
Resolution 800x600
AA 121.5x162mm
Backlight Color White LED
Brightness 450cd/m2
Interface I2C/SPI/MIPI/LVDS/RGB/MCU/UART
Control IC ST7796S
Connector FPC
Operating Temperature -20-70°C
Operating Voltage 2.8V
Touch Panel Capacitive/Resistive
Requirements On Environmental Protection ROHS HSF

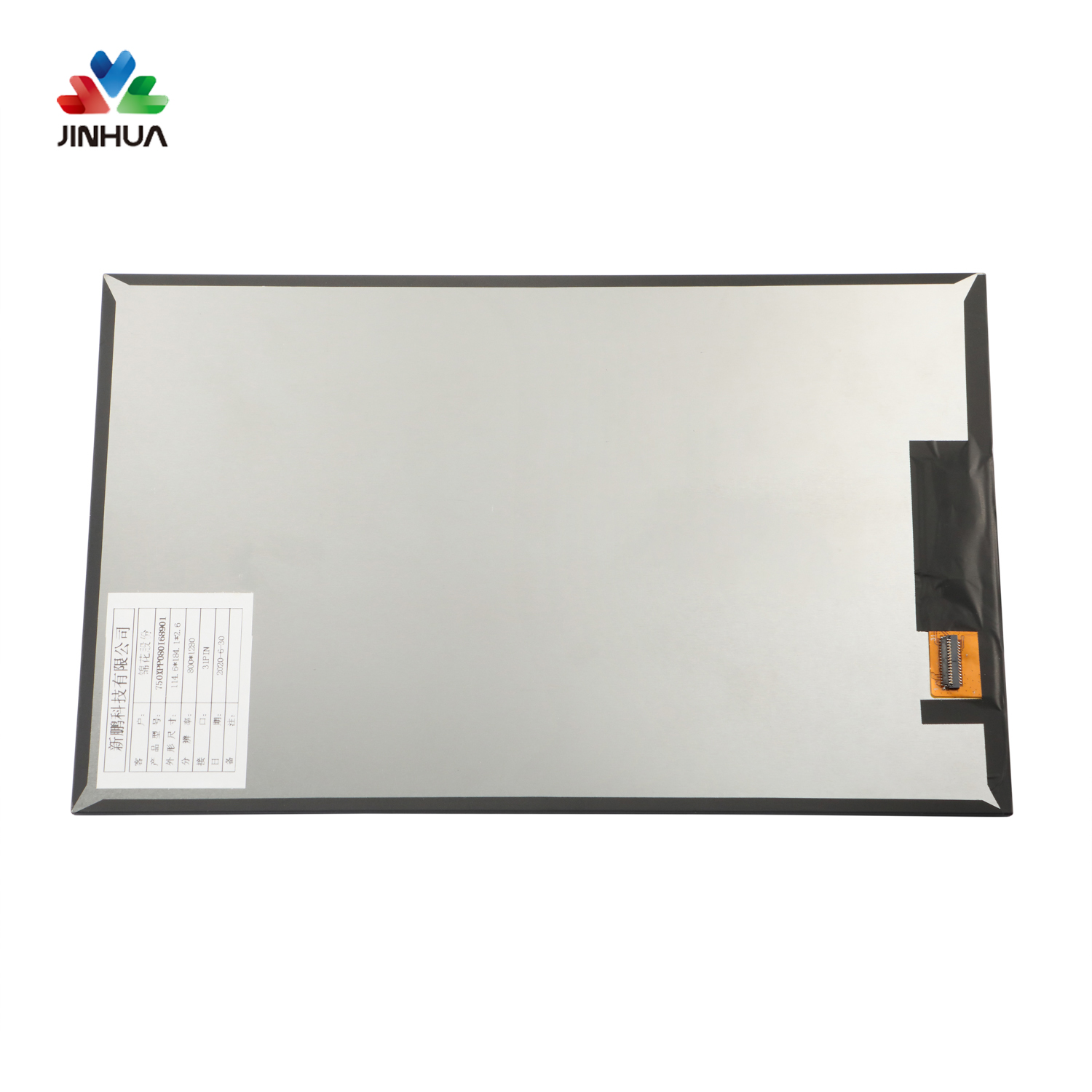

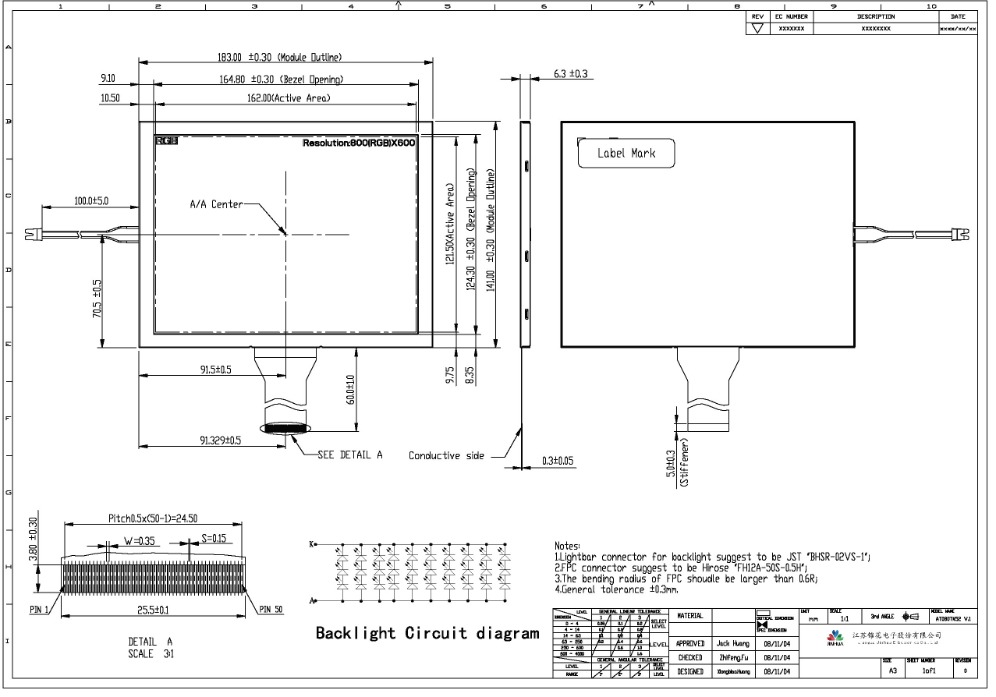

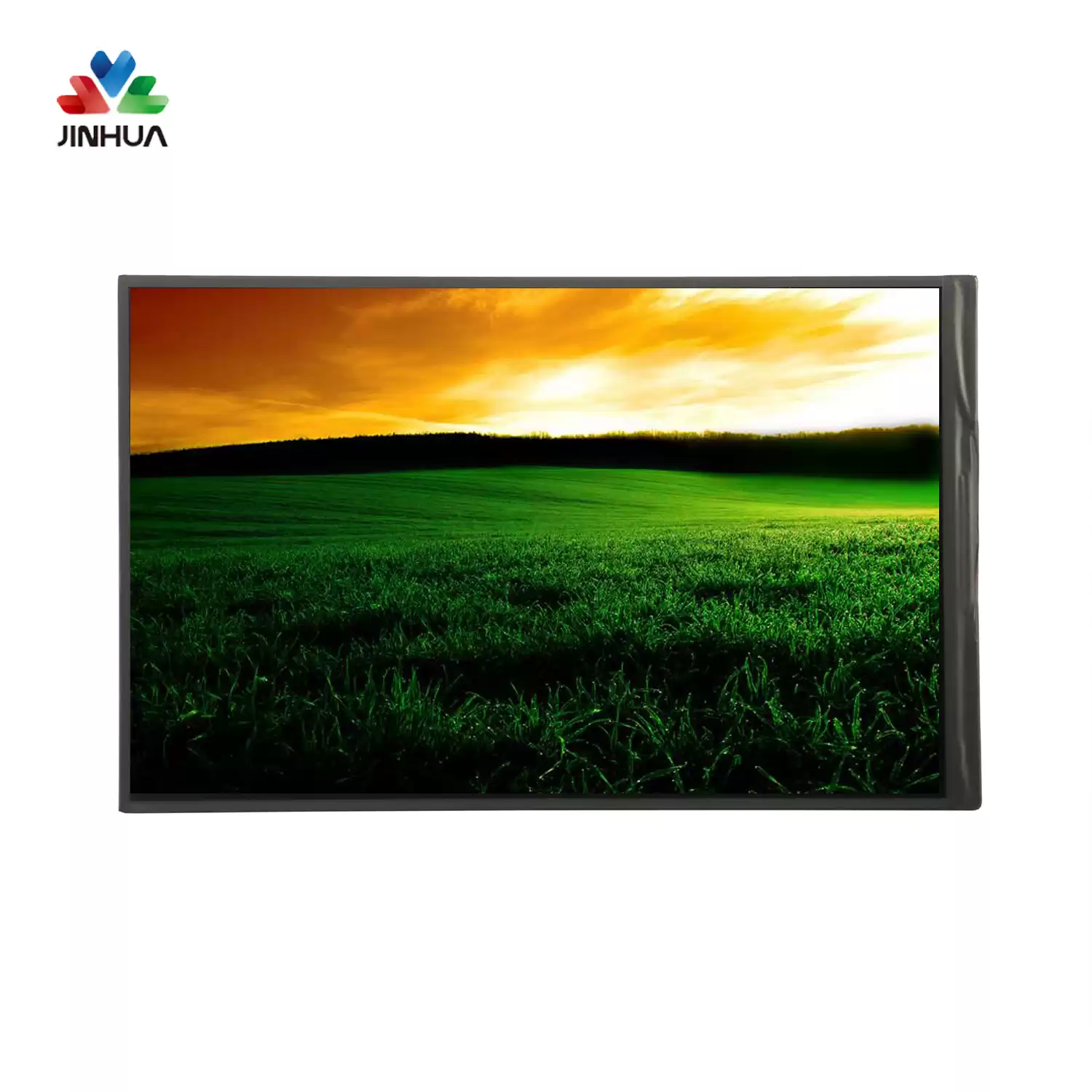

Detailed Picture


Features

Δ          Wide Viewing Angle
Δ          All Kinds Of Emitted Colors And Size
Δ          I.C. Compatible
Δ          Low Power Consumption
Δ          Long Lifespan
Δ          RoHS Compliant
Δ          High Luminance
Δ          Wide Range Working Temperature



Application

TFT Display comes with different types of interface such as I2C, SPI, UART for small size tft lcd and MCU, RGB, MIPI, LVDS for middle and large size tft display module. This makes it possible that tft displays are able to be used in all kinds of application such as instrument & meter, converstion terminal, smart phone, smart medical, smart hardware, face recognition, etc.


Production Line And Equipment

Company Profile

Why Choose Us

1. Your inquiry for our products or prices will be replied in 24 hours.
2. We offer the OEM and ODM service, and we have been in this field for 20 years.
3. Protection of your sales area, ideas of design and all your private information.
4. We gurantee both quality and service regardless of your big or small order.
5. Advanced equipment and good materials:ASM machine,good chips and epoxy resin.

FAQ

Q1:Are you a factory or trading company?
A1:We are a factory with 20 years experience in this field. And we provide OEM&ODM services.
Q2:Can I get a sample?
A2: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3: How do you ship the goods and how long does it take arrive?
A3: We usually ship by UPS, DHL, EMS, FEDEX or TNT. It usually takes 3-7 days.
(The freight for sample delivery is at receiver's side; For saving the cost, we recommend the way of prepaid instead of collect.)
Q4:Where is your location?
A4: Our Headquarter located in Nanjing city, Jiangsu Province, a beautiful city with more than 3000 years of history.
Q5.What is the delivery time?
A5.Normally it takes 20-45days after receiving your payment,but it could be negotiated based on your order quantity and our production schedule.
