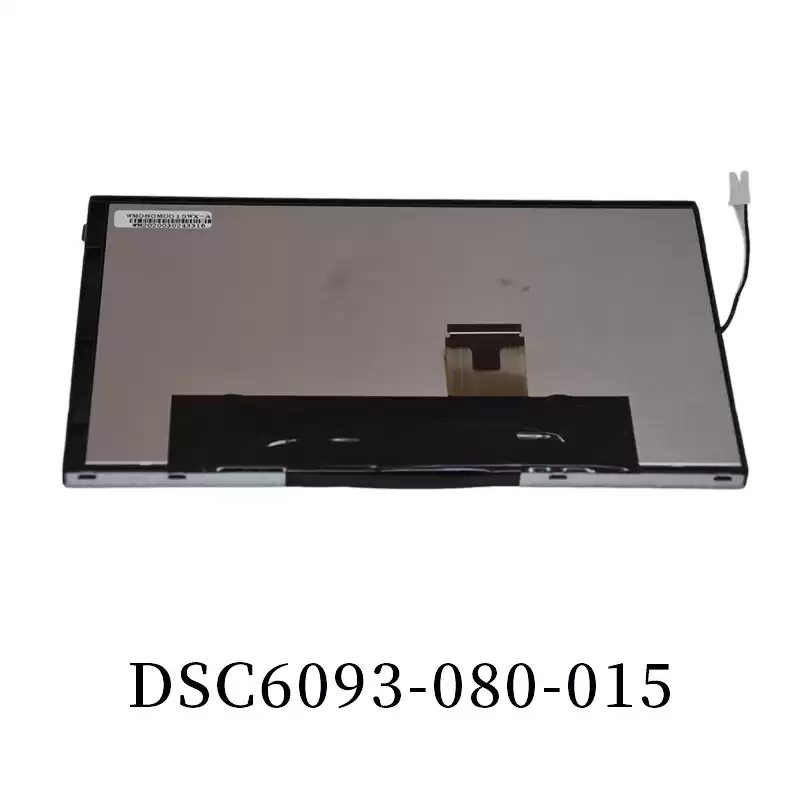

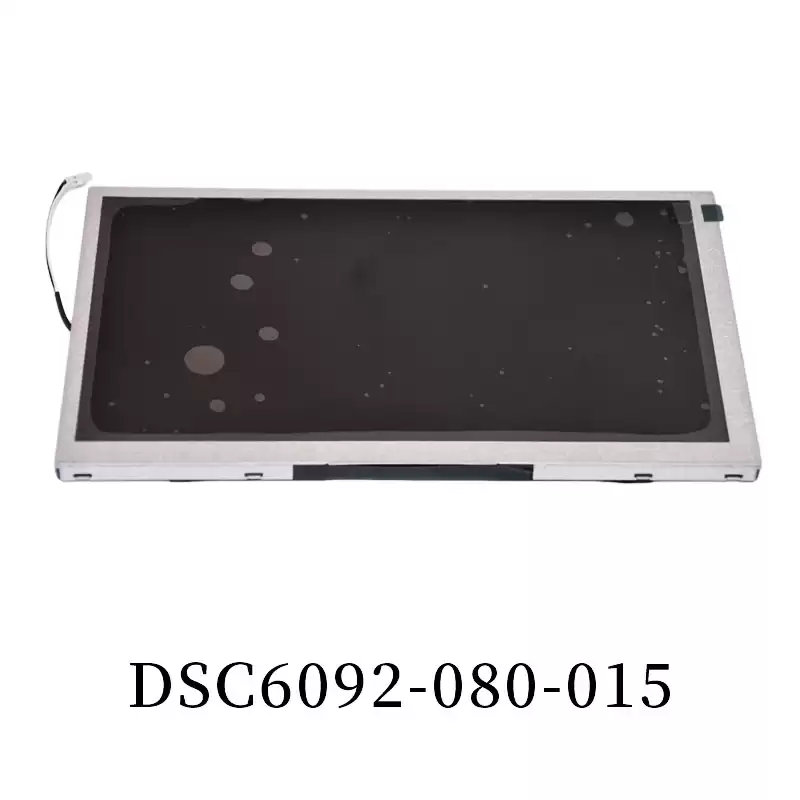

8.0 Inch IPS 1280(RGB)*720 LCD module 1000 nits brightness

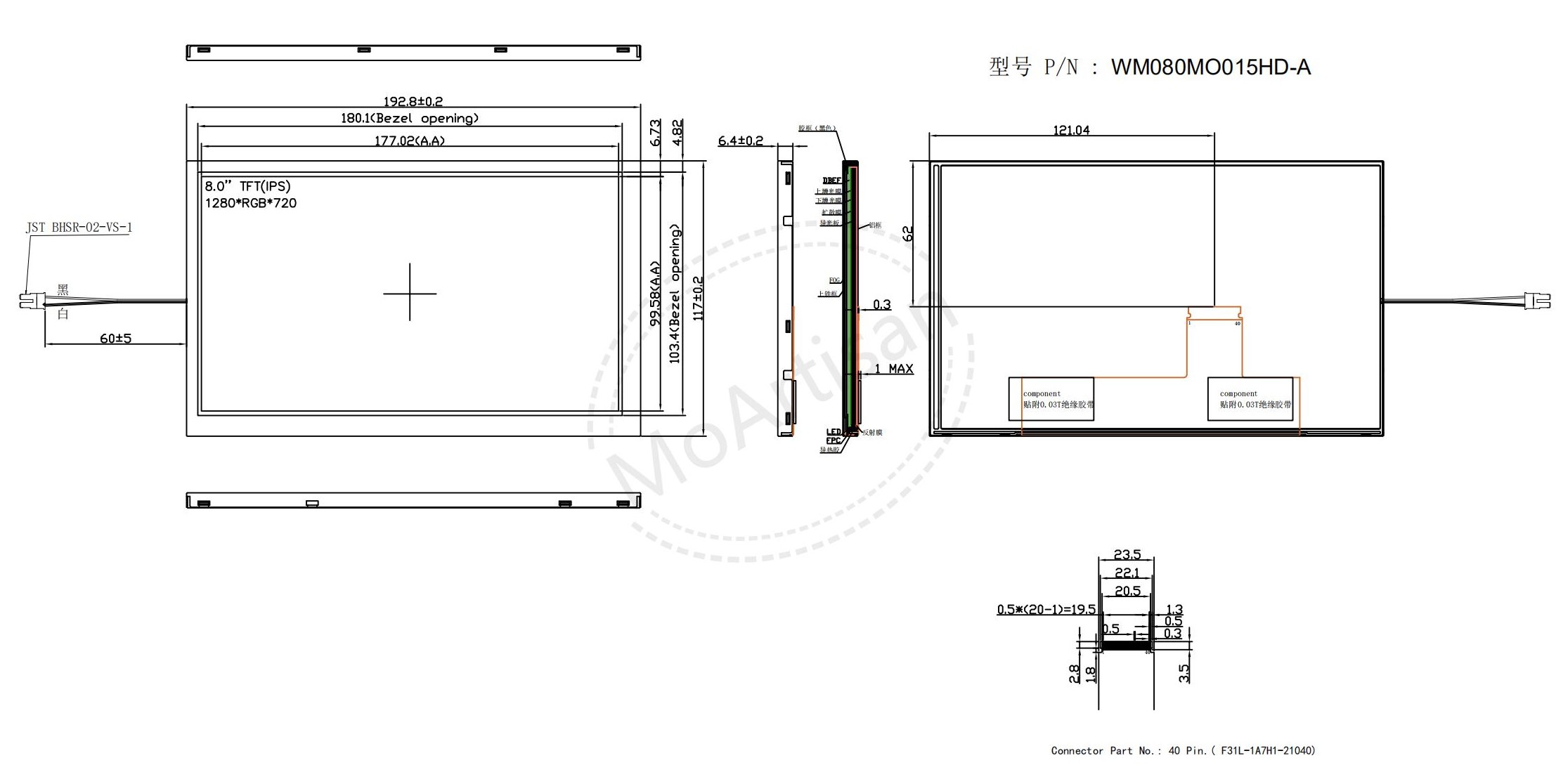

Production Drawings
WM080MO015WX-A Introduction
-
An 8.0 (16:9) inch
diagonally measured active display area.
-
WXGA (1280 horizontal by 720
vertical pixel) resolution.
-
8.0 inch IPS LCD module with 1000 nits brighness and 1000 contrast ratio.
-
Operating temperature -30~+90 °C by test.
-
40 PIN FPC, LVDS interface.
-
Operating survival for 240 hours at 85 degrees Celsius and 85 percent humidity.
|
|
About Part Number
WM020MO001QV-A: WM---Brand Abbreviation; 020---Display Inch; MO---Module;
MR---Module+RTP; MC---Module+PCAP; MP---Module+PCB; CP---Moudule+PCAP+PCB…;
001---Serial Number; QV/WV/WX/XG…---Format Solution; A/B/C...---Versions
|
|
|
Size
|
Description
|
LCM Outline
mm
|
LED L/T (Hrs)
|
Interface
|
Brightness/CR
|
Temperature
Range (°C)
|
Viewing Angle
U/D/L/R
|
LCM P/N
|
|
8.0
|
WXGA, 1280RGB*720, IPS, landscape view screen, high brighness
|
192.8*116.9*6.4
|
10X3 LED (50K)
|
40 PIN FPC, 8-Bit, LVDS
|
1000nits/1000
|
Topa: -30~+90
Tstg: -30~+90
|
85/85/85/85
|
WM080MO015WX-A
|
Production Applications
Automobile, GPS, Personal Navigation Device, Multimedia applications and Others AV system.
Production Customized
It can be modified according to customer requirements.
Lead time for sample: 3~4
weeks.
Notes:
This LCM is getting a lot of attention, because of displaying normally when the ambient temperature reaches 90 degrees Celsius.
