8.0 Inch vertical screen 800(RGB)*1280 LCD module

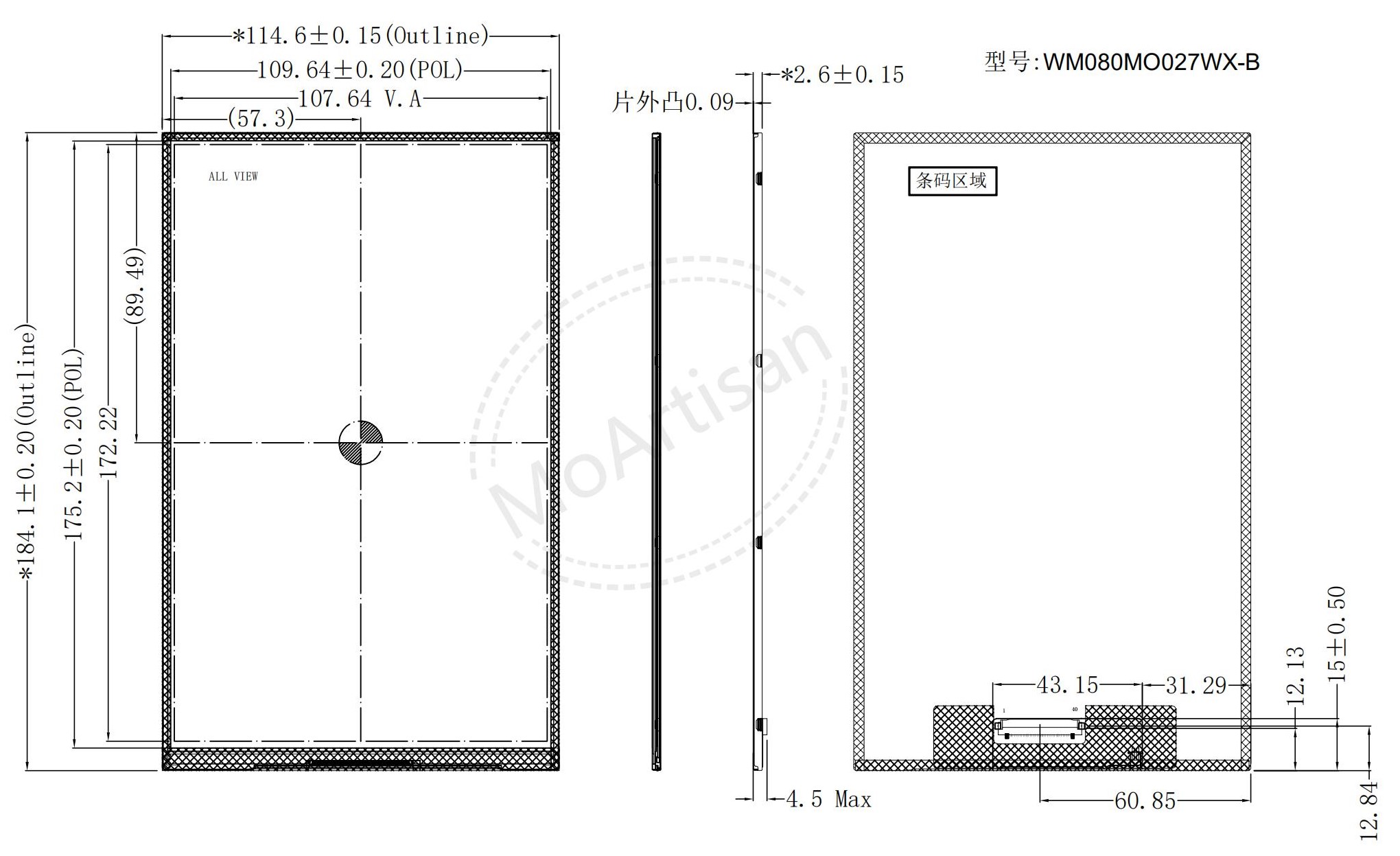

Production Drawings
WM080MO027WX-B Introduction
-
An 8.0 (10:16) inch
diagonally measured active display area.
-
WXGA (800 horizontal by 1280
vertical pixel) resolution, portrait view screen.
-
8.0 inch WXGA vertical LCD module with 450 nits brighness.
-
40 PIN CON, MIPI.
|
|
About Part Number
WM020MO001QV-A: WM---Brand Abbreviation; 020---Display Inch; MO---Module;
MR---Module+RTP; MC---Module+PCAP; MP---Module+PCB; CP---Moudule+PCAP+PCB…;
001---Serial Number; QV/WV/WX/XG…---Format Solution; A/B/C...---Versions
|
|
|
Size
|
Description
|
LCM Outline
mm
|
LED L/T (Hrs)
|
Interface
|
Brightness/CR
|
Temperature
Range (°C)
|
Viewing Angle
U/D/L/R
|
LCM P/N
|
|
8.0
|
WXGA, 800RGB*1280, IPS, portrait view screen, MIPI
|
114.6*184.10*2.6
|
8X3 LED (50K)
|
40 PIN Con, 8-Bit, MIPI
|
450 nits/800
|
Topa: -20~+70
Tstg: -30~+80
|
80/80/80/80
|
WM080MO027WX-B
|
Production Applications
Mobile NB, Digital photo frame, Personal Navigation Device, Multimedia applications and Others AV system.
Production Customized
It can be modified according to customer requirements.
Lead time for samples: 3~4
weeks.
Notes:
This a normal LCM.
