8.0 Inch TFT 800(RGB)*480 LCD module with a PCAP，or a RTP

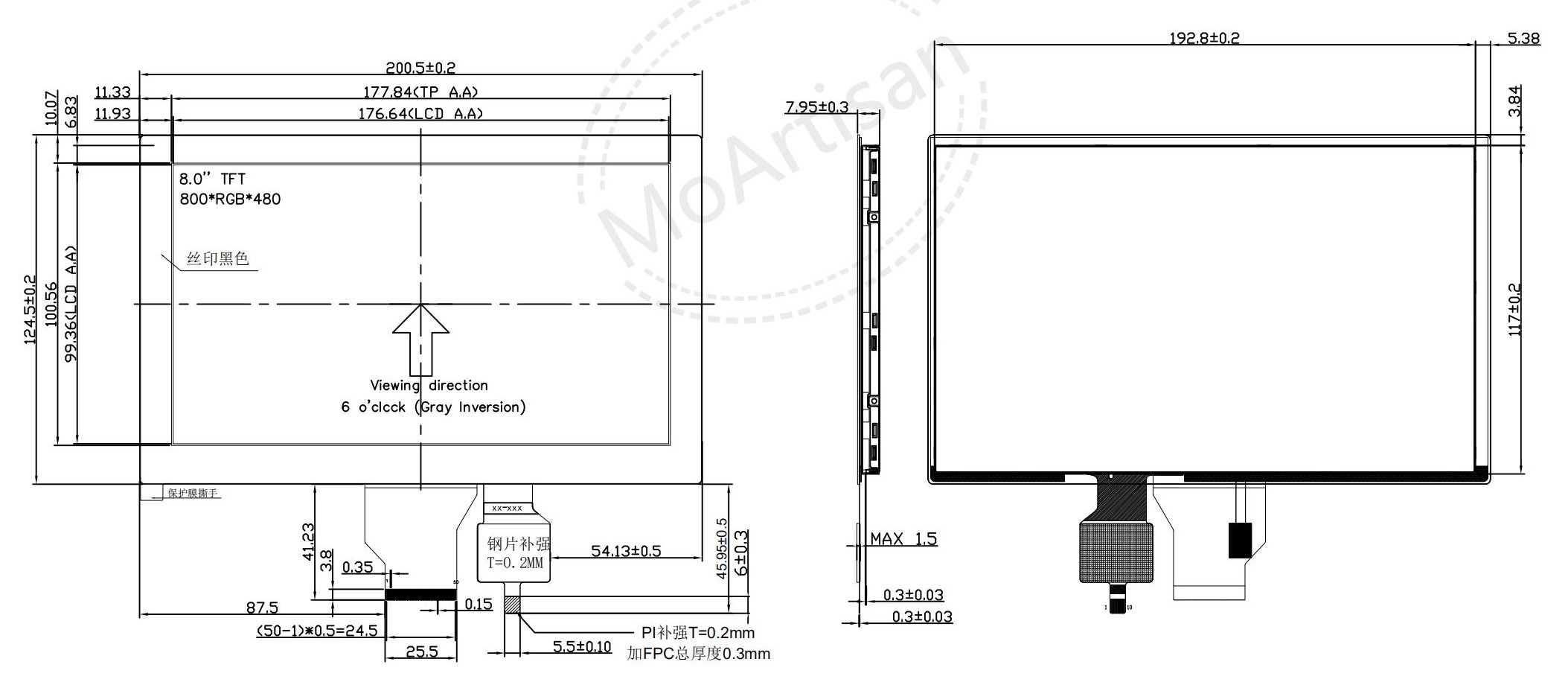

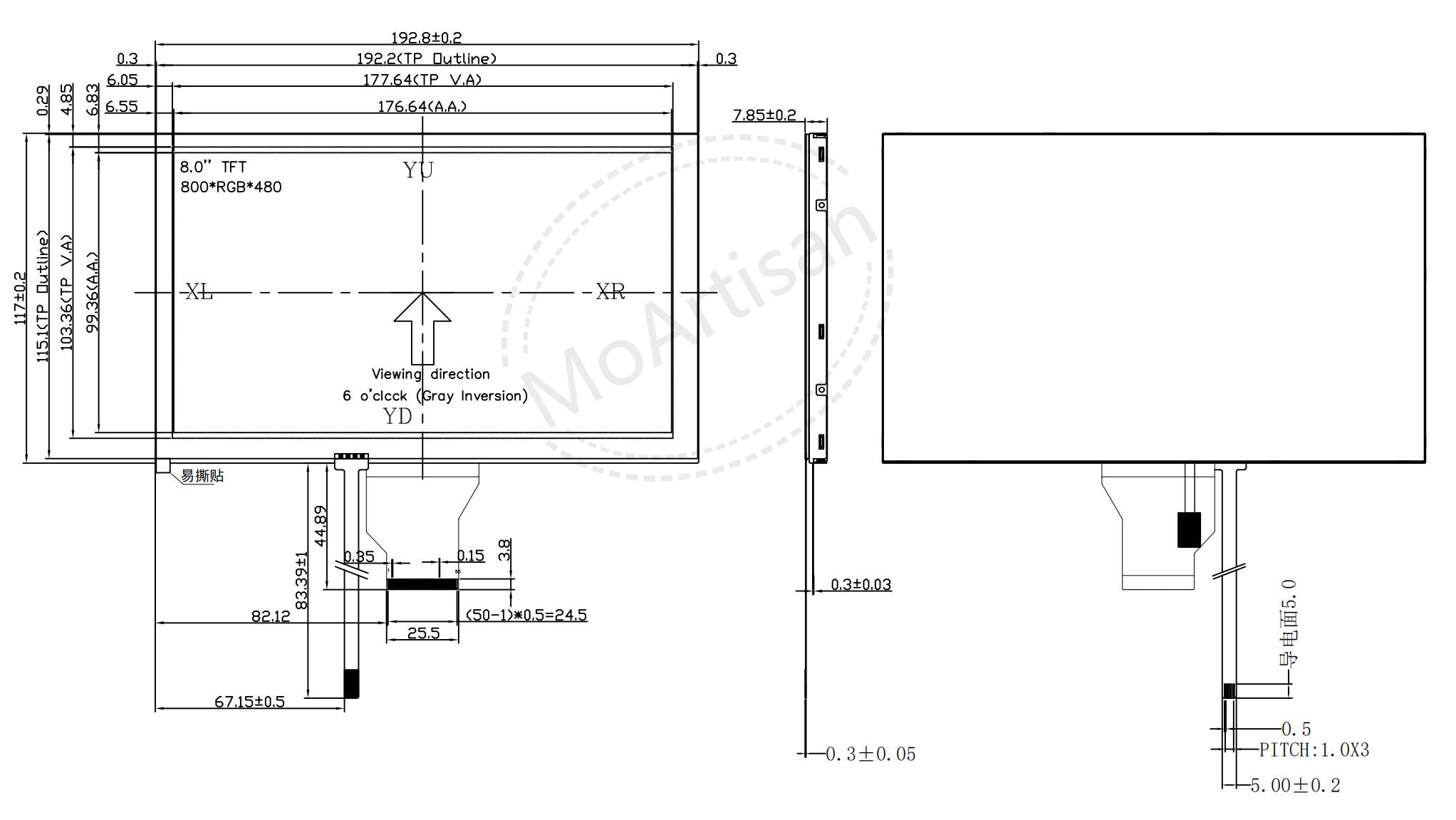

Production Drawings
WM080MC009WV-A Introduction
-
An 8.0 (15:9) inch
diagonally measured active display area.
-
WVGA (800 horizontal by 480
vertical pixel) resolution.
-
8.0 inch TN LCD module with 400 nits brightness.
-
This display module is optically assembled a PCAP with G6.2 OCA.
-
50 PIN FPC, 24-bit RGB interface.
-
WM080MR009WV-A can be assembled a RTP with frame bonding.
|
|
About Part Number
WM020MO001QV-A: WM---Brand Abbreviation; 020---Display Inch; MO---Module;
MR---Module+RTP; MC---Module+PCAP; MP---Module+PCB; CP---Moudule+PCAP+PCB…;
001---Serial Number; QV/WV/WX/XG…---Format Solution; A/B/C...---Versions
|
|
|
Size
|
Description
|
LCM Outline
mm
|
LED L/T (Hrs)
|
Interface
|
Brightness/CR
|
Temperature
Range (°C)
|
Viewing Angle
U/D/L/R
|
LCM P/N
|
|
8.0
|
WVGA, 800RGB*480, TN, 6 O'clock, landscape view screen, PCAP, or RTP
|
200.5*124.50*7.95
192.8*116.95*7.85
|
10X3 LED (50K)
|
50 PIN FPC, 24-Bit, RGB
|
400 nits/500
|
Topa: -20~+70
Tstg: -30~+80
|
50/70/70/70
|
WM080MC009WV-A
WM080MR009WV-A
|
Production Applications
Mobile NB, GPS, Personal Navigation Device, Multimedia applications and Others AV system.
Production Customized
This kind of product can
be customized.
Lead time for samples: 3~4
weeks.
