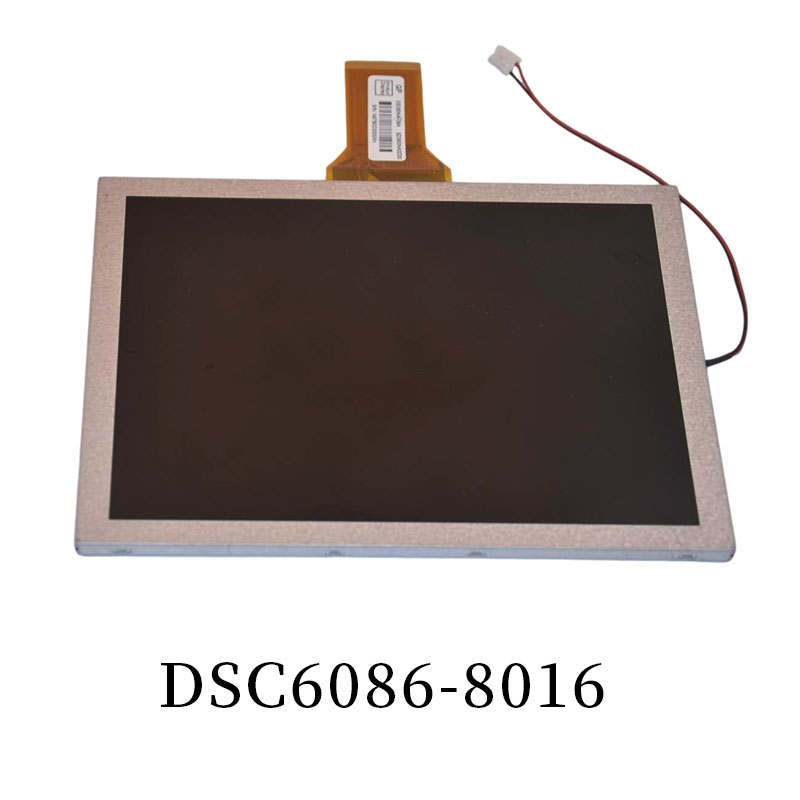

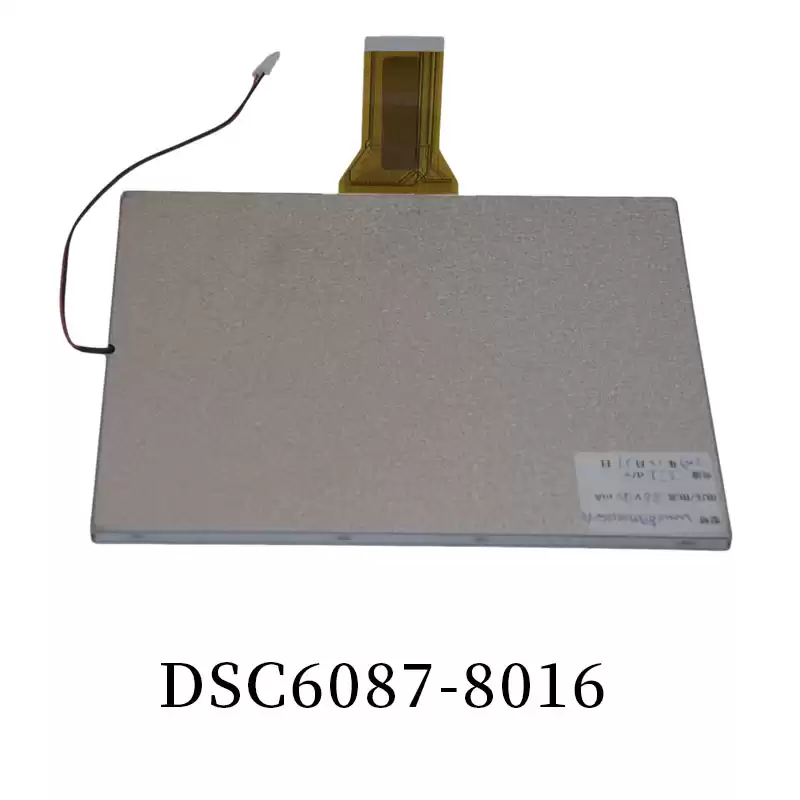

8.0 Inch TFT 800(RGB)*600 LCD module with 300 nits brightness

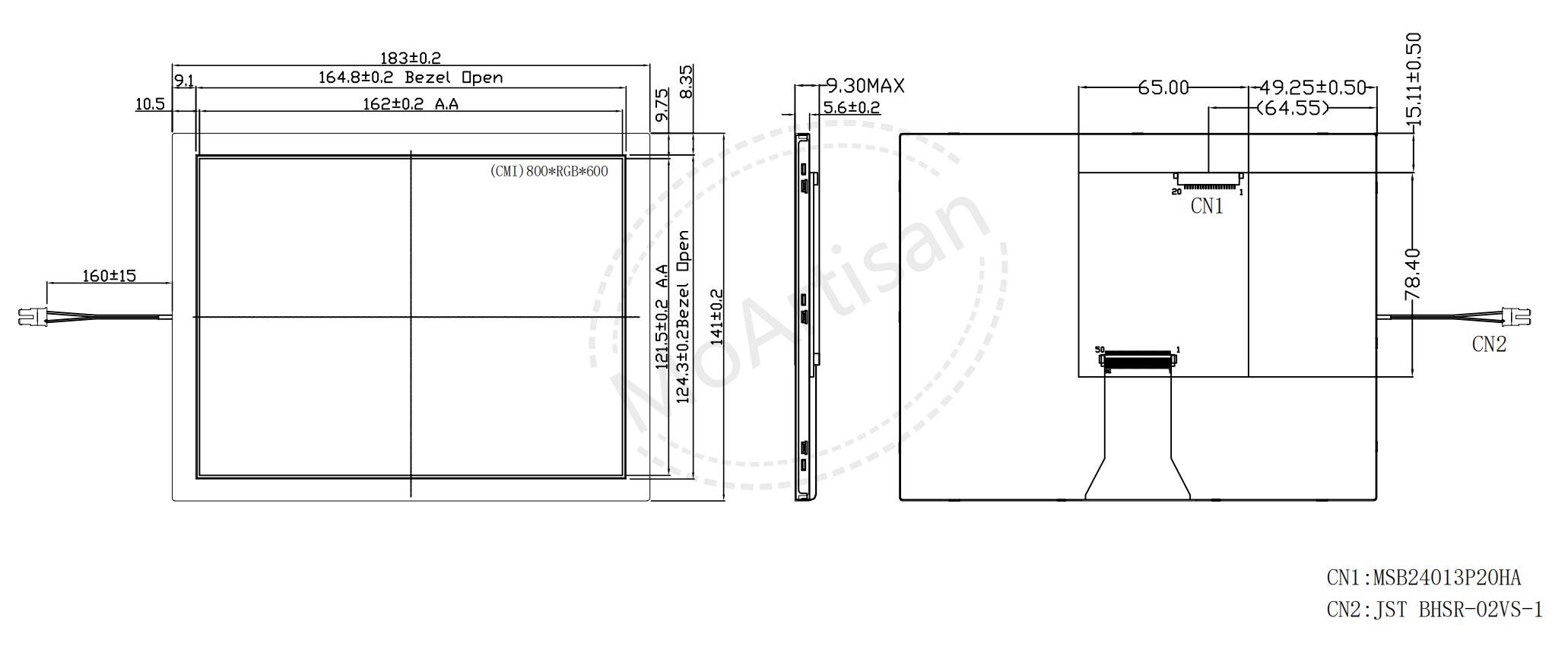

Production Drawings
WM080MP016SV-A Introduction
-
An 8.0 (4:3) inch
diagonally measured active display area.
-
WVGA (800 horizontal by 600
vertical pixel) resolution.
-
LCD module with 300 nits brightness.
-
interface invert board.
-
20 PIN FPC, LVDS interface.
-
|
|
About Part Number
WM020MO001QV-A: WM---Brand Abbreviation; 020---Display Inch; MO---Module;
MR---Module+RTP; MC---Module+PCAP; MP---Module+PCB; CP---Moudule+PCAP+PCB…;
001---Serial Number; QV/WV/WX/XG…---Format Solution; A/B/C...---Versions
|
|
|
Size
|
Description
|
LCM Outline
mm
|
LED L/T (Hrs)
|
Interface
|
Brightness/CR
|
Temperature
Range (°C)
|
Viewing Angle
U/D/L/R
|
LCM P/N
|
|
8.0
|
SVGA, 800RGB*600, TN, 3 O'clock, 4:3 Screen, Interface invert board
|
184*141*5.6
|
9X3 LED (50K)
|
20 PIN FPC, 6-Bit, LVDS
|
300 nits/500
|
Topa: -20~+70
Tstg: -30~+80
|
70/70/50/70
|
WM080MP016SV-A
|
Production Applications
Industrial appliance, Personal Navigation Device, Multimedia applications and Others AV system.
Production Customized
This kind of product can
be customized.
Lead time for sample: 3~4
weeks.
Notes：
This is a traditional industrial application liquid dispaly module.
For the convenience of uses, it is added circuit board, transmission conversion and power interface.
