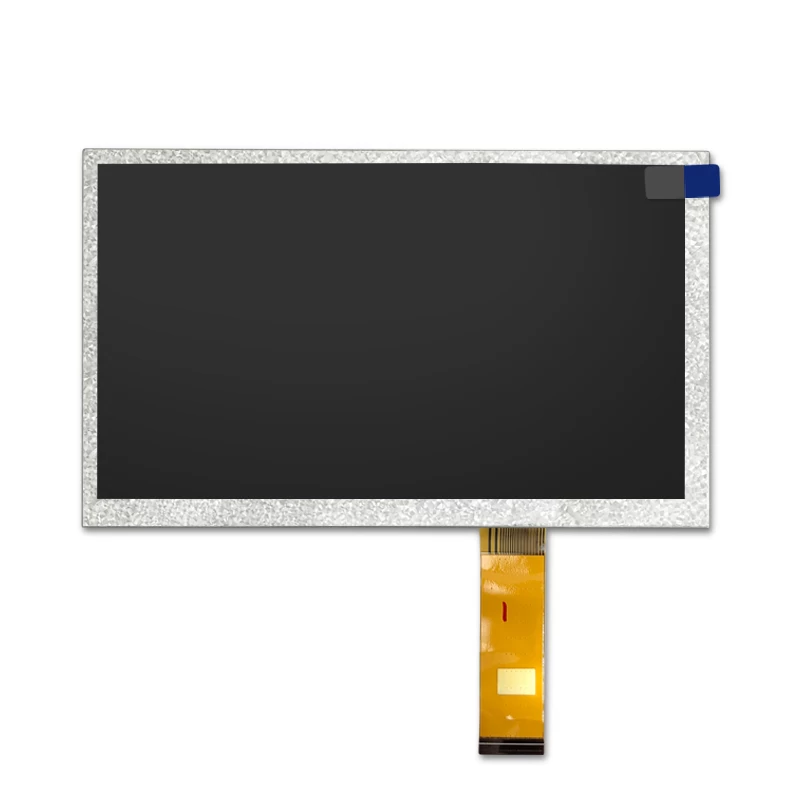

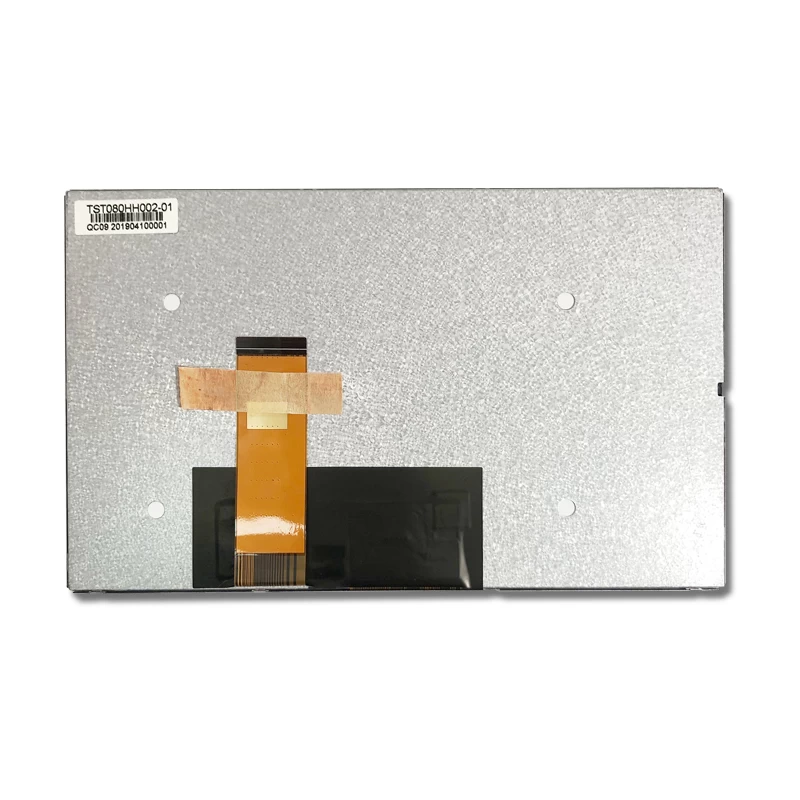

8” color TFT LCD 1024x600 high resolution LCD module
|
Specification
|
|
Part No.
|
TST800MIXH-01, 8 inch lcd panel
|
|
Outline Dimension(mm)
|
164.9x100.0x6.7
|
|
Display Area(mm)
|
154.08x85.92
|
|
Resolution(dots)
|
WVGA, 1024*RGB*600
|
|
Operating temperature(°C)
|
-20-70
|
|
Storage temperature(°C)
|
-30-80
|
|
Number of Pixel(pixels)
|
1024RGB(H)xRGBx600(V)
|
|
Touch panel
|
94% transmittance RTP
|
|
Dot Pitch
|
0.0642(W)x0.1790(H)
|
|
Pixel arrangement
|
RGB Vertical stripe
|
|
Display mode
|
Normal white,Transmissive, 8 inch TFT
|
|
Surface treatment
|
Antiglare
|
|
View direction
|
6H
|
|
Weight(g)
|
TBD
|
|
Power Consumption(w)
|
Panel
|
0.226(Typ.)
|
|
B/L system
|
1.674(Typ.)
|
|
Interface
|
Digital
|
|
Module lifetime(Hours)
|
50,000-100,000
|
