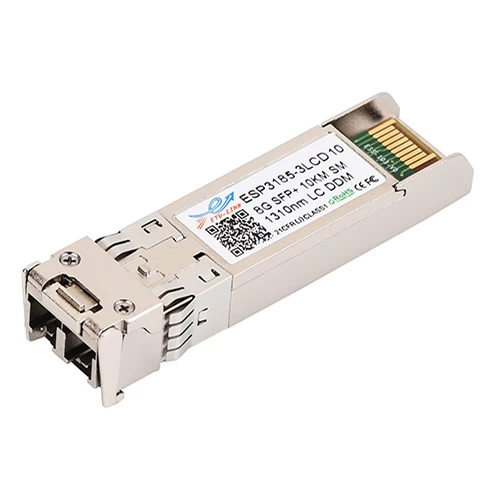

ES3185-3LCD10
8.5Gbps 1310nm 10KM SFP+ Optical Transceiver
Features
Ø Up to 8.5Gb/s bi-directional data links
Ø Hot Pluggable SFP+ footprint
Ø Built-in digital diagnostic functions
Ø 1310nm DFB laser transmitter
Ø Duplex LC connector
Ø Up to 10km at 8.5Gb/s on 9/125um SMF
Ø Single 3.3V power supply
Ø Operating case temperature: 0 to 70℃
Ø RoHS6 compliant (lead free)
Applications
Ø Tri Rate 2.125/4.25/8.5Gbs Fiber Channel
Product description
ETU-Link’s ES3185-3LCD10 SFP+ transceivers are designed for use in Fibre Channel links up to1.4 km at 8.5Gb/s data rate. They are compliant with FCPI-4 Rev. 8.00 and SFF-8472 Rev 10.2 and compatible with SFF-8431. ETU-Link’s ESP3185-3LCD10 Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage. The product is RoHS compliant and lead-free per Directive 2002/95/EC
