Applications:

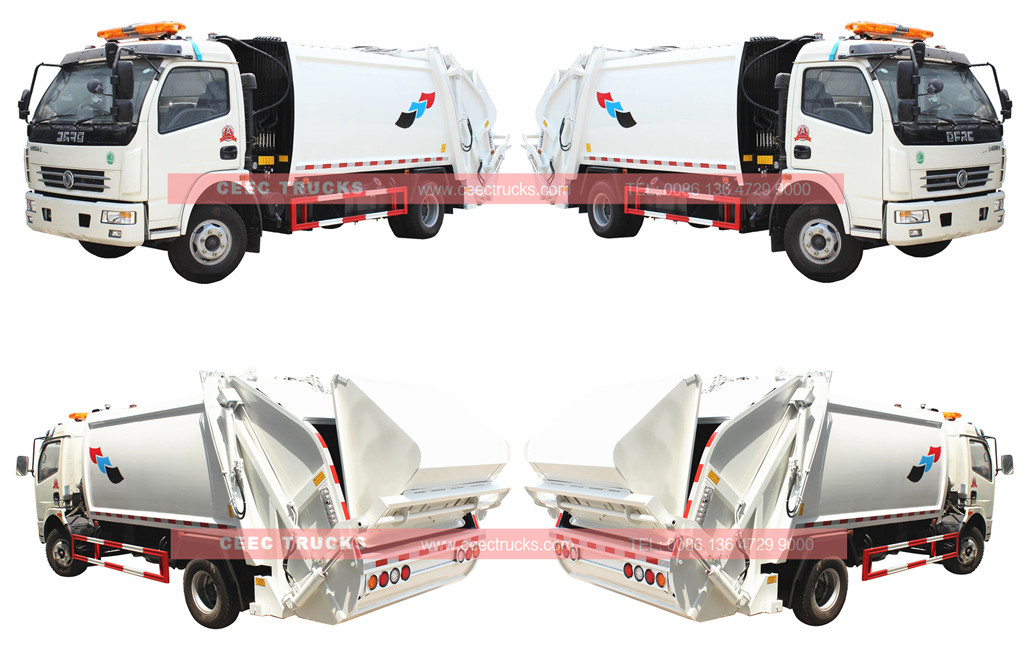

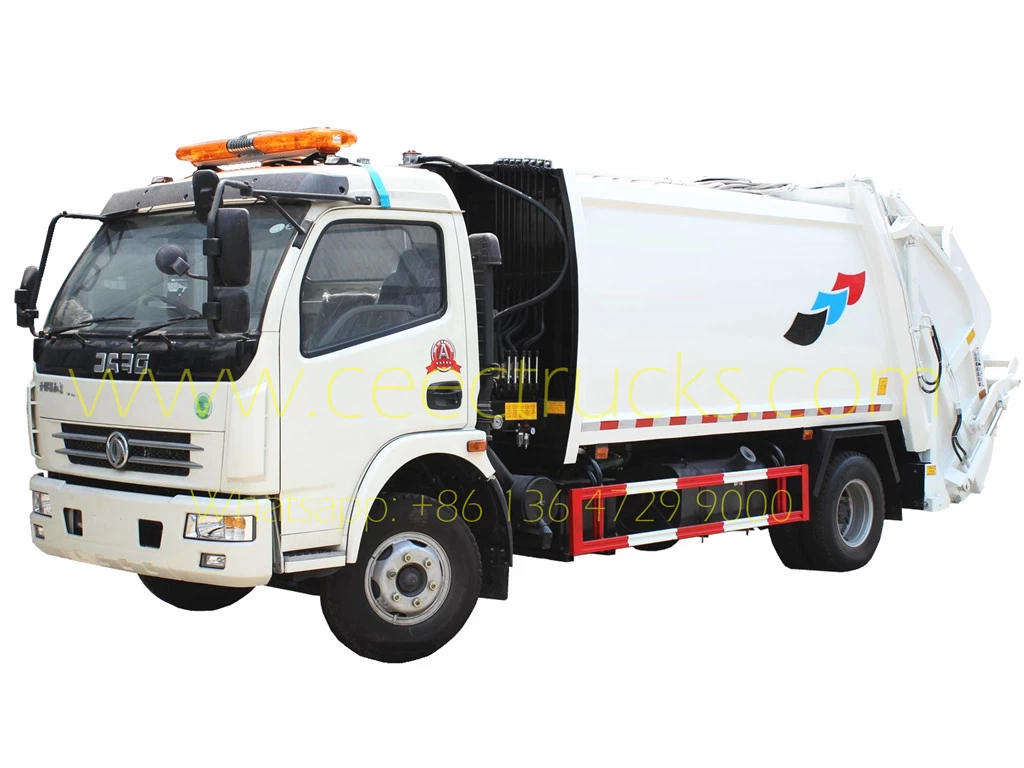

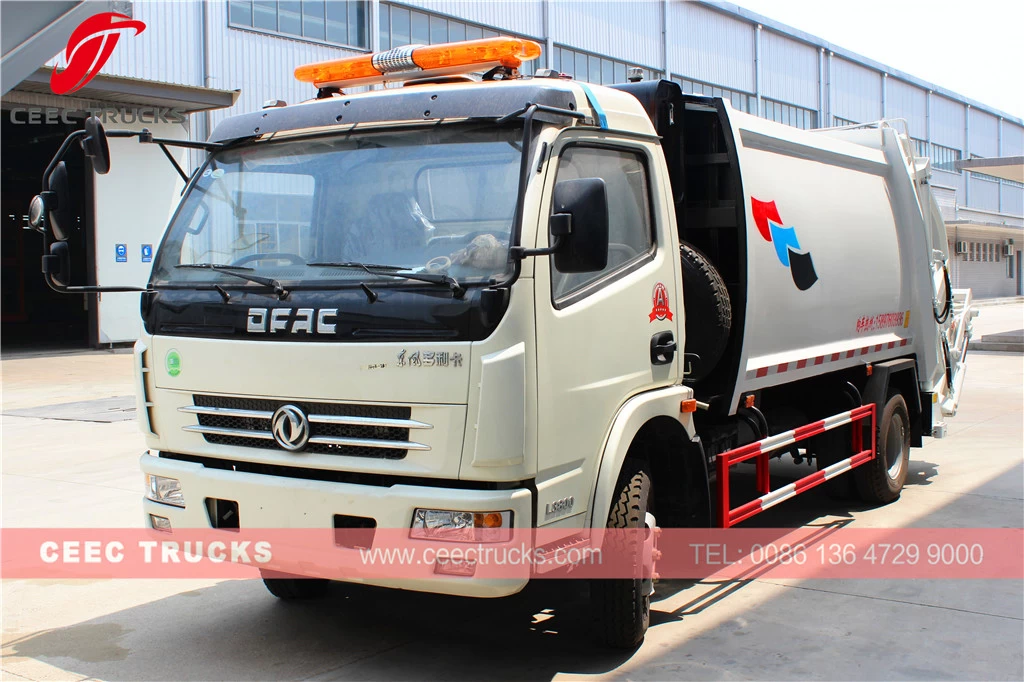

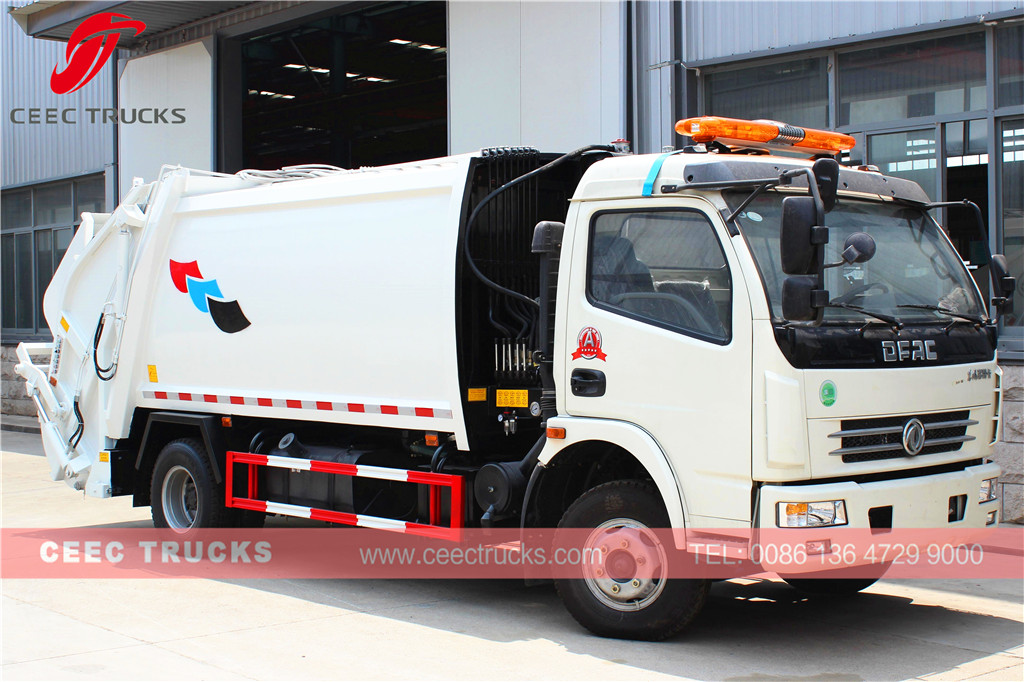

Waste Compressed truck Dongfeng (also called Garbage compressed truck, hydraulic pressing garbage truck, rear loading garbage truck, trash compressor truck, waste collection vehicle) is designed for daily rubbish transport in such living areas as all kinds of cities, large station, port and wharf, airpot, and densely-populated areas like industrial and mineral enterprises and military units.
CEEC TRUCKS waste compactor truck reduces back-and-forth transport times and prevents rubbish and stinks from spreading and avoids second-time pollution produced by polluted water.
The refuse compactor vehicle tail-gas discharge reaches EUROPEAN standard. which is safe and environmental-protective.
Key Features:
---- DONGFENG chassis, perfect performance
---- CHAOCHAI diesel engine, super powerful, no overhaul within 100,000 km.
---- Compression body capacity from 3 to 20 Cublic Meter.
---- Easy operation and easy maintenance.
---- Virious types of refuse container lifter are available.
Specifications:

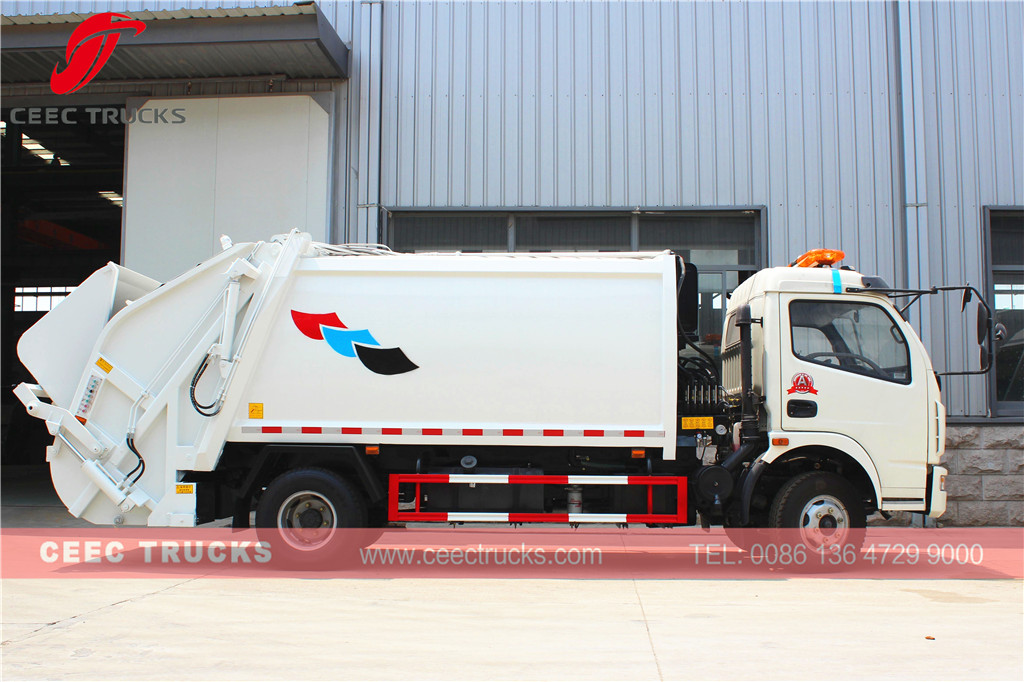

| Dongfeng Garbage compactor truck (8 cbm)
|
| General
|
Vehicle Brand
|
CEEC TRUCKS
|
| Chassis Brand
|
DONGFENG
|

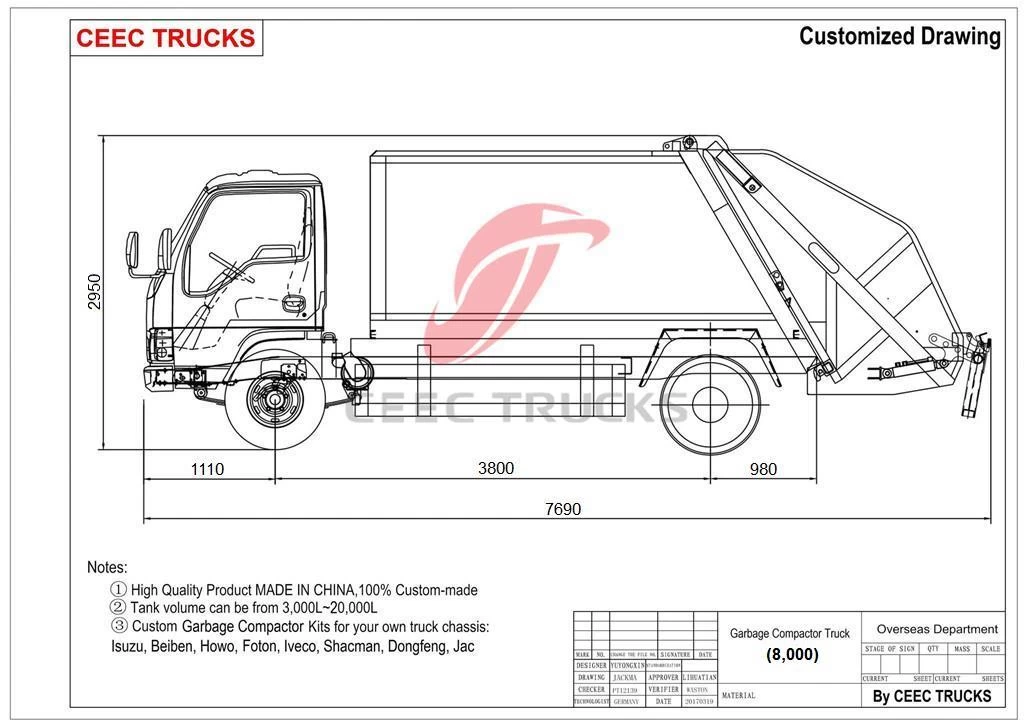

| Overall Dimension
|
7690 * 2200 * 2950 mm
|
| GVW / Kerb Weight
|
9,600kg / 5,000kg
|
| Cab
|
Cab Capacity
|
2 persons allowed
|
| Air Conditioner
|
Heating/cooling air conditioner
|
| Engine
|
Fuel Type
|
Diesel
|
| Engine Brand
|
CHAOCHAI
|
| Power
|
120 HP (88 KW)
|
| Displacement
|
3856 ml
|
| Emission Standard
|
Euro 2 or 3
|
| Chassis
|
Drive Type
|
4X2, (left hand drive)
|
| Transmission
|
Manual 6 speed levers with 1 reverse
|
| Wheelbase/No. of axle
|
3800 mm / 2
|
| Tire Specification
|
8.25-16
|
| Tire Number
|
6 tires and 1 spare tire
|
| Max Speed
|
90 km/h
|
| Paint
|
Metallic paint
|
| Superstructure
|
Body capacity
|
8 cbm
|

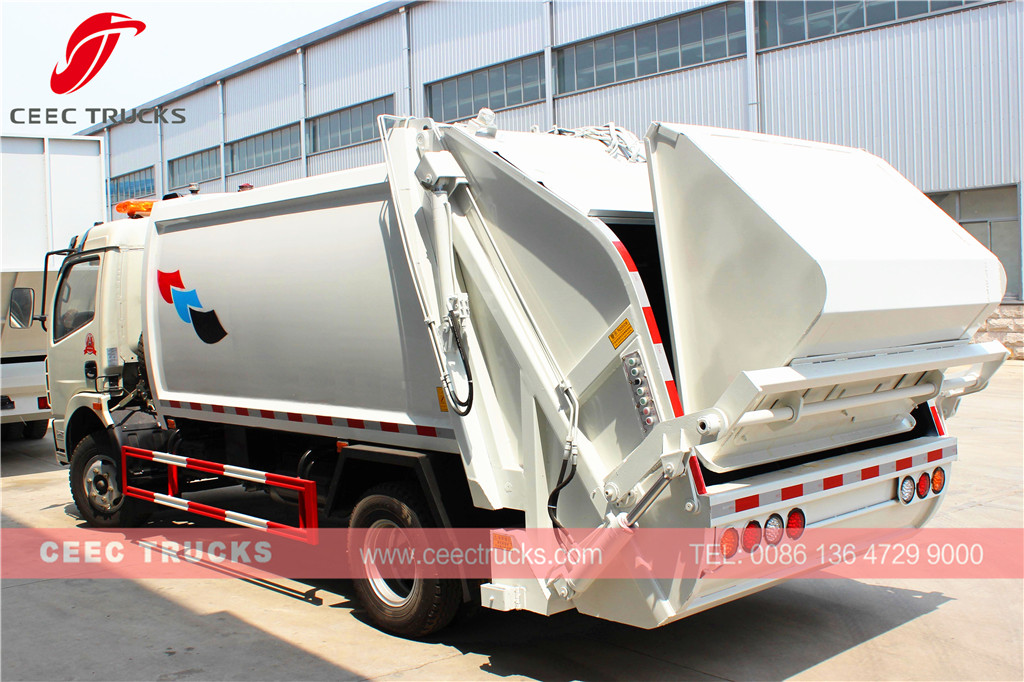

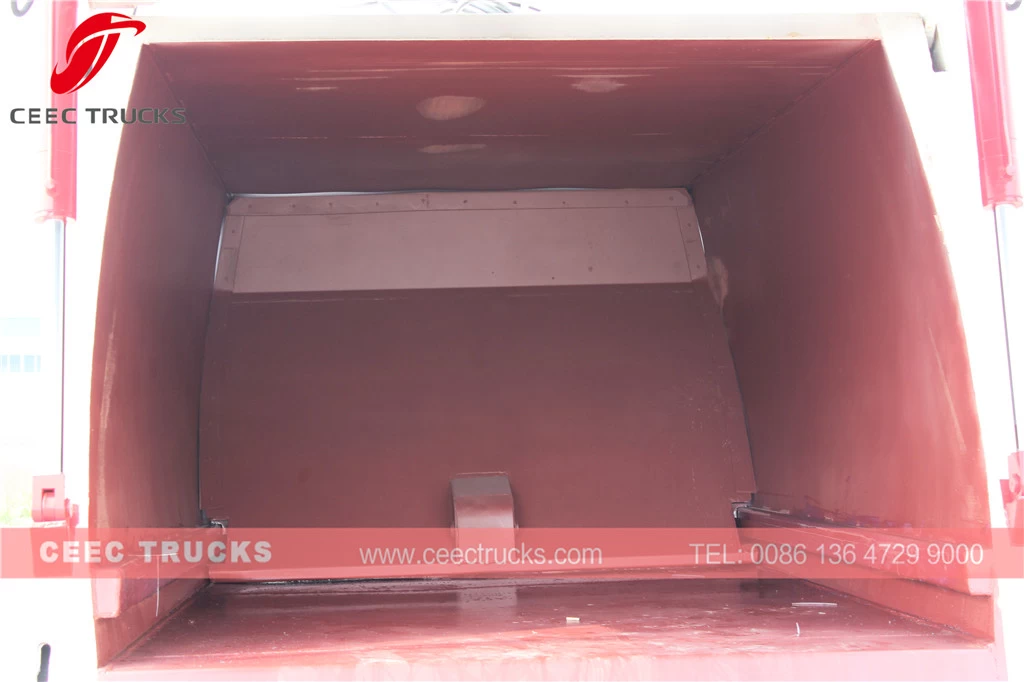

| Fill Hopper capacity
|
1.0 cbm
|
| Sewage tank
|
200 liters
|
| Filling work cycly time
|
20~25 s
|
| Discharge model
|
Horizontal Ejection
|
| Control system
|

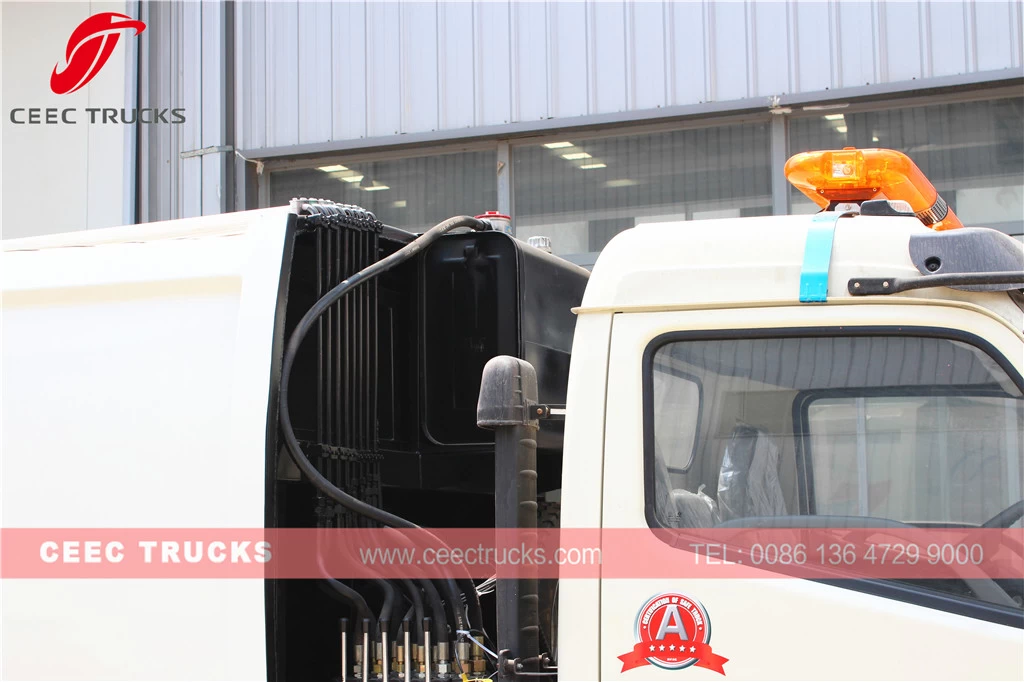

Electrically Hydraulic control
Manual hydraulic control
|

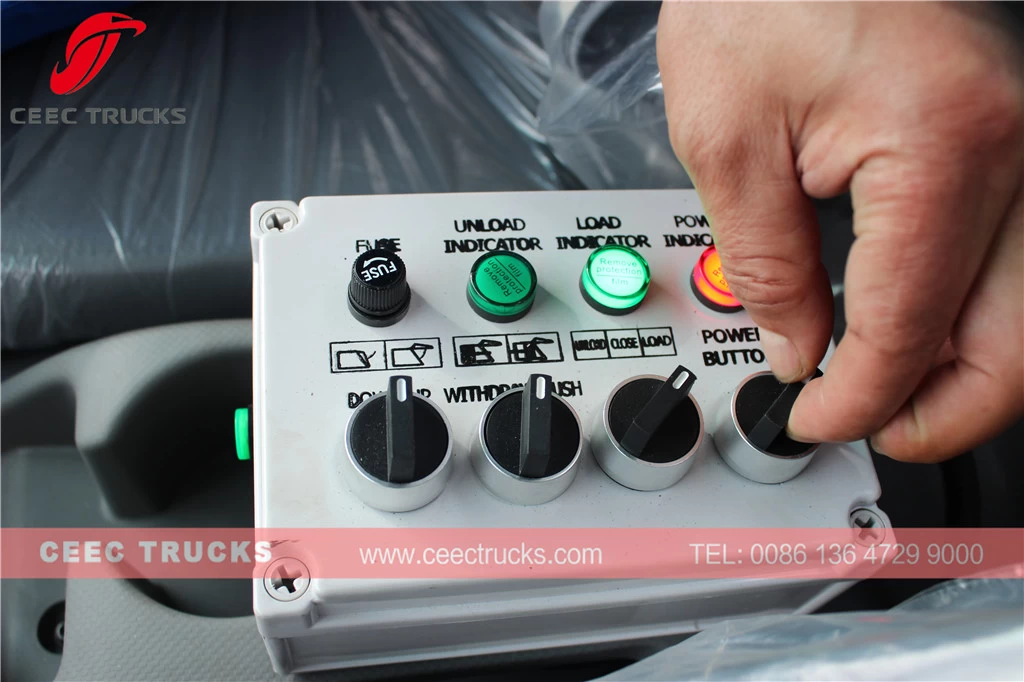

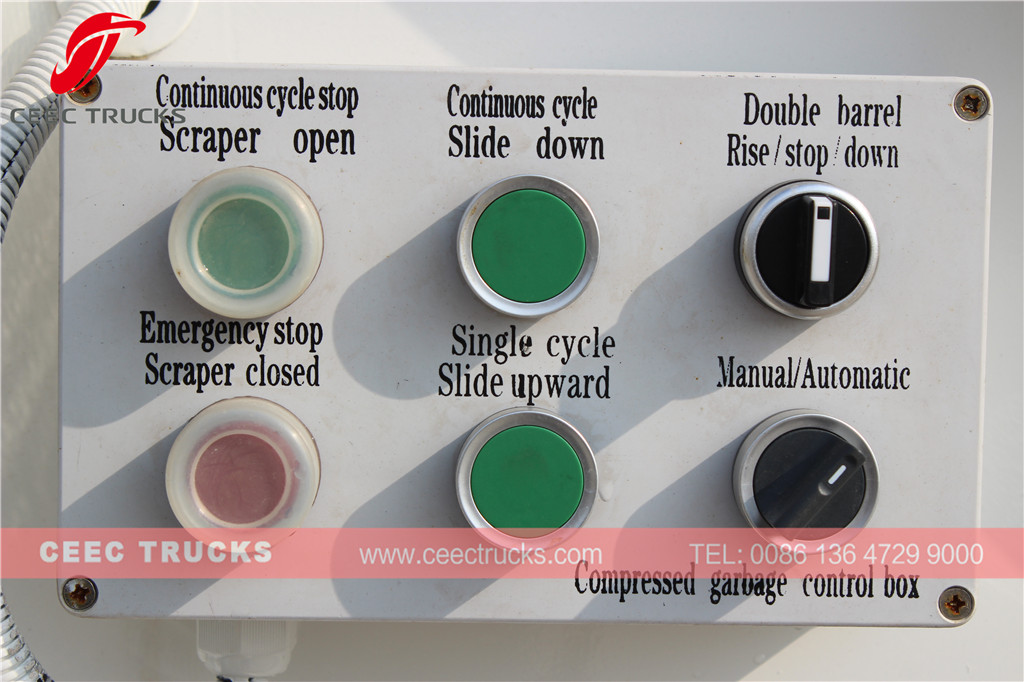

| Control panel
|
English or Your language
|

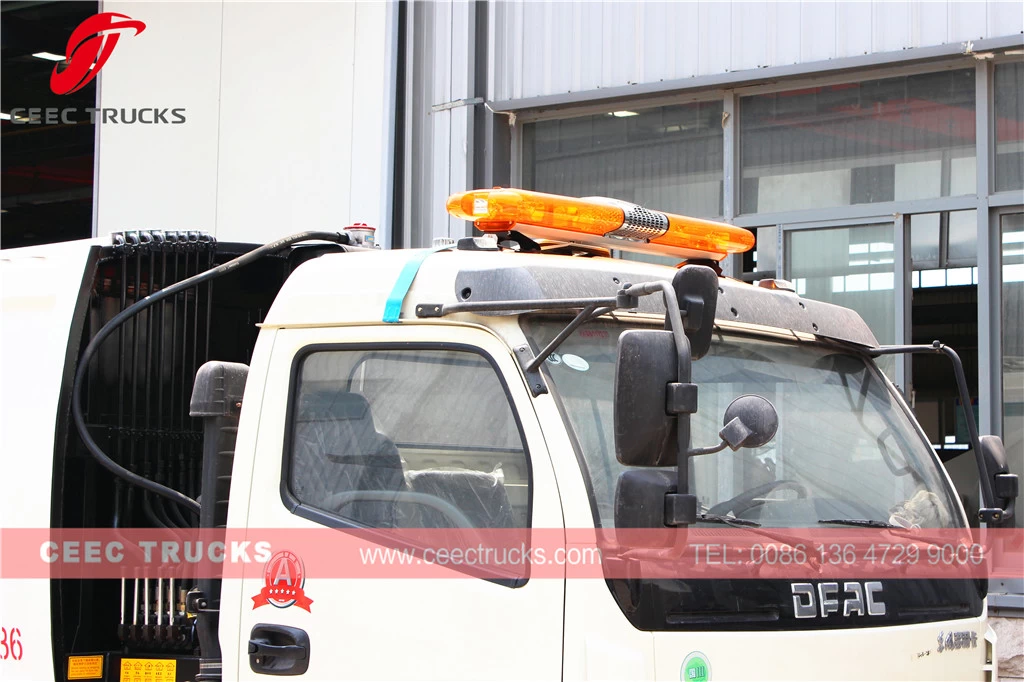

| All standard accessories: Dust bin lifter,Ladder, warning lights, Emergency stop button,
handrail, fire extinguisher, basic tool kit, English manual……
|
| Optional
|
** Back alarm and Camera can be equipped.

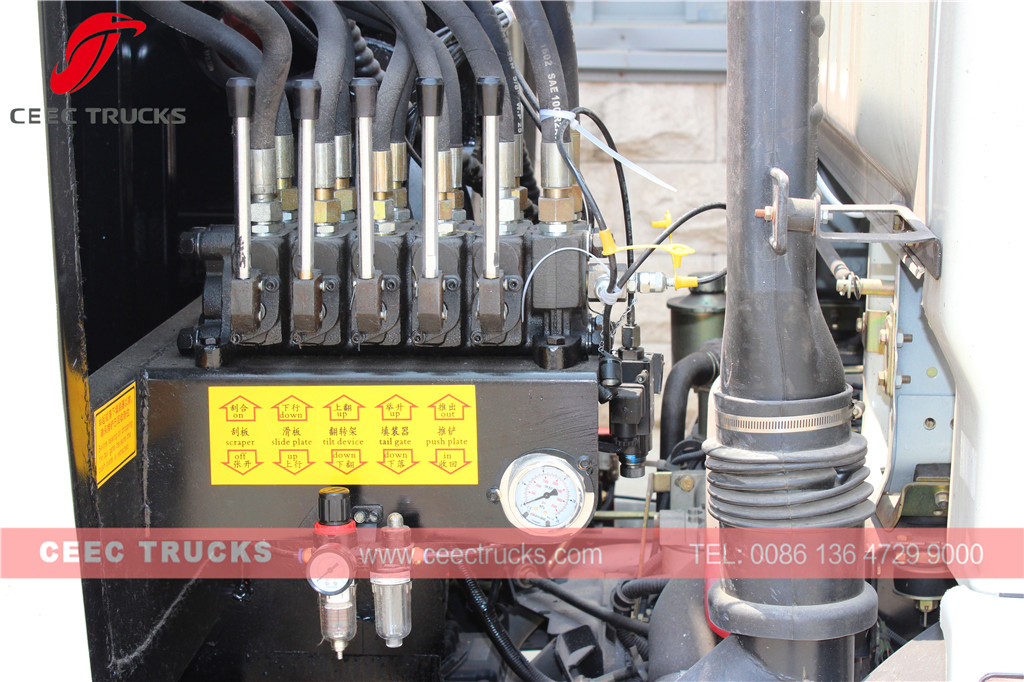

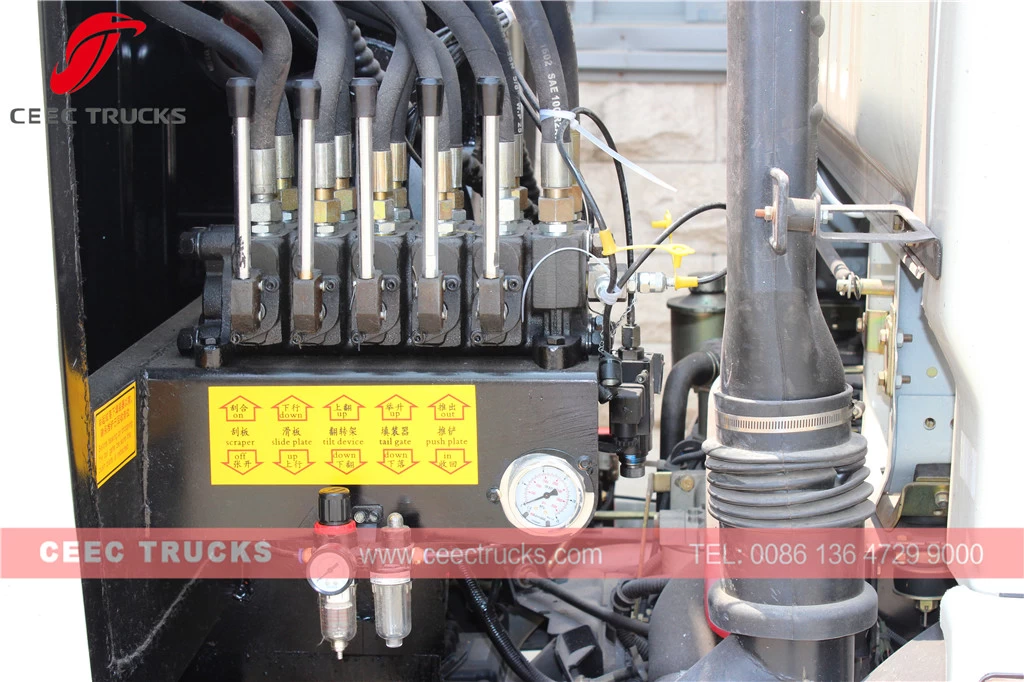

** Italy mulit-valve can be choose.
** 240L (single bin or double bin) or standard 660 L, 1100 L bins with bin lifter can be choose.
|
