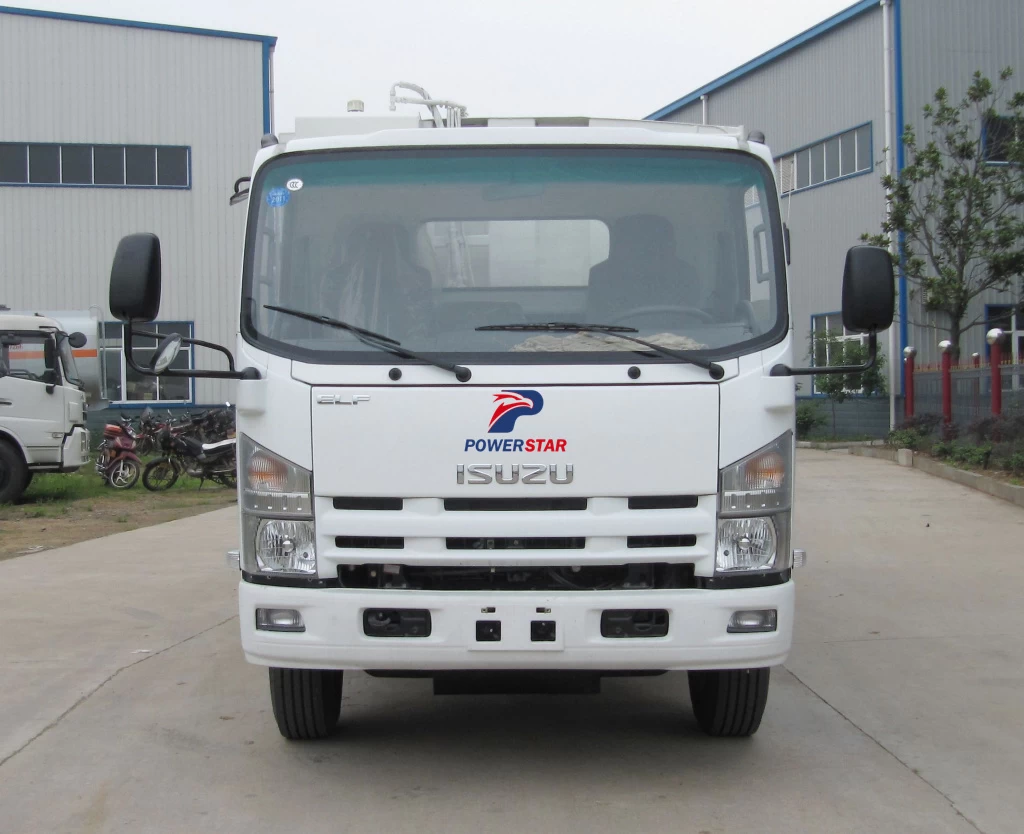

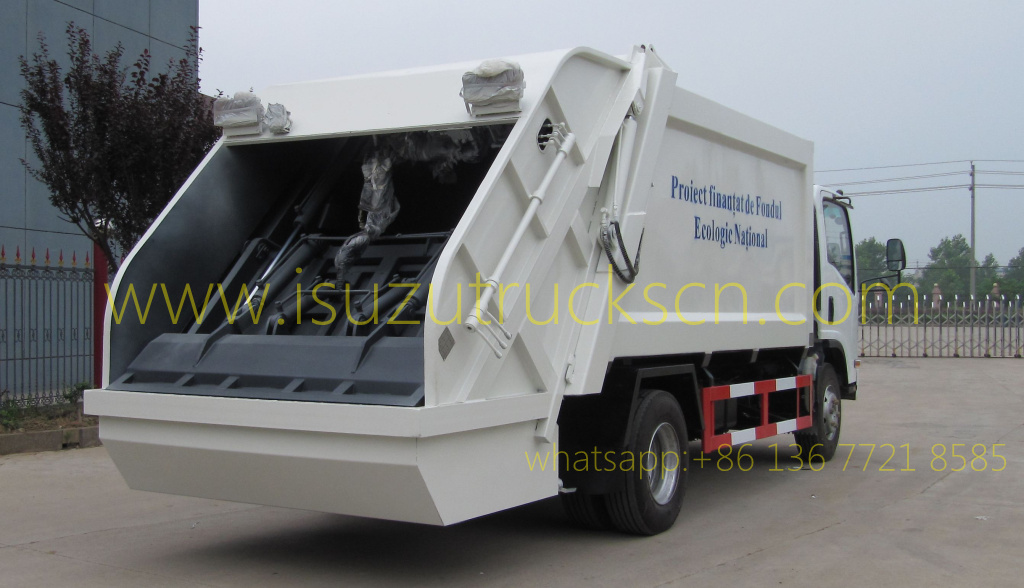

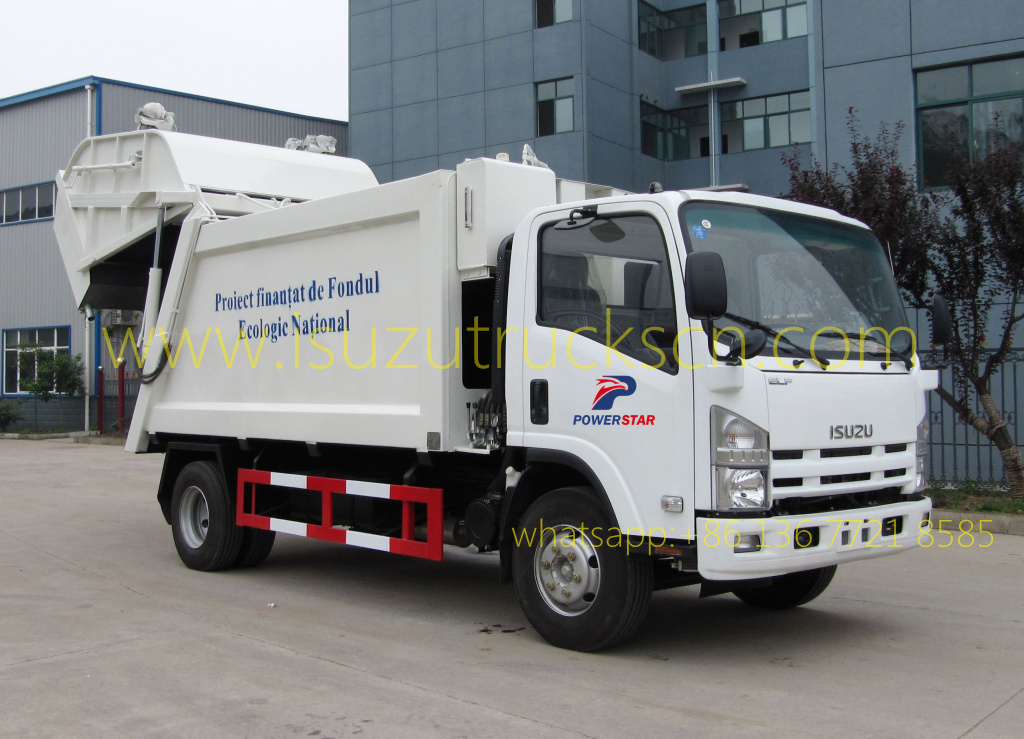

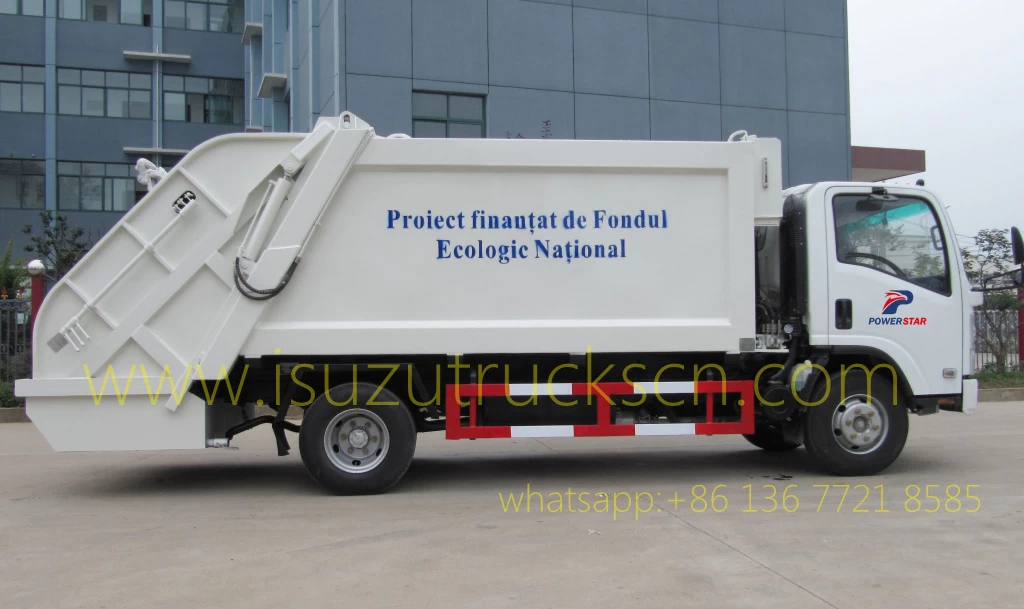

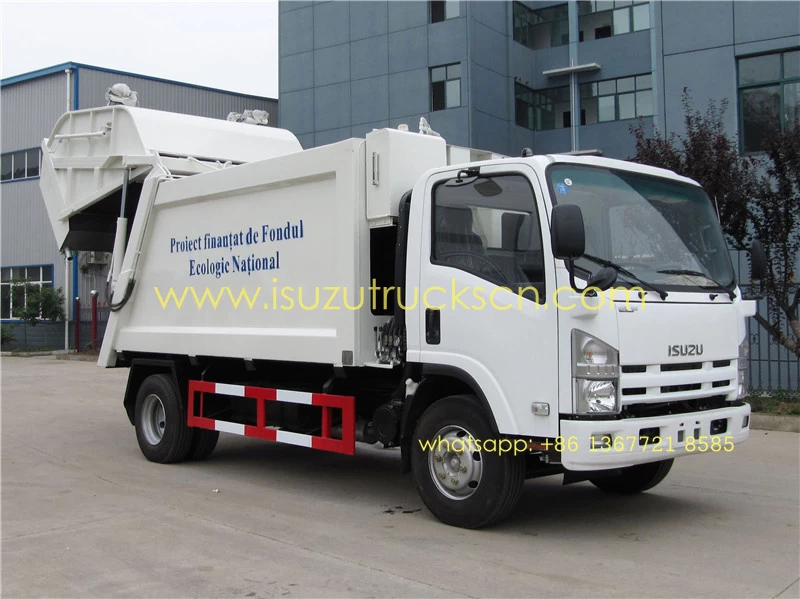

8 cbm Waste compactor truck ISUZU

Garbage Compactor Isuzu (5 Tons)

General

Vehicle Brand

POWERSTAR

Chassis Brand

ISUZU

Overall Dimension

6970 * 2300 * 2680 mm

GVW / Kerb Weight

10,000kg / 5,680kg

Cab

Cab Capacity

3 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

ISUZU

Power

190 HP (139 KW)

Displacement

5200 ml

Emission Standard

Euro IV or V

Chassis

Drive Type

4X2, (left hand drive)

Transmission

ISUZU MLD 6 speed levers with 1 reverse

Wheelbase/No. of axle

3815 mm / 2

Tire Specification

8.25-16

Tire Number

6 tires and 1 spare tire

Max Speed

95 km/h

Paint

Metallic paint

Superstructure

Body Capacity

5 Tons

Fill Hopper Capacity

1.2 m3

Sewager Tank volume

200 L

Body Material

Weather resisting steel

Filling work cycle time

20~25 s

Filling lift time

6~9 s

Filling lift capacity

8 Tons

Discharge time

18~22 s

Max compression force

12 Tons

Discharge model

Horizontal Ejection

Control

Electrically Hydraulic control

Manual Hydraulic control

Emergency Stop Button

Hopper Both Sides

All standard accessories: Warning lights, music alarm, basic tool kit, English manual……

Optional

** Backup alarm can be equipped.
** Camera can be equipped.
** Operation language can be English or Appointed language.
