8 Channel 5V12A Battery Testing System For Pouch Cell/Polymer Battery
1.This tester can analyze polymer and cylindrical batteries from 0.1mA to 12A, up to 5V.
2.The battery tester system provides most applications in battery testing fields such as electrode materials research, battery performance test, small-scale battery formation, capability grading, battery pack testing and etc.
|
Items
|
Values
|
|
Input AC
|
AC 220V/110V ±10% / 50Hz
|
|
Input power
|
851 W
|
|
Resolution
|
AD：16bit；DA：16bit
|
|
Input impendence
|
≥1MΩ
|
|
|
CV output range
|
25mV~5V
|
|
|
Min discharge voltage
|
1.0V for universial holder,1.5V for 2m cable
|
|
Voltage
|
Accuracy
|
± 0.05% of FS
|
|
|
Stability
|
± 0.05% of FS
|
|
|
Output range/channel
|
Range1: 5mA-1A; Range2: 1A-12A
|
|
|
Accuracy
|
± 0.05% of FS
|
|
Current
|
CV cut-off current
|
Range1: 2mA; Range2: 24mA
|
|
|
Stability
|
± 0.05% of FS
|
|
|
Output power/channel
|
60
|
W
|
|
Power
|
Stability
|
± 0.1% of FS
|
|
|
Current rsponse time
|
Max rising time:1ms
|
|
Time
|
Working step time
|
≤(365*24)h/step Time format-00：00：00.000(h、m、s、ms)
|
|
|
|
Min data record interval:100ms
|
|
|
Data record conditions
|
Min voltage change：10mV
|
|
Data record
|
|
Min current change：Range1: 2mA; Range2: 24mA
|
|
|
Frequency
|
10Hz
|
|
|
Charge modes
|
CC、CV、CCCV、CP
|
|
Charge
|
Cut-off condition
|
Voltage、Current、Time、Capacity、-△V
|
|
|
Discharge modes
|
CC、CP、CR、CV
|
|
Discharge
|
Cut-off condition
|
Voltage、Current、Time、Capacity、-△V
|
|
|
Charge
|
CC、CP
|
|
|
Discharge
|
CC、CP
|
|
|
Min pulse width
|
500ms
|
|
Pulse
|
Pulse counts
|
Up to 32
|
|
|
Chg and Dischg switch
|
Supported
|
|
|
Cut-off condition
|
Voltage、Time
|
|
DCIR
|
Supported
|
|
|
Max cycles
|
65535
|
|
Cycle
|
Max steps
|
254
|
|
|
Cycle nest
|
3
|
|
|
|
● Power-off data protection
|
|
|
|
● Off-line operation mode
|
|
Protection
|
Safety protection
|
● User-defined protection conditions, such as upper and lower limited current/voltage, delay time, temperature, etc.
|
|
Channels feature
|
Independent pairs of closed loop for constant
|
|
Channels control mode
|
Independent control
|
|
Data acquisition method
|
Kelvin connection
|
|
Noise
|
<85dB
|
|
Database
|
MySQL
|
|
Communicatin
|
TCP/IP
|
|
Operating system
|
Windows 7/8/10 64 bit
|
|
Data export
|
EXCEL、TXT、CSV、PDF、Plot/Graph
|
|
Disk drive
|
500GB
|
|
Communication port
|
Ethernet port
|
|
Leak Current
|
0.0000005mA
|
|
Channels per unit
|
8
|
|
Operation and storage environment requirement
|
|
Items
|
Values
|
|
|
0℃~40℃ (When the temperature is 25±10℃, the accuracy error caused by temperature change is less than 50ppm /℃)
|
|
Operation environment temperature
|
|
Storage environment temperature
|
-10℃~50℃
|
|
Operation environment humidity
|
≤70% RH(no moisture condensation)
|
|
Storage environment humidity
|
≤80% RH(no moisture condensation)
|
|
Clamps and dimensions
|
|
Items
|
Values
|
|
|
|
|
|
|
|
|
|
|
|
|

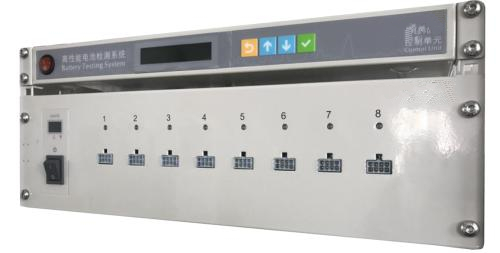

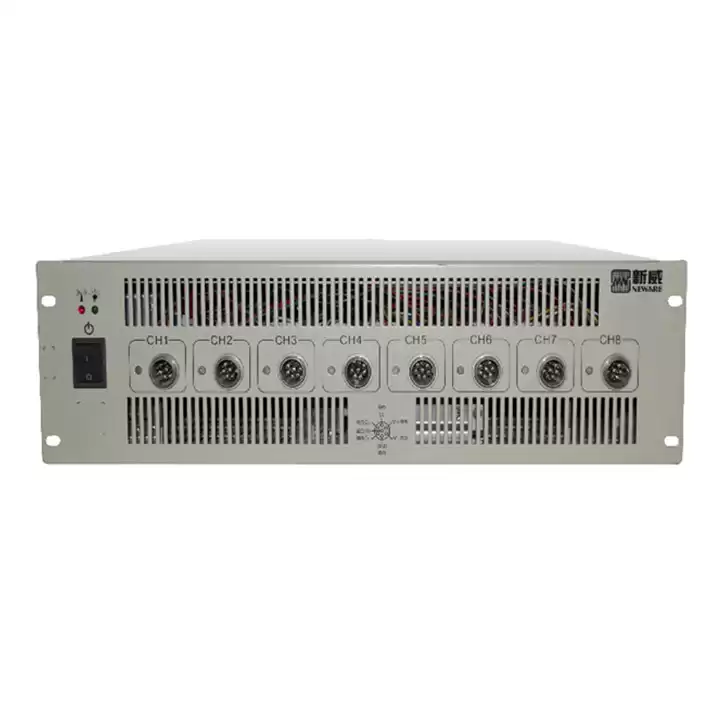

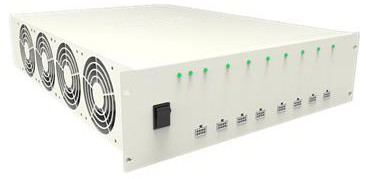

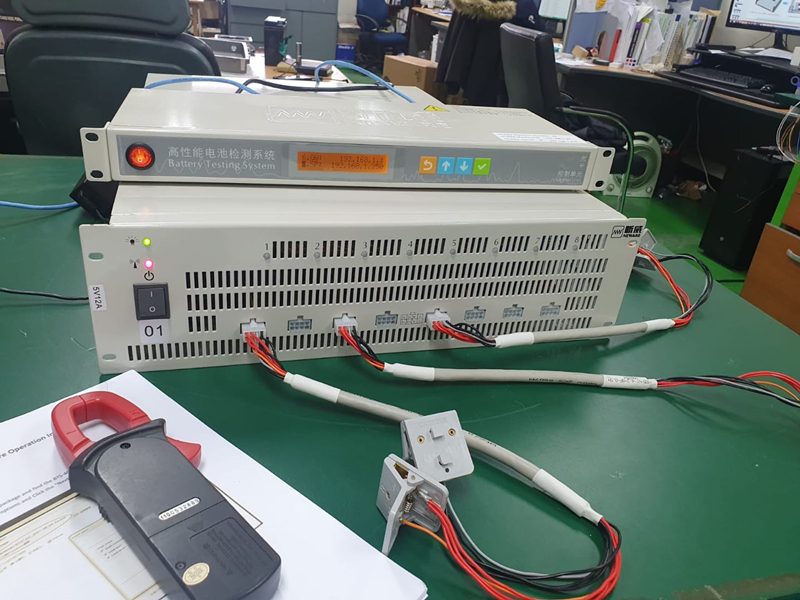

Tester pictures
|
|
|
|
|
|
|
|
|
|
|

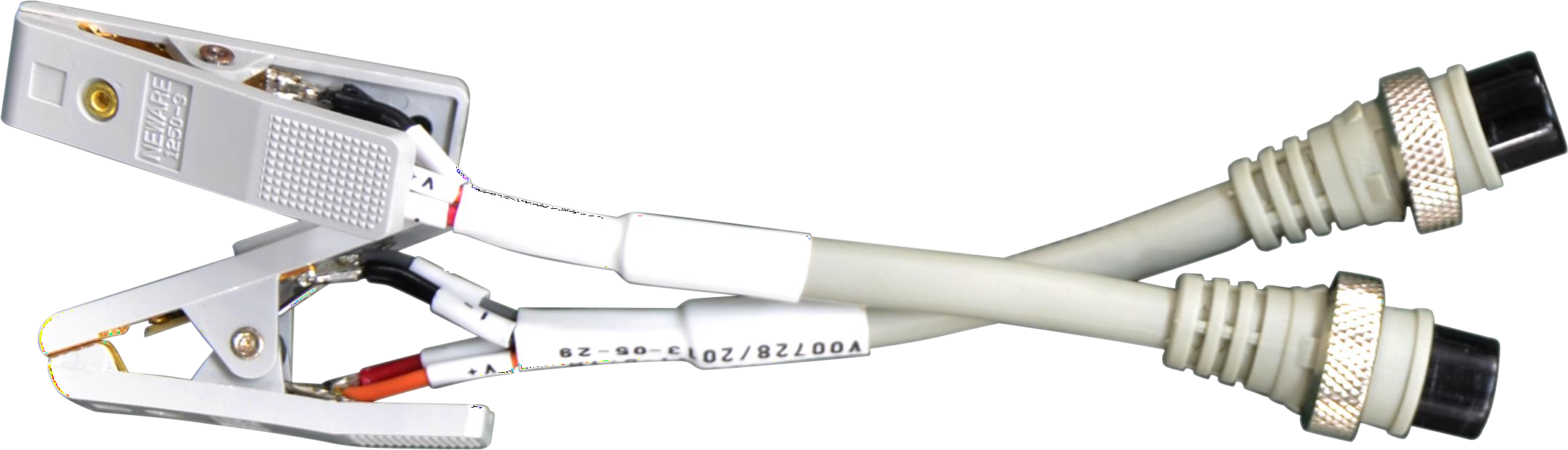

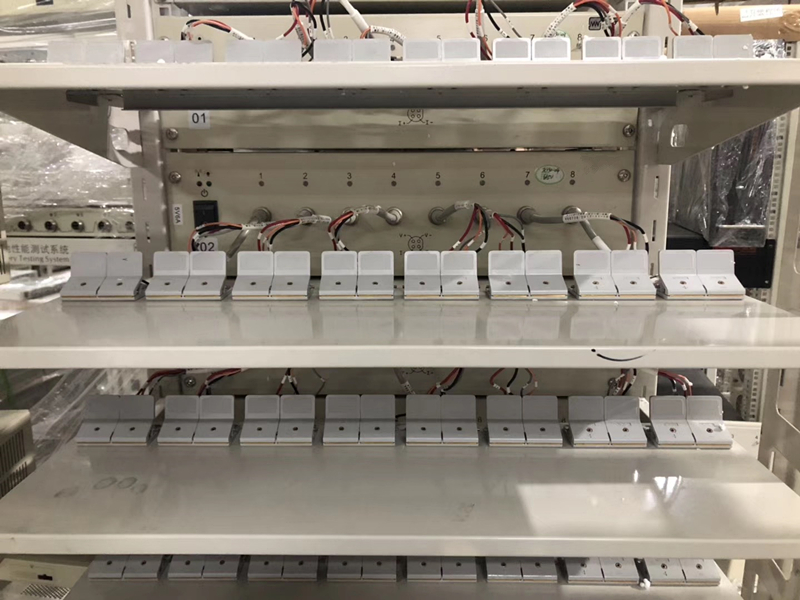

Clamps pictures
|
Alligator
|
Polymer
|
Coin
|
|
|
Pictures just for reference
|
|
Dimensions（W*D*H）(mm)
|
3U3F，480*730*130
|
