8 Channel Battery Analyzer with Laptop & Software for All Rechargeable Cells
Product Specification
1 TOB-BTS-5V3A Battery tester equipment is an eight-channel battery analyzer to analyze polymer battery and cylindrical batteries from 6.0 mA to 3000 mA, up to 5V.
2 This battery test system provides most applications in battery testing fields such as electrode materials research, battery performance test, small-scale battery formation, capability grading, battery pack testing and etc.
|
Model
|
5V3A Battery Analyzer TOB-BTS-5V3A
|
|
Electricity requirement
|
110V AC or 220V AC
|
|
Power Consumption
|
224W
|
|
Current
|
Range: 6.0mA – 3000mA
Accuracy: ±(0.05% of reading + 0.1% of range)
|
|
Voltage
|
Range: 10mv-5v for charging, 2.5v-5v for discharging
Accuracy: ±(0.05% of reading + 0.1% of range)
|
|
Max. measurement cycles
|
1-65535 cycles
|
|
Channels
|
Eight independent programmable channels
Each channel can set different working modes and functions independently
|
|
Programs &
Software
|
1.1 The software is included to set various working modes for
measuring capacity and life cycle for all types of rechargeable batteries
1.2 Working modes Include constant current discharge, constant current charge,
constant voltage charge, rest, cycles, etc.
1.3 Limited threshold conditions include voltage, current, time, capacity,
negative voltage slope, etc.
1.4 With real-time monitoring windows and integrated graph/data windows,
the testing process can be observed more directly and efficiently
1.5 During the test, the software will provide instructions and warnings for assistance
|
|
Test Reports and
Curves for analysis
|
2.1 Different types of curves can be created by software base on user definition.
(Voltage-time curve, current-time curve, capacity-voltage curve, loops
times-charge/discharge capacity curve, loops times charge/ discharge efficiency curve, etc)
2.2 Data reports are created by software.
User can easily compare the performance of the batteries tested in channels both visually
and statistically
|
|
Protection and
Auto-recover
|
If power failure occurs during testing, the system will shutdown all operating channels.
Once power is recovered, the system will automatically resume those stopped channels
and ensure that the test is normally conducted, so that no cases will lose any data.
|
|

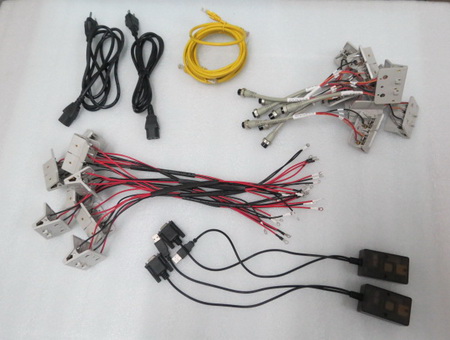

Battery Holders
|
8 alligator clips with cable for universal connecting

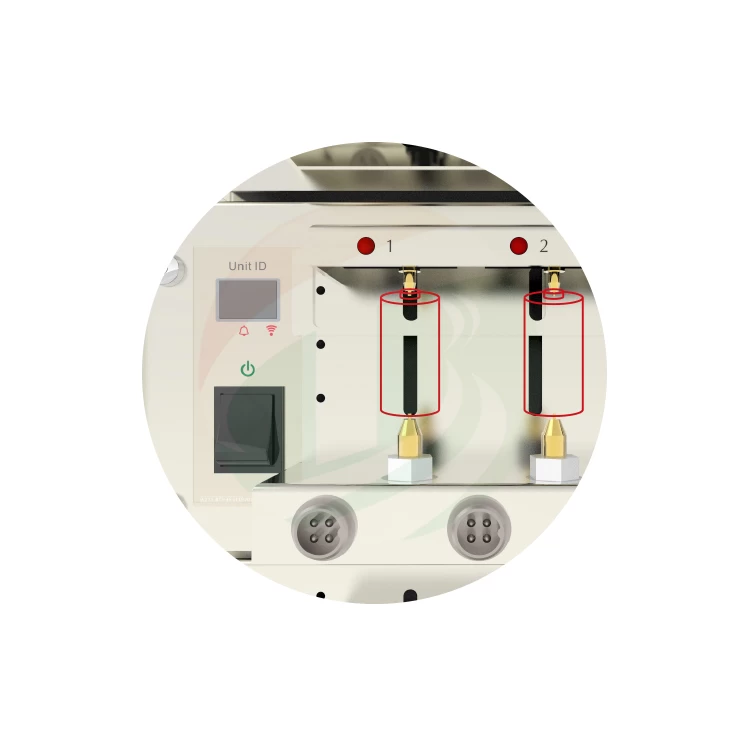

8 spring load holders with adjustable length for measuring cylinder battery upto 70mm(H)

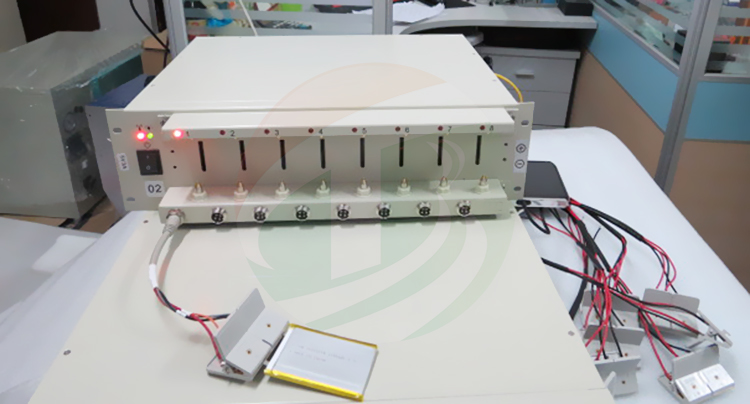

8 Polymer battery tester clamps for pouch cell testing
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Application Notes
|
3.1 New buyers must buy the software-installed laptop to avoid trouble from installation.
If you like to run multiple battery analyzers on one Laptop,
you can just buy multiple analyzers with one laptop which is offered at a discounted price.
3.2 Customer can easily combine up to 20 battery analyzers by using normal Ethernet cable
connector via one computer.
3.3 You may order movable rack to organize the battery analyzers
|
|
Product Dimensions
|
485mm(L) * 508mm(W) *263mm(H)
|
|
Net Weight
|
11.5 kg (26 lbs)
|
Service:
1 We supply machines with battery technology support.
2 We can also supply a full set of materials for lithium battery including polymer battery, cylinder battery, mobile phone battery, EV battery.
3 We can also supply a full set of lithium battery equipment for lab research, pilot scale research and production line.
4 We can also supply a full set of battery technology for battery design, research and producing.

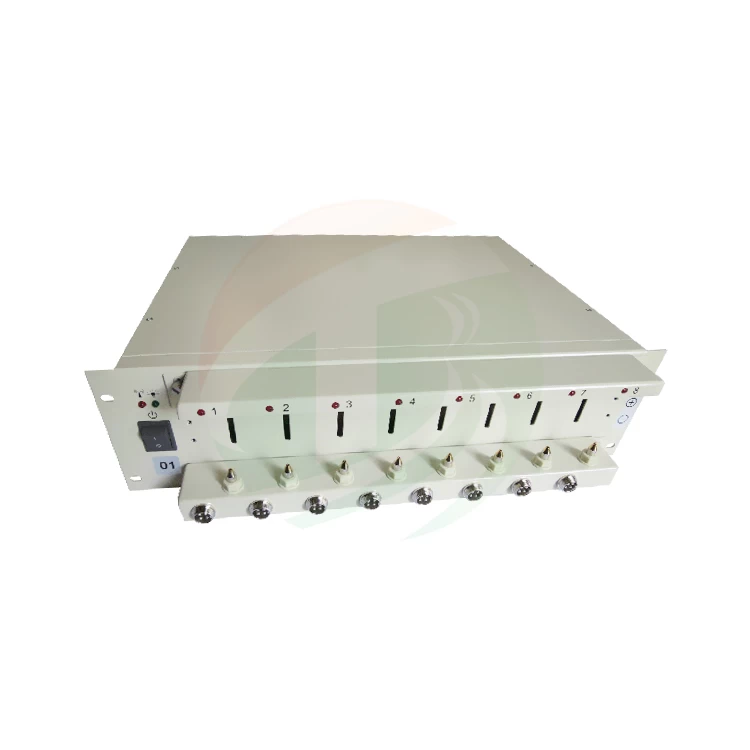

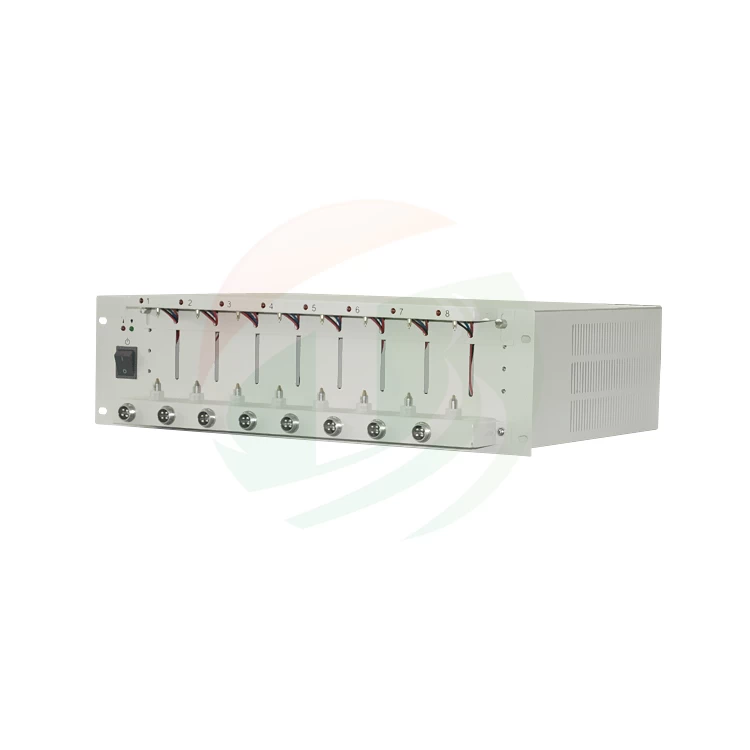

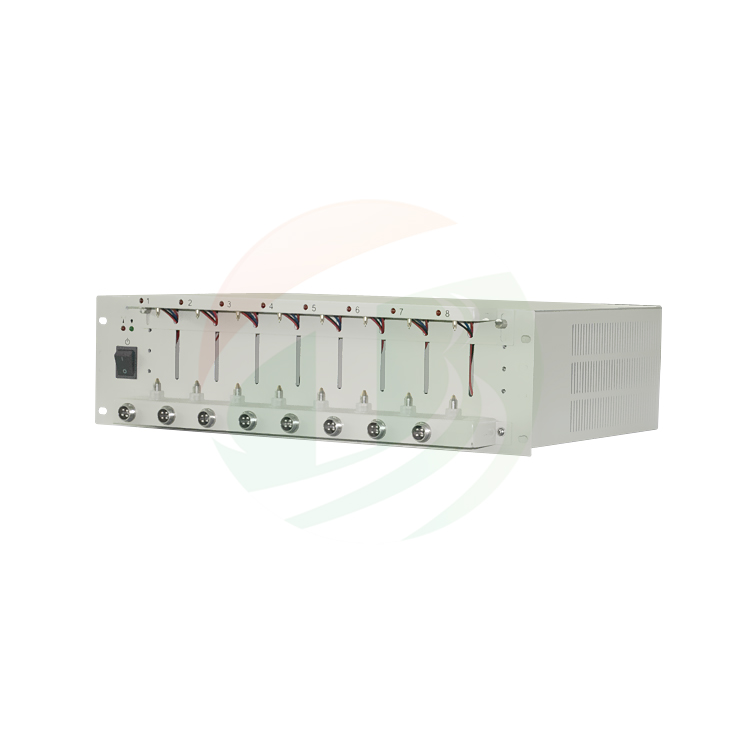

Product Image
Product Packing
1 Standard exported package : Internal anticollision protection, external export wooden box package
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
3 Responsible for the damage during shipping process, change the damage part for free
4 Supply with suitable voltage input and power plug according to customer's country requirements.
