8 Channel Digital Audio Matrix Controller Public Address System Audio Signal Switch

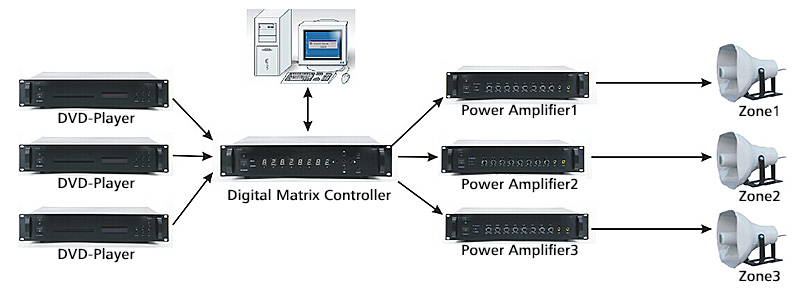

The 8CH Digital Audio Matrix Controller in public address system is specifically to switch and distribute audio signals from input to output.

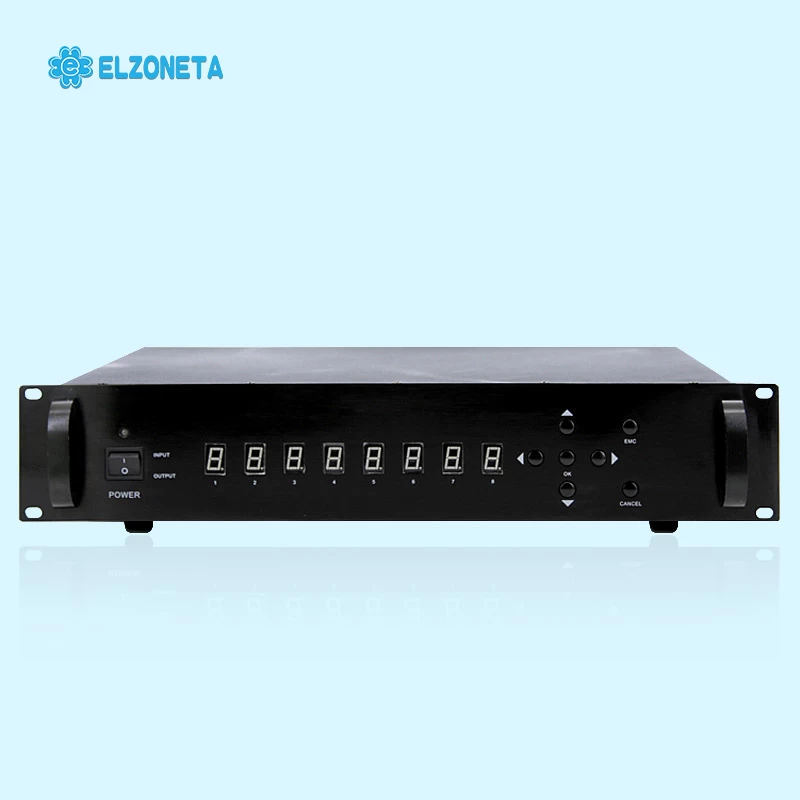

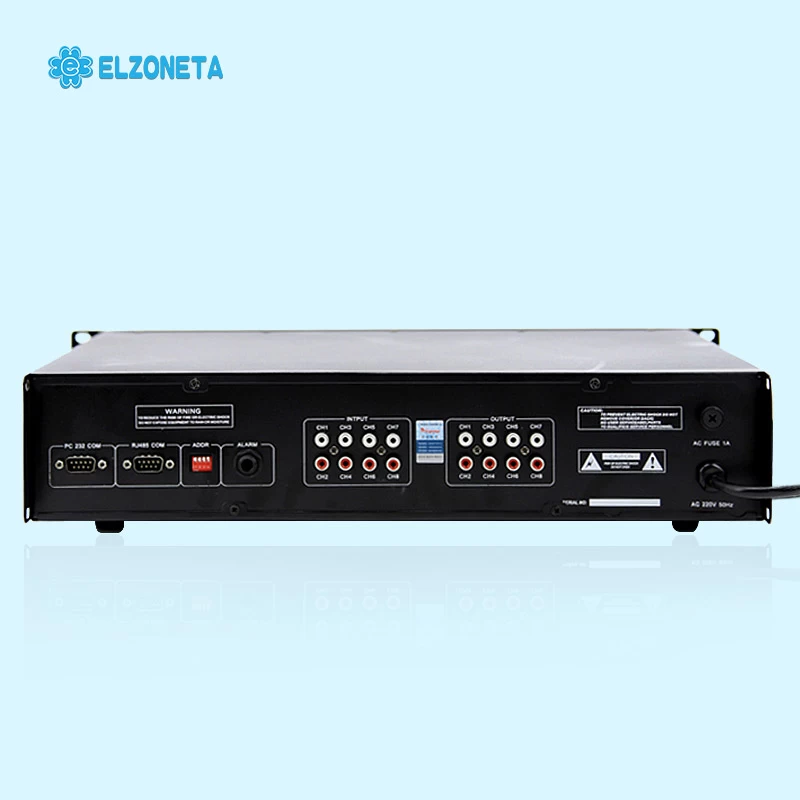

EC-PVS-DMC1008     8 Channel Digital Audio Matrix Controller



Features:

1. 8 channels (audio input) x 8 (audio output) matrix signal control

2. Manual/ timing audio source at different amplifier channel output, convenient to switch signal

3. Independent volume control

4. Address code selection, can be expanded to 8 units and machine use, matrix control up to 8 Road (audio input) x 64 Road (audio output)

5. The alarm can be forced into the emergency broadcasting, it can be controlled by the computer software and the operation is more simple, practical, more powerful.


Specifications:


1. Power: 20W

2. Power supply:  AC220V~240V/50~60Hz        

3. Size:  485x390x90(mm)

4. Weight:  7.5kg



More Information:

8CH Digital Matrix Controller


Digital Audio Matrix Switch


Digital Public Address System
