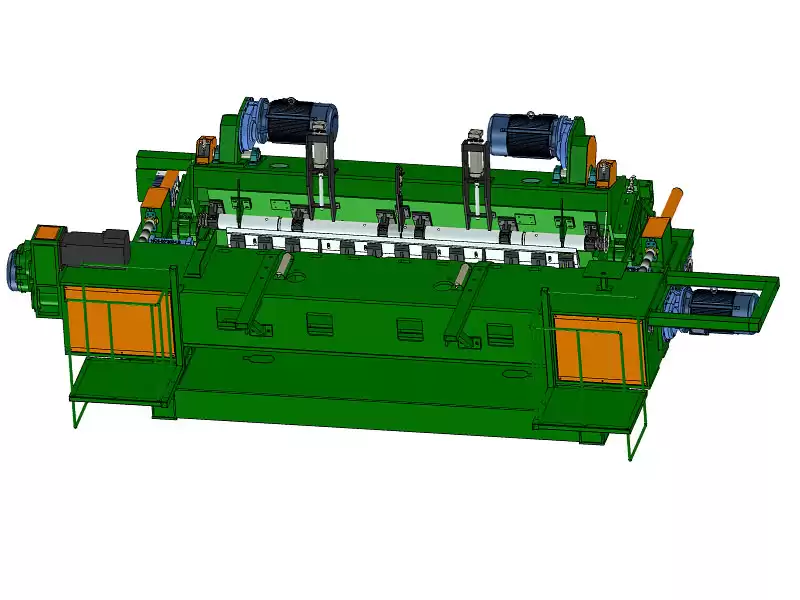

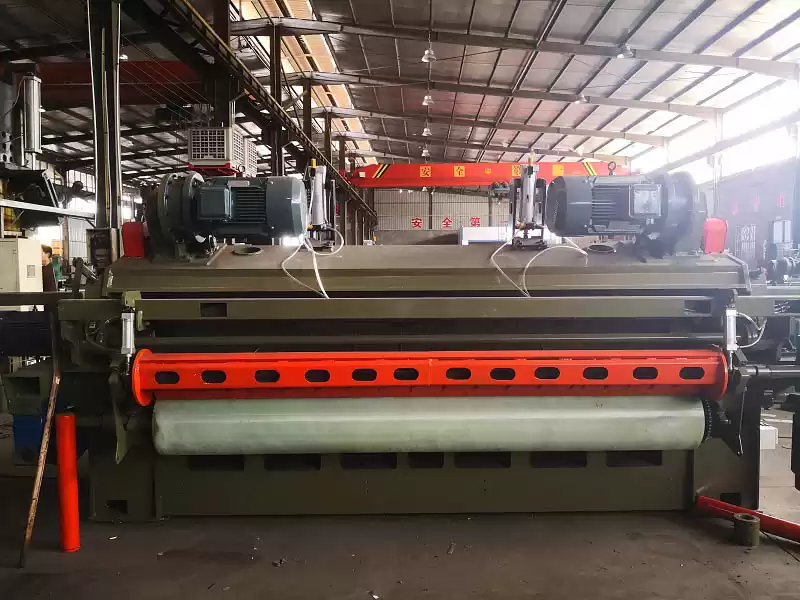

Product Name: 8 Feet spindleless log peeling machine/wood veneer machine
Major Technical Parameters
|
DESCRIPTION
|
UNIT
|
|
|
Length of log
|
mm
|
2000~2600
|
|
Diameter of log
|
mm
|
32~650
|
|
Length of blade
|
mm
|
2750
|
|
Thickness of veneer
|
mm
|
0.3~3.6
|
|
Width of cut veneer
|
mm
|
620~1300
|
|
Linear speed of host machine
|
m/min
|
45m/min
83m/min
|
|
Diameter of driving roller
|
mm
|
115
|
|
Diameter of pressurebar roller
|
mm
|
116
|
|
Diameter of rubber roller
|
mm
|
342
|
|
Power ofpressurebar
roller
|
KW
|
11*2 / 15*2
|
|
Power of doubleroller
|
KW
|
11*2 /15*2
|
|
Power of cutting feed
|
KW
|
15
|
|
Power of shear
|
KW
|
7.5
|
|
Power of PU roller/ output converyor
|
KW
|
7.5
|
|
Total power
|
KW
|
74/90
|
|
Total weight
|
kg
|
13000
|
|
Overall
dimensions
|
mm
|
6000*3050*7900
|
Main Features:
1. The servo motor can guarantee
stable peeling speed and machine running to make accurate thickness veneer.
2. The feeding screw and nut
is made by special steel and cooper which can have long service life.
3. All peeling rollers of Sammu
Sansen veneer peeling machines are quenched and electroplating treatment to
make the rigidity and flexibility better.
4.All Sammu Sansen veneer peeling machine uses
advanced PLC control system.
