8 inch Touch Industrial Panel PC Soldered on Board J1900 or 3805U CPU 2LAN 3COM 5USB

IPPC-0803T2

8 inch Touch Industrial Panel PC, Soldered on Board J1900 or 3805U CPU,2LAN 3COM 5USB



8 inch Touch Industrial Panel PC Soldered on Board J1900 or 3805U CPU 2LAN 3COM 5USB

Product Introduction

The 8-inch touchscreen provides a user-friendly interface, allowing for intuitive navigation and seamless interaction with your applications. The compact design makes it suitable for space-constrained industrial settings. 8-inch Touch Industrial Panel PC, a versatile and robust solution designed for demanding industrial environments. This panel PC features a soldered-on board with a choice of either the J1900 or 3805U CPU, ensuring reliable performance for your industrial applications.

Engineered for industrial use, this panel PC is built to withstand challenging environments. Its rugged design ensures resistance to dust, moisture, and vibration, making it suitable for a wide range of industrial applications.



Specifications Optional configurations
Front Panel Aluminium alloy panel, sandblasted oxidised natural colour, front power switch button Available in black or other colours with optional sandblasted finish
Back chassis 1.2mm steel plate, silver Available in industrial black, or other colours
Adaptive Motherboard 3.5" J1900 or 3805U dedicated motherboards
Touch Screen 8" TFT, LED backlight; Resolution 1024*768; Dot Matrix: 0.158*0.158; Maximum Colour: 16.7M; Brightness: 250cd/㎡; Contrast Ratio: 700:1; Response Speed: 16ms; MTBF: 30,000h Viewing Angle: (+75° ~ -75°) (+75° ~ -75 °);
LCD Screen 5-wire resistive screen Customisable capacitive screen
CPU/GPU Intel J1900
Memory 4G DDR3  Optional 2G/8G/16G DDR3 notebook memory
Hard Disk 64G MSATA Optional 32G/128G/256G/512G Msata SSD

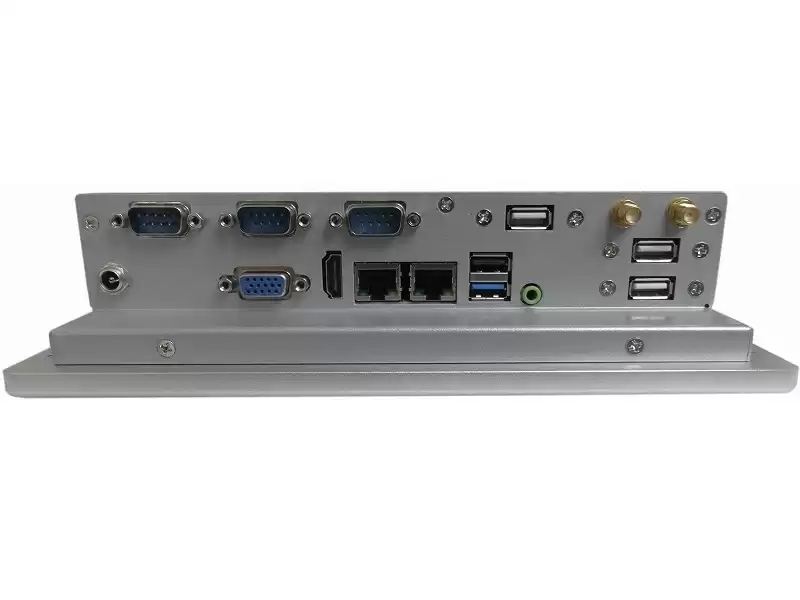

Interfaces DC24V;5USB; 2RJ45(Gigabit);VGA;HDMI,Audio output;   MIC input; 3COM Optional 12V input, customisable 6USB or 6COM or 1LPT; customisable Phoenix terminal, customisable wide voltage input; customisable wireless antenna holes
Size 236.5(length)* 181.5(width)*57(thickness)mm N.W/G.W 2/2.5KG
Power Supply Not supplied as standard Optional 12V@5A adapter available

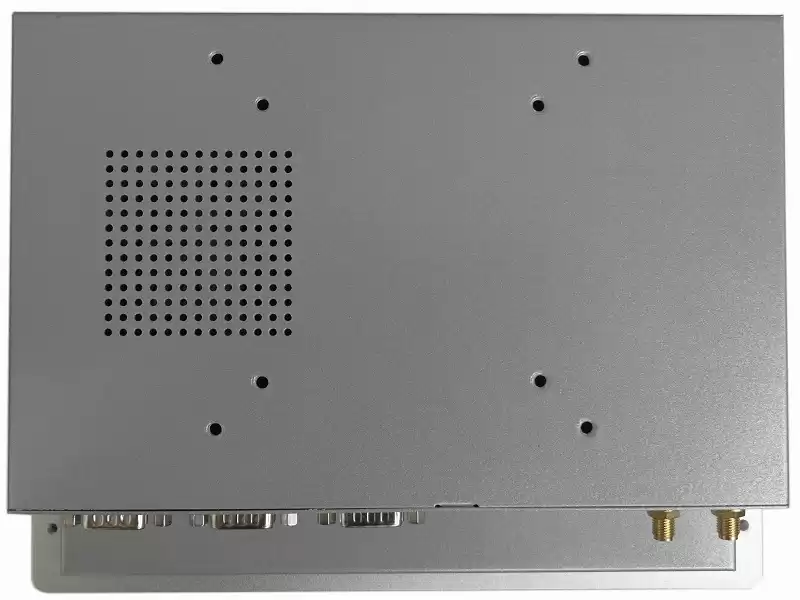

Installation mode Flush Screw Mount; Flush Hook Mount; VISA Wall Mount
Work and Environment
Working temperature (-20~60)℃ Storage temperature -40~75℃ Environmental humidity 0~90% air humidity, no condensation
 IP rating  Panel IP65 Vibration 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
EMC GB9254-2008 class A Shock 10g acceleration, 11ms duration





Product Features

■ Ultra-low power consumption, thin design

■ Aluminium alloy sandblasted panel, front power button switch

■ Panel IP65 waterproof grade

■ Board paste J1900 or 3805U CPU

■ Standard 2LAN 3COM 5USB

■ A variety of mounting options

■ Resistive touch screen, can be OEM capacitive screen

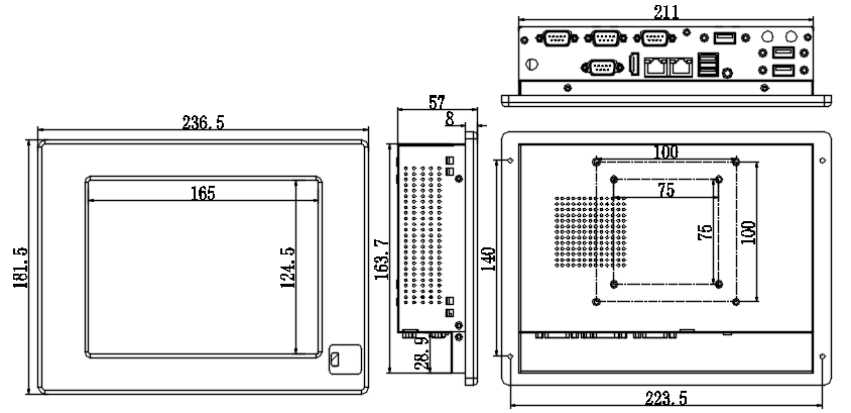

Product Installation Dimension Diagram

Our Advantages

1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.

2.Our products are 100% original and have strict QC inspection before shipment.

3.Professional and efficient sales team to serve for you diligently.

4.Sample order is welcomed and will be delivered within 1-3 days.

6.We support Trade Assurance to ensure On-time shipment and product quality.

7.We provide OEM/ODM service according to your requirements.

8.We provide 2 years maintenance warranty for our products.
