Applications:
Truck Mounted Crane (also called XCMG crane, UNIC crane, crane truck, lorry mounted truck, truck cargo with loader, knuckle boom crane on truck chassis, truck with mounted back crane, crane mounted cargo truck, truck with loading crane, boom crane, boom crane truck, articulated crane truck) is used to lift the cargo, load, transport and unload heavy stuff.
There are telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:
Telescopic Boom Crane: 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton
Knuckle Boom Crane: 1Ton, 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton, 50T, 100T
The Cranes can be of famous brands as Palfinger (Canada), Unic (Japan), XCMG (China top brand), Zoomlion, etc.
Key Features:
---- DONGFENG chassis ensures perfect performance on driving
---- CHAOCHAI / YUCHAI technology engine, super powerful, no overhaul within 100,000 km.
---- High strength cargo body, nice shape and rational structure.
---- Easy operation and easy maintenance.
---- Premium cranes Palfinger (Canada), Unic (Japan), XCMG (China top brand), Zoomlion, etc.
Crane Features:
---- Single cylinder synchronization guy cable technology makes work efficiency much higher than before.
---- Advanced development means make sure that the design is very reliable.
---- The more symmetrical center design of pentagon & hexagon boom make it has bigger anti-bending capacity.
---- Compact hinge point design take up smaller space
---- The work is more safety after fitted over-winds alarm equipment.
---- The integer lifting winch improved the work efficiency greatly and prolonged work lift of hydraulic system.
---- Float three-point bridge structure design can lower the accessional stress on the chassis when traveling.
---- Self-designed & developed slewing machine with greater drive force can meet varied requirements of working situation.
---- Anti-slewing impulse equipment that make vehicle running safely
Specifications:

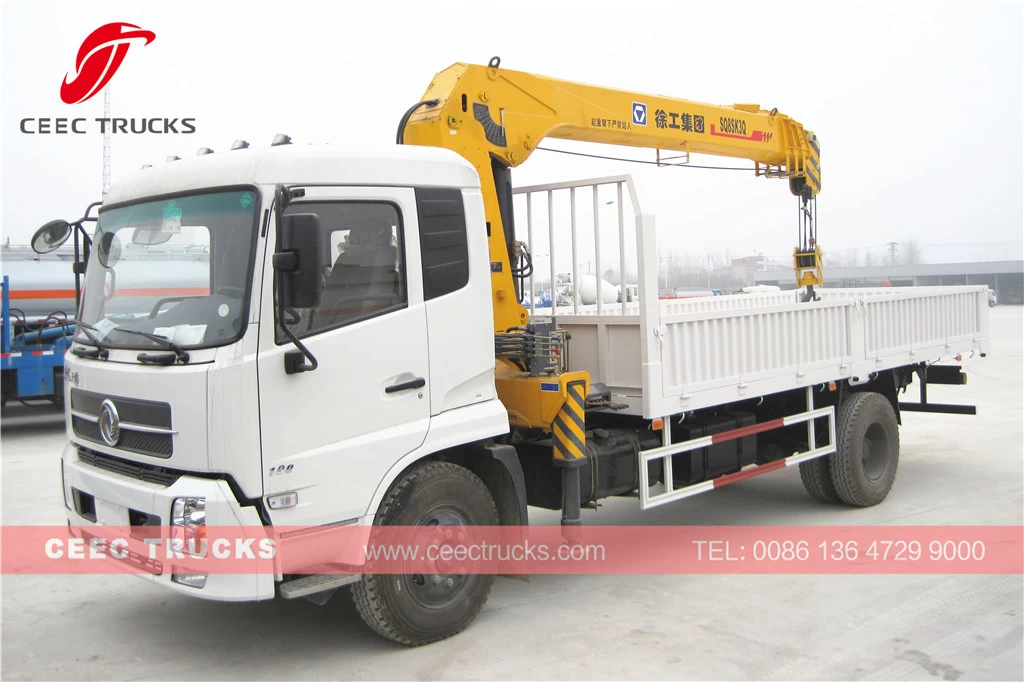

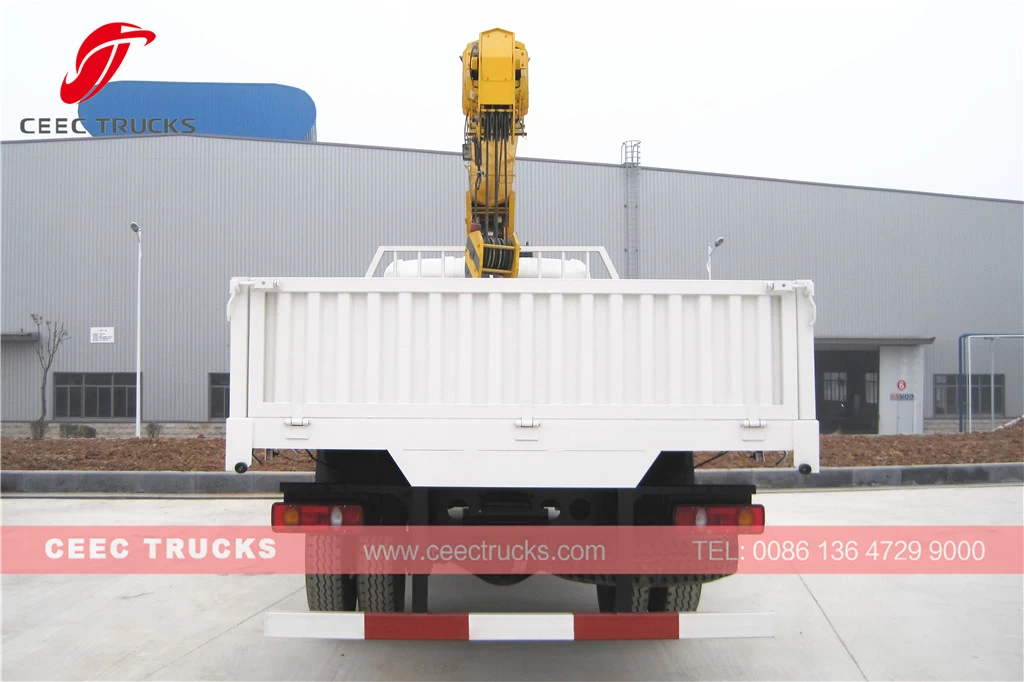

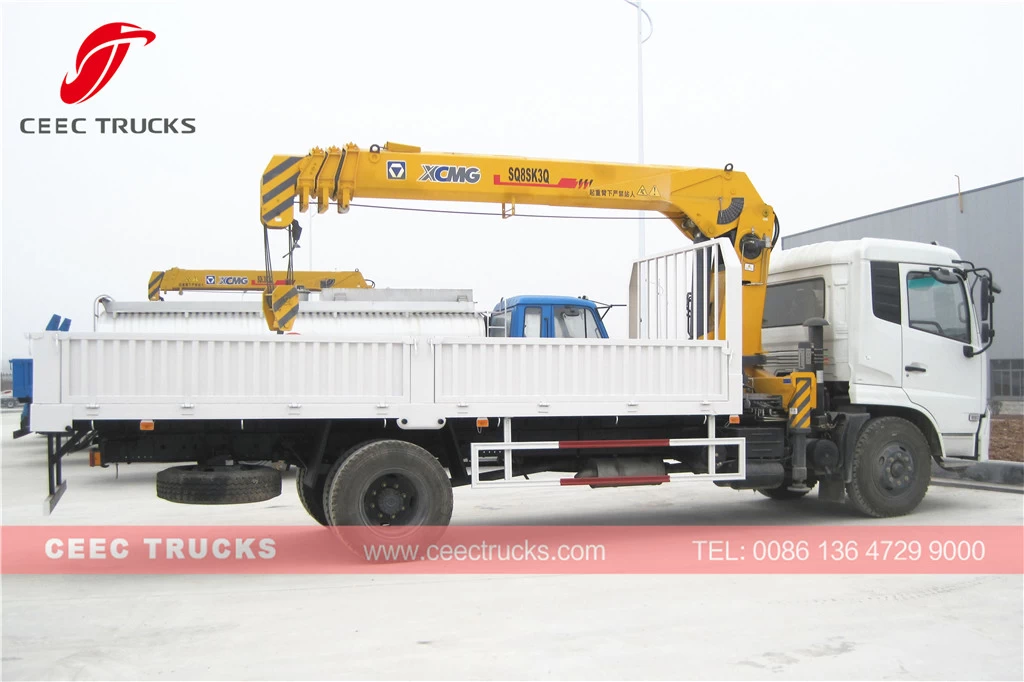

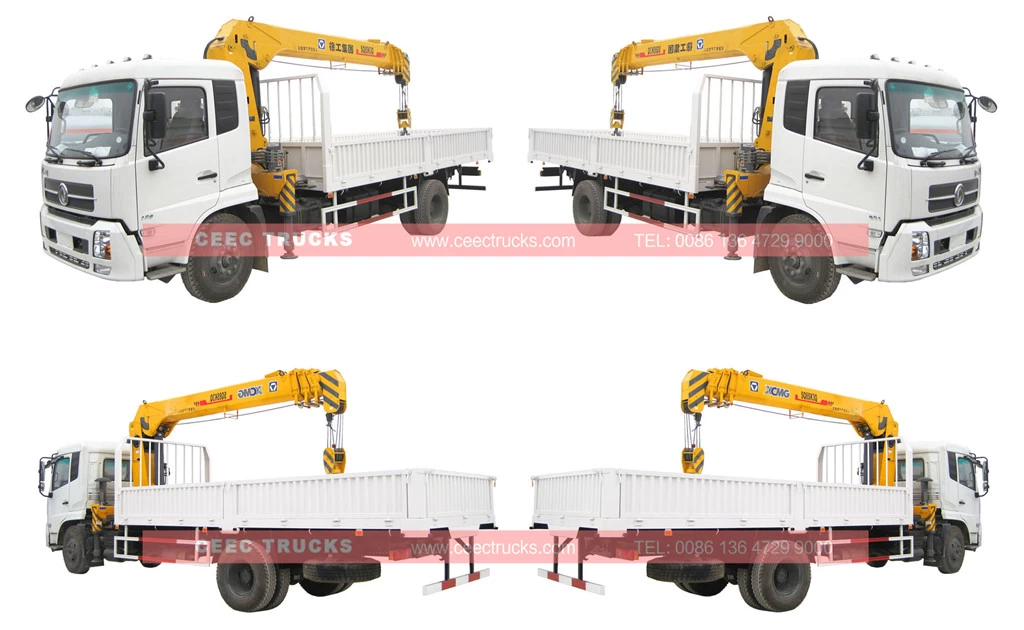

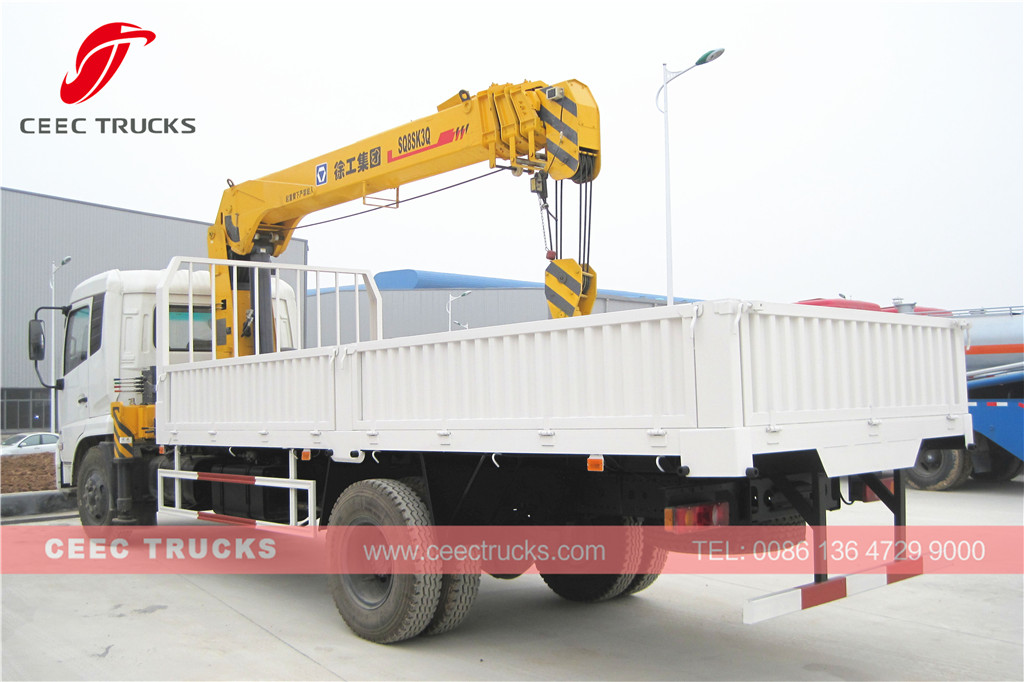

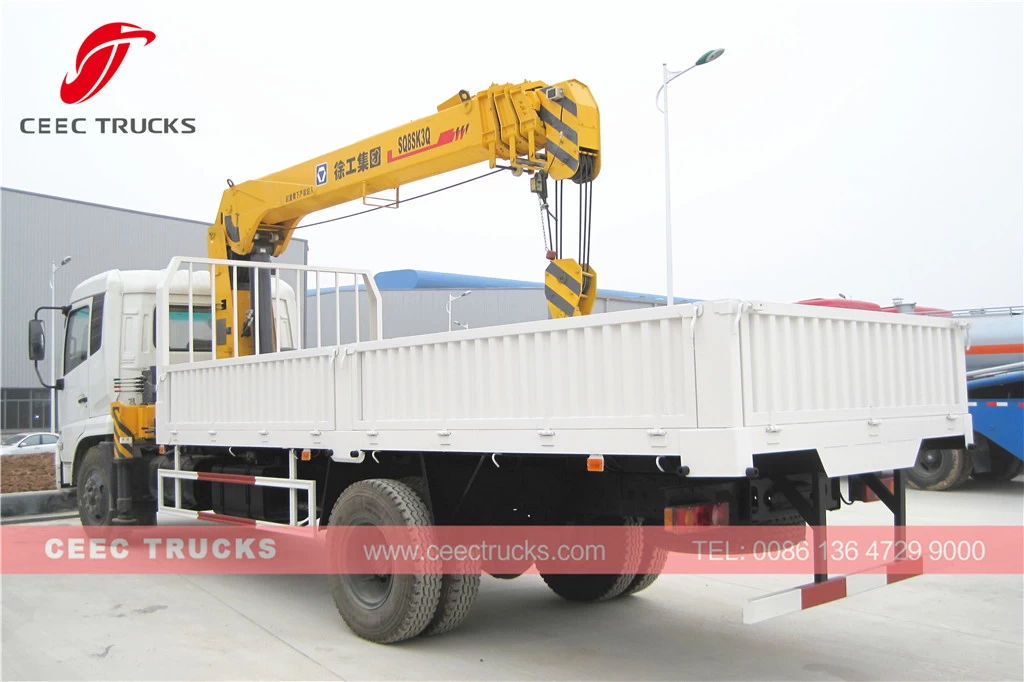

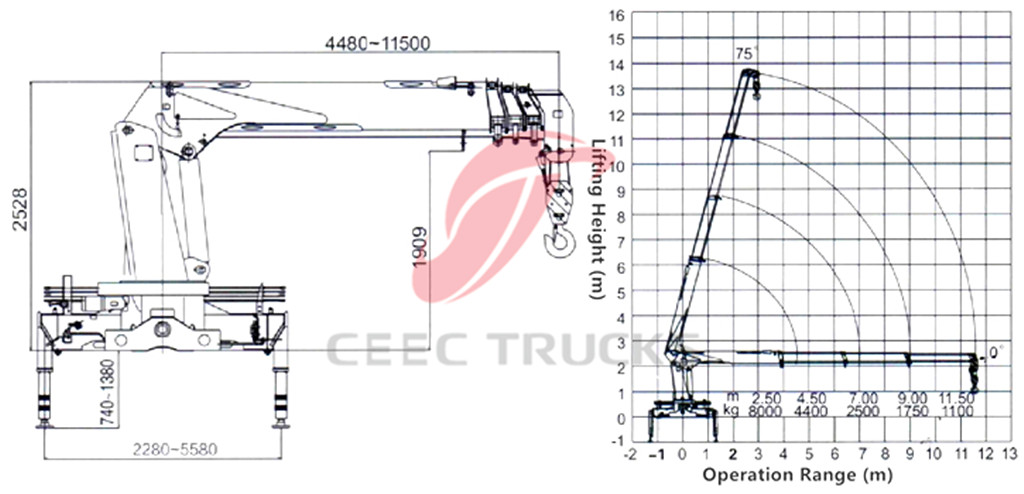

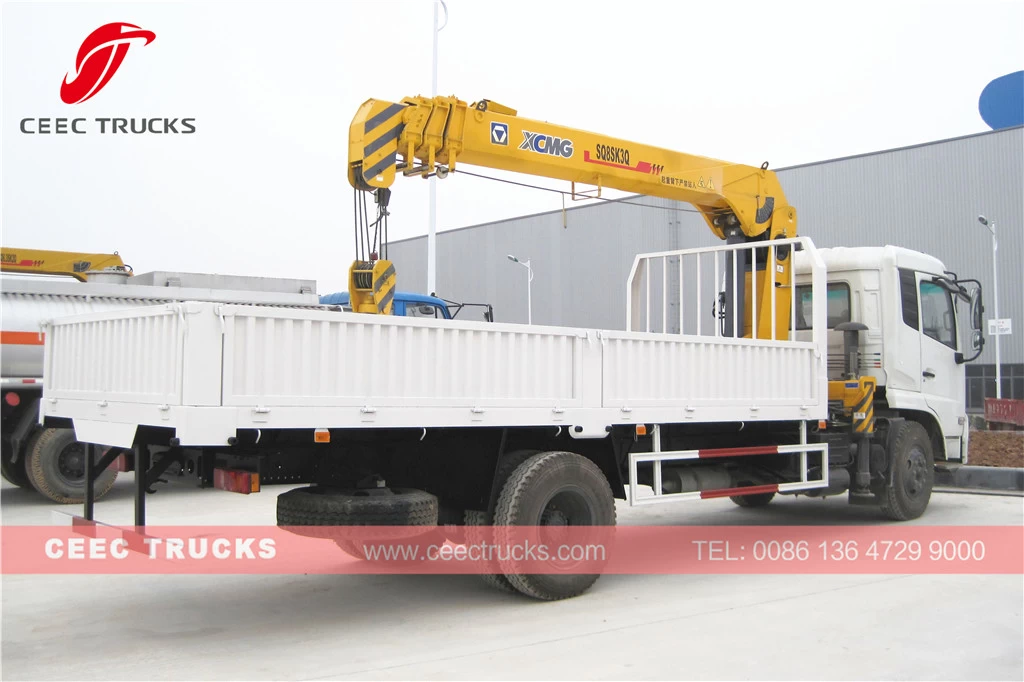

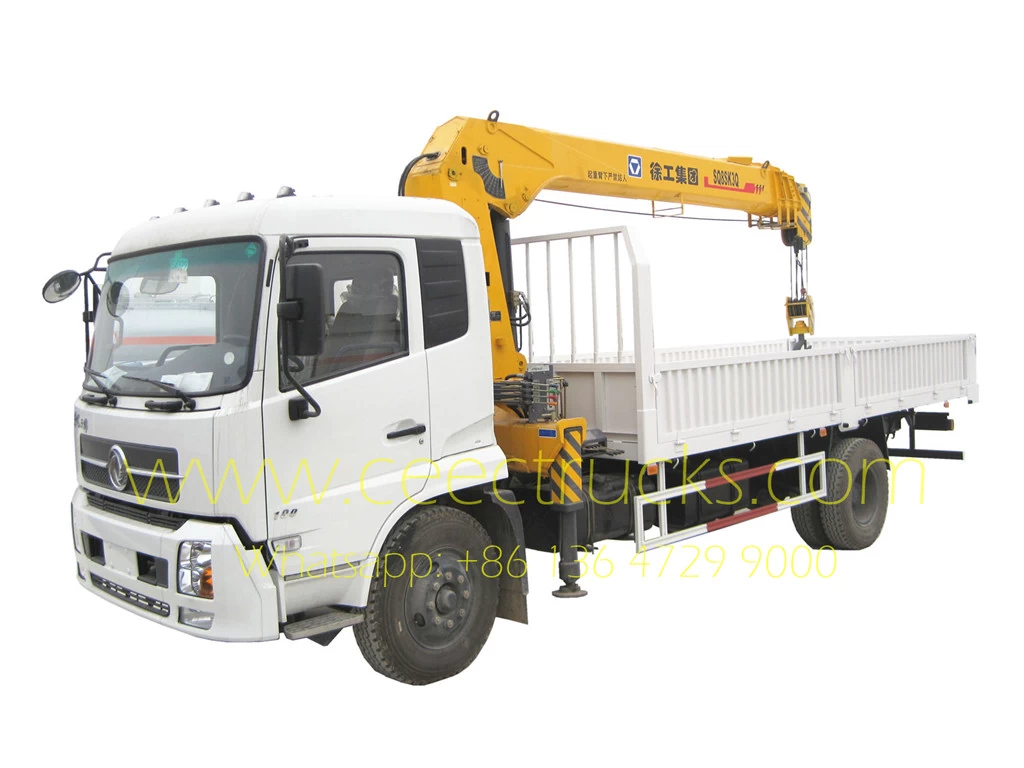

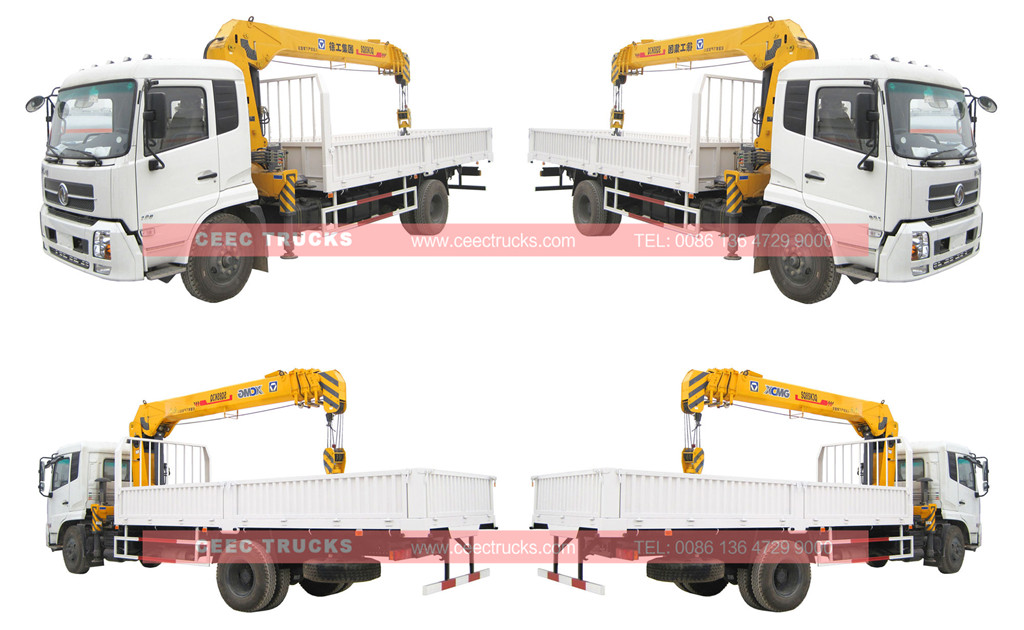

| Telescopic boom Crane truck (8Ton boom crane)
|
| General
|
Vehicle Brand
|
CEEC TRUCKS
|
| Chassis Brand
|
DONGFENG
|
| Overall Dimension
|
9000 * 2500 * 3550 mm
|
| GVW / Kerb Weight
|
16,000kg / 8,900kg
|
| Cab
|
Cab Capacity
|
2+1 persons allowed
|
| Air Conditioner
|
Heating/cooling air conditioner
|
| Engine
|
Fuel Type
|
Diesel
|
| Engine Brand
|
YUCHAI
|
| Power
|
190 HP (140 KW)
|
| Displacement
|
5900 ml
|
| Emission Standard
|
Euro 3 or 4
|
| Chassis
|
Drive Type
|
4X2, (Left hand drive or Right hand drive)
|
| Transmission
|
Manual 6 speed levers with 1 reverse
|
| Wheelbase/No. of axle
|
4500 mm / 2
|
| Tire Specification
|
10.00-20
|
| Tire Number
|
6 tires and 1 spare tire
|
| Max Speed
|
90 km/h
|
| Paint
|
Metallic paint
|
| Superstructure
|
Cargo Box Dimension
|
5500*2300*600 mm
|

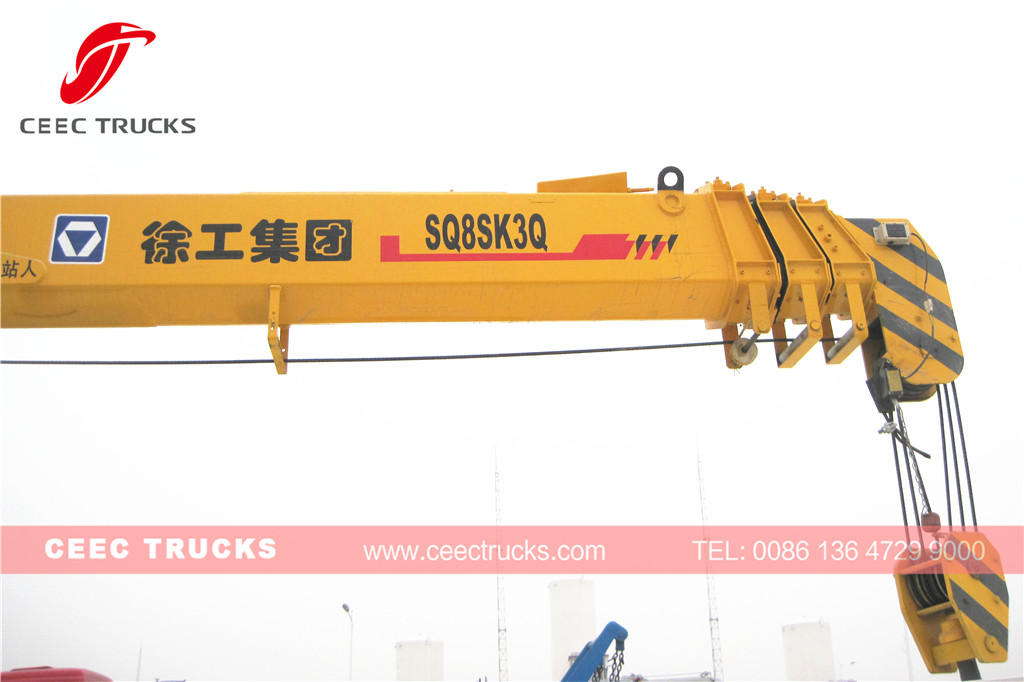

| Crane Type
|
Telescpoic boom crane
|

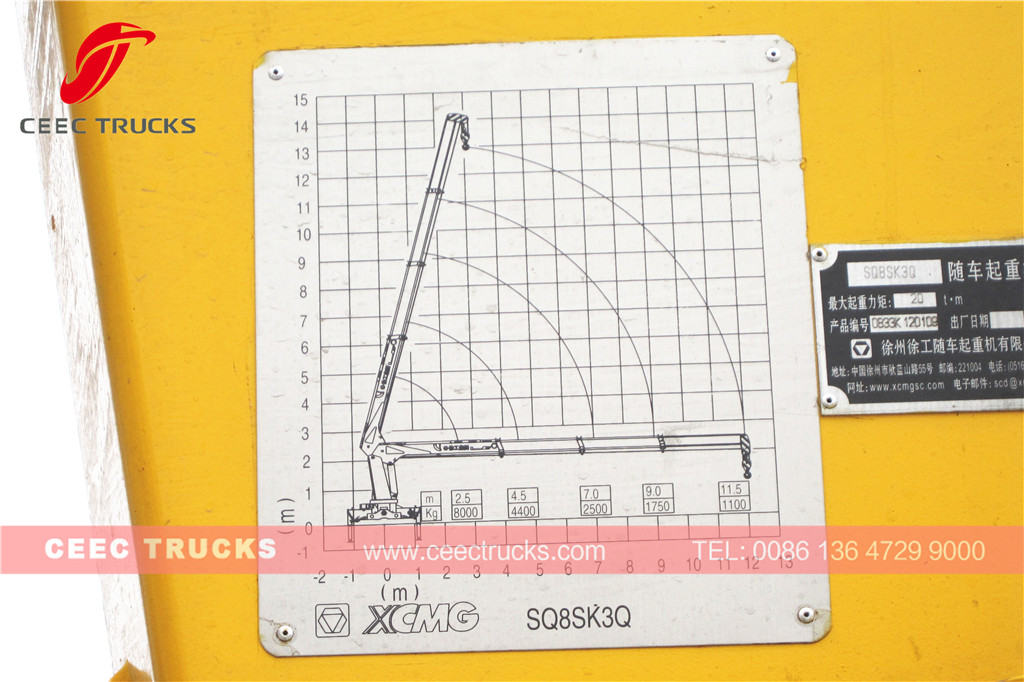

| Max Lifting Capacity
|
8000 kg
|
| Slewing Angle
|
360° All rotation
|
| Crane Weight
|
3315 kg
|
| Installation Space
|
1200 mm
|

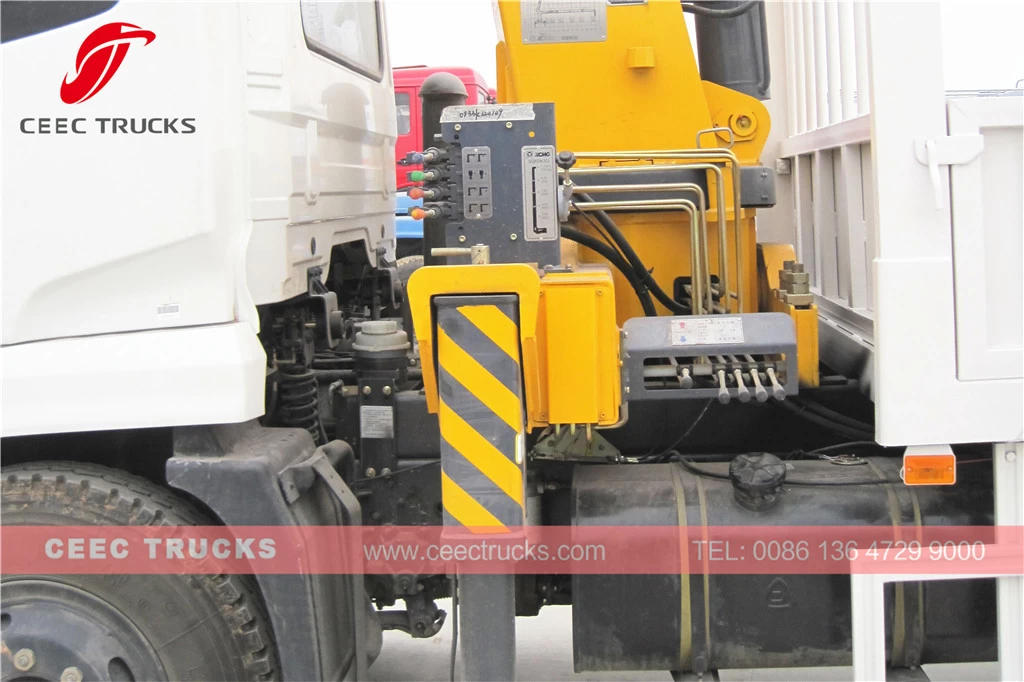

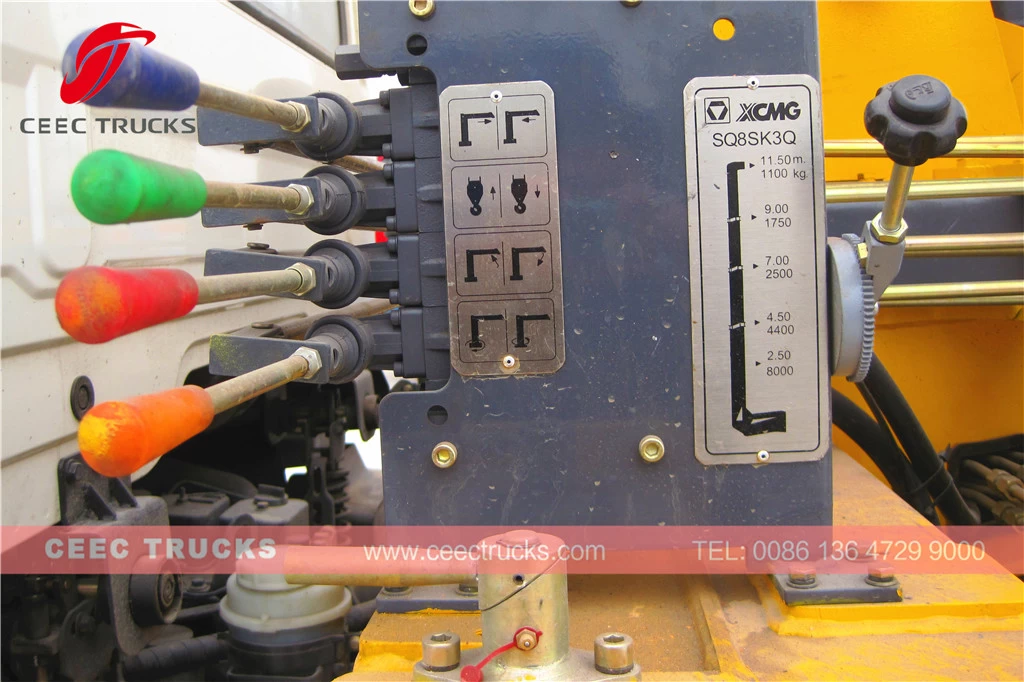

| Control panel
|
English or Your language
|
| All standard accessories: Basic tool kit, English manual……
|
| Optional
|
** Knuckle boom crane.
** Hydraulic tipper box.
** Box thickness according to requirement.
** Box height could be nominated
** Remote Control Box optional
|
