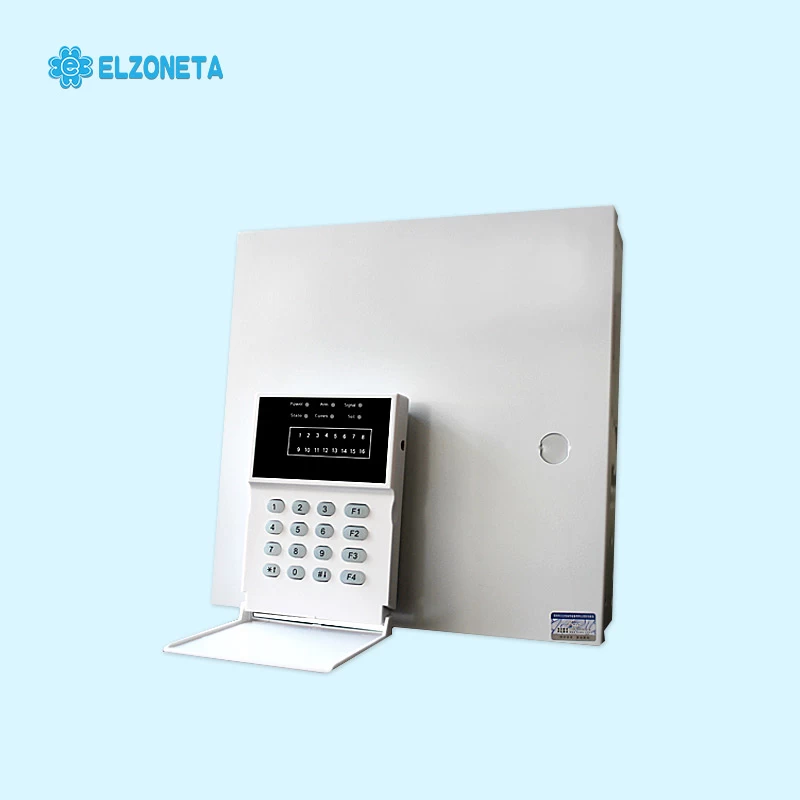

EC-Z05-8 8 Zones PSTN Intelligent Alarm Panel
Features:
1. 8 wired & 16 wireless zones
2. LED display, support 4 keypads
3. Metal box with transformer
4. Support 6 telephone number (office telephone or mobile phone) and 2 alarm center telephone number
5. Compatible with Contact ID, Ademco 4+2
6. Support 9 passwords: 1 is admin password, 8 is operation passwords
7. Max support 50pcs wireless sensors and 20pcs remote controls
8. Work with rechargeable 12V, 7Ah battery
9. Real-time arm/disarm and Timing arm/disarm function optional
10. Siren sounding time can be adjusted
11. 20 seconds voice record message
12. 1 relay output
13. Event memory for 50 records
Specifications:
|
Model
|
EC-Z05-8
|
|
Zones
|
8 wired + 16 wireless
|
|
Power supply
|
DC 12V-15V
|
|
Power consumption
|
≤1.5W
|
|
Transformer
|
Input: 220V 50Hz, Output: 16.5V 2A
|
|
Standby Current
|
<25mA
|
|
Alarm Current
|
<450mA
|
|
Wireless frequency
|
433MHz
|
|
Encoding
|
1527/2264
|
|
Casing Materials
|
Metal
|
|
Operating Conditions: Temperature:
|
-10℃~ +55℃
|
|
Relative Humidity
|
≤95％RH(No congelation)
|
|
Size of Metal Box
|
26.5*26*7.8cm
|
|
Size of Keypad
|
16*14*3.5cm
|
Standard Package:
1*Alarm Panel
1*Keypad
1*Remote Control
1*User Manual
