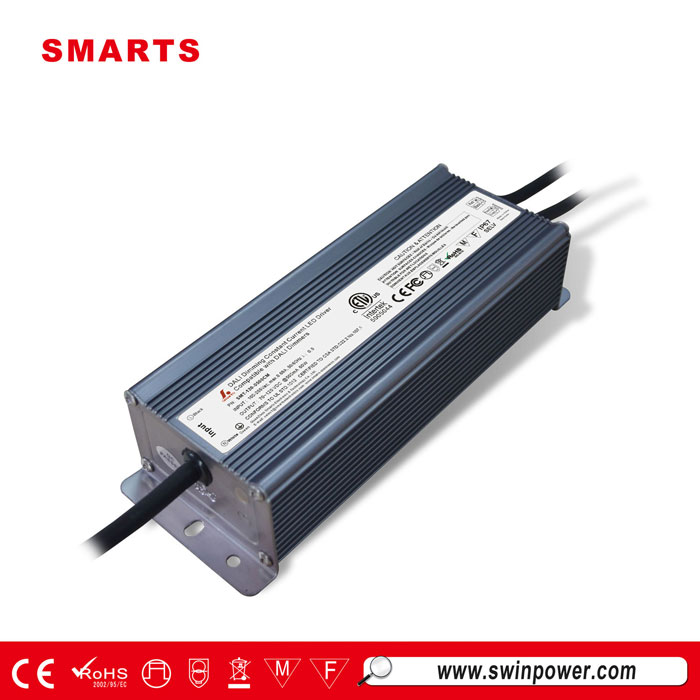

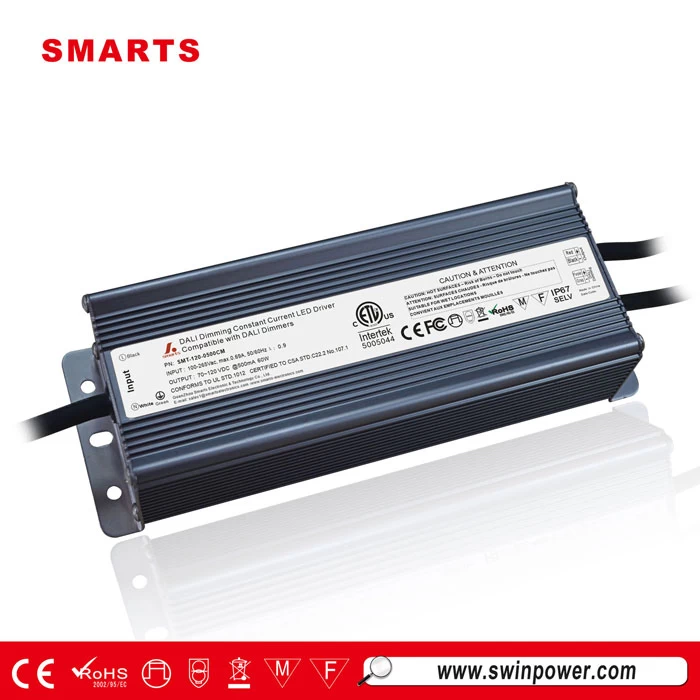

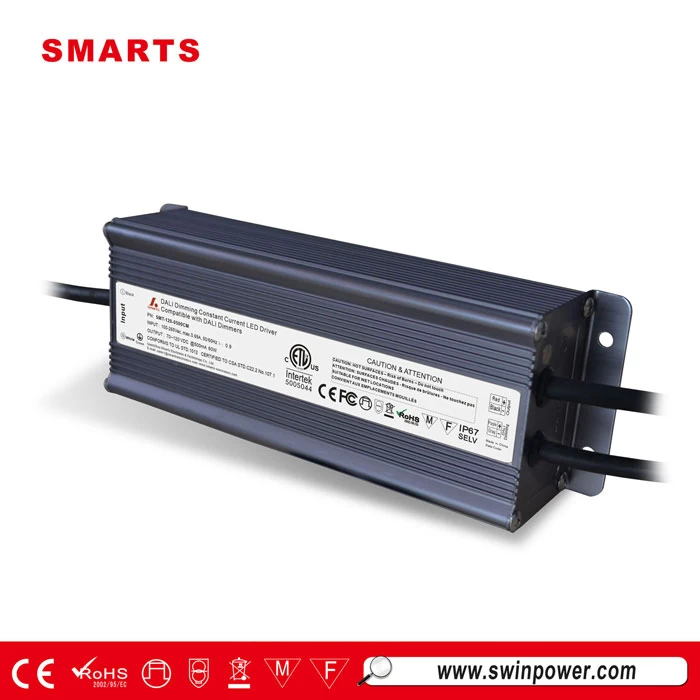

80-120vdc 500ma dali dimmable led power supply ip67

SMT-120-0500CM is 80-120vdc 500ma dali dimmable constant current led power supply with IP67 case could suit for indoor and outdoor led lights with 5 years warranty.


  • Size200*68*45mm
  • Dimming modedali dimmable
  • Working Modeconstant current
  • Output Current500ma
  • Output Voltage80-120vdc
  • Input Voltage100-265vac
  • CertificationCE,ETL ,FCC,RoHS

80-120vdc 500ma dali dimmable led power supply ip67

Dali dimmable 80-120vdc 500ma led power supply ip67 is ETL/cETL,ROHS,FCC,ROHS listed with 5 years warranty which suit for Europe,US and Canada.


   Feture


·Output constant current

 ·Range 100-265VAC

 ·Built-in PFC function, PF> 0.9

 ·Efficiency >90%

 ·Protections:short circuit/over current/over temperature

 ·Cooling by free air convection

 ·Dimming function:DALI dimmable

 ·Suitable for LED lighting applications by PWM output

 ·Compliance to worldwide safety regulations for lighting

 ·Suitable for dry/damp/wet locations

 ·5 years warranty



   Specification



Model

SMT-120-0500CM

SMT-070-0900CM

SMT-045-1400CM

SMT-036-1750CM

Output

DC Voltage

80-120V

40-70V

20-45V

20-36V

Voltage Accuracy

±0.5V

Rated current

0~500mA

0~900mA

0~1400mA

0~1750mA

Rated power

60W

63W

63W

63W

Input

Voltage Range

100-265VAC

Frequency Range

47~63HZ

Power Factor ( Typ.)

PF≧0.92/120V / PF≧0.95/220V

Full Load Efficiency(Typ.)

>86%(120V) /

>88%(220V)

>86%(120V) /

>89%(220V)

>88%(120V) /

>90%(220V)

>88%(120V) /

>90%(220V)

AC Current(Typ.)

0.990A(120V)

0.960A(220V)

1.055A(120V)

1.042A(220V)

1.047A(120V)

1.031A(220V)

1.056A(120V)

1.031A(220V)

Leakage current

﹤0.65mA/120VAC / ﹤0.75mA/220VAC

Protection

Short Circuit

Protection type: Hiccup mode, recovers automatically after fault condition is removed

Over Current

≦1.4*I out

Over temperature

100℃±10℃ shut down o/p voltage, re-power on to recover

Environment

Working TEMP.

-40~+50℃

Working Humidity

20~95%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z  axes

Safety&EMC

Safety standards

EN61347-1 EN61347-2-13 IP67

Withstand voltage

I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

Compliance toEN55015,EN61000-3-2 (≧50%load)

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry

level (surge4KV)

Others

Weight

1Kg

Size

210*69*45mm(L*W*H)

packing

355*215*215mm/10pcs/CTN  ,  220*70*50 mm for inner box

Notes

1. All parameters NOT specially mentioned are measured at 220VAC input , rated load and 25℃ of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.

3. Tolerance:includes set us tolerance,line regulation and load regulation .



Triac dimmable led driver
dali led power supply
0-10v led driver

slim size led driver


   Mechanical Specification

rohs led power supply



ac to dc led power supply

※Input Rubber cable  H03VV-F 3G 1.0㎡,the green/yellow cable connect with (FG),Brown with AC (L),Blue with AC(N)

※Input with Live Wire(L)  Neutral Wire (N)

※Output LED SEC (LED+),(LED-)

※Signal Dimming (DA1), (DA2)    ( DALI Non polar!)



■Dimming Operation

※Connect DALI signal cable of driver with DALI cable in Control then dim after controller scan and assign address
