Applications:

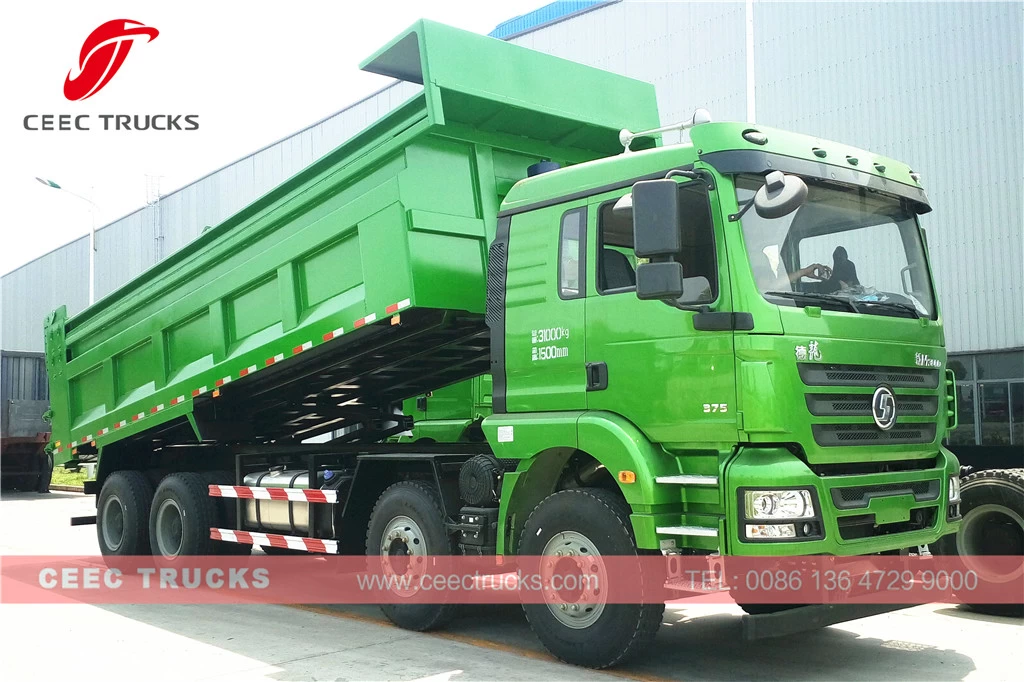

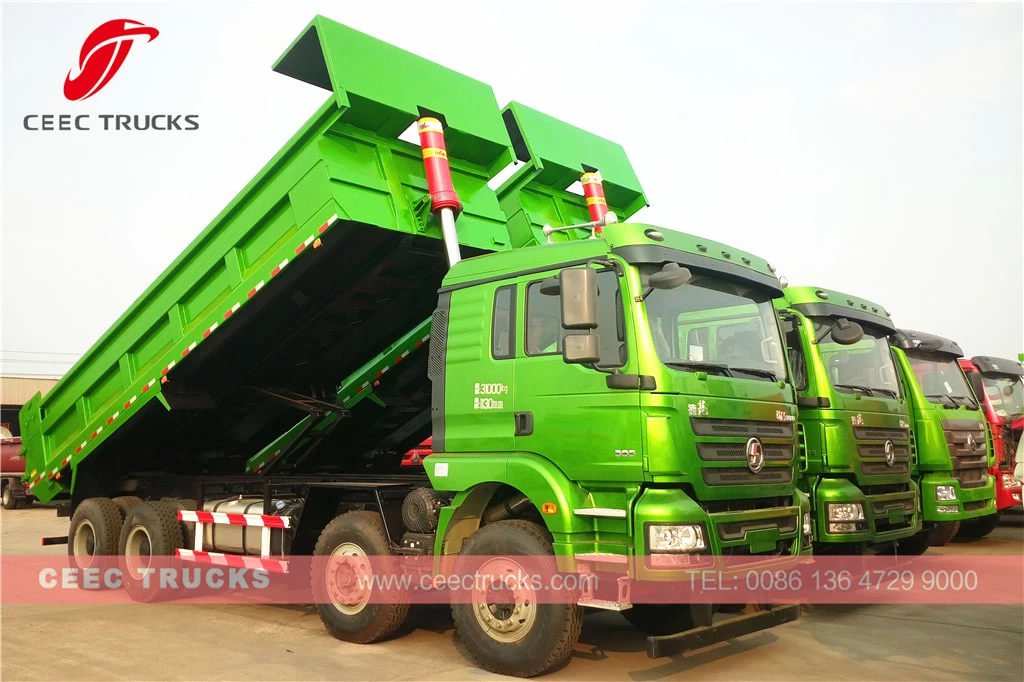

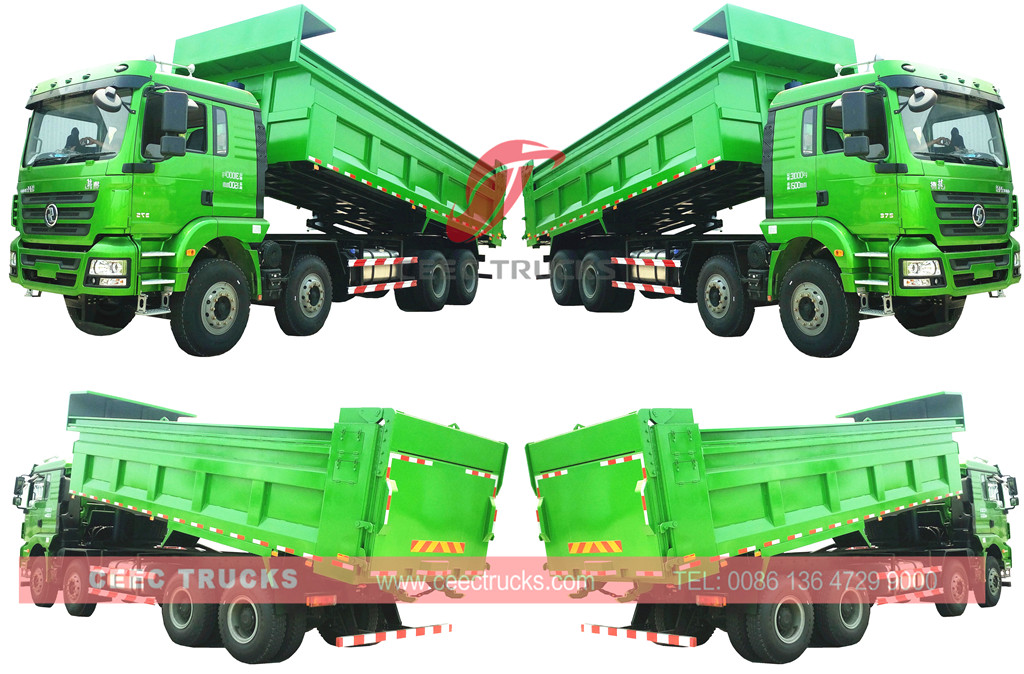

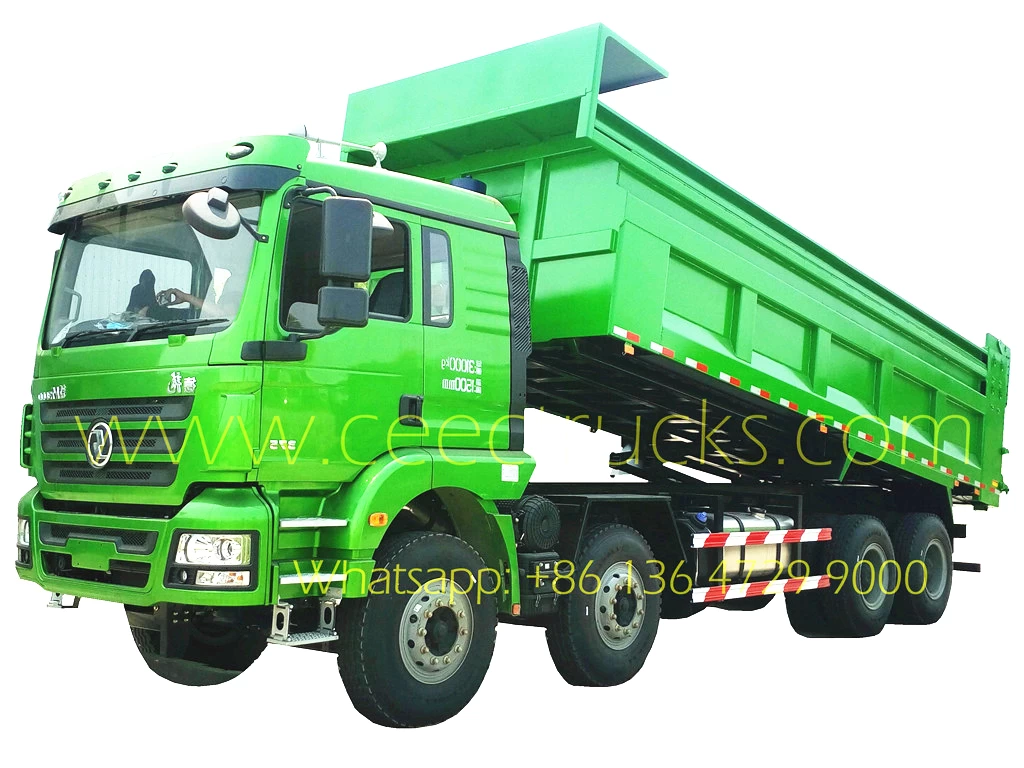

Dumper Truck SHACMAN (also called dump truck, tipper truck, rear tipping vehicle, mining dump truck, construction dump truck, beiben dumper, north benz tipper, mine tipper vehicle) is designed for loading, transporting and discharging construction material, also can be used in for mine rock delivery.

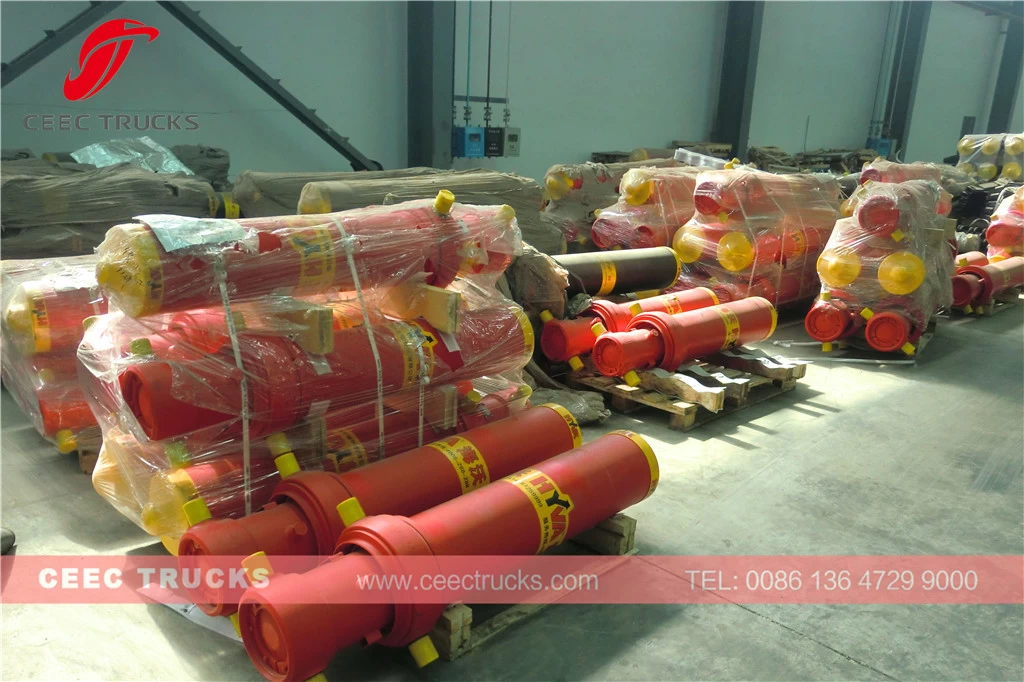

CEEC TRUCKS tipper trucks all use reliable HYVA brand hydraulic lifting device, with Front & Middle lifting optional.
The dump truck Box material optional: Manganese steel & Carbon steel, which is safe and durable.
Key Features:
---- SHACMAN chassis, perfect performance
---- WEICHAI diesel engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Dumper body capacity from 3 to 100 Metric Ton.
---- HYVA lifting device easy operation and maintenance.
---- Front lifting & middle lifting are available.
Specifications:
| SHACMAN Dump Truck (80T)
|
| General
|
Vehicle Brand
|
CEEC TRUCKS
|
| Chassis Brand
|
SHACMAN
|

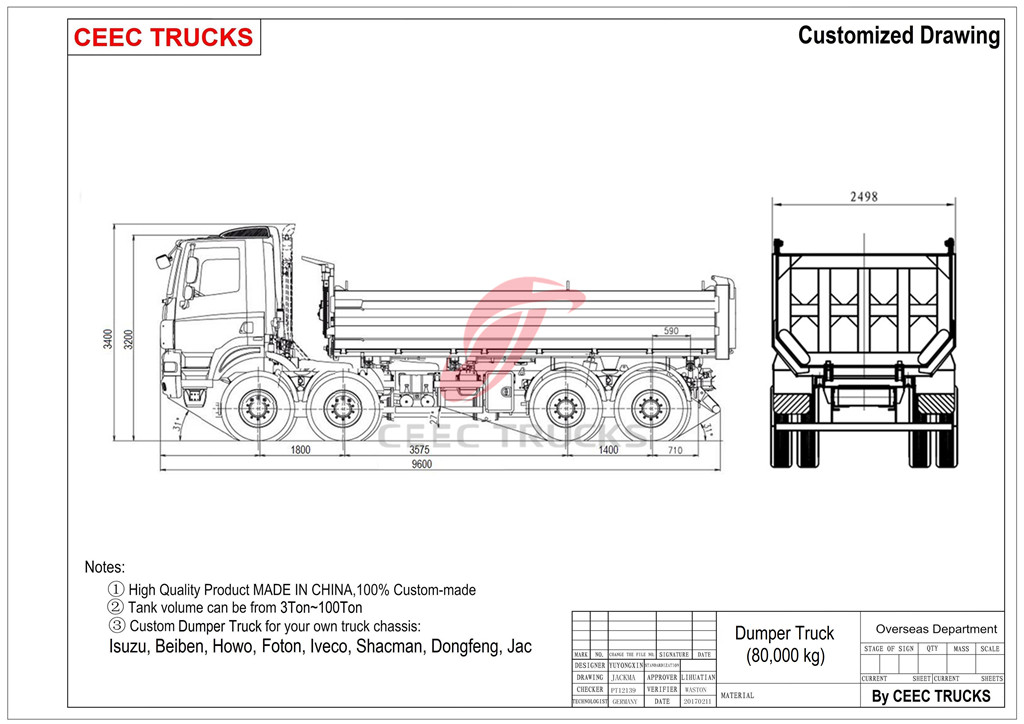

| Overall Dimension
|
9600*2490*3400 mm
|
| GVW / Kerb Weight
|
31,000 kg / 17,900 kg
|
| Cab
|
Cab Capacity
|
2 persons allowed
|
| Air Conditioner
|
Heating/cooling air conditioner
|
| Engine
|
Fuel Type
|
Diesel
|
| Engine Brand
|
WEICHAI
|
| Power
|
380 HP (280 KW)
|
| Displacement
|
9726 ml
|
| Emission Standard
|
Euro 2 or 3
|
| Chassis
|
Drive Type
|
8X4, (left hand drive)
|
| Transmission
|
FAST 9 speed levers with 1 reverse
|
| Wheelbase/No. of axle
|
1800+3575+1400 mm / 4
|

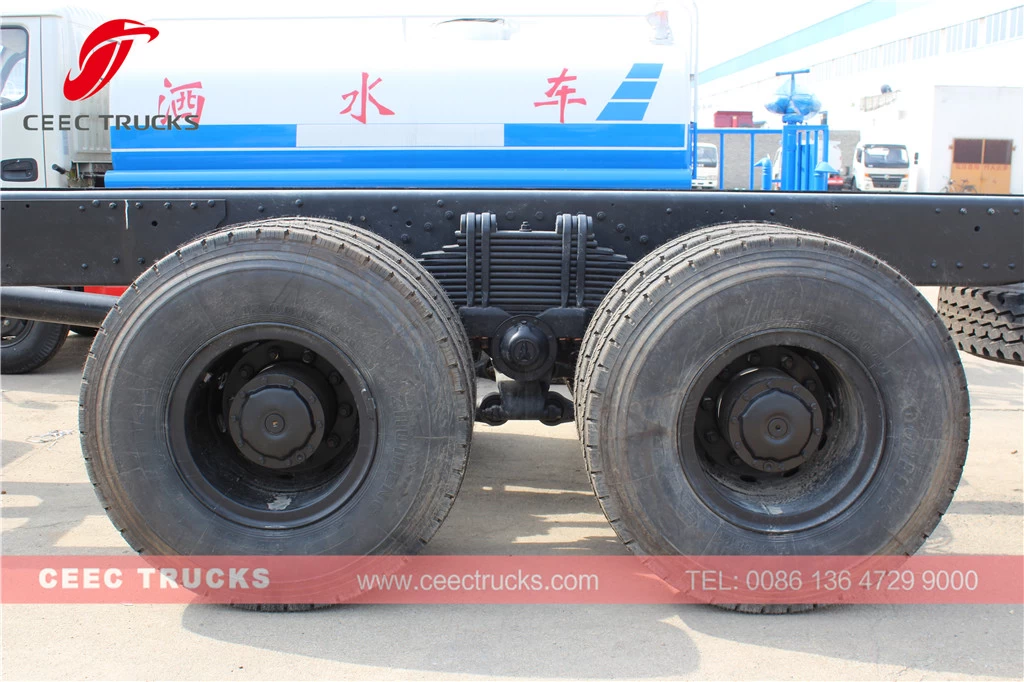

| Tire Specification
|
12.00R20
|
| Tire Number
|
12 tires and 1 spare tire
|
| Max Speed
|
90 km/h
|
| Paint
|
Metallic paint
|
| Superstructure
|
Body Capacity
|
80 T
|

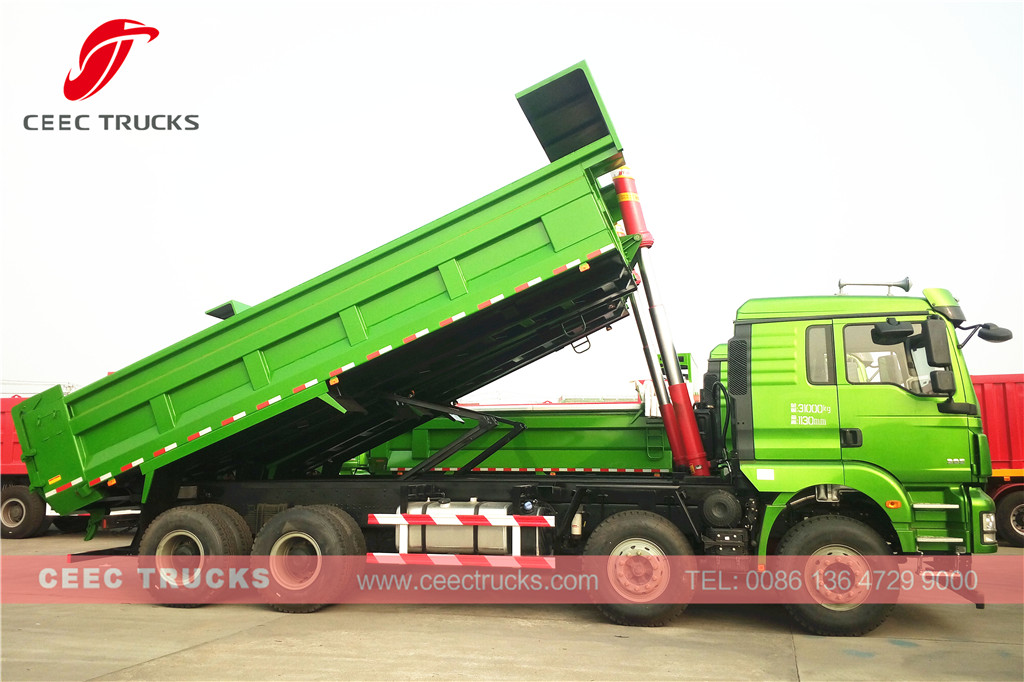

| Tilting Device
|
Front lifting device
|

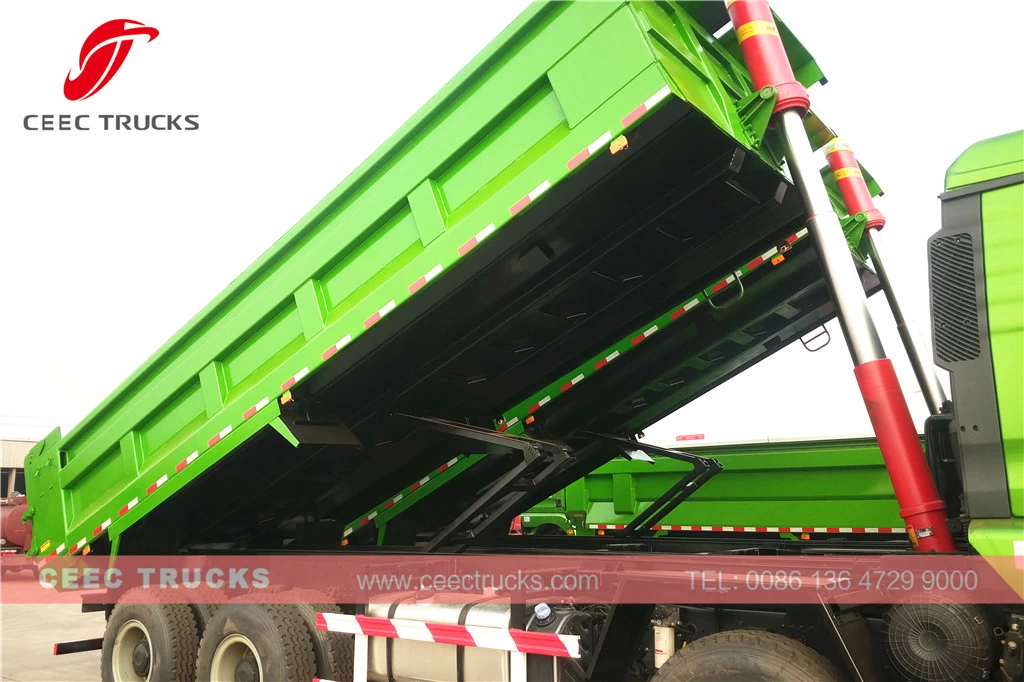

| Hydraulic Cylinder
|
HYVA brand
|
| Discharging model
|
Rear discharging
|

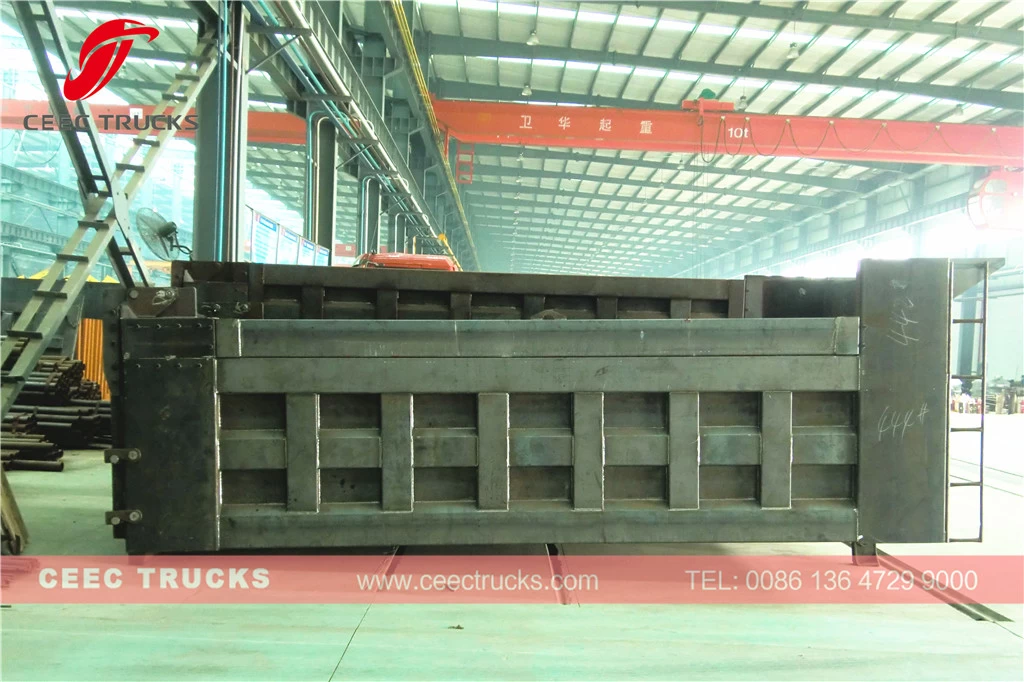

Dump Body Dimension
|
7000*2300*1500 mm |
| Thickness
|
Side Board: 8mm
Floor Board: 10 mm
|
| Control panel
|
English or Your language
|
| All standard accessories: basic tool kit, English manual……
|
| Optional
|
** Back alarm and Camera can be equipped.
** Rear self-lock optional.
** Standard International quality HYVA lifting device, Front & Middle optional.
|
