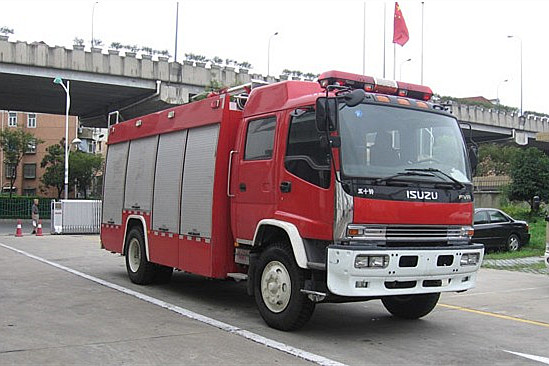

8000L FVR ISUZU 4x2 four doors Water/Foam Fire Vehicle
1. Factory direct sale
2. Specialized in Trucks 10 years
3. A competitive price.
4. With CCC, ISO9001, SGS, ASME
5. Chassis is ISUZU.
6. Engine min horse power is 260HP
7. The tank volume is 6000-10000L
8. Produce according to you inquiry
9. Fire pump is normal pressure or middle-low prssure
10. Fire monitor is controled by Manual or Electric
This fire truck is mainly used for large and medium-sized cities in Chinese professional fire brigade in the fight against buildings, forests, as well as oil, chemical industry, factories and mines, oil depots, oil terminals, such as fire, can also be applied to high-altitude water supply, mobile pumping stations.
Fire truck is also named fire fighting truck. It is refitted on classis 2 chassis, it is include liquid tanker, pump room, equipment boxes, power output and transmission system, pipeline system, electrical system and so on, widely used in urban public fire brigade, petroleum chemical industry, mines, ports, docks, forest and other departments, can quickly close to the fire field fire fighting, to fighting a variety of fire, is the ideal fire fighting equipment.
The fire truck for the streamline design, the appearance of novel, flexible, economic and practical, internal equipment rack for separating materials are made by high strength aluminum alloy profile, beautiful generous, various equipment placed reasonable, and a special fixture for fixing.
| PT5150GXFPMF Fire Truck |
Main
Parameter |
Driving type |
4*2 |
| cab |
four doors Left hand drive(seat 6 persons) |
| air condition |
with |
| Overall Dimension(mm) |
8241*2450*3360 |
| Gross Weight(kg) |
9300 |
| Rated Weight(kg) |
6000 |
| Total Weight(kg) |
15750 |
| Approach/Departure angle |
25/13 |
| Axle Load(kg) |
5900/9850 (Dual Axle) |
| Front/ rear overhang(mm) |
1335/2280 |
| Max Speed(km/h) |
90 |
| Chassis parameter |
| Chassis Model |
FVZ34Q |
| Engine |
Model |
6HK1-TC |
| Power(kw) |
191 |
| Displacement(ml) |
7790 |
| manufacturer |
Qingling Motors Co. Limited |
| Fuel Type |
Diesel |
| Emission standard |
Europe III |
| |
F/R Tread(mm) |
1960/1855 |
| No.of Leaf Spring |
9/14 |
| Tire Size |
10.00-20-16PR,10.00R20-16PR,11.00-20-18PR |
| Number of Tires |
6 |
| Wheelbase(mm) |
4500 |
| Number of Axles |
2 |
| special function |
| Tank |
Material: high quality carbon stell plate, anti-rust treatment.
Structure: welding, there is clapboard inner.
the tank capacity according your inquiry and the chasiss capacity. |
| Water Tank |
Capacity:8,000L |
| or water and foam tank |
Water tank:6,500L foam tank:1,500L |
Special
Parameter |
Fire Pump |
choose normal pressure fire pump
or middle-low pressure fire pump |
| CB10/40 |
CB20.10/20.40 |
| Fire Monitor |
PS32 or PS48,PP32 or PP48
choose Manual or Electric |
| PTO |
use sandwich PTO, splashing-type lubricate, can put out fire when driving. |
| carriage |
Carriage is made of high quality stell and Aluminum embossed sheet |
| Pump room |
or on the rear or central of truck, there are pump system and pipeline, reasonable structure.
Easily operate all meters and operate-switch. |
Equipment
box |
Equipment box: at the back of carriage, there are two-layers clapboard, can store equipment. There is safe ladder to up and down on the back of
equipment box.
Structure: whole frame is welded to ensure intension and rigidity.
Material: frame is high quality steel, inner plague is aluminum embossed sheet, surface is
anodic processed. |
Rolling
shutter door |
Light and high quality aluminum alloy rolling shutter door, neatly open and close, good seal,
low noise, beauty outside, and with one set lock. |
| color |
The whole vehicle is red for fire fighting, there are white in the middle of truck in accordance
with the whole truck. |
Technical
requirement |
1.the fire fighting vehicle is accord with GB7965 Performance requirements and test methods
for fire fighting vehicle.
2.tank of foam and water is accord with GB39.5 General Specification for fire fighting vehicle.
3.the outside is very beauty, the surface roughness is accord with GB39.5 General
Specification for fire fighting vehicle.
4.All operating switch and meter is accord with standard nameplate. |
