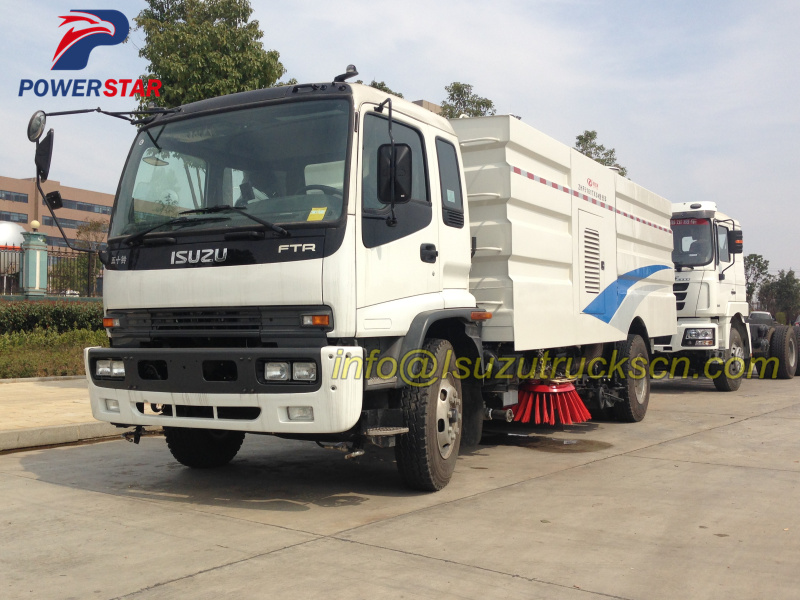

Airport high performance road sweeping truck Isuzu
Basic Description

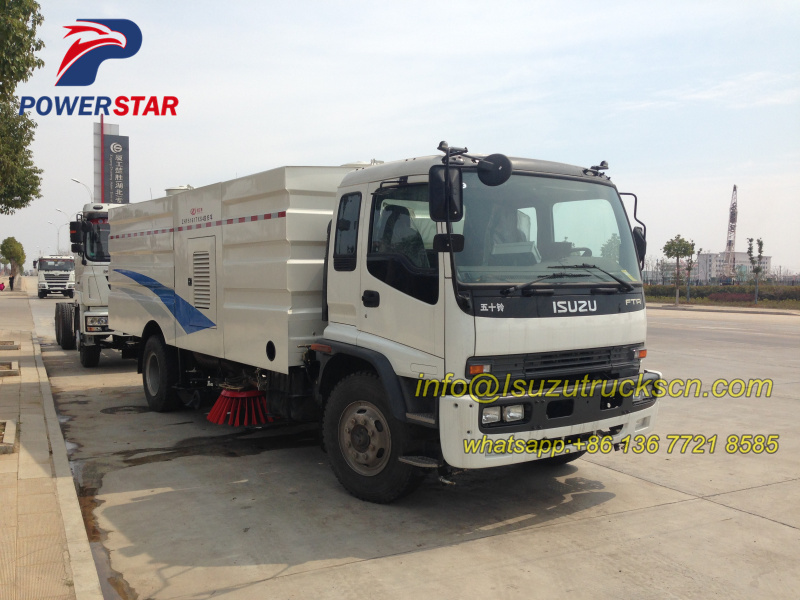

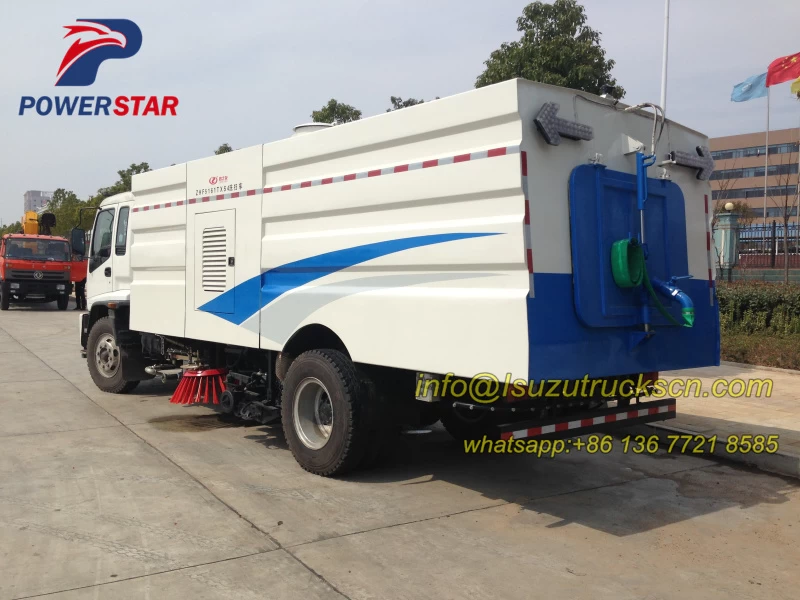

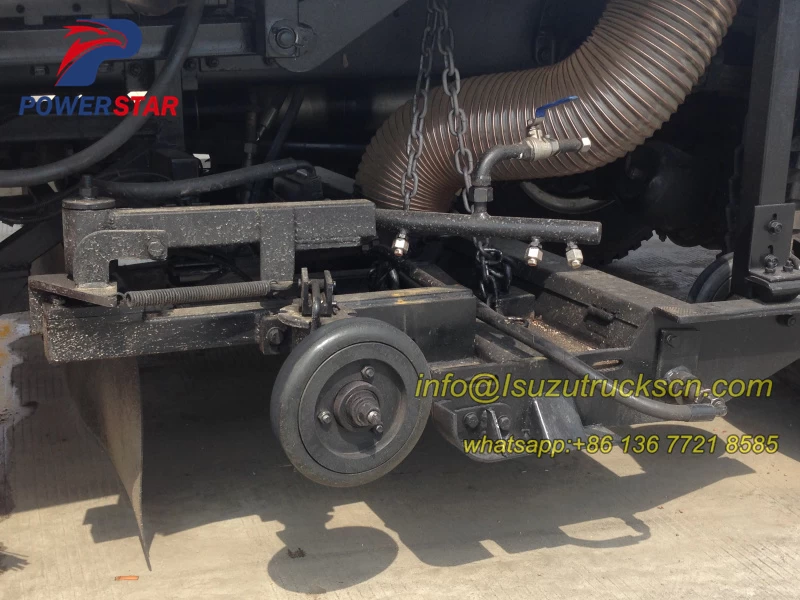

Broom sweeper truck ISUZU (also street dust cleaner road sweeper truck, road cleaning sweeper truck, brush road sweeper, road brush sweeper truck, street cleaning truck, street garbage collection sweeper, high ways road sweeper, road sweeping vehicle) This Isuzu road sweeper truck has a simple and proper structure with four brushes in the middle and a suction port at the back part of the vehicle. The efficient suction system makes low noises when the vehicle is working. The whole vehicle is stable in performance.

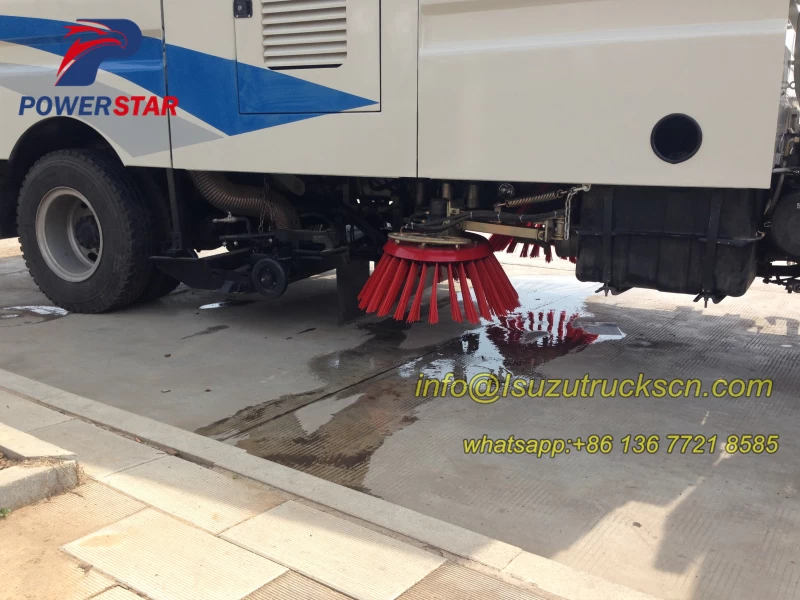

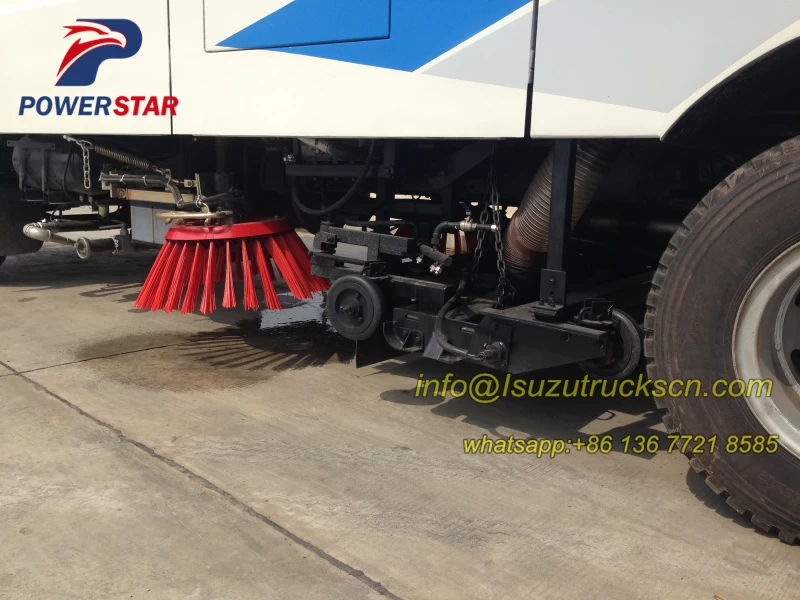

With the structure of four mid-mounted disk brushes and one rear-mounted suction nozzle, which provide a large sweeping width, high sweeping efficiency and good traffic ability. Also convenient for adjustment and maintenance of sweeper device and nozzle.

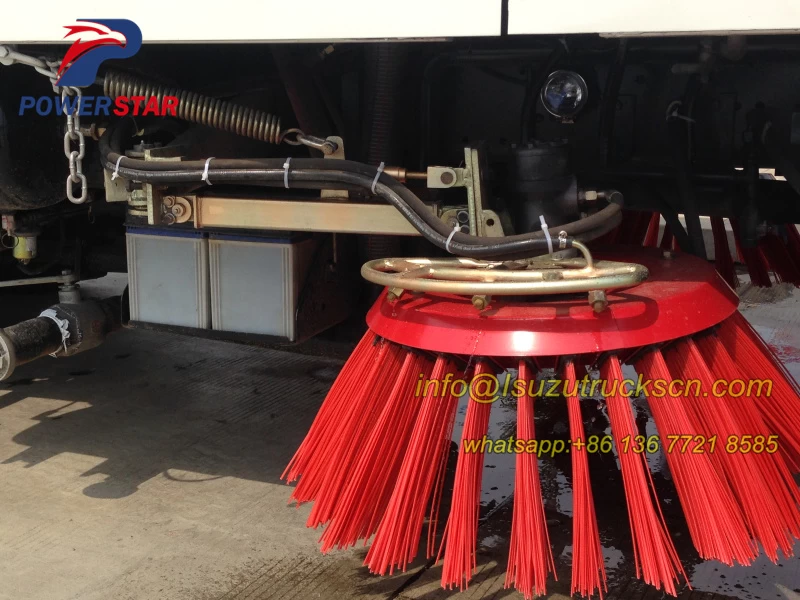

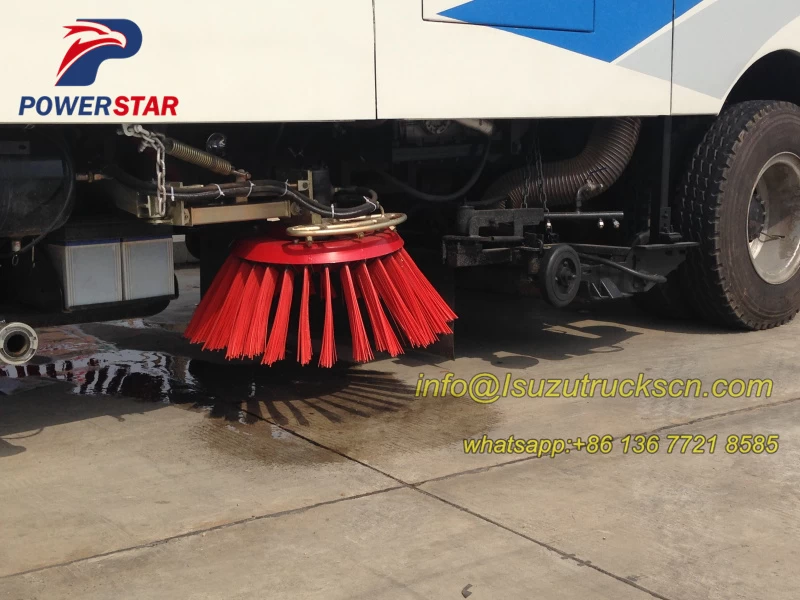

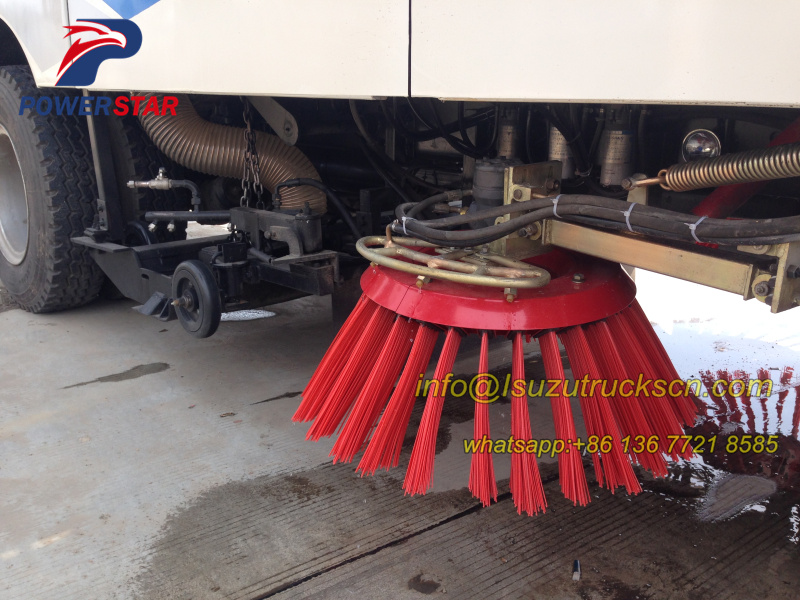

The sweeping disk has the protection function and automatic reset function, which can avoid obstacles automatically and return automatically.
Key Features
ISUZU NKR Chassis, Durable & Performance.
Sweeping, Sprinkling and garbage transportation
Stainless steeel garbage bin & Stainless water tank, longer service life
Fuel Dispenser, Flow meter, Level gauage can be optional
POWERSTAR 20 years’ experience on road sweeper truck exporting.
Main specifications
|
Model
|
PT5140TSL
|
|
Driving Type
|
4x2
(Left hand drive)
|
|
Wheelbase
|
4500
mm
|
|
Overall Dimension
|
7125X2465X2970 mm
|
|
Cab
|
Forward control over
engine, all-steel-welded construction
|
|
Sweeping System
|
Auxiliary
engine
|
Isuzu
tech engine
|
|
Stainless
Steel Hopper Effective Volume
|
8
CBM
|
|
Stainless
Steel Water Tank Volume (L)
|
5000
|
|
Sweeping
Width (mm)
|
3200
|
|
Sweeping
speed (km/h)
|
3~25
|
|
Sweeping
Capacity (m2/h)
|
16500~82500
|
|
Blower
rated rotation speed (rpm)
|
1800
|
|
Blower
air capacity (m3/h)
|
8000
|
|
Blower
air pressure (Pa)
|
7000
|
|
Side

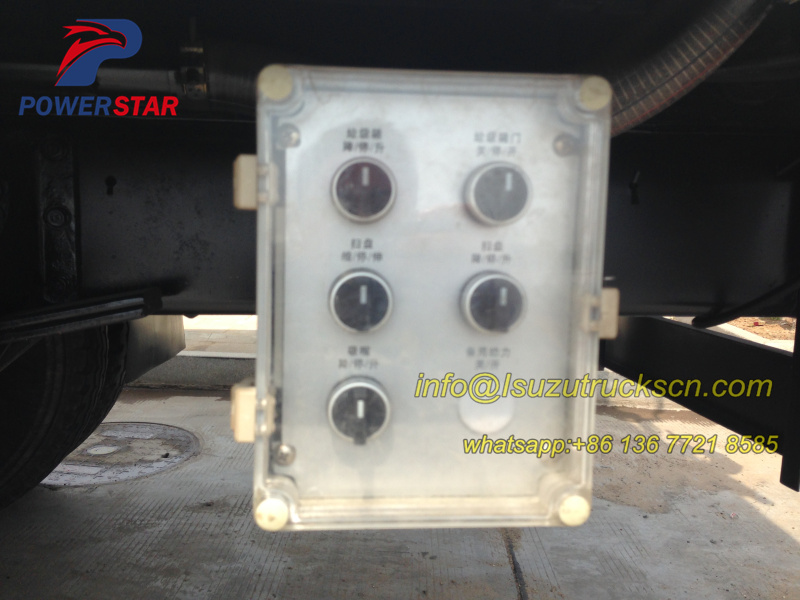

Brush Sweeping Brush Drive and Control
|
Electric
control lever and switch control, Hydraulic driving
|
|
Engine
|
Model
|
4HK1-TCG40
|
|
Type
|
Diesel,
turbo charged inter-cooled, 4 cylinder
|
|
Max.
Power
|
139
KW (195 HP)
|
|
Gearbox
|
MLD
6-shift, mechanical type, 6 forward and 1 reverse with
|
|

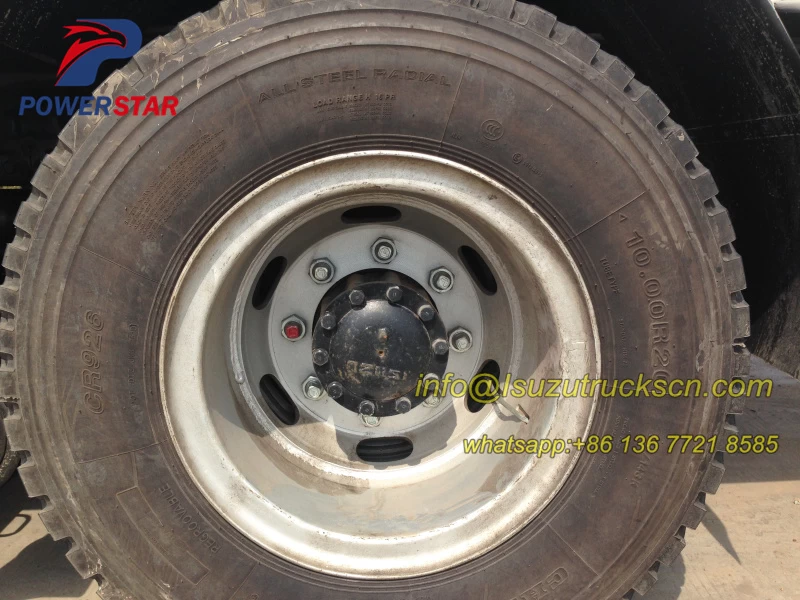

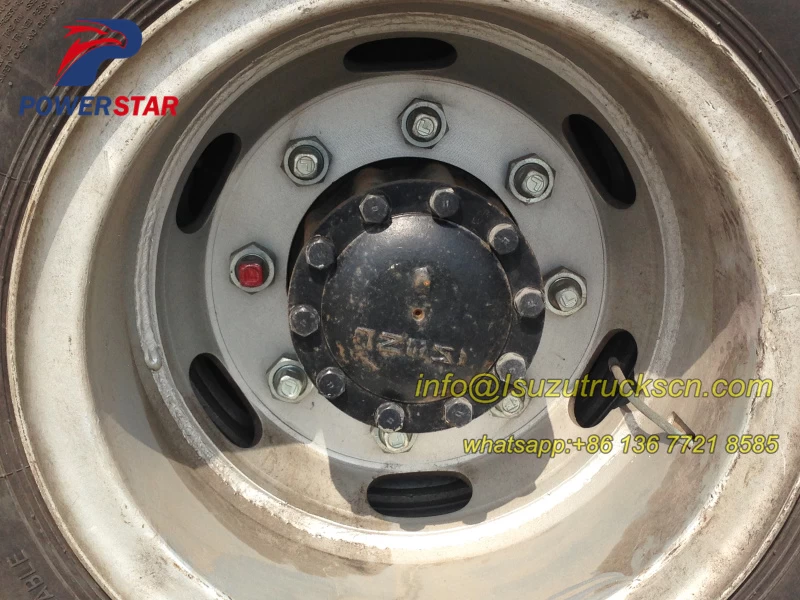

Tire
|
8.25-20
|
|
Color
|
Red (Any color & logos up to wish)
|
|
Max Speed
|
100
km/h
|

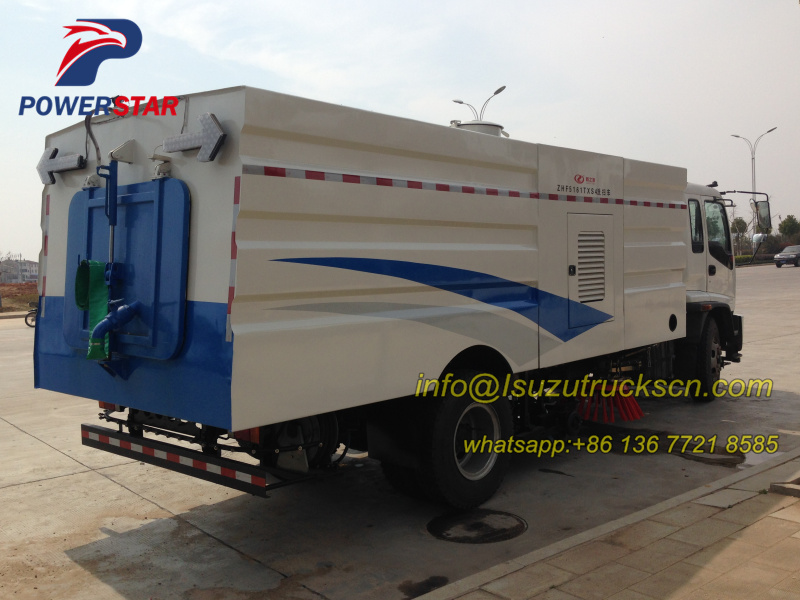

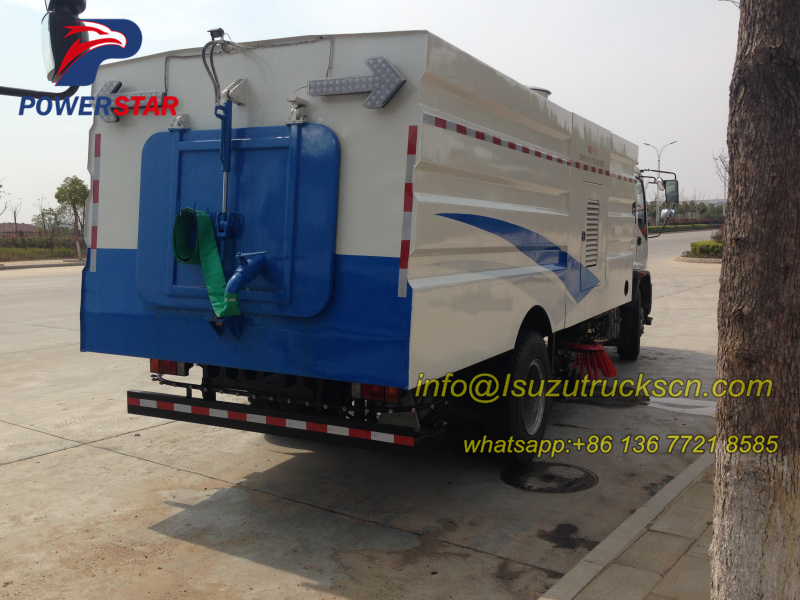

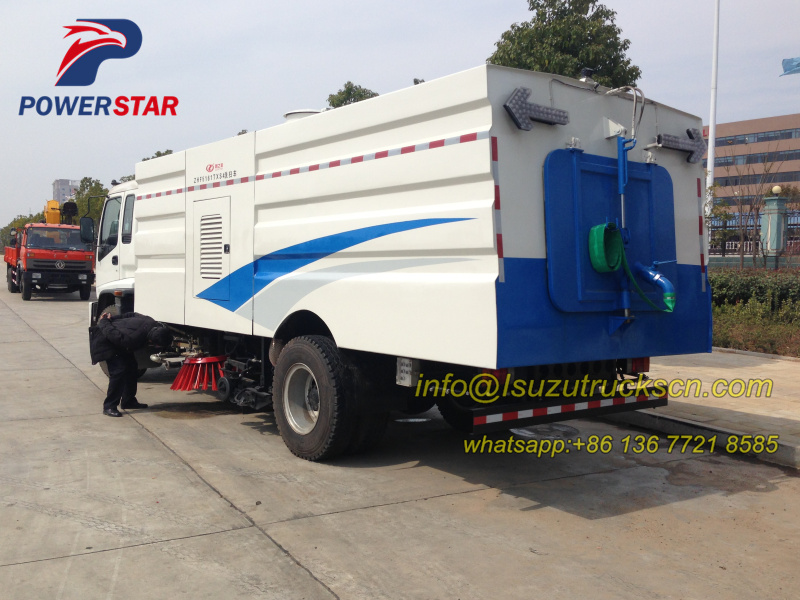

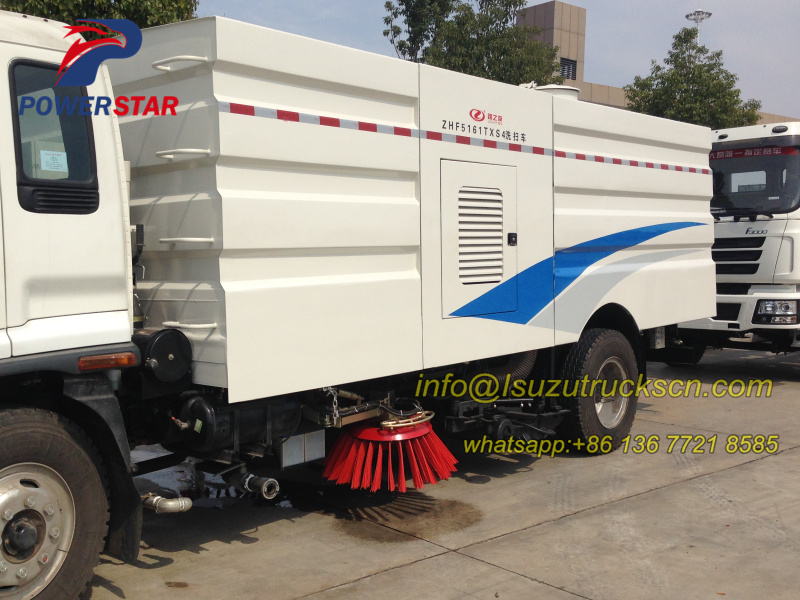

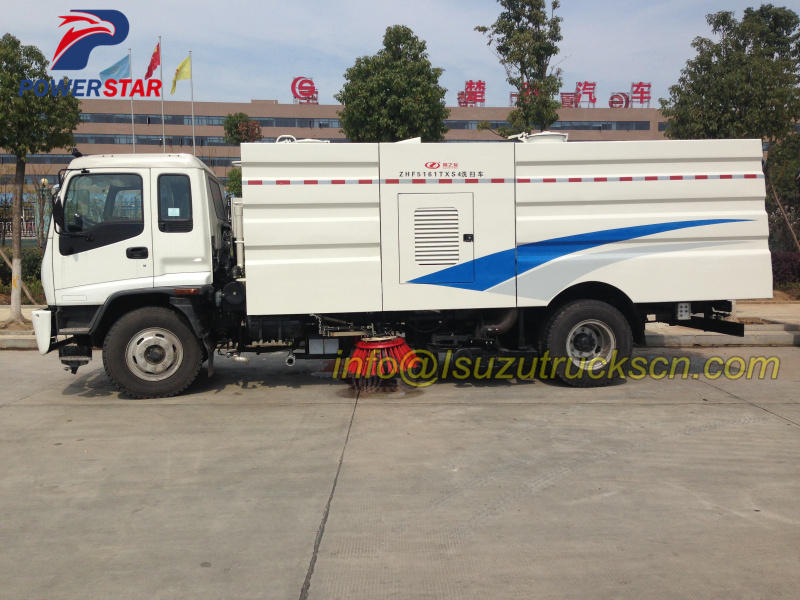

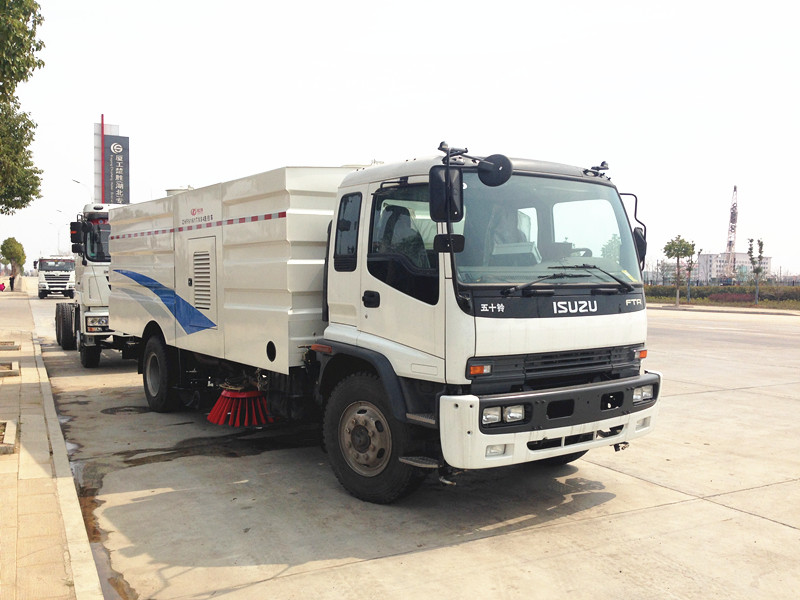

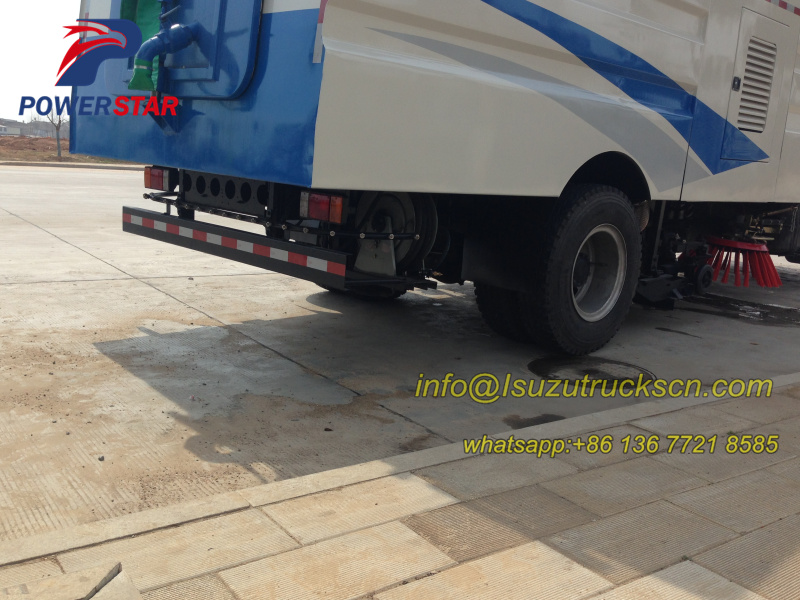

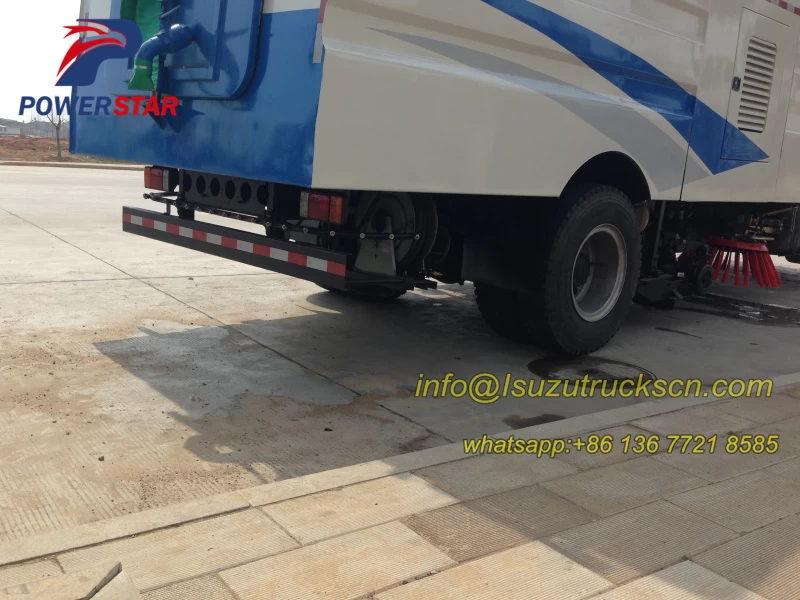

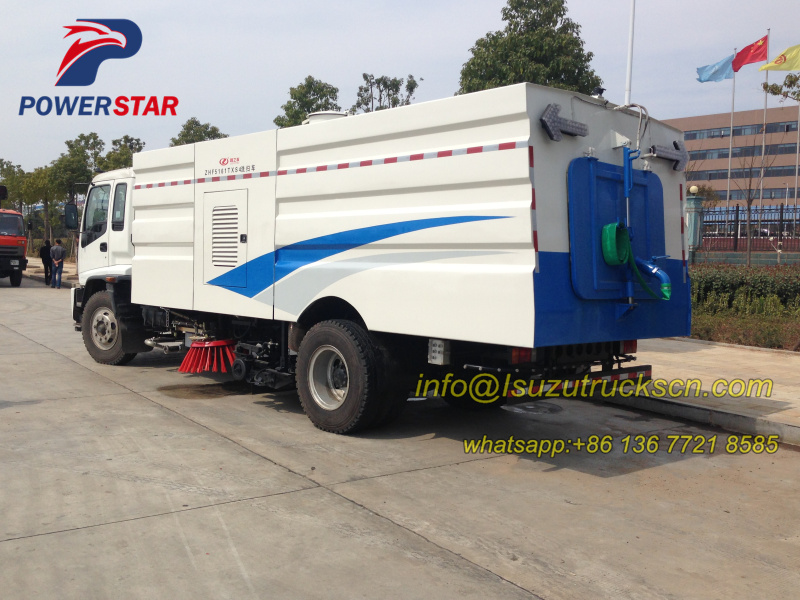

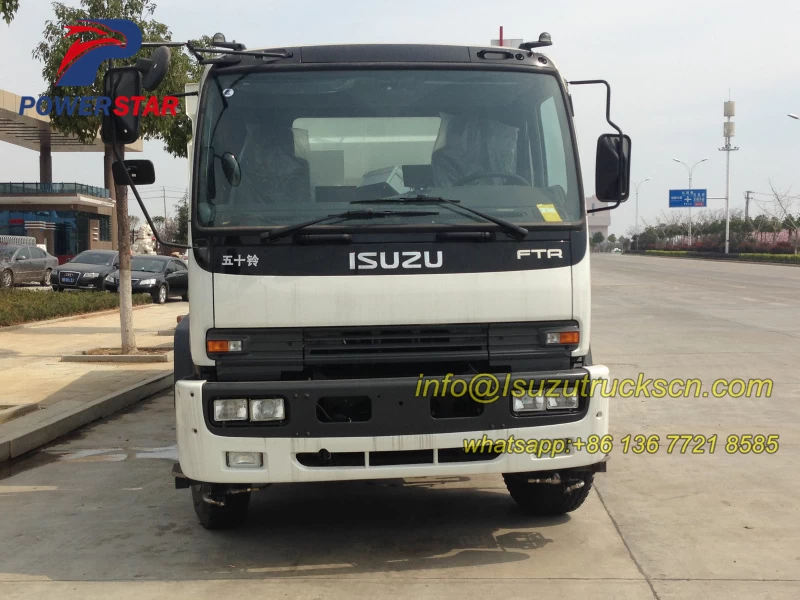

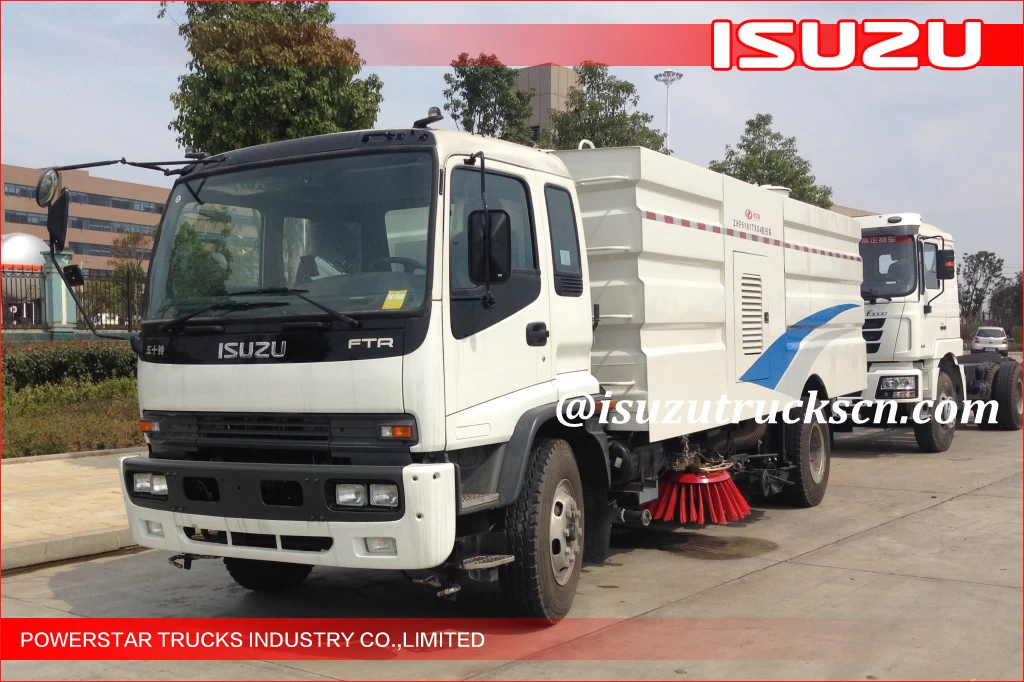

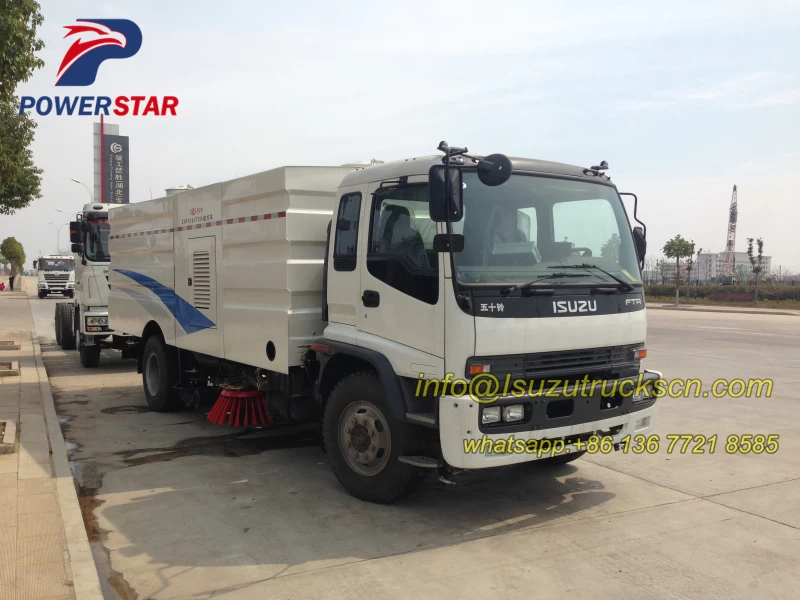

Customer build examples:
Similar Key Words: sweeper vacuum road cleaner, dustbin road sweeper truck, truck mounted road sweeper, street cleaning truck, street garbage collection truck, industrial road sweeper truck, street cleaning sweeper, customer made road sweeper
