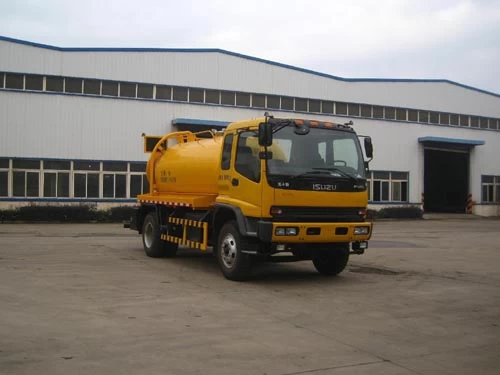

8000l ISUZU FVR sewer dredging and cleaning vehicle
FVR ISUZU high-pressure sewer dredging and cleaning vehicle for sale
1.best-selling in China 2. low price high quality 3.direct manufacturing
Product Description
[Main technical parameters]
|
Product name
|
sewer dredging and cleaning vehicle
|
Brand
|
ISUZU
|
Total mass(Kg)
|
16000
|
Tank capacity(m3)
|
8.03
|
Rated weight (Kg)
|
7650
|
Overall dimensions (mm)
|
8300,8000*2500*3350
|
Curb weight(Kg)
|
8155
|
Tank dimensions (mm)
|
3350*550*1100
|
Persons in cab
|
2,3
|
|
|
Approach/departure angle (°)
|
20/13
|
Front/rear overhang(mm)
|
1430/2370
|
Axles number
|
2
|
Axles base(mm)
|
4500
|
Axles load(Kg)
|
6000/10000
|
Max speed(Km/h)
|
90
|
[Chassis technology parameters]
|
Chassis model
|
FVR
|
Brand name
|
ISUZU
|
Overall dimensions (mm)
|
**
|
Tires number
|
6
|
Approach/departure angle (°)
|
20/13
|
Tire size
|
10.00-20,10.00R20,9.00-20,9.00R20
|
Leaf spring
|
8/10+8,7/9+6
|
Front track(mm)
|
1880
|
Emission standard
|
GB3847-2005,GB17691-2005 Euro
|
Rear track(mm)
|
1800,1860
|
Engine Model
|
6HK1-TCNG40
|
Exhaust(ml)/power(kw)
|
5900/177
|
