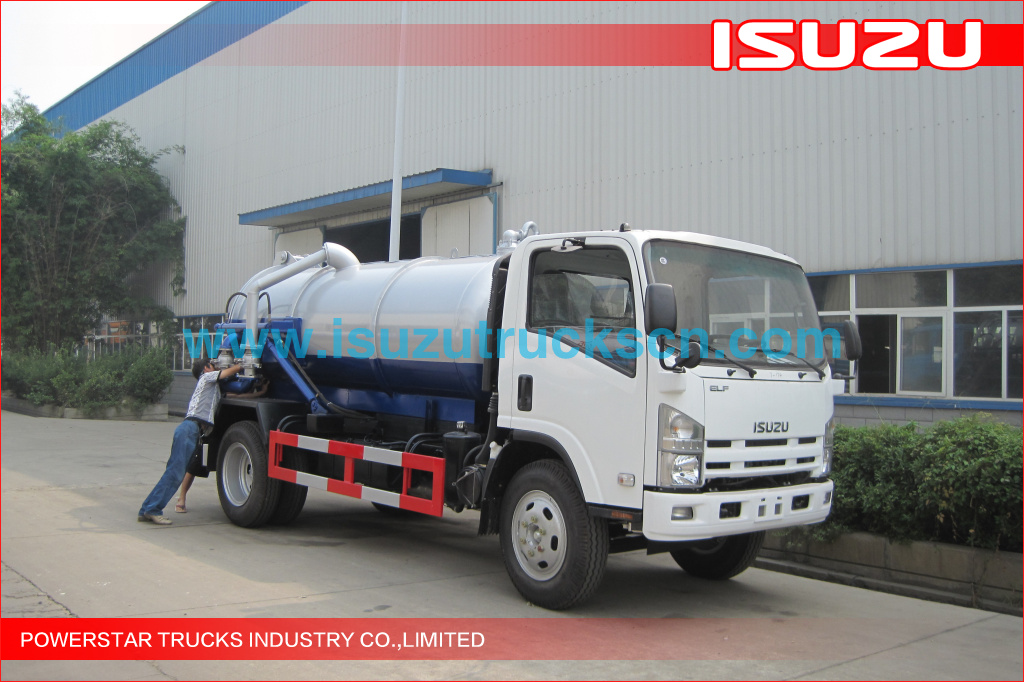

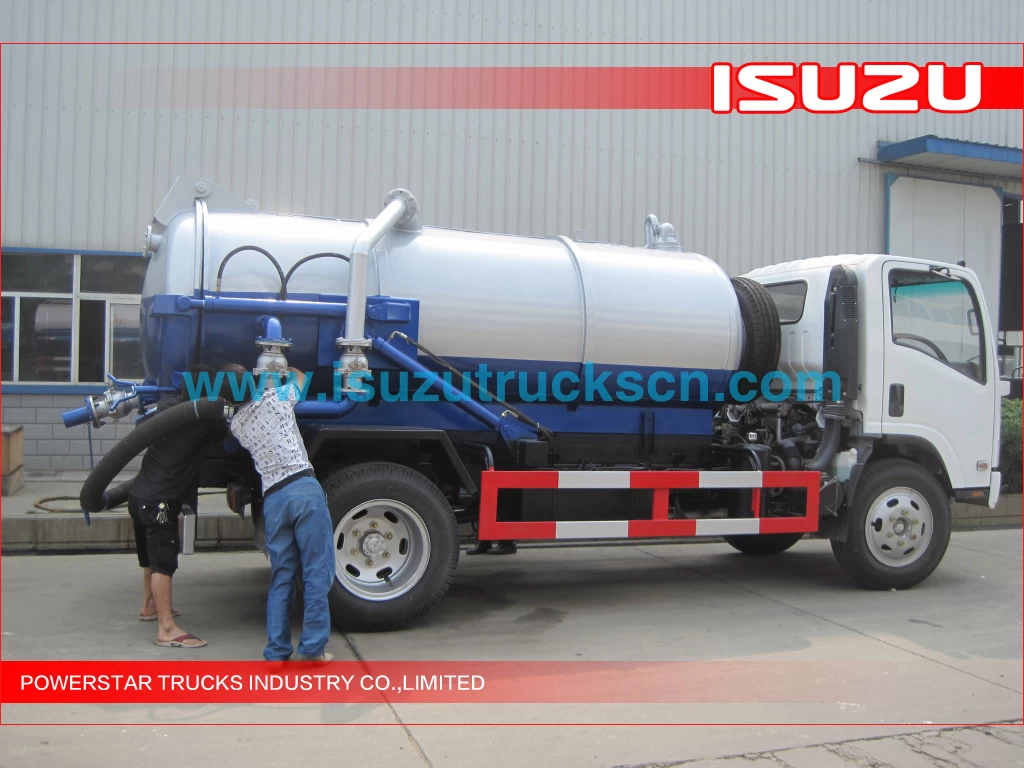

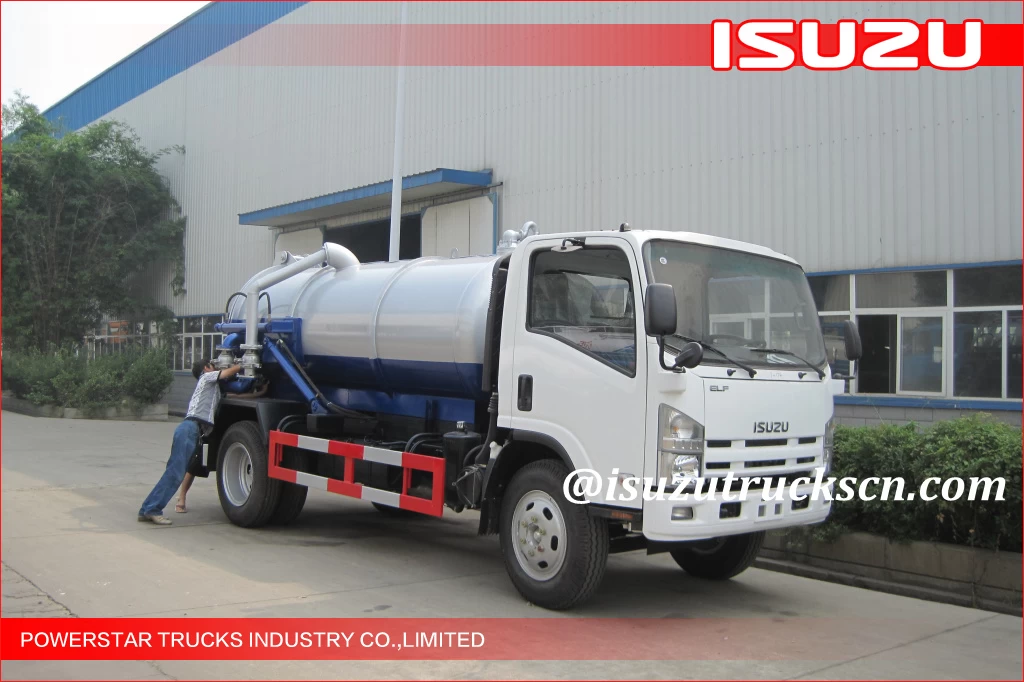

8000Liter Philippines ELF 700P Isuzu Septic suction Tanker Trucks

Model

PT5100JGK

Driving Type

4x2    (Left hand drive)

Wheelbase

3815 mm

Engine

139 kw (190hp)

Vacuum Tank

Tank shape

Cylinder

Material

Carbon Steel

Dirty water tank

6000 ~8000  Liters

Thickness

5 mm

Dish thickness

5 mm

Designed pressure

-0.9 bar

Strengthen ring

Cool bended U shape, add the strengthen ring on the tank our circle

Over Pressure device

Fixed on the top of the tank

Vacuum valve

For keeping the tank's inside vacuum

Safety support

fix with safety valve during working

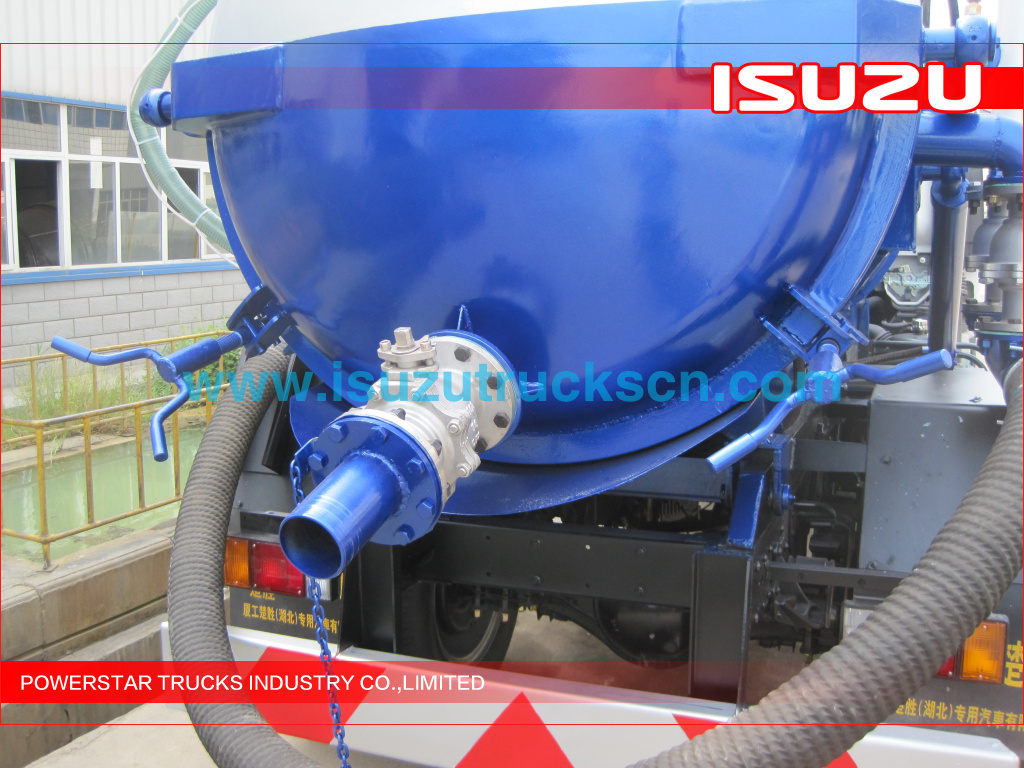

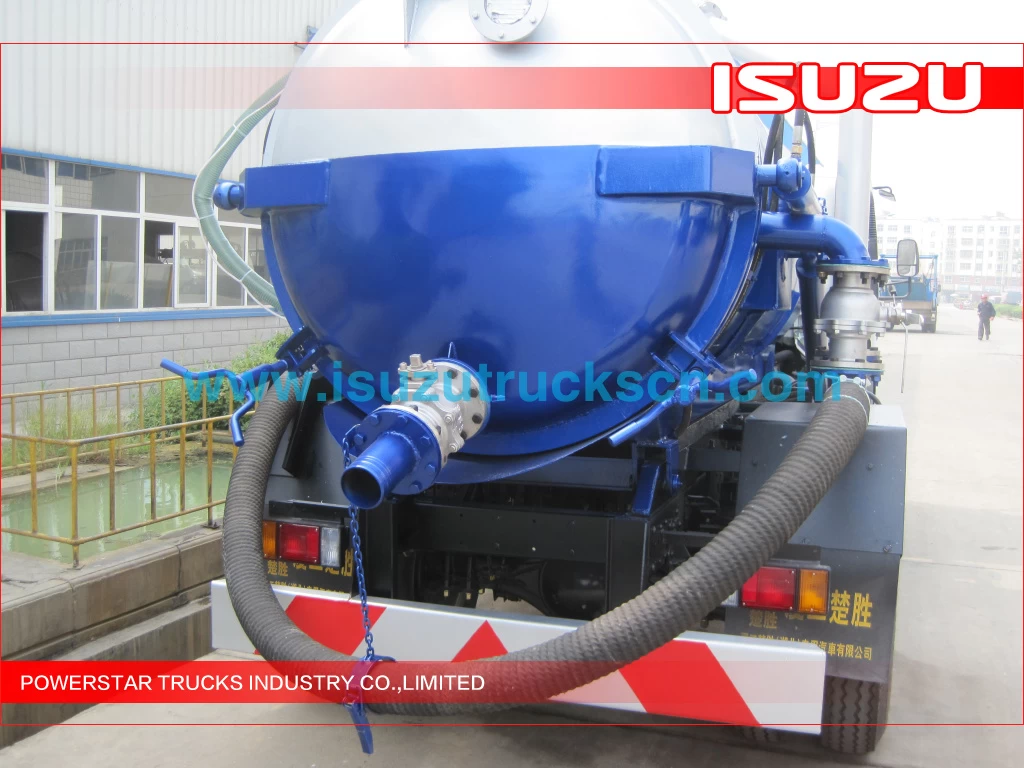

Rear Cover

Operation

Opened by hydraulic

Lock device

Manual locking device

Seal

Rigidity and manual synthetic rubber seal rings

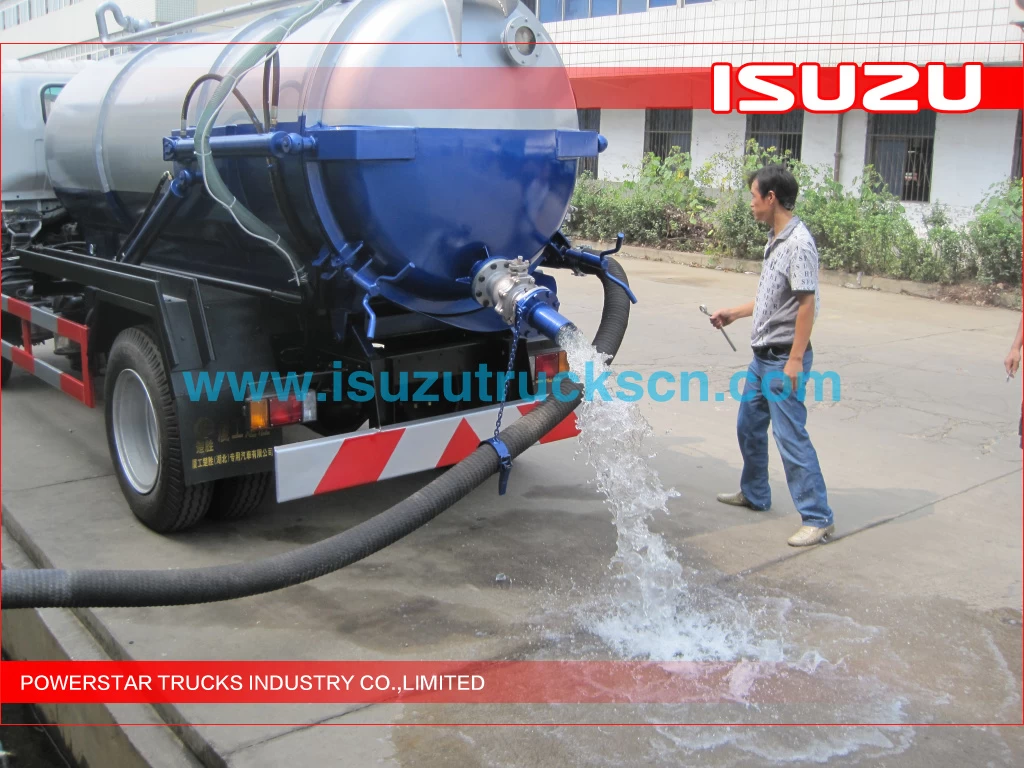

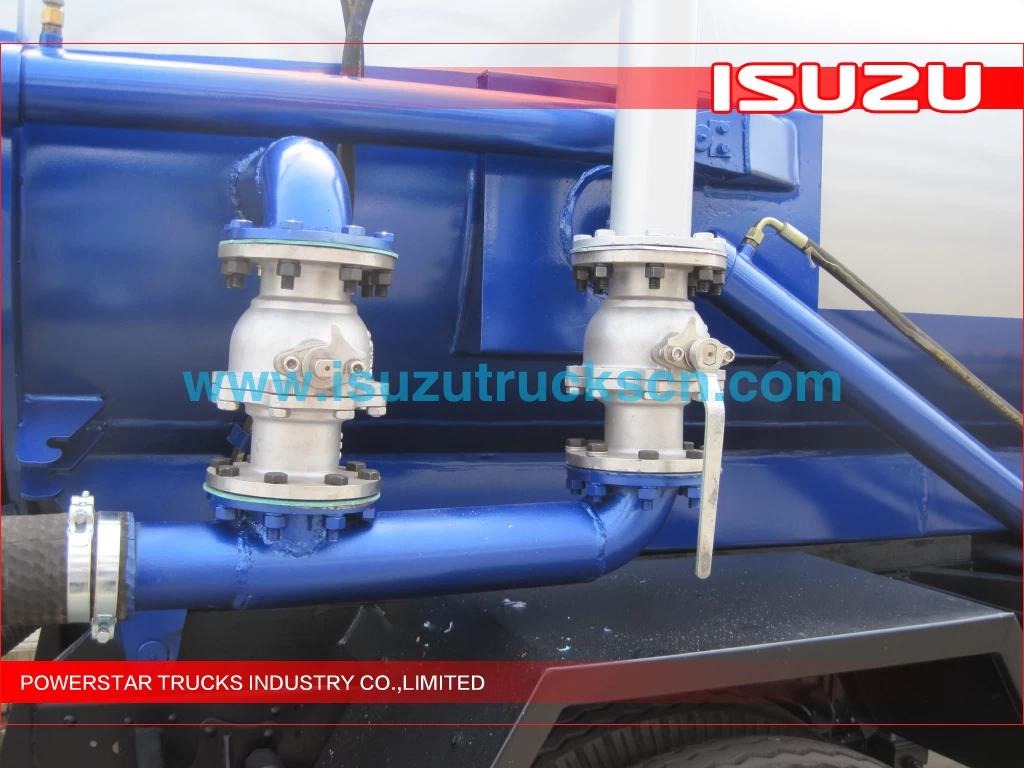

Water discharge valve

one way 100mm ball valve

Vacuum Pump

Model

As option

Working pressure

400 Pa

Flow rate

45 L/s

Color

As option
