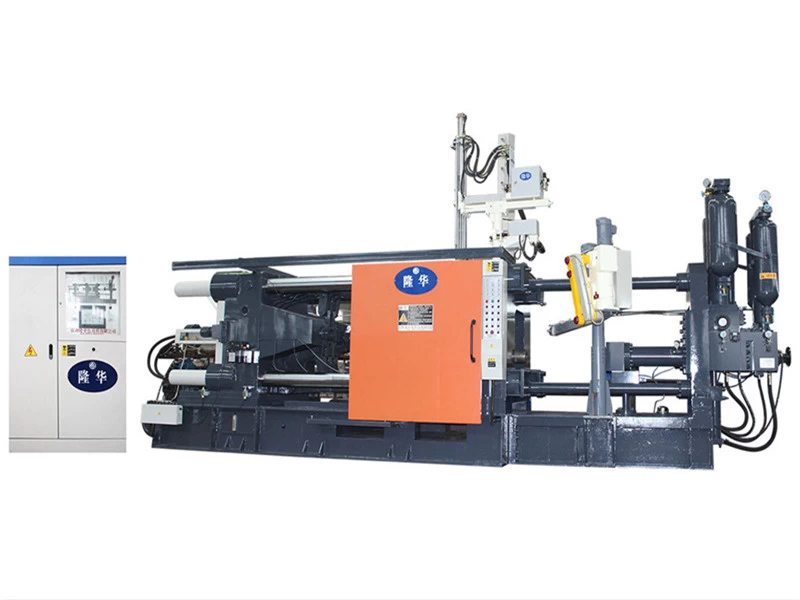

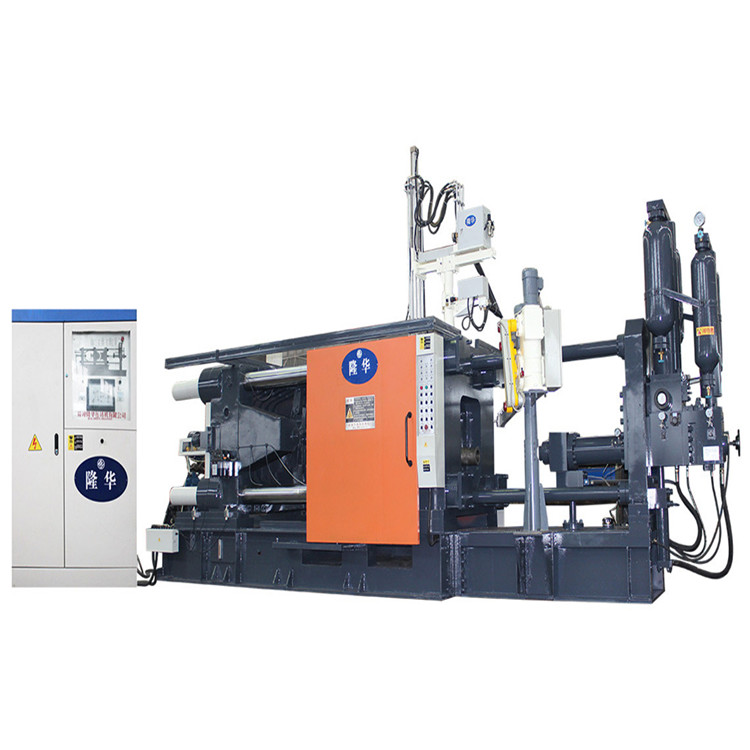

800T Fully Automatic Die Casting Machine For Making LED Heat Sink
Pre-sale Service:
By providing customers with pre-sales services of investment budget, plant planning and other forms, customers' planning is reasonable, standardized and cost saving.
1.Investment budget: die casting machine selection and auxiliary equipment matching and budget
2.Plant planning: provide installation size of equipment foundation, equipment layout, workshop ventilation, exhaust, water transportation, wiring, lifting equipment design services.
3.Provide information of various casting auxiliary equipment.
800T Fully Automatic Die Casting Machine parameter
|
Items
|
Unit
|
Specification
|
|
Hydraulic Working Pressure
|
MPa
|
14
|
|
Clamping Force
|
KN
|
8000
|
|
Space Between Tie Bars
|
mm
|
810*810
|
|
Tie Bar Diameter
|
mm
|
￠170
|
|
Die Opening Stroke
|
mm
|
750
|
|
Injecction Force(intensify)
|
KN
|
680
|
|
Plunger launch distance
|
mm
|
280
|
|
Injection position
|
mm
|
0 -- 250
|
|
Plunger Diameter
|
mm
|
￠80----￠100
|
|
Injection Stroke
|
mm
|
720
|
|
Casting pressure (intensify)
|
MPa
|
153/78/57
|
|
Casting Fiange Protrusion
|
mm
|
20
|
|
Casting Fiange Diameter
|
mm
|
180
|
|
(40Mpa) Max Casting Area Under 40Mpa
|
CM2
|
1900
|
|
lnjection Weight(Al)
|
Kg
|
13
|
|
Die Height(Min--Max)
|
mm
|
350～900
|
|
Ejector Force
|
KN
|
315
|
|
Ejector Steoke
|
mm
|
200
|
|
Motor Capacity
|
Kw
|
30
|
|
Machine Dimensions (L*W*H)
|
m
|
9*2.2*3.1
|
|
Referential Machine Weight For Uplifting
|
T
|
35
|
|
Oil Tank Capacity
|
L
|
1500
|
WE reserve the right to make any technical improvement without further notice
Die-castings made by our machines
Our customers
Longhua die-casting machine and oilfield equipment products are exported to: Brazil, Egypt, South Africa, Vietnam, Pakistan, Bangladesh, Uruguay, India, Russia, kazakhstan, kyrgyzstan, Ukraine, Iran, Iraq, north Korea, Japan, Ecuador, the United States, South Korea, Algeria, China Taiwan and other countries and regions.
