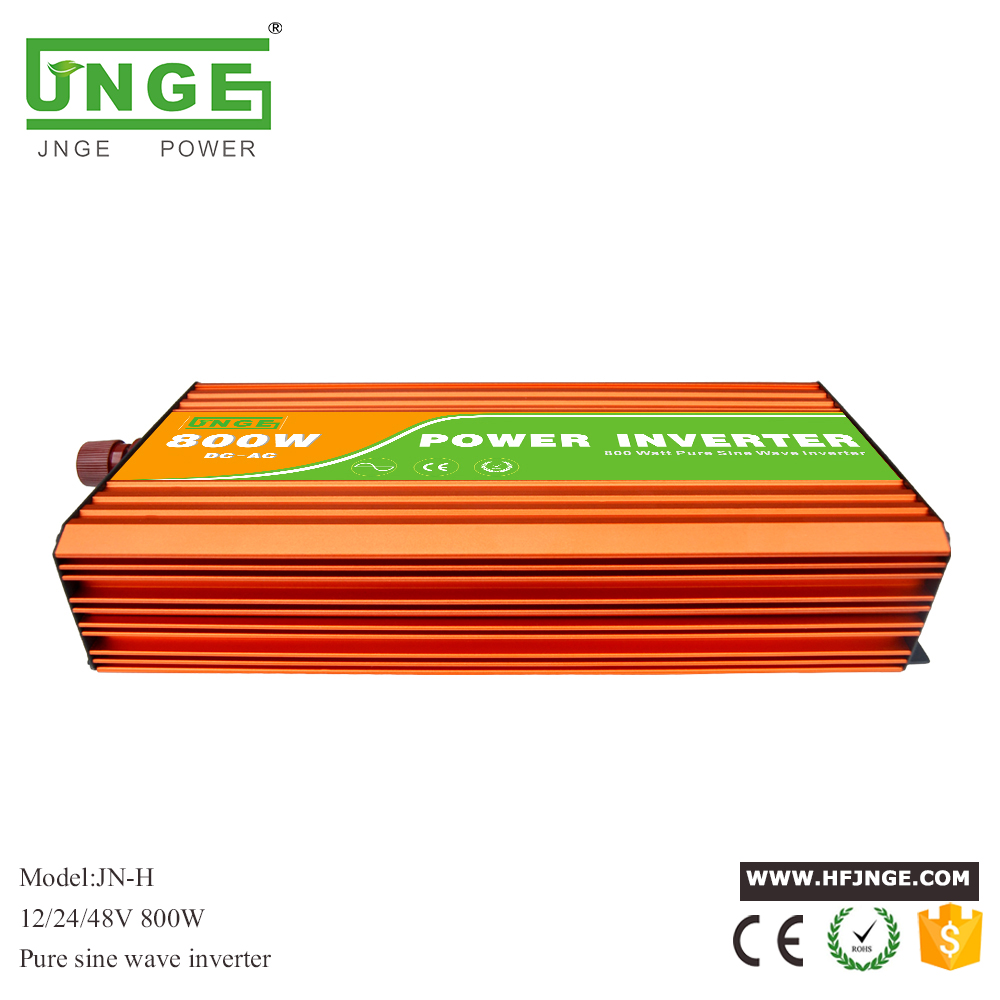

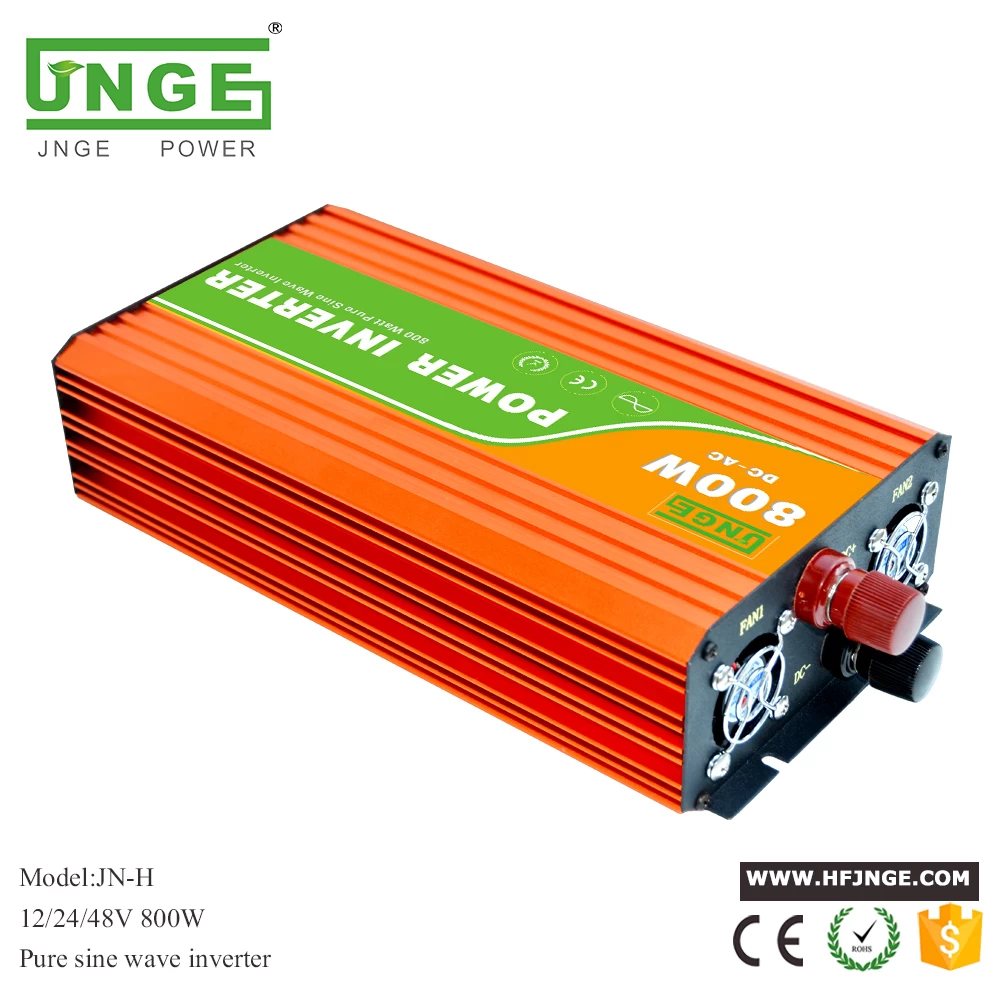

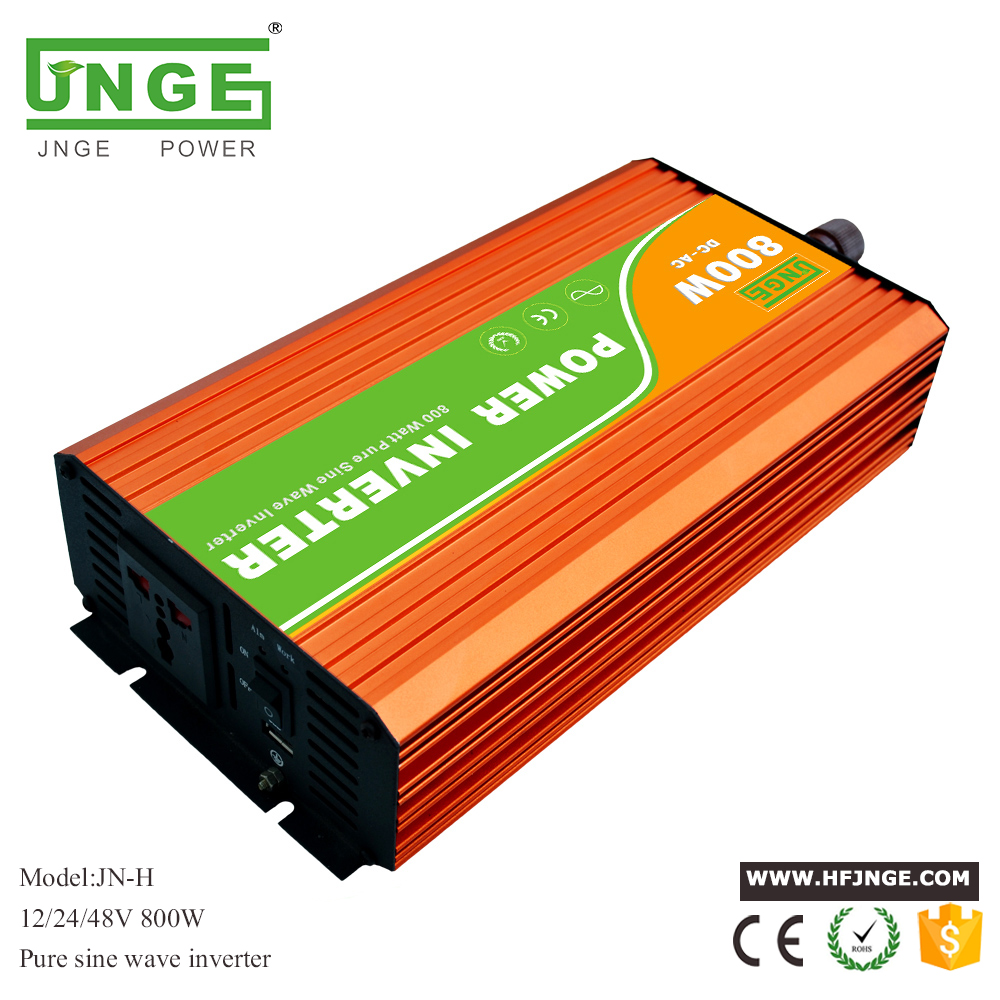

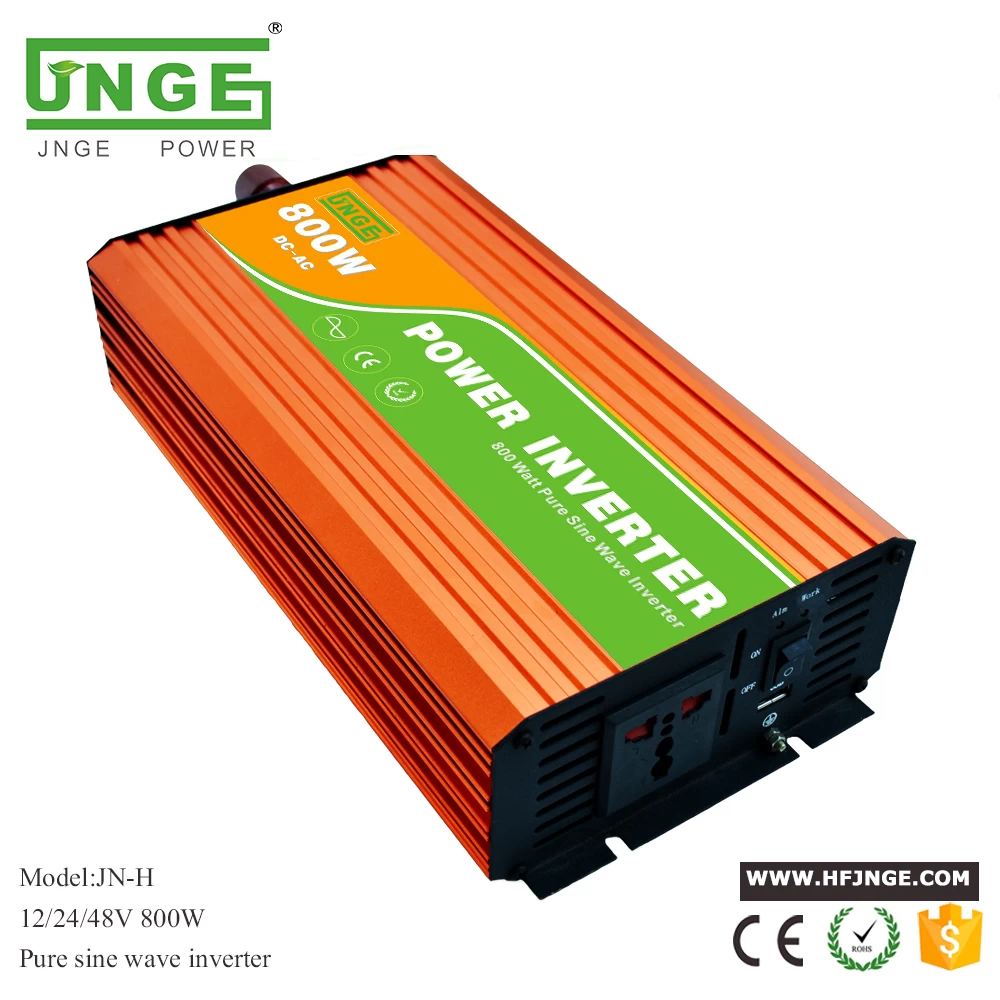

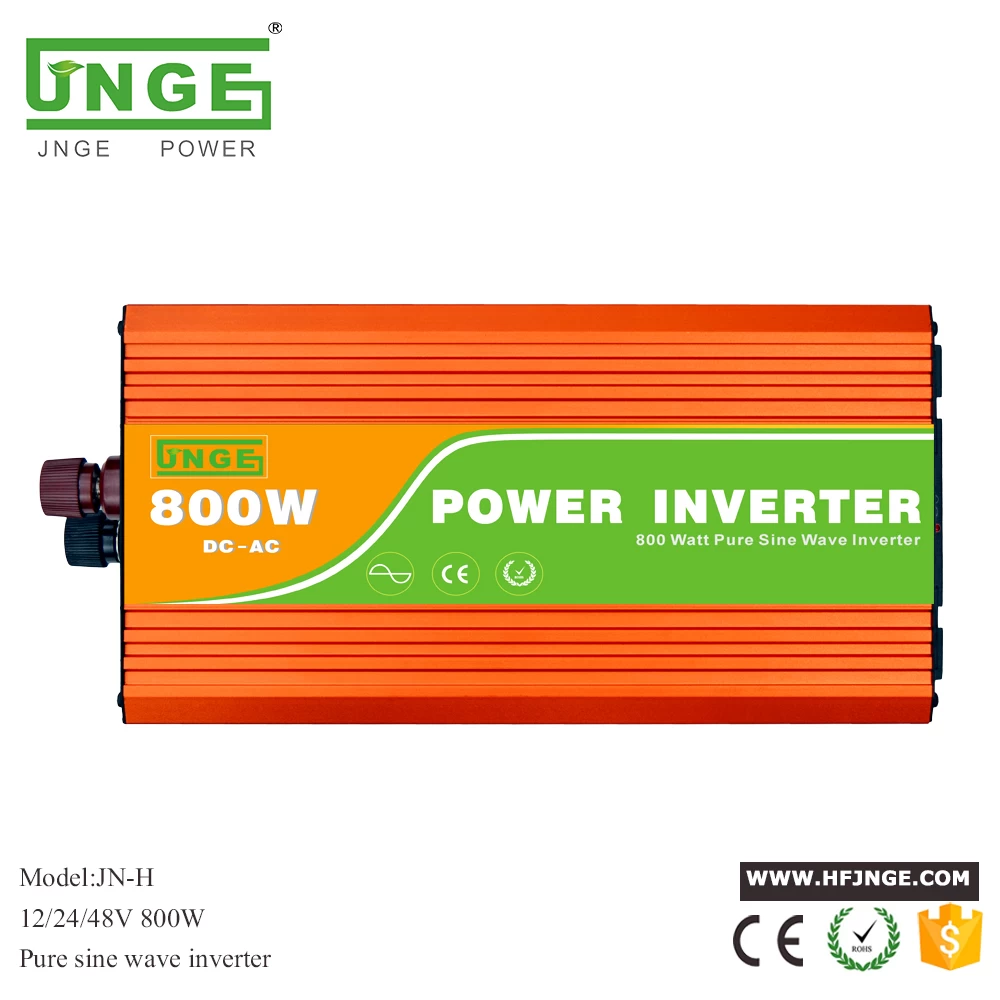

800w inverter 12V 24V DC to 100/110/120/220/230/240V AC power inverter generator for house appliance and car

1. By using the advanced Double-CPU single chip intelligent control technology, with the features of high reliability and low failure;

2. Pure sine wave output, inverter with strong load capacity and wide applications;
3. Perfect protection functions (Overload protection, Internal over-temperature protection, Output short-circuit protection, Input under-voltage protection, Input over-voltage protection, etc) largely improve products’ reliability;
4. Internal CPU centralized control and SMD Technology allow small size and light weight;
5. By CPU controlling the working state of cooling fan, its intelligent control can largely prolong the fan’s service life, save energy, and improve the working efficiency;
6. Small working noise,and high efficiency.

Facebook Twitter Pinterest LinkedIn 分享

This is a 800W 12V 24V 48V 96V (optional) pure sine wave power inverter which can generate 800W of continuous power and up to 1600W of power at peak times (peak time reserve capacity is useful if more energy is required to start an appliance than for its continuous running).


This is a pure sine wave type of inverter, which means that the 110 or 230V AC output harmonically follows a smooth sine wave and is almost identical to normal mains electricity. Pure sine wave output is far superior than square sine wave or modified sine wave output for running appliances. This is because:


It is suitable for a broader range of appliances (for example, appliances with electric motors can not be powered by modified sine wave inverters) .It is more efficient compared to modified sine wave inverters.

This product comes with important protection and safety features, such as over-discharge, overload, overheating and short-circuit automatic shutdown.


The inverter also features a powerful USB port for faster charging of mobile phones, MP3 players and others mobile loads.


Product Parameters:

OUTPUT OUTPUT VOLT 100/110/120/220/230/240VAC
CONTINUOUS POWER 800W
SURGE POWER 1600W
WAVEFORM PURE SINE WAVE
FREQUENCY 50Hz/60Hz
AC REGULATION LOW & HIGH 10%
Non-load  Consumption <10W
EFFICEINCY >90%
INPUT USB OUTPUTt 5V
DC VOLTAGE LED DISPLAY POWER & FAIL STATUS
INPUT RANGE 10-15VDC     21-30VDC       40-60VDC
PROTECTION WORKING INPUT 12VDC          24VDC            48VDC
FUSE 35A               20A                15A
Low battery alarm 10.5+0.3V      21+0.5v          42+0.5V
Low battery shut down 10+0.5V         20+0.5V           40+0.5V
Over voltage shut down 15.5+0.5V       30.5+0.5V         60+0.5V
Over load shut down 960W OVER 10 SECOND
Over heating shut down >75℃
Over Thermal  shut down the output
Working Temperature BETWEEN -10℃ and +50℃
soft start
OTHER DIMENSION(L*W*H)  305*146*66mm
INNER BOX DIMENSION  360*185*115mm
CARTON DIMENSION  495*195*380mm
NET WEIGHT 2.8±0.2KG
GROSS WEIGHT 13±1KG
PACKING 4PCS/CTN
