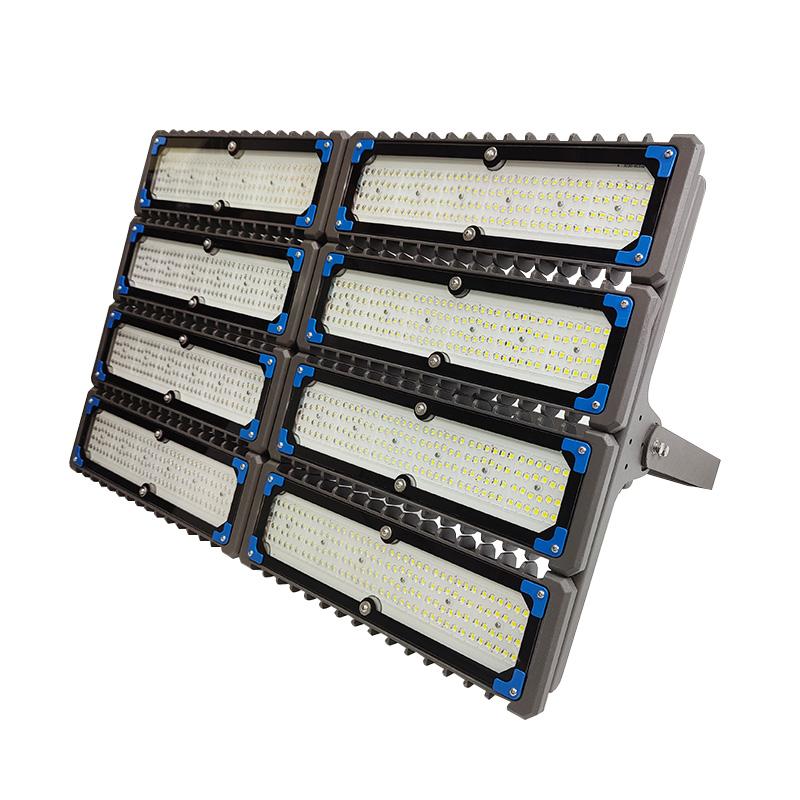

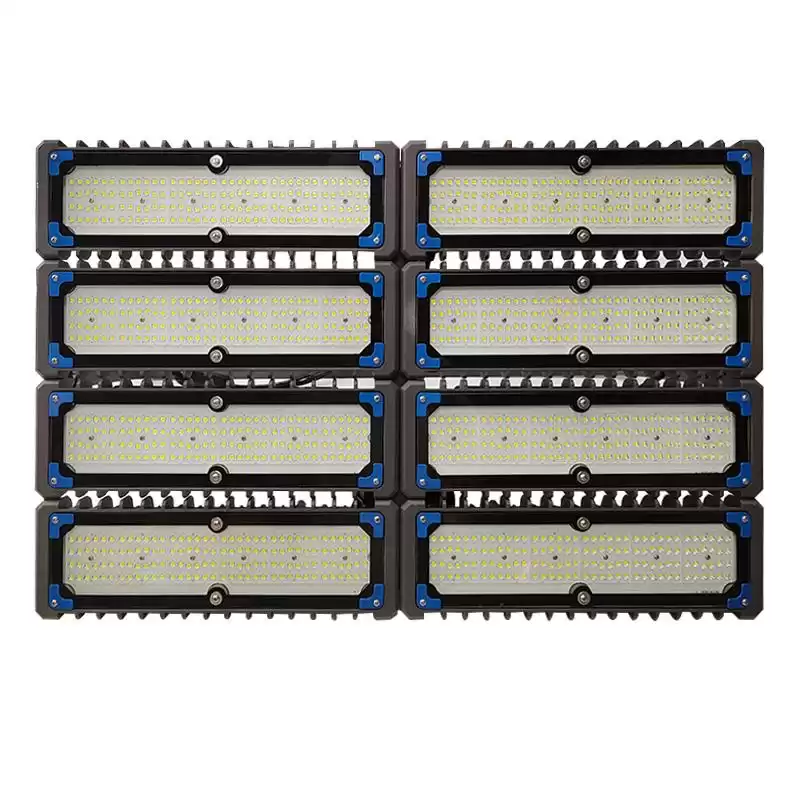

800W Outdoor Led Flood Lights Fixture in Stadium Lighting for Sale at Factory cost
This Series LED Stadium flood Light fixtures features adoption of Lumileds 5050 Light source and UL TUV Power Supply, Provides photometric combinations with 165lm/w high efficacy, Rotatable Modules Allowing for Custom Spread of Light and Eliminating Dark Areas. providing the ability to serve demanding area applications where spacing is wide and illuminance requirements are high.
The compact but powerful highly ventilated high power high mast lighting lamp body design ensures very good heat dissipation, whilst maintaining high lumen output performance. Ideal high power LED luminaire for 2000W MH lamp replacement.
Epistar, Bridgelux, Philips LumiLEDs, Osram, Nicha, CREE LED chip. Meanwell or other high quality drivers.Here must have a model you need，Welcome to email us at sales@smartlightdesigner.com now!
Specifications:
|
Model:
|
SED-SG-800W
|
|
Lumens Per Watt:
|
165 lumens per watt
|
Wattage:
|
120w ~ 1500w available
|
|
Voltage:
|
AC90-305V
|
|
Frequency:
|
50-60 hz
|
|
Power Factor:
|
>0.90
|
CCT:
|
3000~6500K
|
|
THD:
|
10% Max
|
|
Life Time:
|
>50,000 hours
|
|
Color Temperature:
|
2700-6500K
|
|
CRI:
|
>80
|
|
Beam Angle:
|
30°/60°/90°/70*140
|
|
Storage Temp:
|
–30 ~ 55°C
|
|
IP Rating:
|
IP67
|
|
Dimmable:
|
0-10V or Phase Cut | Da Li Optional
|
|
Housing:
|
Black Finish/Aluminum die-cast housing
|
|
Mounting:
|
Pole Hook / Eye Mount (Standard), pendant mount ,surface mount
|
|

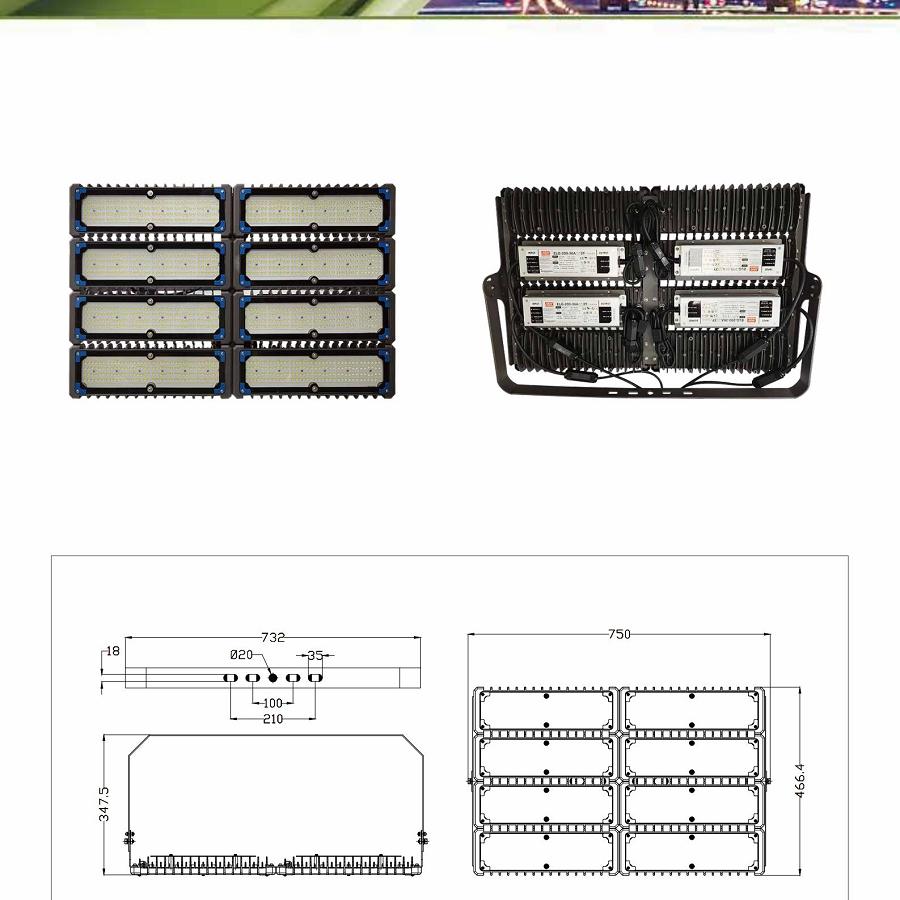

Product Size:
|
750*467*348 mm
|
|
Net Weight:
|
20.5KG
|
|
Packaging Size:
|
780*480*120mm
|
|
Quantity/Carton:
|
1PCS/Carton
|
|
Gross Weight:
|
22.5KG
|
|
Warranty:
|
5 years
|
|

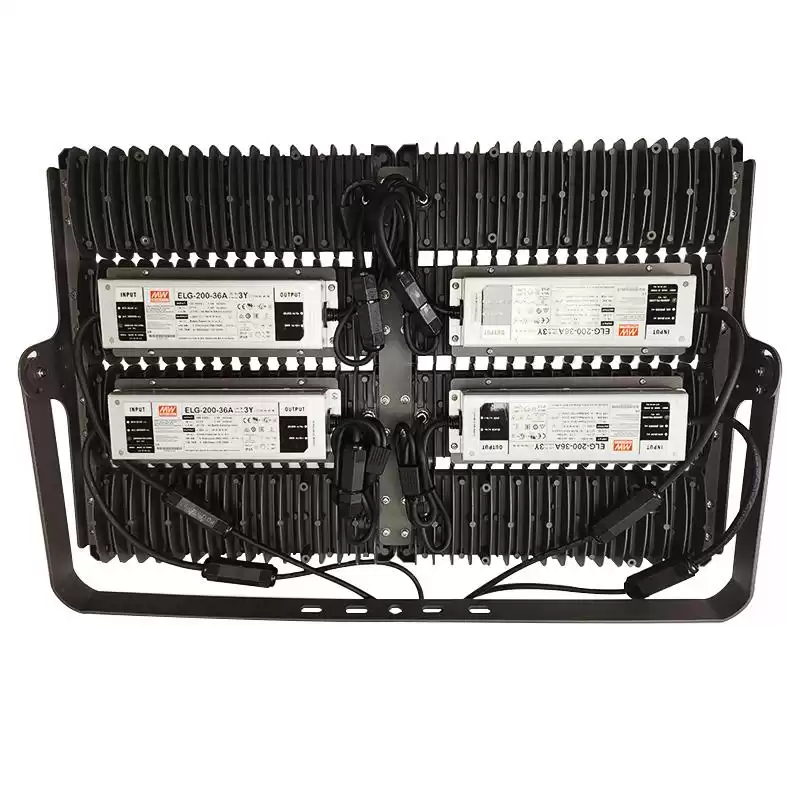

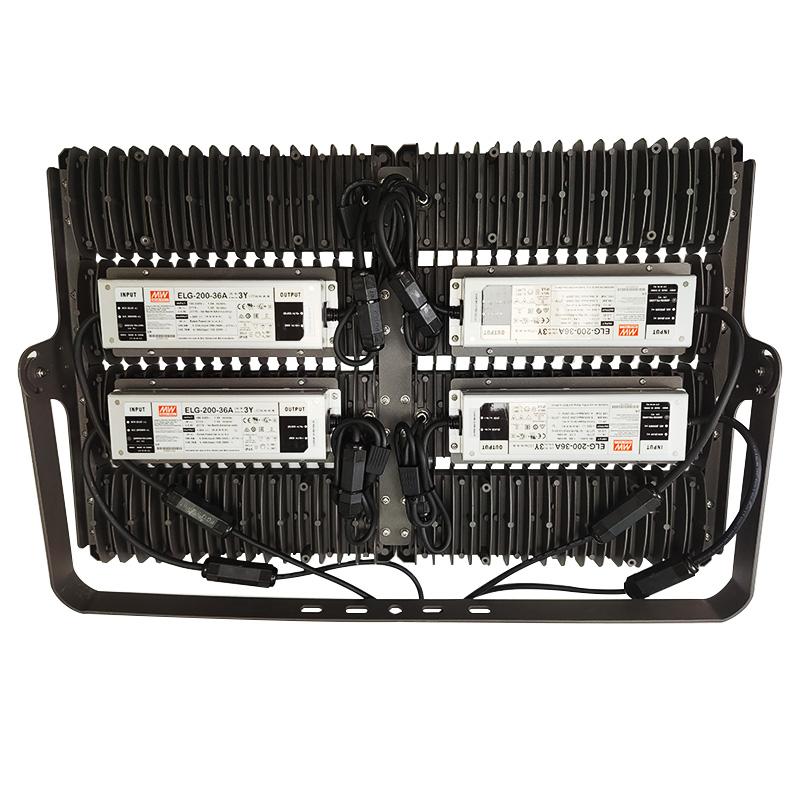

Driver:
|
Mean Well Or CE Driver Optional
|

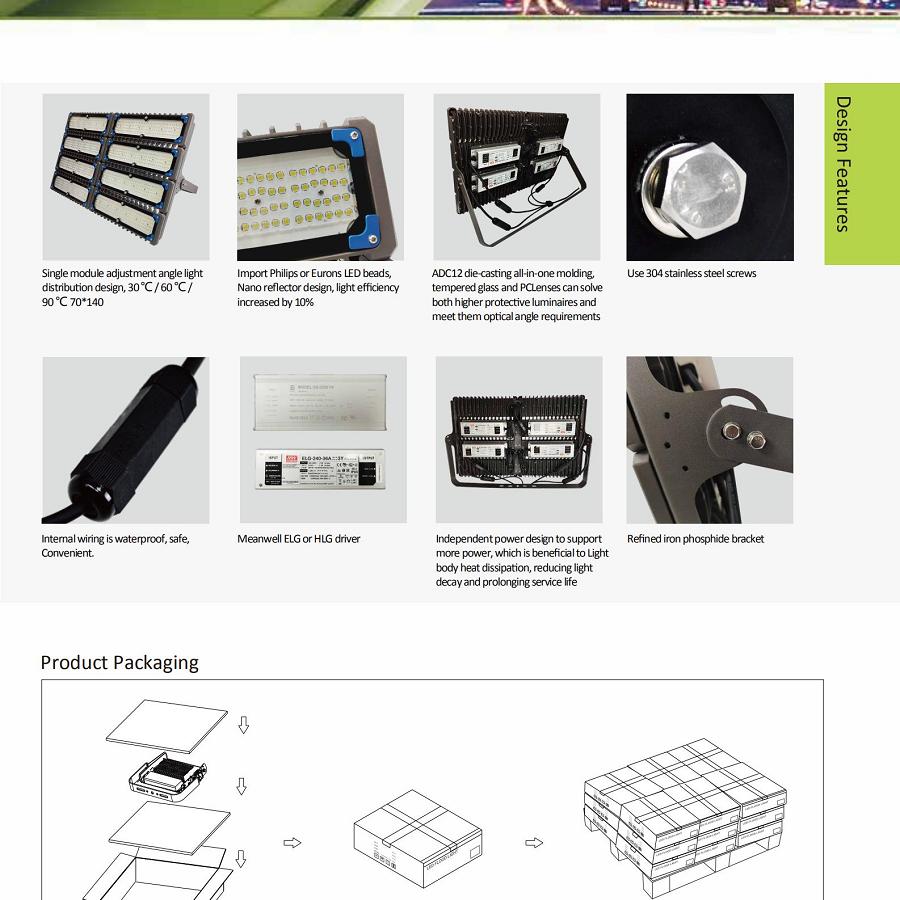

Features:
-
Modular lens design easily repair
-
Anti Glare,Beautiful housing
-
Kinds of Beam Angle,light weight with good heat sink
-
led outdoor flood lights have variety of installation methods, rods can be formulated rod, and the angle is adjustable.
-
Pure aluminum Material,Anti-rust

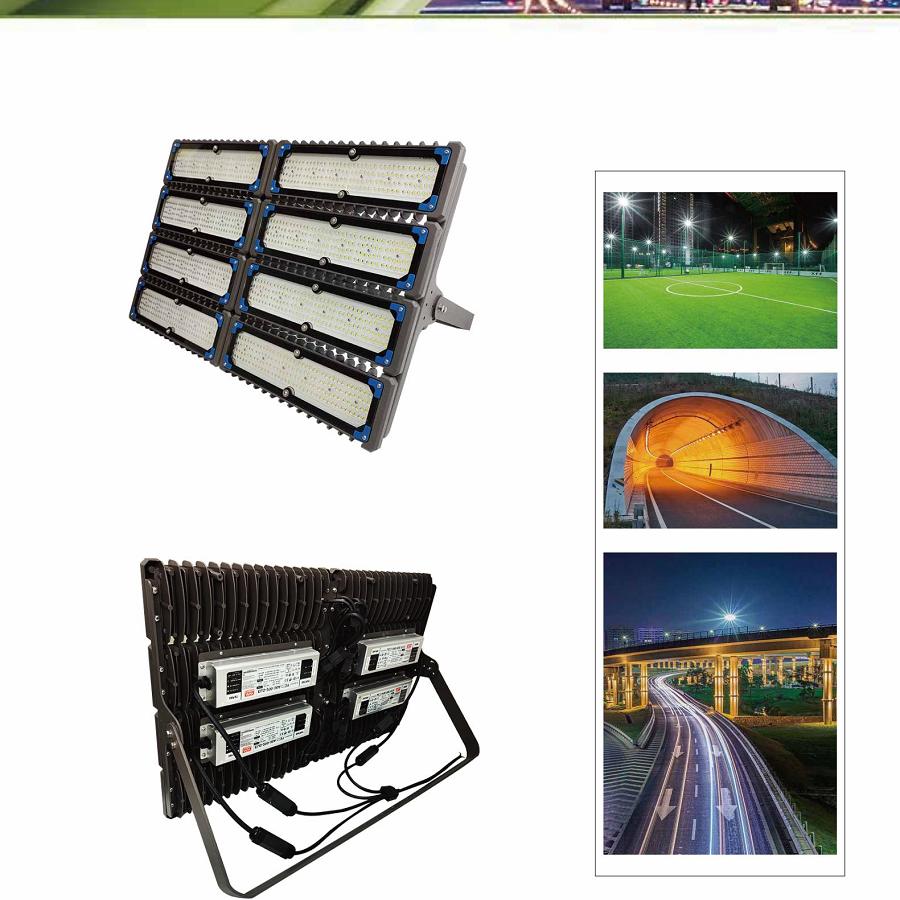

LED Flood Stadium Light Common Application:
1. Replace traditional high pressure sodium lamp or metal halide lamp.
2. Widely used in Parking Lot Lighting, Sports Stadium lighting, Billboard lighting, Outdoor and Indoor Area Lighting, Warehouses and Security areas etc.
