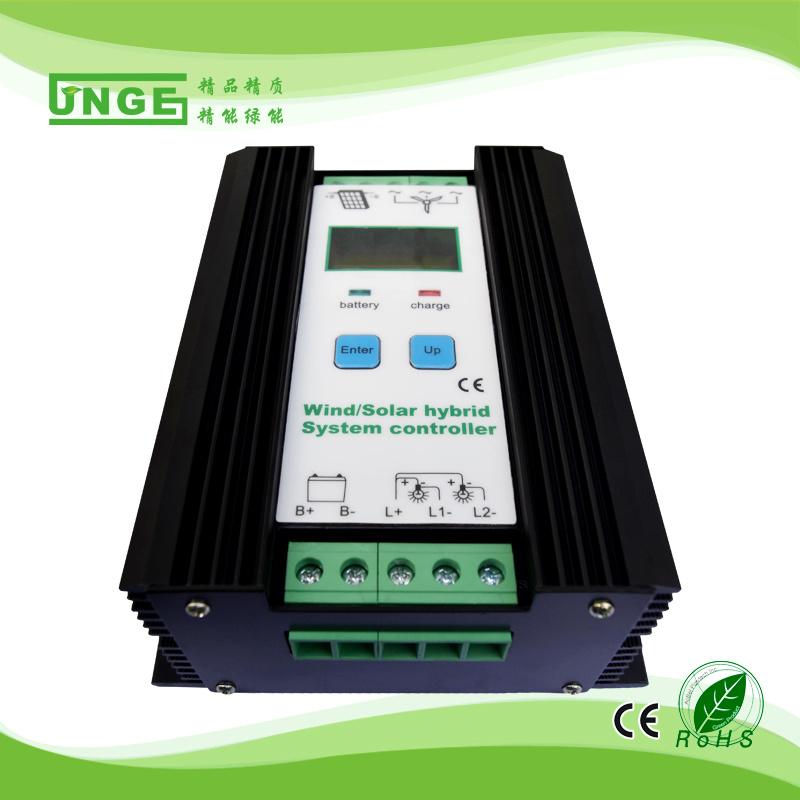

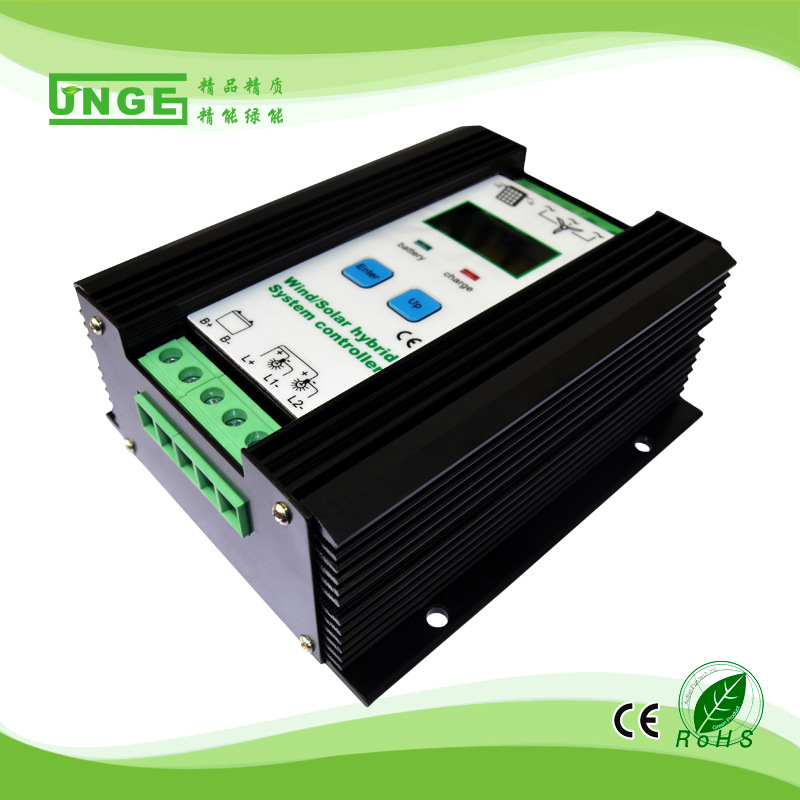

800W WIND 500W +SOLAR 300W Wind solar hybrid charge controller with LCD display,light control timer control 12V/24V
Product Features:
1. Intelligent design, simple structure,control powerful,stable performance,safety and reliability
2. Choose PWM fan charging ways, more stable
3. Booster charge function, low wind speed can charging
4. LCD display, all parameters are visible directly
5. Liquid crystal display battery charging electric current and voltage
6. Digital intelligent control
Product Parameters:
|
Model
|
JW1230
|
JW2430
|
JW2450
|
JW2460
|
|
Rated voltage
|
12V
|
24V
|
24V
|
24V
|
|
Component power
|
200W
|
150W
|
250W
|
300W
|
|
Power of fan
|
300W
|
300W
|
500W
|
600W
|
|
charging
|
charging
|
30A
|
20A
|
23A
|
37.5A
|
|
Even charge protection
|
14.4V±1%
|
28.8V±1%
|
|
floating Charge
|
13.8V±1%
|
27.6V±1%
|
|
Even charge recover
|
13.2V±1%
|
26.4V±1%
|
|
Temperature Compensation
|
-24mV/℃
|
-48mV/℃
|
|
Over Discharge
|
Shut off (DC)
|
10.8V±1%
|
21.8V±1%
|
|
Resume (DC)
|
12.3V±1%
|
24.6V±1%
|
|
Over Voltage
|
Shut off (DC)
|
16V±1%
|
32V±1%
|
|
Resume (DC)
|
15V±1%
|
30V±1%
|
|
No-load Current
|
≤0.1A
|
≤0.1A
|
|
Voltage drop (DC)
|
≤0.5
|
|
Control mode
|
Fan MPPT charge function, PWM uninstall function, PWM over-current limiting
|
|
Boost charge
|
Flexible independent step-up circuit (optional)
|
|
Display
|
Display
|
|
Show parameters
|
voltage、charge current，battery volumetric
|
|
Protected type
|
Lightning protection, solar cells, anti-anti-charge protection, battery open-circuit protection, battery reversal protection, over speed and over-voltage soft automatic brake protection, overload protection.
|
|
Heat emanation way
|
radiator
|
|
Working Temperature
|
-25℃~+55℃
|
|
Height
|
≤5500m(2000m above the need to reduce power use)
|
|
Environment humidity
|
0~90%,No condensation
|
|
Net Weight
|
1.20KG
|
|
Size(L*W*H)
|
162×140×64(MM)
|
