8080 Graphic LCD Display with ST7527 IC

LCD Type:                     FSTN/ POSITIVE/TRANSFLECTIVE

Resolution:                   80×80

Outline Dimension:       28.2×32.3×2.1

View area:                     24.2*23.8

Interface:                     8bit MPU interface

Driver IC:                     AIP31066

View Direction:              6 o'clock

PIN:                                11

Backlight:                      Without Backlight



  • Resolution80*80
  • Outline Dimension (mm)28.2*32.3*2.1
  • Viewing Area (mm)24.2*23.8
  • Interface-
  • Driver ICST7527
  • BacklightNO Backlight
  • PIN11
Facebook Twitter Pinterest LinkedIn 分享

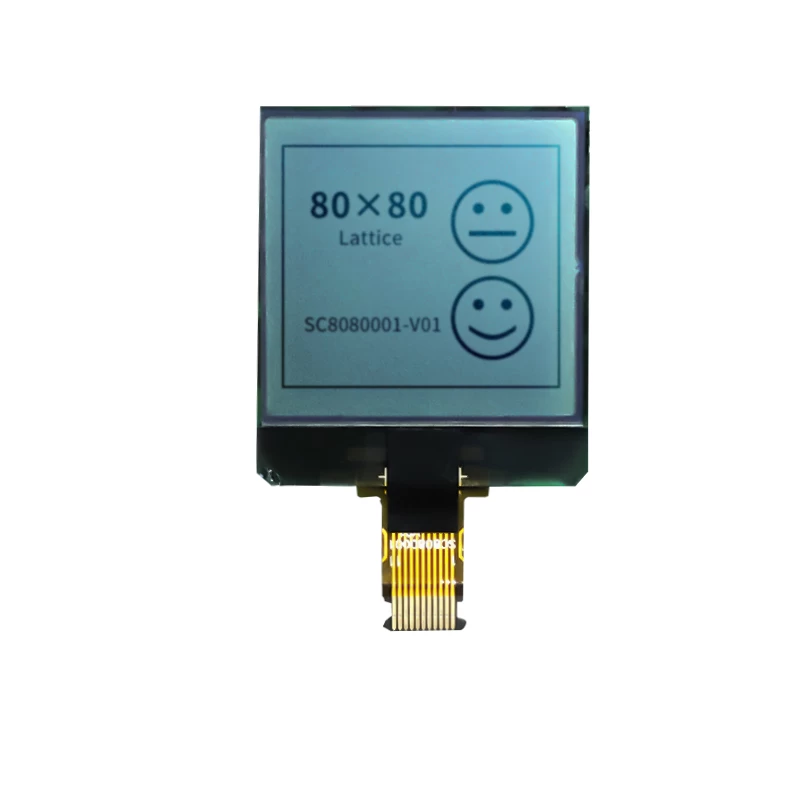

SC8080001-V01 is a Graphic LCD Display with 80*80 resolution, it built in with ST7527 IC, 11 PIN, 6 o'clock View direction.

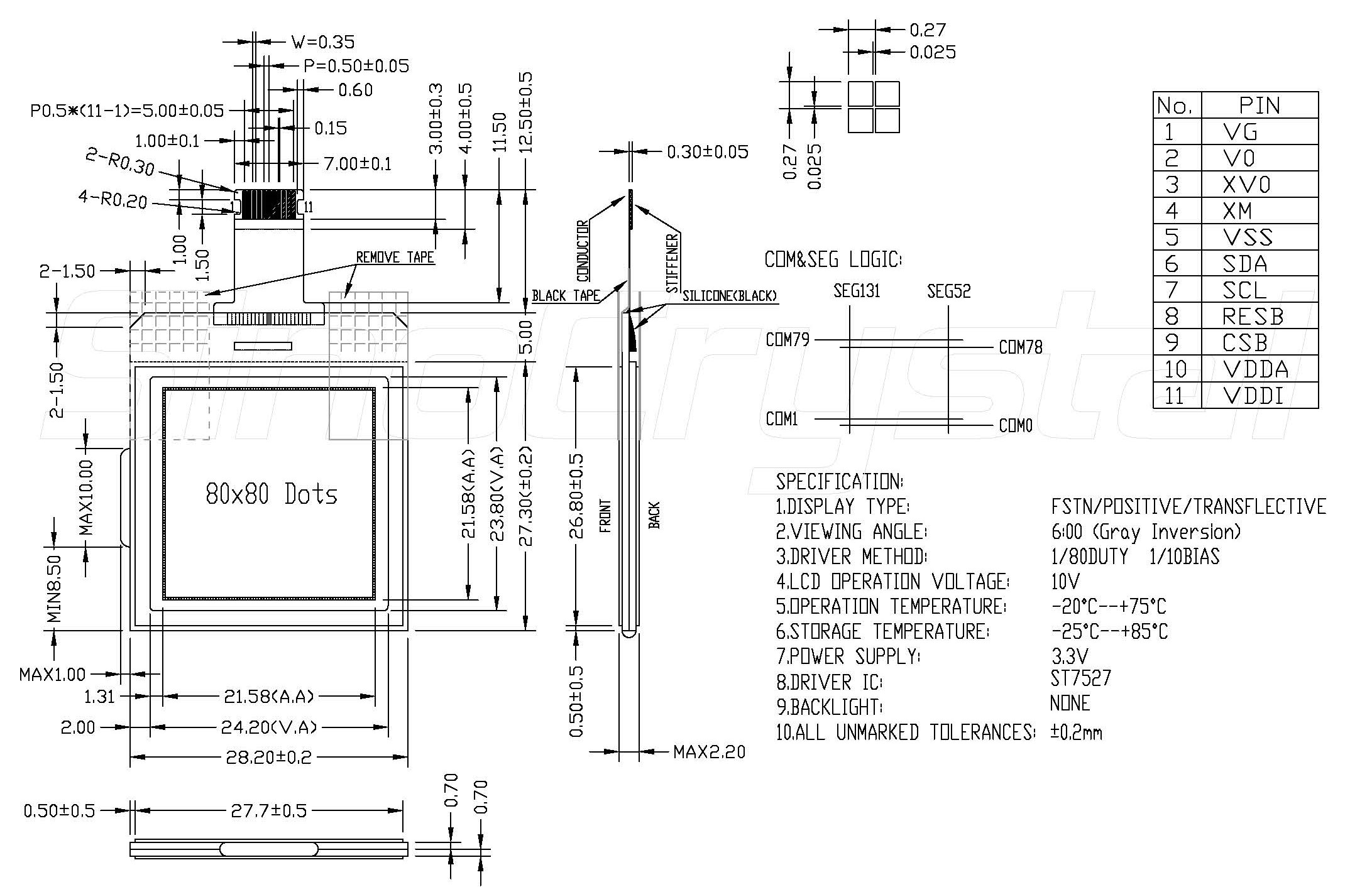

Drawing





General Specification


ITEM STANDARD VALUE UNIT
 NUMBER OF GRAPHIC 80×80 Mm
 MODULE DIMENSION 28.2×32.3×2.1 Mm
 VIEWING AREA 24.20×23.80 Mm
 DOT SIZE 0.245×0.245 Mm
 DOT PITCH 0.27×0.27 Mm
 LCD TYPE FSTN/ POSITIVE/TRANSFLECTIVE
 DUTY 1/80
 VIEWING DIRECTION 6:00(GRAY INVERSION) o'clock
 BACK LIGHT TYPE NONE
 BACK LIGHT COLOR NONE
 APPROX. WEIGHT TBD G



Interface Definition


Pin No. Symbol Type Description
1 VG Power LCD driving voltage for segments.
2 V0 Power LCD driving voltage for commons at negative frame.
3 XV0 Power LCD driving voltage for commons at positive frame.
4 XM Power LCD driving voltage for commons.
5 VSS Power Power Supply Ground.
6 SDA I Serial input data.
7 SCL I Serial input clock.
8 RESB I Reset input pin.
When RESB is "L", internal initialization is executed.
9 CSB I Chip select input pin.
10 VDDA Power Analog power.
11 VDDI Power Digital power.
