Working Principle of 808nm diode laser hair removal
ODI laser treatment machine 808nm wavelength effectively penetrates deeply and is absorbed by the target chromophore. The adequate pulse duration, energy density and epidermal cooling ensure an adequate thermal damage to the target tissue without damaging the surrounding tissues to achieve effective hair removal.
Technical Parameters of 808nm diode laser hair removal machine
|
Laser type
|
808nm Diode Laser hair removal machine
|
|
Wavelength
|
808nm± 10nm
|
|
Laser Power
|
500W
|
|
Pulse Width
|
10ms~300ms
|
|
Repetition Rate
|
1Hz~10 Hz
|
|
Energy Fluence
|
0~40J/cm2
|
|
Beam Type
|
Collimated
|
|
Skin Cooling
|
Micro Channel Cooling + TEC +Sapphire (< 5 C)
|
|
Laser Window
|
13mm*13mm
|
|
Laser Cooling Liquid
|
Purified Water
|
|
Handle Piece Flow Rate
|
2~3 L/min
|
|
Handle Life Time
|
10,000,000 shots
|
|
Pedal Switch
|
support
|
|
Environment Temperature
|
5~28 C
|
|
Environment Moisture
|
< 80%
|
|
Input VAC
|
AC 220V /50 – 60 Hz(AC 110V optional)
|
Handpieces of 808nm Diode Laser
– Germany imported bars
– Micro channel skin cooling technology
– Long working time of handpieces up to 10000 hours
– Manufacturing in dust-free environment ensure high quality

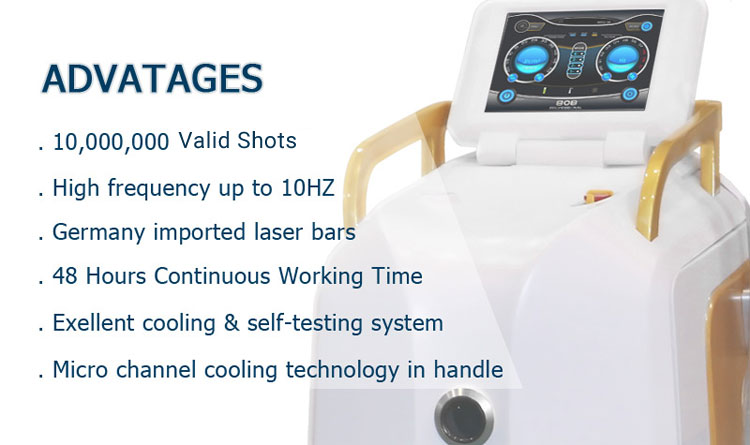

Advantages of 808nm diode laser hair removal machine
(1) Pain free and comfortable treatment
Slowly increase the temperature of the hair follicle by constantly moving the hand piece during treatment, the energy is delivered uniformly, and the patient feel comfortable.
2) Works with all skin types
The high average power, low fluency, and high repetition rate, so that the energy is delivered safely for all skin types.
(3) Short treatment time
Enables you can treat backs and legs comfortably in only 15 minutes.
(4) Safe and conformable
Sapphire contact cooling provides protection of the epidermis with no risk of freezing and maximum comfort for the patient before, during and after the treatment.
(5) Long time working
Big spot size, just move the probe on skin only which can achieve a big area treatment and semiconductor + air + water, good performance for long time working.
808 Diode Laser Hair Removal Treatment Before and After
