80MM micro panel mount thermal receipt printer with RS232+USB DC5-9V

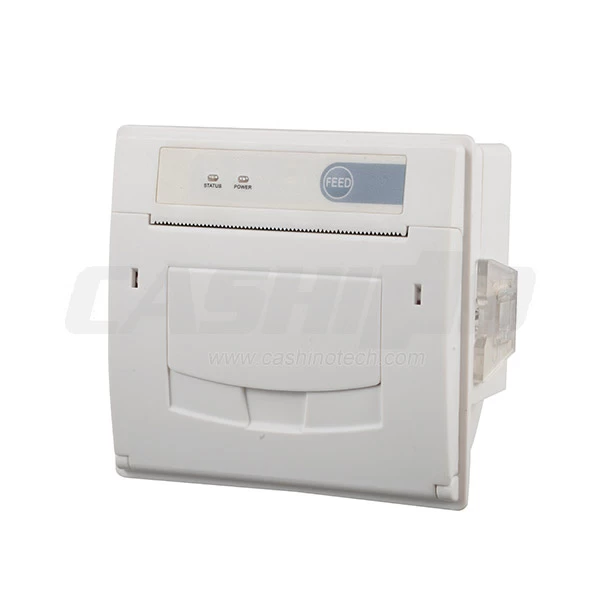

EP-300 is a 80mm panel thermal receipt printer, easily embedded to any kinds of instruments and meters.
Feature:
1. Interface:RS232+USB
2. Power supply: DC5-9V

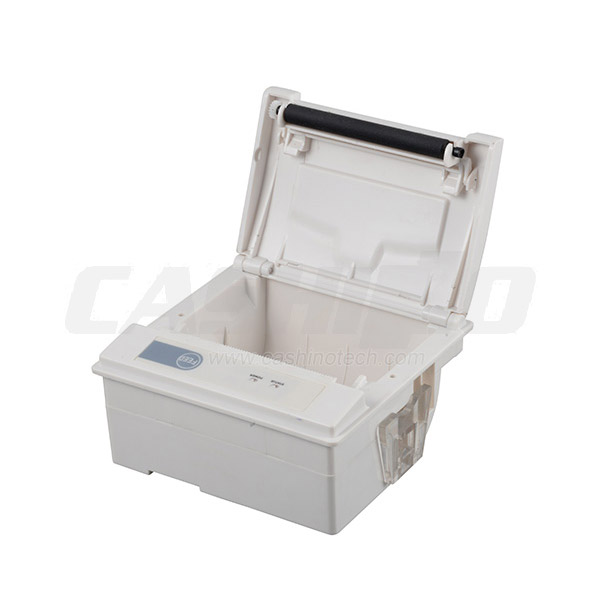

3. Easy paper loading
4. Paper near ending sensor (optional)

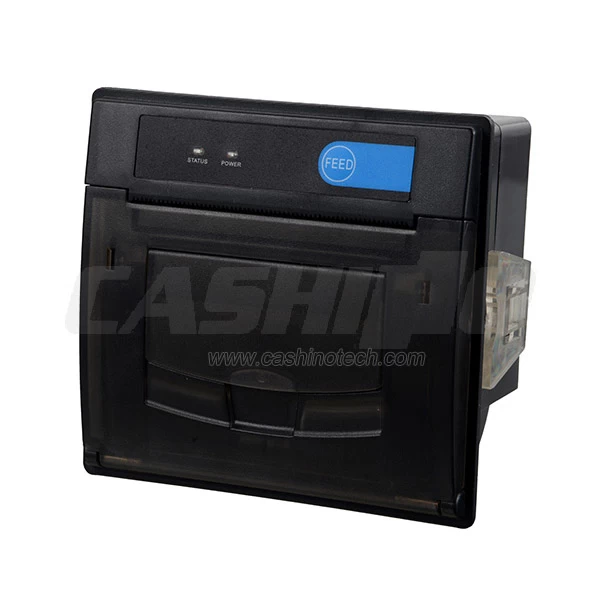

5. Color:Black/White
Specification:
| Model No.
|
EP-300
|
| Print
|
Printing method
Printing speed
Resolution
Printing width
|
Thermal Line Printing
90mm/(max)
203dpi(8dots/mm)
72mm
|
| Character
|
Character Set
Print Font
Character per line
Flash
|
ANK,GB2312(Chinese)
ANK:9×17,12×24,Chinese:24×24
Font A:32;Font B:42
2M byte
|
|
|
MCU
|
Flash:128KB SRAM:20KB
|
| Paper spec.
|
Paper Type
Paper Width
Paper Thickness
Paper Roll Diameter
Roll Core Inner Diameter
|
Thermal Paper
79.5±0.5mm
55-90μm
Max:60mm
13mm(min)
|
| Reliability
|
TPH
|
50km(12.5% print ratio)
|
| Interface
Power Supply
|
Serial(RS232/TTL)+USB, Cash Drawer port (optional)
DC5-9V,3A;DC12V as optional | DC24V±10%,2A
|
| Physical
|
Outline Dimension (WxLxH)
Installation Port Size(WxL)
Color
|
114×107×67.5mm
108.3×102.8mm
Black/White
|
| Environment
|
Operating Temp
Operating Humidity
Storage Temp
Storage Humidity
|
0°C~50°C
10%~80%
-20°C~60°C
10%~90%
|
Application:
1. Medical Equipment
2. Measureing equipment
3. Security Equipment
4. Analyzing Instrument&Meter
5. Self-order kiosk/ Vending machine
6. ATM/ VTM
Company Information:
We are a professional manufacturer of thermal printers since 2011.Our main products are handheld thermal printer, impact dot matrix printer, panel thermal printer, kiosk ticket printer, POS receipt printer and label barcode printer, etc. We have a wealth of in dependent research and experience, which can effectively meet different customers ODM requirements and help achieve printing simply, efficiently and economically. Currently, Our products are exported to Southeast Asia, South Asia, South & North America, Middle East and Europe, etc.
FAQ:
Q: About samples
A: Samples are available for testing.
Q: Delivery date.
A: All the printers for samples are in stock, can ship it within 2 days after payment received. For bulk order
delivery date approximately 2 weeks.
Q: Payment terms
A: Paypal, western union, T/T in advance, or order in aliexpress.
Q: Warranty
A: One year warranty. During warranty period, the damage caused by non-human factor, CASHINO will be
responsible for the free repair. Overdue warranty period, CASHINO will continue to provide services with
reasonable price to the customer.
