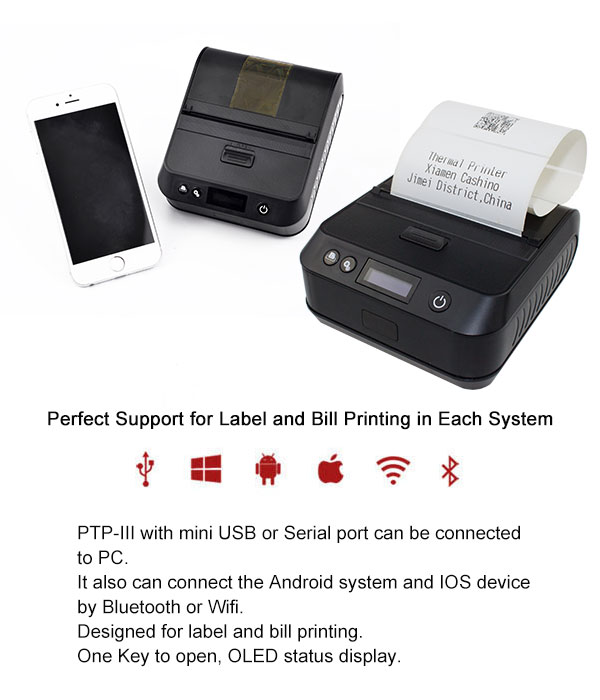

PLP-3 80mm portable label barcode thermal printer
Brief:
The PLP-3 is designed especially for those transaction applications where small size, fast printing and dependability while staying in budget are vital. Delivering the key features and communication methods, the PLP-3 has the flexibility to meet the unique, industry-specific receipt printing and ease of use required to keep up with the mobile worker’s long and demanding shift.
Longer Battery Life with two standard 7.4V,2000mAh Lithium-ion rechargeable batteries.
Feature:
USB, Dual Bluetooth interface
Support android, ios, windows
Low battery indicator(7.4V,2000mAh)
Equipped with lithium battery for 8 hours continuous work
Specification:
MODEL |
PLP-3 |
Print |
print mode |
Thermal line printing |
Printing speed(Max.) |
50mm/s (Label) , 90mm/s(Receipt) |
Resolution |
203dpi(8dots/mm) |
Effective printing width |
72mm |
Paper spec. |
Paper Type |
Thermal paper roll/Thermal label roll |
Paper Thickness |
Receipt:0.055-0.09mm ; Label:0.10-0.16mm |
Paper Width |
25-58mm |
Paper Diameter(O.D) |
40mm(Max.) |
Roll Core Inner Diameter |
13mm(min) |
Paper supply method |
Drop-in easy loading |
LED indicator |
OLED display |
Reliability |
TPH |
50km(12.5% print ratio) |
Detection |
Cover opend ,paper ending,paper gap, black mark(optional) |
Barcode |
1D |
EAN-13,EAN-8,CODE39,CODE93,CODE128,CODEBAR,ITF,UPC A,UPC-E |
2D |
QR CODE,PDF417 |
Text and graphic support |
Figure, symbol, graph, curve, icon, multi-languages |
Command set |
ESC/POS,TSPL,CPCL |
Driver/SDK |
Windows Driver, Linux Driver,Android SDK,Label editor app(Andriod version) |
Interface |
Wire |
Mini USB |
Wireless |
Dual bluetooth |
Battery |
7.4V,2000mAh |
3Hrs charging time |
72Hrs Stand-by |
Battery adapter |
12V,0.8A AC/DC Charger |
Optionals and accessories |
Li-polymer battery, AC adapter, Mini USB cable,paper roll, |
Protective Case,CD, user manual |
Temperature |
Operating:0℃~50℃ |
Storage:-20℃ ~ 60℃ |
Humidity |
Operating:10%RH~80%RH |
Storage:10%~90%RH |
FAQ:
Q: About samples
A: Samples are available for testing.
Q: Delivery date.
A: All the printers for samples are in stock, can ship it within 2 days after payment received. For bulk order
delivery date approximately 2 weeks.
Q: Payment terms
A: Paypal, western union, T/T in advance, or order in aliexpress.
Q: Warranty
A: One year warranty. During warranty period, the damage caused by non-human factor, CASHINO will be
responsible for the free repair. Overdue warranty period, CASHINO will continue to provide services with
reasonable price to the customer.
