Performance Parameter
|
|
Configulation
|
|
Processor
|
M3 32bit processor
|
|
Flash
|
256Kb RAM
|
|
ROM
|
4Mb
|
|
Display
|
0.96 inch OLED
|
|
Buttons
|
Power/Setting/Feed
|
|
Bluetooth
|
Bluetooth2.0/4.0
|
|
Interface
|
USB2.0(Micro-USB)/9v DC Jack
|
|
Battery
|
7.4V 1400mAh Li-ion, 2.5Hrs Charging Time
|
|
Printing
|
|
Print Method
|
Direct Thermal
|
|
Print Width
|
72mm,576 dots/line
|
|
Paper Width
|
80mm
|
|
Print Speed
|
Max 80mm/s
|
|
Dot Density
|
203D
|
|
OS Support
|
Android, IOS, Windows
|
|
SDK
|
Android, IOS
|
|
Paper Type
|
Thermal Paper/Thermal Label Paper
|
|
Paper Roll
|
Max. Ø 39mm
|
|
Character size
|
Codepage, Unicode, UTF-8
|
|
Built-in Fonts
|
ASCII(8x16,12x24,16x32,24x48,32x64)
GB13080(16 x16,24 x24,68 x48)
|
|
1D
|
UPC/EAN, Code128, Code39, Code93, Code11,
Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS etc.
|
|
2D
|
QR:PDF417, MicroPDF417, Composite, RSS,
TLC-39, Datamatrix, QR code, Micro QR code,
Aztec, MaxiCode; Postal Codes:
US PostNet, US Planet, UK Postal, Australian Postal,
Japan Postal Dutch Postal
|
|
System Setting
|
Sleep,Speed,concentration,etc
|
|
Emulation
|
ESC/POS,TSC Command Compatible
|
|
Print Type
|
Text/Image/Barcode/QR
|
|
Sensor
|
Paper End Sensor , Gap Sensor ,Cover Open Sensor , Black Mark Sensor
|
|
Alarm
|
Beeper/OLED screen
|
|
Battery
|
7.4V 1400mAh Li-ion, 2.5Hrs Charging Time
|
|
Adapter
|
Input AC 110-240V, 50-60Hz Output DC 9V-1.5A
|
|
Reliabilty
|
50km
|
|
Environment
|
|
Storage temperature
|
from -20 to 70 C
|
|
Humidity
|
0 ~ 95% (no condensation)
|
|
Dimension
|

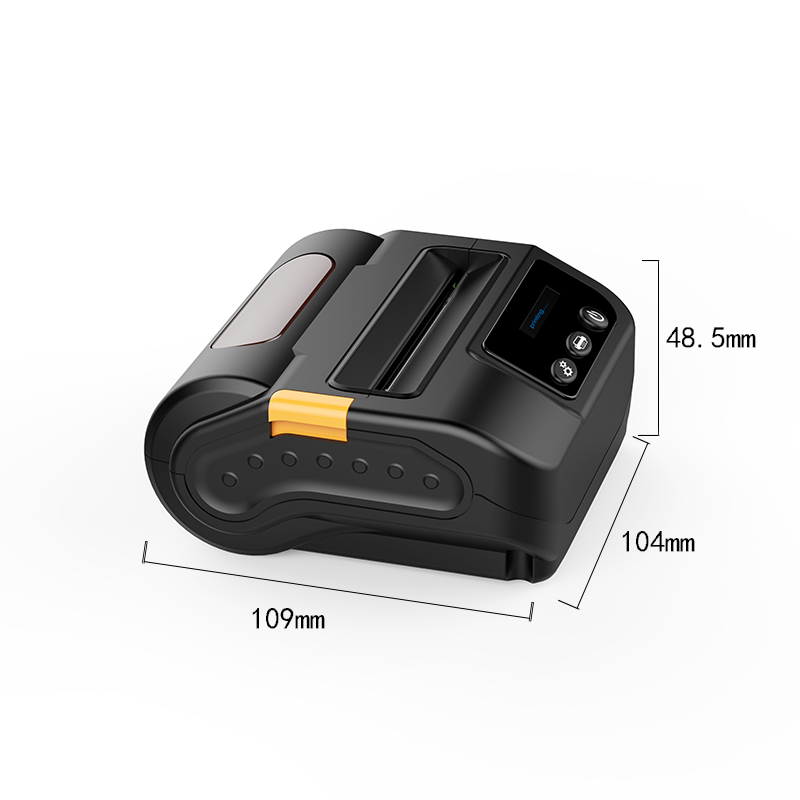

109mmX104mmX48.5mm
|
|
Weight
|
270g battery included
|
