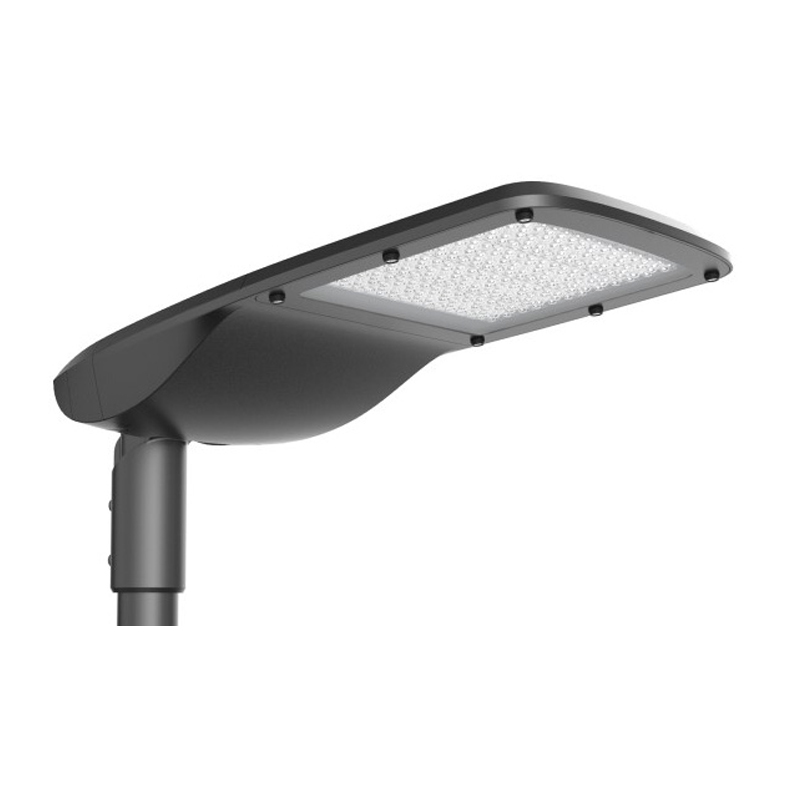

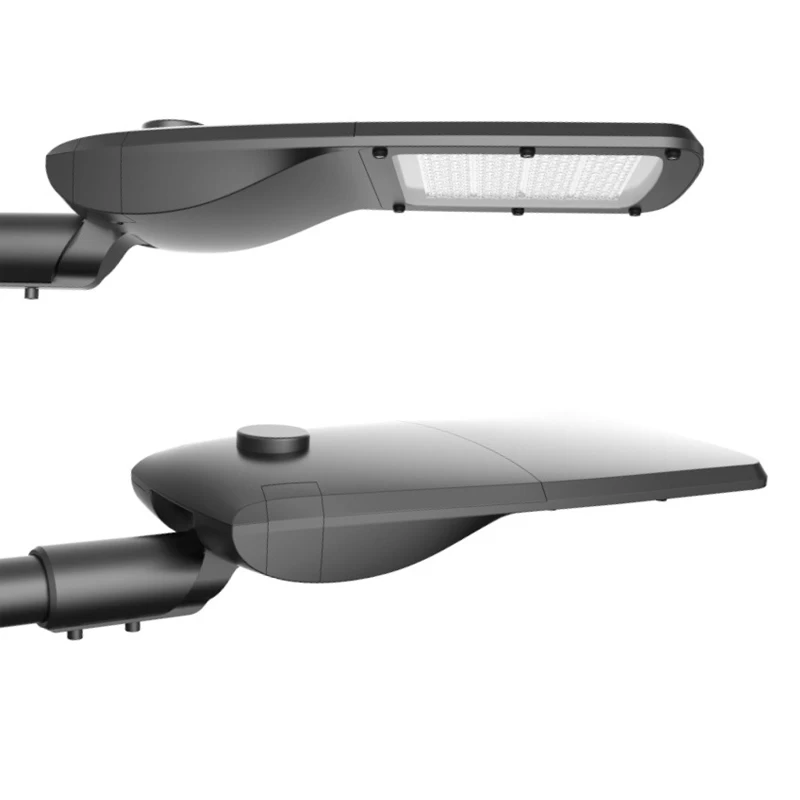

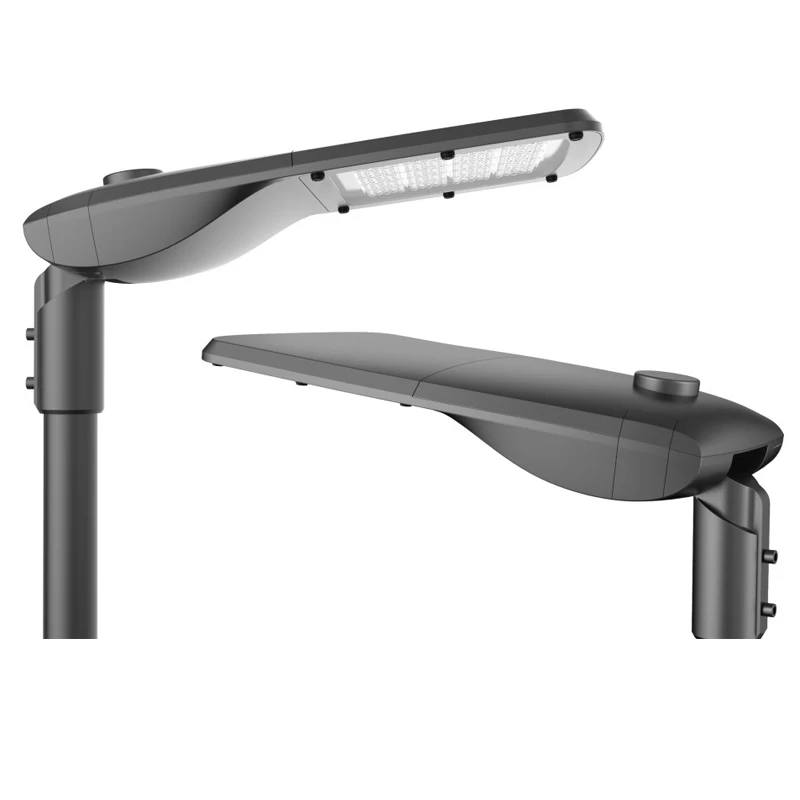

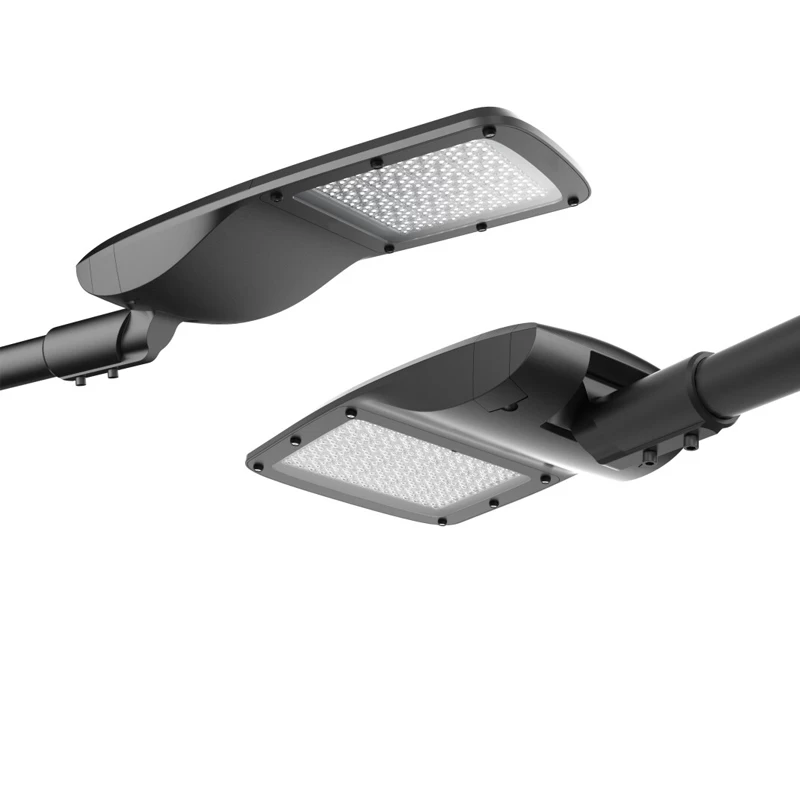

80w Arm Adjust Led Street Light Photocell
Sales Point:
• Welding reflow technology to make sure really low heat resistance and low lighting depreciation;
• Material: ADC12
• Luminaire tilt adjustment side entry: +/-15°
• Luminaire tilt adjustment post top: +/-15°
• CCT: 3000K, 4000K, 5000k, 6000k
• Warranty: 5 years
Optional accessories:
1. PhotoCell: Smart Controller for different height.
2. SPD: It can afford Higher voltage.
3. Dimming function
Datasheet:
|
Model
|
Product Size
|
Led Lighting
source
|
Installation dia.
|
Driver
|
Input Voltage
|
Output power
|
LED pcs
|
LM/W
|
Whole lamp Lm
|
|
BML-2018C
|
633X281X149MM
|
CREE
XTE
|
60mm
|
MEANWELL
ELG-75
|
108-305V
|
60W
|
36
|
110LM
/ W
|
6600LM
|
|
BML-2018C
|
633X281X149MM
|
CREE
XTE
|
60mm
|
MEANWELL
ELG-100
|
108-305V
|
100W
|
56
|
110LM
/ W
|
11000LM
|
|
BML-2018B
|
740X344X149MM
|
CREE
XTE
|
60mm
|
MEANWELL
ELG-150
|
108-305V
|
120w
|
64
|
110LM
/ W
|
13200LM
|
|
BML-2018B
|
740X344X149MM
|
CREE
XTE
|
60mm
|
MEANWELL
ELG-150
|
108-305V
|
150W
|
64
|
110LM
/ W
|
16500LM
|
|
BML-2018B
|
740X344X149MM
|
CREE
XTE
|
60mm
|
MEANWELL
ELG-240
|
108-305V
|
200W
|
108
|
110LM
/ W
|
22000LM
|
|
BML-2018A
|
833X373X149MM
|
CREE
XTE
|
60mm
|
MEANWELL
ELG-240
|
108-305V
|
250W
|
140
|
110LM
/ W
|
27500LM
|
|
BML-2018A
|
833X373X149MM
|
CREE
XTE
|
60mm
|
MEANWELL
|
108-305V
|
300W
|
160
|
110LM
/ W
|
33000LM
|
Led Lighting Source: Cree-Xlamp XT-E
Features:
-
Max. Efficacy at binning conditions 178lm/w
-
Max. Light Output 629lm
-
Max. Power: 5W
-
Max. Driving Cuurent up to 1500mA
-
Typical Forward Voltage 2.85V@350mA
-
Binning and characterization in Tj=85
-
Size: 3.45*3.45mm
Driver Feature: Meanwell ELG Series
· Constant Voltage + Constant Current mode output
· Metal housing design with functional Ground
· Built-in active PFC function
· Class 2 power unit
· No load / Standby power consumption <0.5W
· IP67 / IP65 rating for indoor or outdoor installations
· Function options: output adjustable via potentiometer; 3 in 1 dimming (d im-to-off); Smart timer dimming; DALI
· Typical lifetime>50000 hours
· 5 years warranty
