Brand

Baisheng LASER

Model

AS-9060

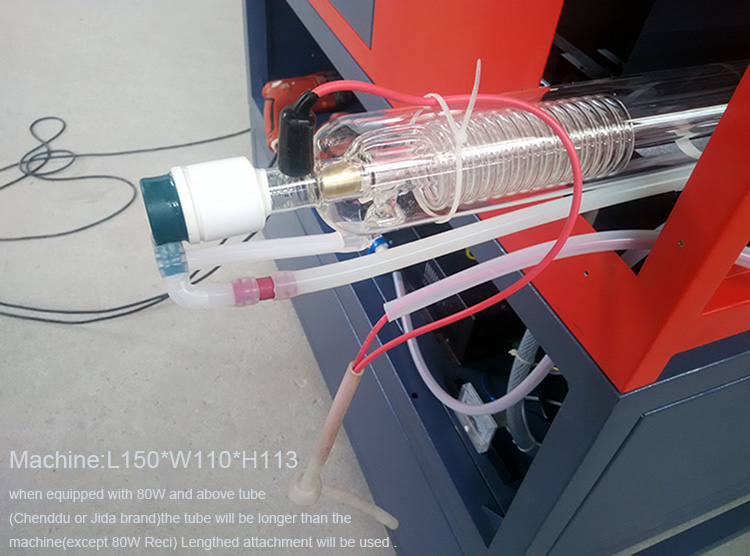

Laser Type

Sealed  CO2 laser Glass Tube

Laser power/brand

60W 80W,100W. 120w CDWG / Reci brand

Gross Power

<1300W

Net Weight

200KG

Gross wight

250KG

Processing Area

900mm*600mm

Machine Dimension

150*110*103

Packing Dimension

201*122*113

Minimum sharping character

Chinese Character 2mm/ letter 1mm

Power supply

220V±10% 50 HZ±10HZ (customizable)

Cutting/engraving Speed

0-64m/min

X/Y Positioning Accuracy

0.025mm

X/Y Repeated Positioning Accuracy

≤±0.01mm

Laser Control System

 China  Ruida or Topwisdom co2 laser control system

Data Transfer Port

PC cable ,USB port

Design software

Coreldraw AutoCAD Photoshop…AI

Graphic File Formats Supported

AI,DXF,PLT,DST,DSB,BMP,GIF,JPG,PNG,ICO

Operating temperature

0-45℃

Accessories

Exhaust fan/pipe. Air Compressor .air duct/water pipes , /user manual. Water

Pump,Reflective mirrors ,len,wheels.one of 3 platforms(Metal honeycomb,                            knife edge Aluminum bars, Grid )…

optional

Red dot pointer positioning system/ CW water chiller/the other 2 platform

Consumable parts(recommend to be spared)

Laser tube, Mirrors, lens. power supply
