80W smart Indoor led wall pack

What is smart lighting? In fact, it is to simplify the complicated links. Our purpose is to serve people's work and quality of life.



Description

 At present, smart lighting can be divided into DMX512 control, PWM control, SCR control, 0-10V control, DALI control, narrow wave control and wireless control of Bluetooth, WiFi, ZigBee and other methods from outdoor to indoor. Morstar has mature technology in the application of Bluetooth WiFi. The intelligent control system is applied to solve the different functional needs of each experiencer and consumer, the emotional needs of different personalities, the needs of visual perception, the needs of environmental protection and energy conservation, and so on. Become value needs for different business purposes.

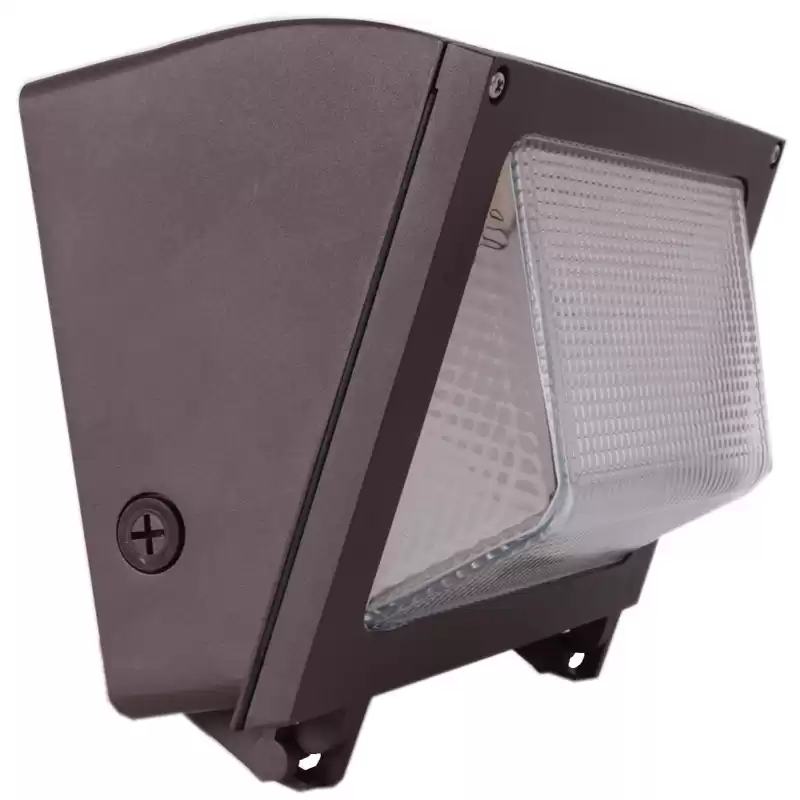

 Morstar 80W intelligent control wall pack is very suitable for residential or commercial security lighting needs. The installation is hands-free. Multiple conduit boxes can be easily installed on the wall or bollard to realize the application and use of multiple scenarios. Among them, the anti-ultraviolet polycarbonate lens can reduce glare, and can realize the diffused light distribution that is friendly to neighbors. The die-cast aluminum housing is coated with a corrosion-resistant powder coating and can withstand more than 70,000 hours of maintenance-free use. It can be used with Morstar Bluetooth APP to control light fixture.


Morstar is a trusted,global company with a keen insight into the market. We konw lighting and provide products with excellent quality, reliability and functionality.


Feature:

• Input voltage: 120V-277V,AC120V-347V available

• Durable, corrosion-resistant die-cast aluminum housing with commercial-grade powder coating

• Easy, hands-free installation; Integral wire hook with removable mounting plate

• 100% maintenance-free operation for more than 50,000 hours

• Ultraviolet stabilized polycarbonate lens reduces glare and achieves neighbor-friendly diffuse light distribution


Specifiction:

ITEM SPECIFICATION DETAILS
GENERAL
PERFORMANCE
Power Consumption 80W
Equivalent Wattage 250W HM
Lumens Delivered 10000lm
Efficacy 125LM/W (±10%)
CRI Ra>80
Color Temperature 4000K / 5000K  /  5700K
L70 Lumen maintenance 70,000 hours
ELECTRICAL Power Factor ≥0.90
Input Voltage 120-277VAC/120-347VAC
Dimming 0-10V
Surge Protection Surge protection: 4KV line-line, 6KV line-earth
PHYSICAL Mounting wall-mounted
Operating Temperature -22°F to 104°F
Humidity Operating Humidity: RH<90%
QUALIFICATION Qualifications UL Listed, DLC Premium
Material Usage RoHS compliant; no mercury
Environment Outdoor IP65
Warranty 7 Years warranty


Dimension Drawing:


Part No A(Inch) B(Inch) C(Inch)
80W 10.27" 6.46" 9.36"


WARRANTY:

7-year standard warranty with labor allowance* (further details available at www.morstar.com/warranties)

*Warranty Limitations: Product must be rated for the application per  the product Data Sheet(PDS);operated<16hrs; in ambinent of -22°F to 104°F .



FAQ:

1. How can smart lamps save money?

A:*. Smart bulbs are usually LED lamps, which are approximately 75% more efficient than incandescent lamps. If you haven’t upgraded to LED lights, just screw in the new bulb and you will see the savings.
*. When there is no one in the room, use the motion sensor to turn off the smart light switch and bulb.
*. When people are away or not, you can use the geolocation on the phone to turn off the lights. The lights are turned on and off according to the schedule.


2.Can smart lamps provide security in usage scenarios?
A: The answer is no doubt. Use motion sensors and contraction sensors to automate your lights, so you don’t need to look around for switches in the dark.


3.What are the options for smart bulbs?
A: Smart bulbs are available in a variety of sizes and colors. Whether it is your home or other commercial places, almost all types of light bulbs can be replaced with smart light bulbs.


4.Can smart lamps be dimmed?
A: You can set different lighting scenes according to your different usage needs. For example, you can adjust the color of the light according to the morning and evening of the time or the change of the season.
