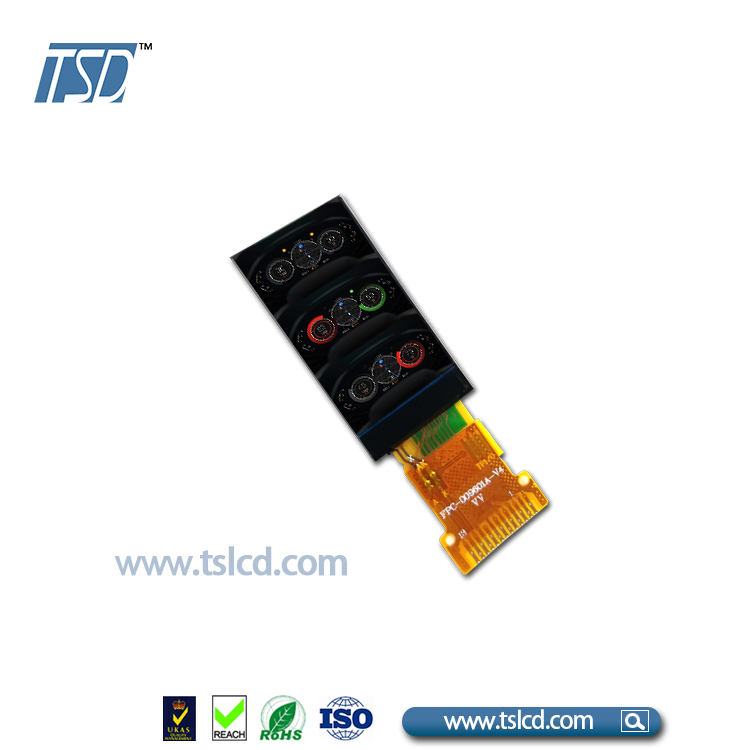

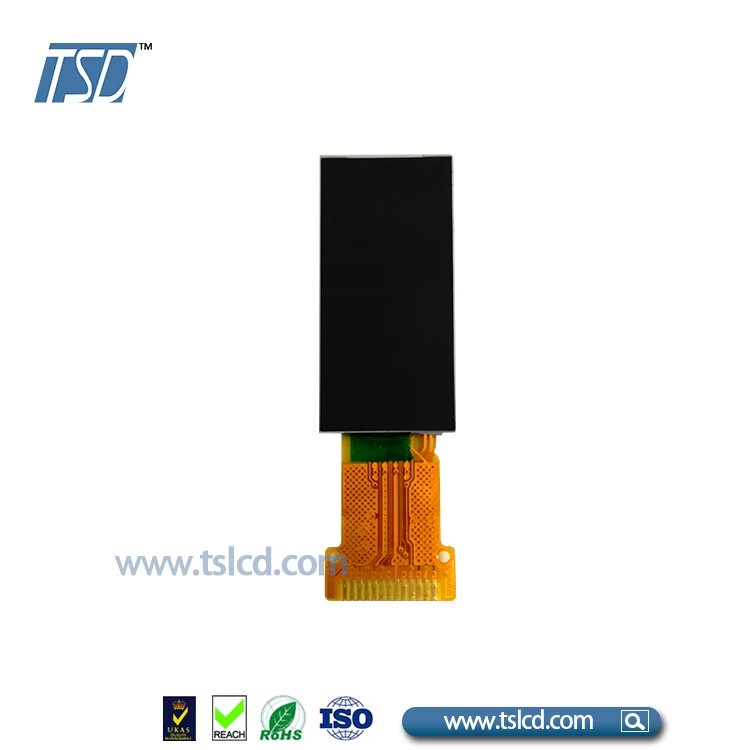

80x160 resolution 0.96 inch small ips lcd display ST7735S controller
|
Main parameters:
|
|
Item
|
0.96 inch TFT LCD display
|
|
Model name
|
TST09601A
|
|
Display Mode
|
Normally White,Transmissive
|
|
Resolution
|
80*160
|
|
Technology Type
|
a-Si TFT active matrix
|
|
Driver IC
|
ST7735S
|
|
Pixel Configuration
|
R.G.B. Vertical Stripe
|
|
Outline Dimension
|
13.3(W) x 27.948(H) x 1.4(D)
|
|
Active Area(mm)
|
10.8 (W) x 21.7 (H)
|
|
Interface
|
SPI
|
|
Viewing Direction
|
FREE
|
|
Surface treatment:
|
Anti-Glare
|
|
Backlight Type
|
1-LED white color
|
|
Operating Temperature
|
-20~70°C
|
|
Storage Temperature
|
-30~+80°C
|
|
