1. Ensure there is no power to the equipme
2. Mark the position of the ribbon cable and wires.
3. Remove the screws and lift the ring lugs from the terminals to remove
the wires.
4. Release the locking mechanism located on each side of the ribbon
cable connector and pull the ribbon cable straight out to prevent
bending the pins.

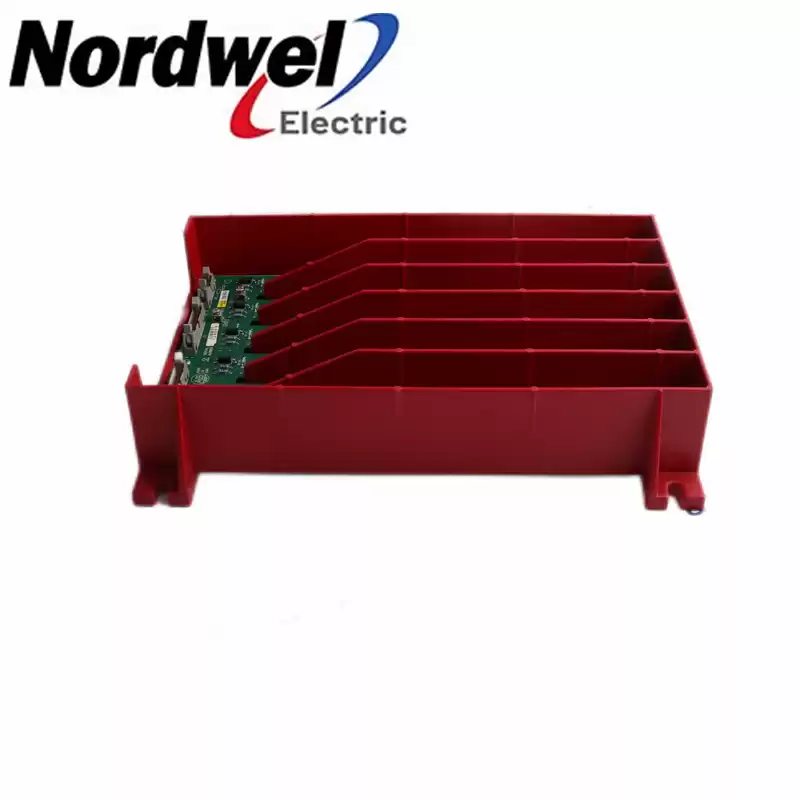

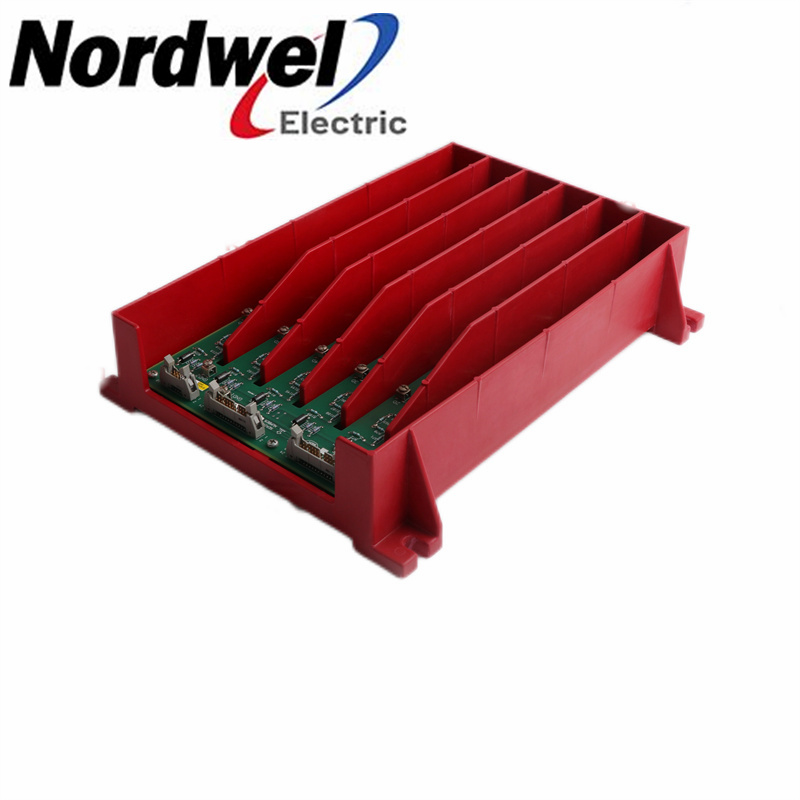

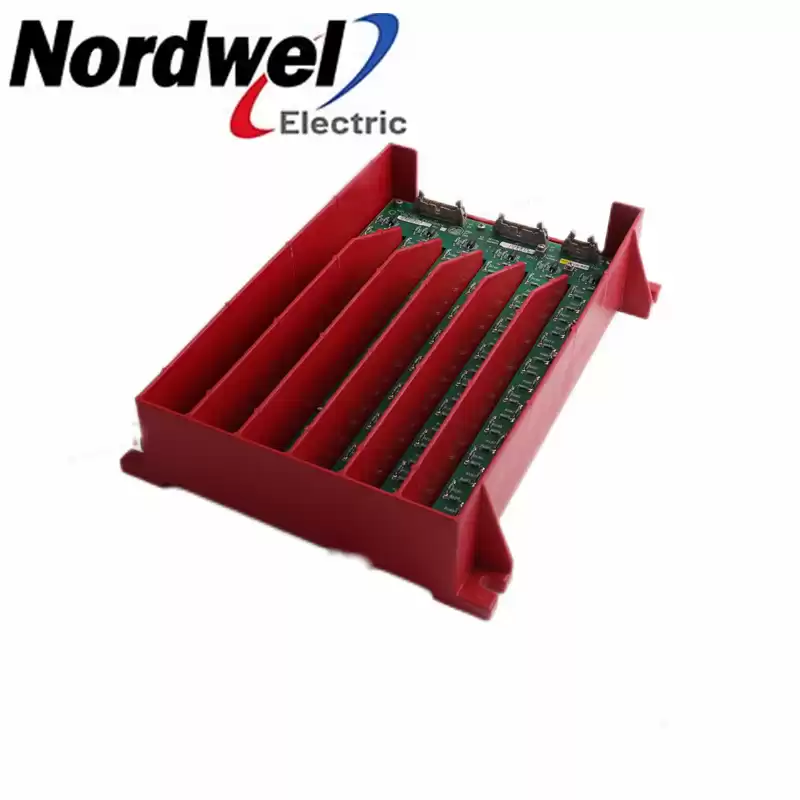

5. Remove the 4 nuts that secure the assembly to the side panel.
6. Replace with the new assembly securing with all 4 nuts and washers.
