820 Bite Type Wall Panel Corrugated Steel Roofing Sheets

Wiskind 820 corrugated steel roofing sheets needs to be installed by brackets, the screws are not exposed, it is used for large-span roofing, the drainage effect is good, it is not suitable for transportation, and it is mostly used for on-site processing.



820 Bite Type Roof Panel Corrugated Steel Roofing Sheets


Product Parameters:

Product Name

820 Bite Type Big Roof Panel Corrugated Steel Roofing Sheets

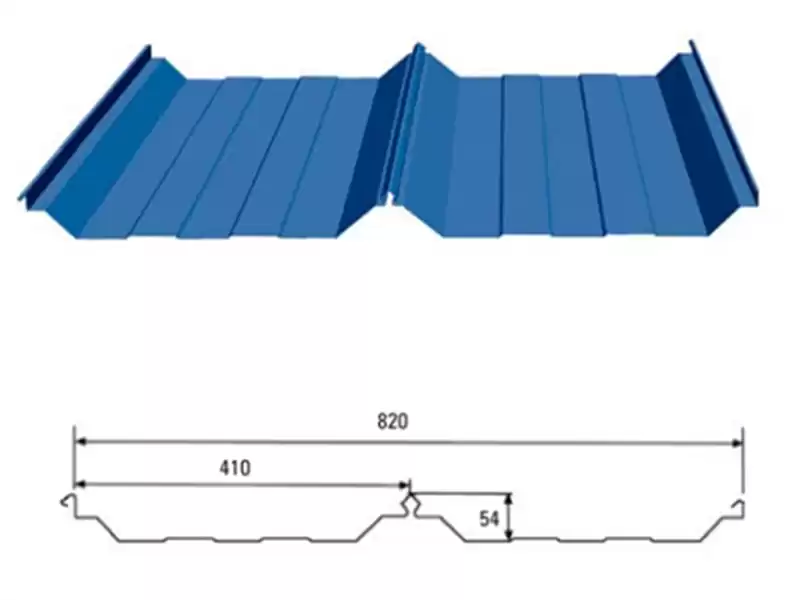

Profiled Steel Sheets Type

YX54-410-820

Effective Width

820mm

Feeding Width

1000mm

Crest Height

54mm

Panel Thickness

0.5-0.6mm

Section Inertia

22.62-27.14cm⁴/m

Section Resistance

15.06-18cm³/m

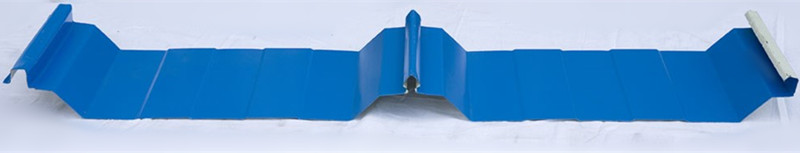

Steel Corrugated Sheets for Roofing


Product Advantages:

1.360° occlusion---Upright lock seam 820 roofing system.

2.360° vertical fastening seam, excellent waterproof and airtight.

3.No screw penetration on the surface of the system.

4.The unique sliding-sliding bracket makes the system have perfect thermal expansion and contraction compensation function.

5.Processed equipment cabinets to ensure accurate on-site suppression of large projects.

Corrugated Steel Sheets for Roofing
