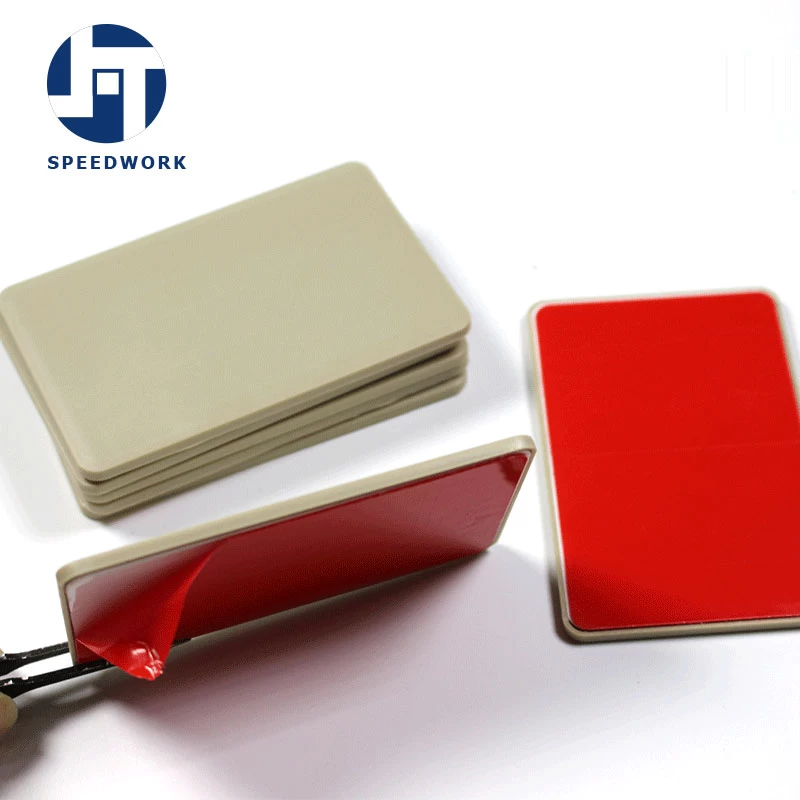

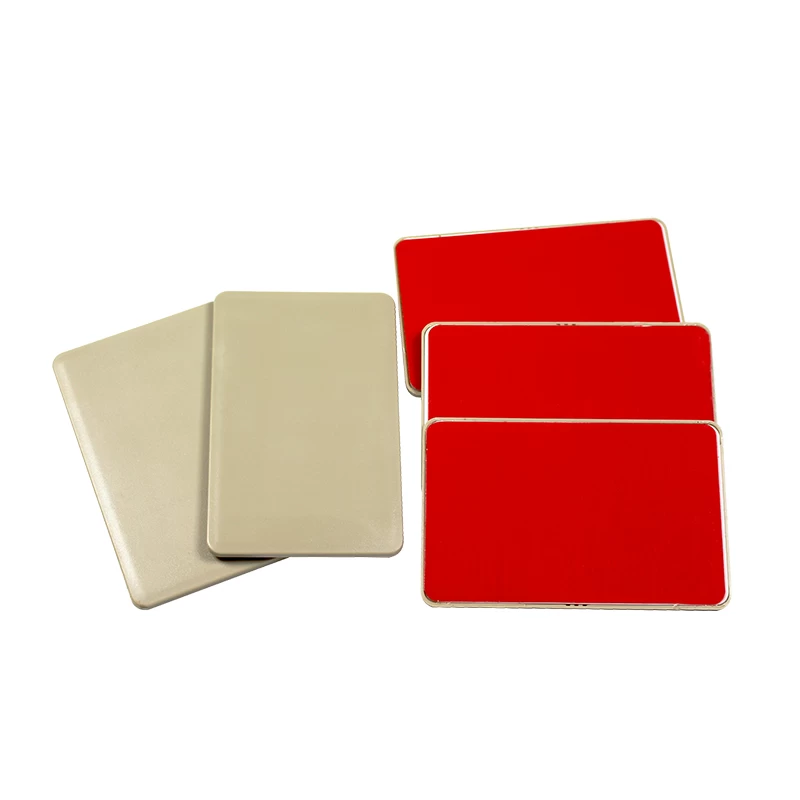

Ceramic UHF RFID WINDSHIED Tag
erformance Characteristics
|
Operating Frequency:
|
860 - 960 MHz
|
Reading distance
|
10m with ImpinjR420 and BRA- 01CR
|
Chip
|
Alien H3
|
Supported Protocol:
|
ISO 18000-6C, EPC global C1Gen2
|
Functionality:
|
Read/Write
|
Chip Characteristics
|
EPC
|
96bits
|
User Memory
|
512 User Bits
|
TID:
|
64bits
|
Access password:
|
32bits
|
Kill password:
|
32bits
|
EEPROM data retention:
|
10 years
|
EEPROM write endurance:
|
10,000 cycles
|
Physical Characteristics
|
Dimensions (W x L x H):
|
86mm x 54mm x 3.3mm
|
Material
|
Ceremics and Silver , PC package
|
Color
|
White
|
Weight
|
5g
|
Mounting Way
|
3M Adhensive
|
User Environment
|
IP Classification
|
IP65
|
Operating temperature:
|
-20ºC to +85ºC
|
Applications:
|
License Plate, Vehicle Parking, Vehicle Management,
Logistics etc.
|
