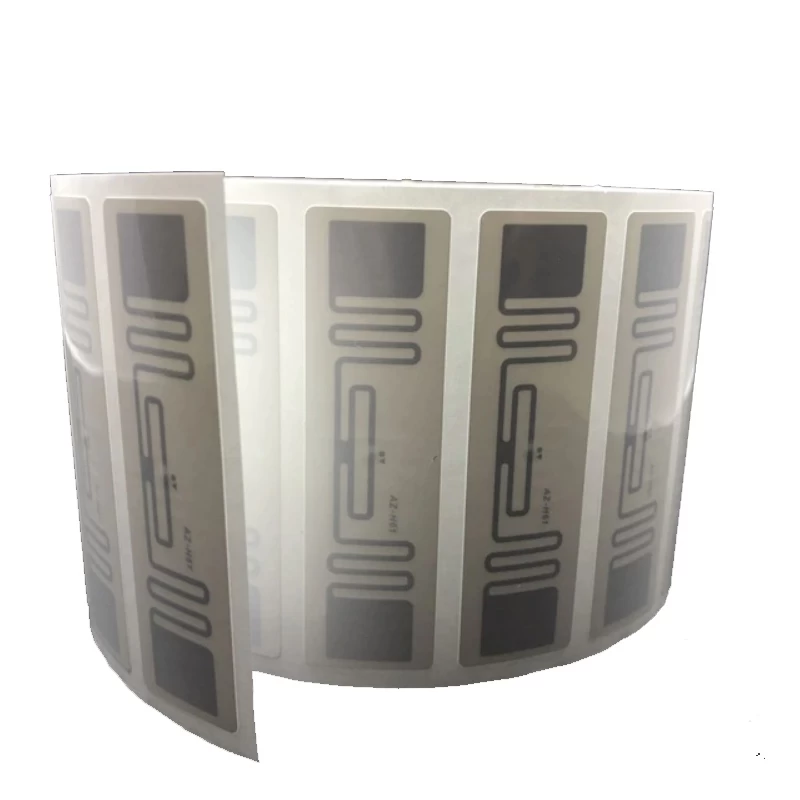

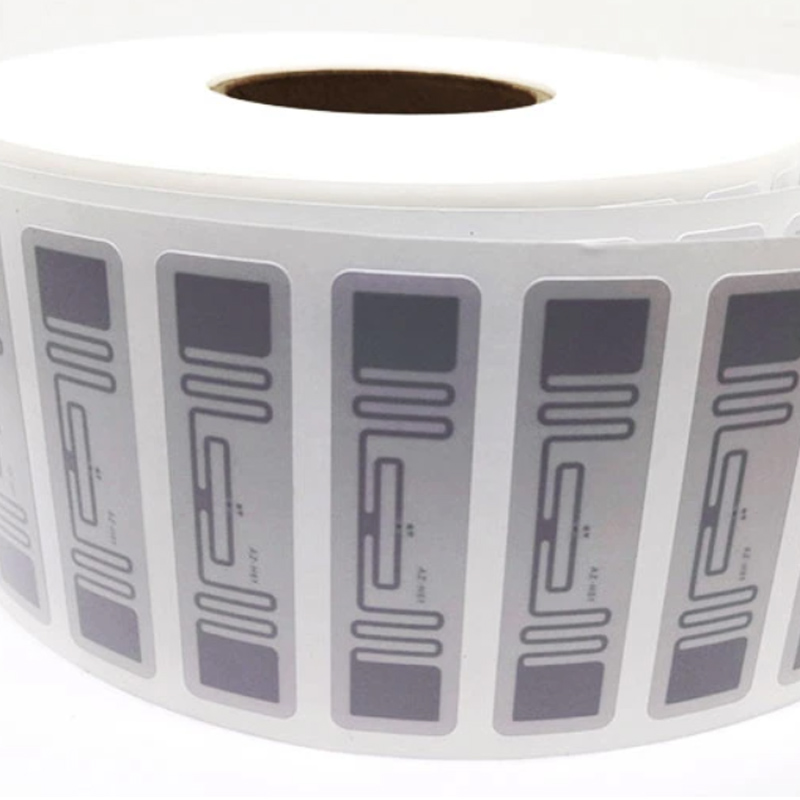

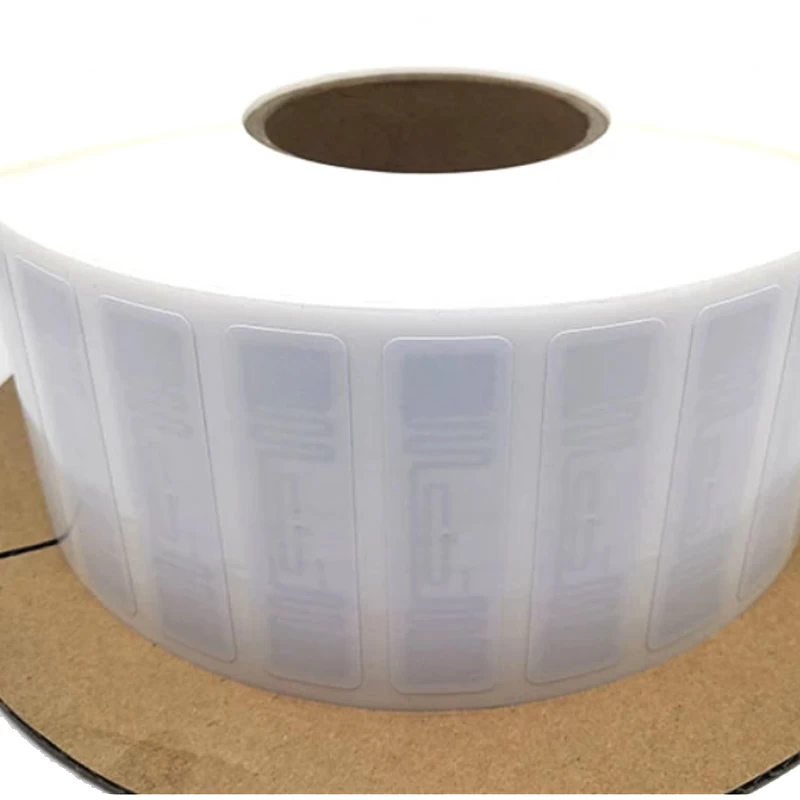

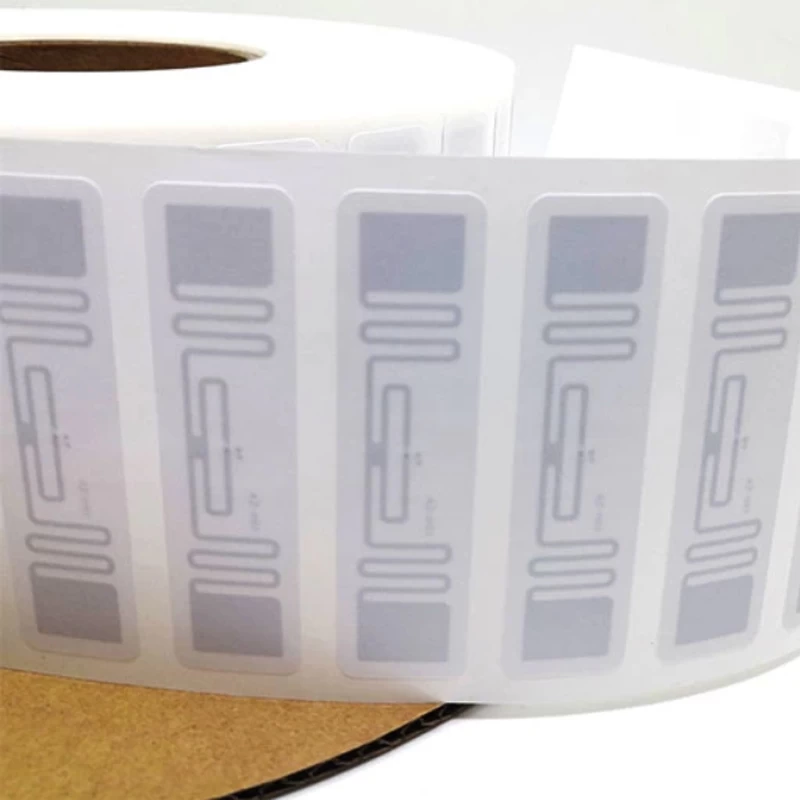

860~960Mhz Impinj Monza R6 UHF RFID Wet Inlay
What is wet inlay?
Because RFID wet inlays are made adhesive
sticker backing that can be easy sticker on other products directly. Wet inlay
do not require printed information on the tags so that it can be probably cut
down cost. We are continually updating and adding RFID products to our website;
however, if there is a particular Wet Inlay you are searching for, but cannot
find, please contact us as we will likely be able to provide it for you.
Overview:
RFID tag structure：RFID
Chip + RFID Antenna + Housing Material
Tag type: uhf inlay/label
Frequency: 860~960Mhz
Working protocl: ISO18000-6c/EPC Class
1Gen2
Chip model: Impinj Monza R6
Memory sizes: 32bits
Antenna material: Aluminum Etching Antenna
Antenna sizes: 40*15mm or customized
Tag size: customized
Certification: CE, ISO, SGS
Protocol standard: ISO18000-6c/EPC Class 1
Gen 2
Operation Frequency: 860~960Mhz
Reading range: about 0.01~3m (vary from
different reader and environment)
User Memory: 512 Bits/128 Bits
Antenna Material: Aluminum etching antenna
Process: Flip chip
Surface Material: 80g coated paper
Release paper: White glassy paper
Life Time: 10 years
Operating Temp: -30℃ ~ 85℃
Applications:
logistics & supply chain management
parking & access control management
asset management &warehouse management
Supply Ability: 3000000 Piece/Pieces per
Week
Packaging & Delivery:
Packaging Details: 5000pcs per roll inside
anti-static bag or in pieces inside box
