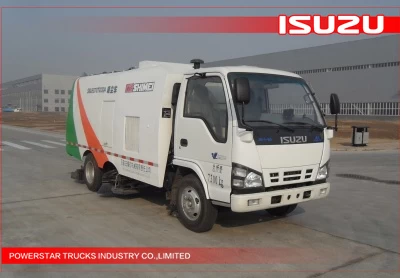

88KW Isuzu 4KH1-TCG40 vacuum sweeper Truck mounted street sweeper
parameters of the vacuum sweeper
|
type of the engine
|
4KH1-TCG40
|
chassis model
|
NKR77
|
type of the vice engine
|
4JB1
|
effluent standard
|
Euro 4
|
output volume (ml)
|
2999
|
number of axles
|
2
|
rated power(kw)/rotating speed (r/min)
|
88/3400
|
distance between shafts (mm)
|
3360
|
type of fuel oil
|
Diesel oil
|
full mass (kg)
|
6330
|
maximum speed of the sweeper km/h
|
96.5
|
unladen mass (kg)
|
4230
|
climbing capacity (%)
|
can pass ramp with a 26.8% gradient
|
unladen mass (kg)
|
1970
|
partial parameters of dust absorption
|
size (mm)
|
6000*2099*2480
|
working radius (mm)
|
2800
|
maximum speed of sweeping (km/h)
|
20.6
|
volume of dust collecting chamber (L)
|
5000
|
percentage of finished sweeping (%)
|
98.6
|
weight of the biggest particle collected (g)
|
1250
|
diameter of the equivalent ofthe biggest particle inhaled (mm)
|
100
|
biggest angle of overturn of the dust collecting chamber (°)
|
47
|
Cleaning ability (㎡/h)
|
56000
|
unloading hight of the dust collecting chamber
|
463
|
noise outside the working sweeper dB(A)
|
77
|
noise near the driver's ear dB(A)
|
80.1
|
