88x48 resolution mini size OLED screen monochrome 0.5 inch I2C Interface
It is a 88x48 resolution 0.5 inch mini OLED screen product with I2C interface. The pixel size is 0.108x0.108mm and FPC connection. You are able to get great visual effect watching from any view angle as it's a IPS type display.
The 0.5 inch mini OLED screen is a kind of PMOLED display. Its pixels in each line are actually off most of the time due to the electronics do not have a storage capacitor.
Small Size OLED Display
Product Parameters
| Display Type |
OLED |
| Display Size |
0.5 Inch |
| View Angle |
IPS |
| Dot Number |
88x48 |
| AA |
6.124x11.244mm |
| Backlight Color |
White |
| Interface |
I2C |
| Control IC |
CH115 |
| Pixel Size |
0.108x0.108mm |
| Pixel Pitch |
0.128x0.128mm |
| Connector |
FPC |
| Working Temp. |
-40-85°C |
| Working Voltage |
3.3V |

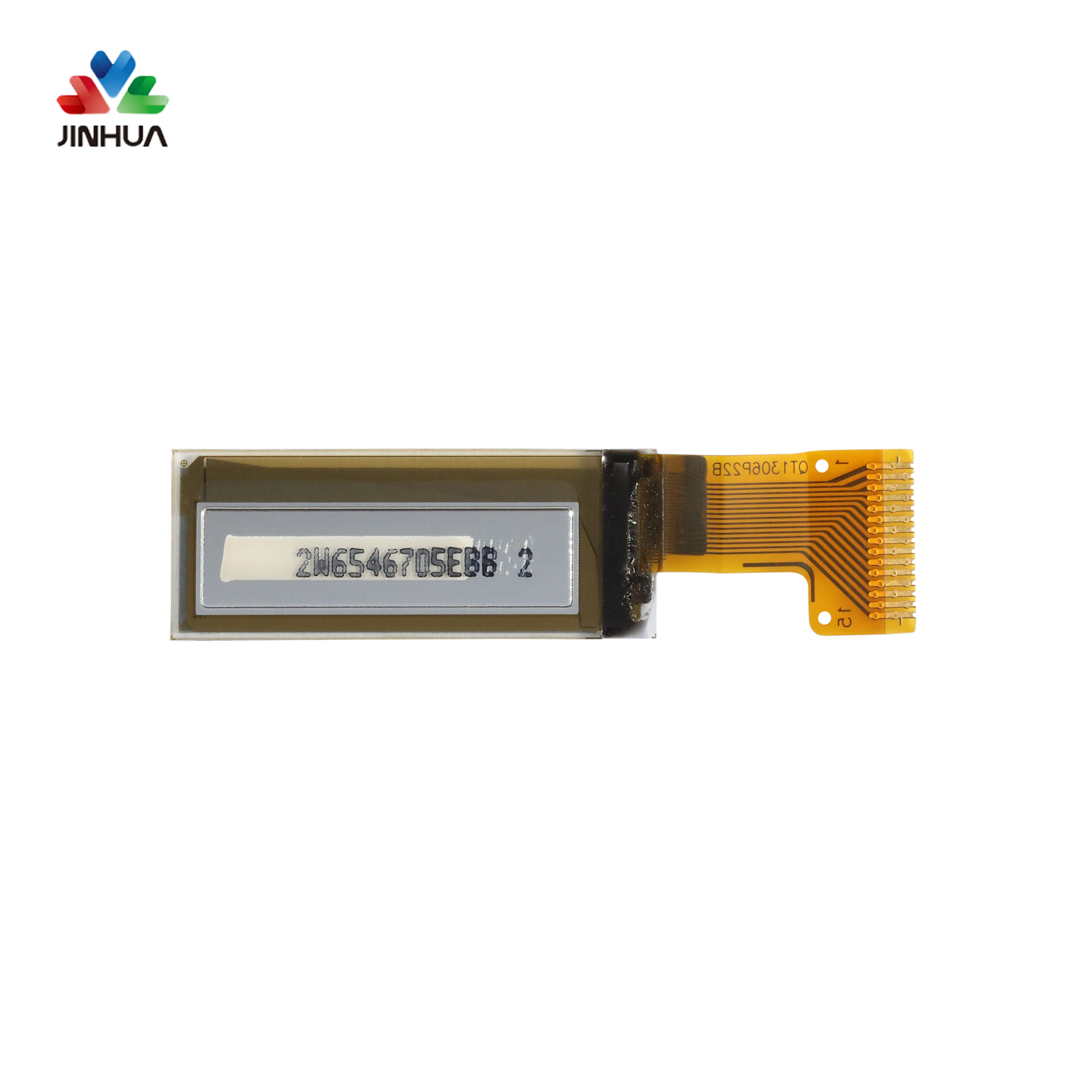

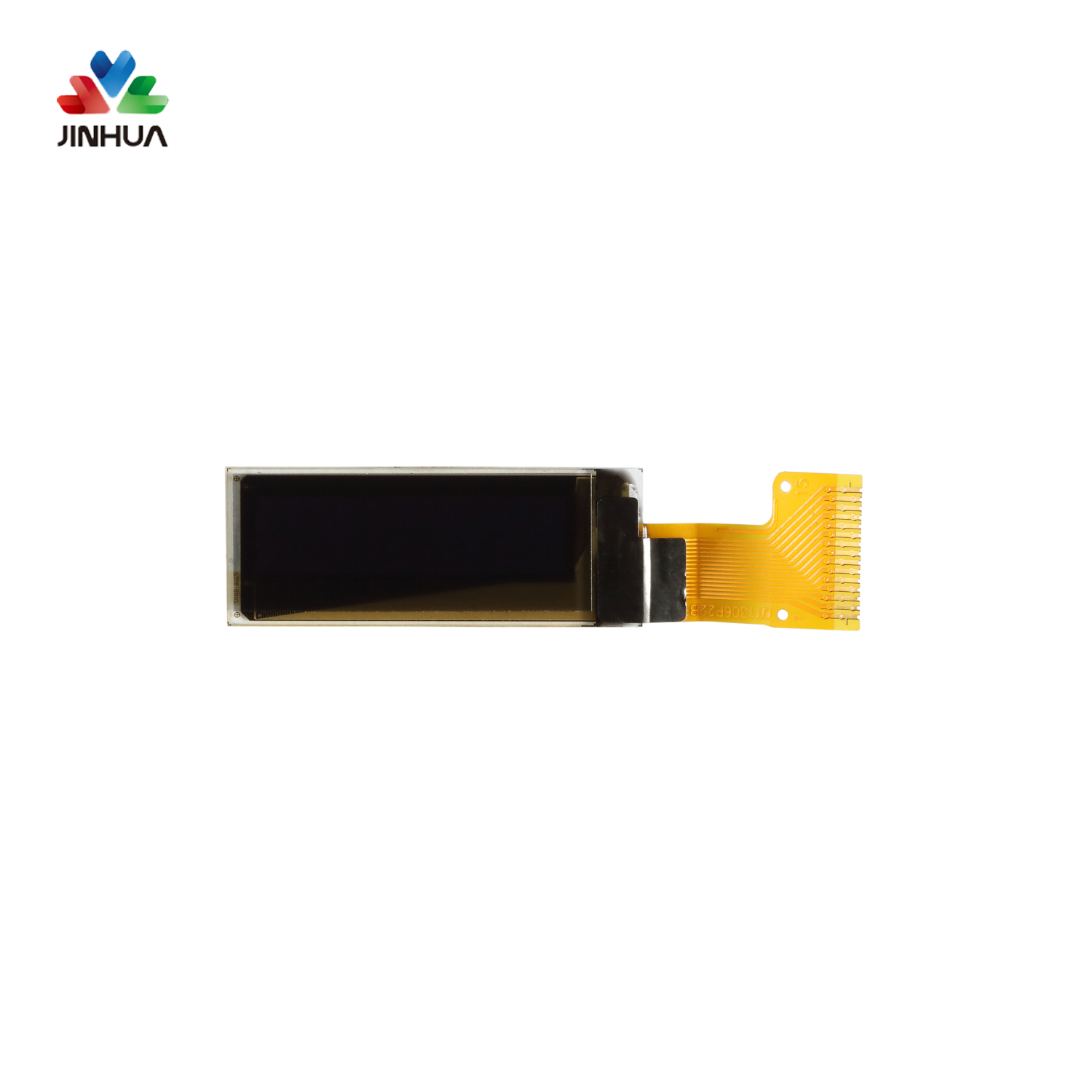

Detailed Picture
Features
Δ Wide Viewing Angle
Δ All Kinds Of Emitted Colors And Size
Δ Low Power Consumption
Δ Long Lifespan
Δ RoHS Compliant
Δ High Luminance
Δ Wide Range Working Temperature
Application
Mini OLED display are widely applied to many industries such as consumer electronics, home appliance equipment, industrial control, medical instrument, etc.
