MATERIAL NUMBER:
8BVP0880HC00.004-1
DESCRIPTION:
- Extensive input voltage range
- Capable of regeneration
- Integrated connection for temperature sensors
- 2 slots for ACOPOSmulti plug-in modules

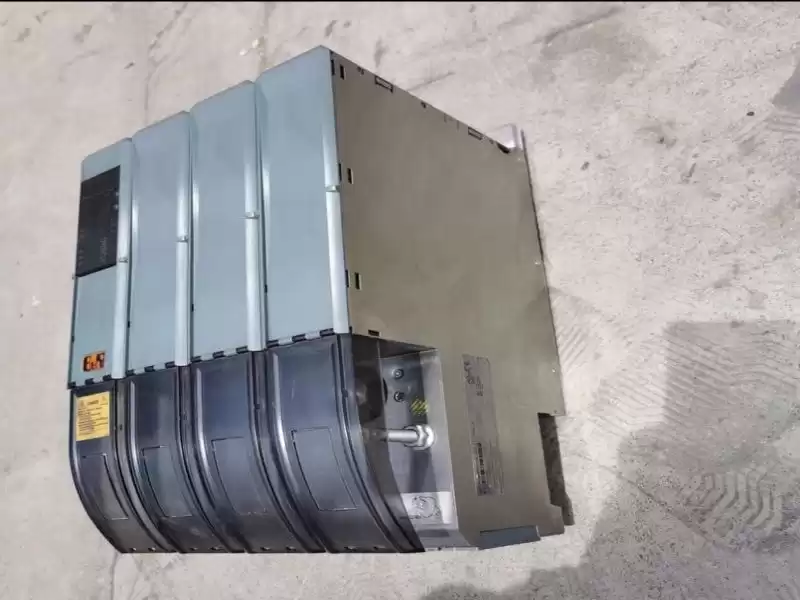

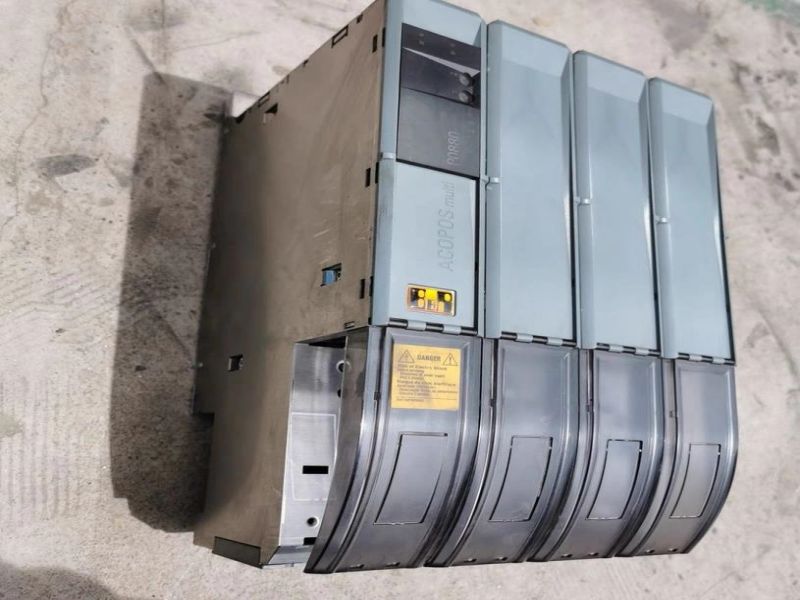

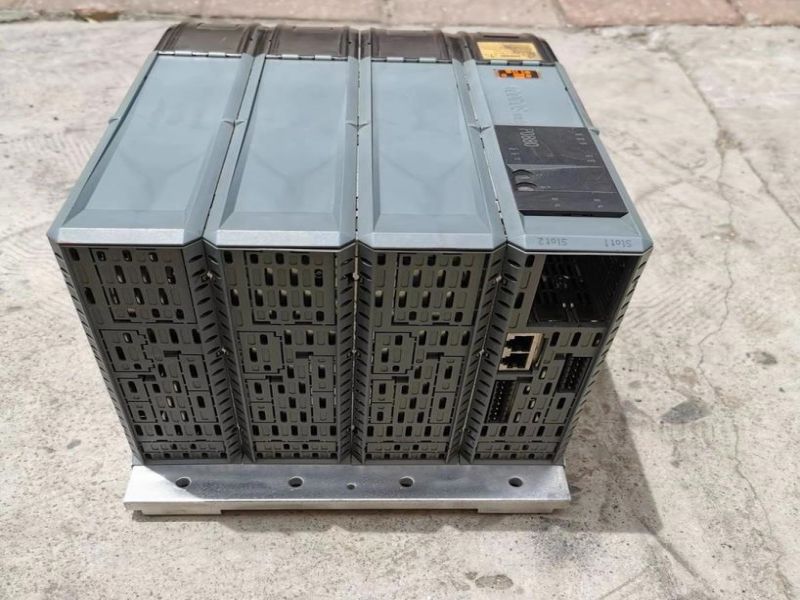

ACOPOSmulti power supply module, 88 A, AS, cold plate or pass-through mounting
General information
| B&R ID code |
0xA6A1 |
| Cooling and mounting type |
Cold plate or pass-through mounting |
| Slots for plug-in modules |
2 |
| Certifications |
|
| CE |
Yes |
|
UL
|
cULus E225616
Power conversion equipment |
| EAC |
Yes |
| KC |
Yes |
Mains connection
| Network configurations |
TT, TN-S, TN-C-S |
| Mains input voltage |
3x 220 to 3x 480 VAC ±10% |
| Frequency |
50 / 60 Hz ±4% |
| Installed load |
Max. 62 kW |
| Inrush current at 400 VAC |
Max. 133 A |
| Switch-on interval |
>300 s |
| Max. DC bus capacitance depending on mains voltage |
|
| 230 VAC |
34.8 mF |
| 400 VAC |
11.5 mF |
| 480 VAC |
8 mF |
| Nominal switching frequency |
5 kHz |
| Possible switching frequencies |
5 / 10 kHz |
| Integrated line filter per EN 61800-3, category C3 |
No |
| Integrated regeneration choke |
No |
| Regenerative |
Yes |
| Power factor correction (PFC) |
Yes |
| Variant |
|
| L1, L2, L3, PE |
M8 threaded bolts |
| Shield connection |
Yes |
| Connection cross section range |
|
| Flexible and fine-stranded wires |
--- |
| Terminal cable cross section dimension of shield connection |
32 to 50 mm |
DC bus connection
| Voltage |
|
| Nominal |
750 VDC |
| Continuous power (supply and regeneration) |
60 kW |
| Reduction of continuous power depending on mains input voltage |
|
| Mains input voltage <3x 400 VAC |
150 W/V * (400 V - Mains input voltage) |
| Reduction of continuous power depending on DC bus voltage (UDC) |
|
| UDC <750 VDC |
0.08 kW/V |
| Reduction of continuous power depending on switching frequency and mounting type |
|
| Switching frequency 5 kHz |
|
| Cold plate mounting |
1.3 kW/K (starting at 58°C) |
| Pass-through mounting |
In preparation |
| Switching frequency 10 kHz |
|
| Cold plate mounting |
0.95 kW/K (starting at 27°C) |
| Pass-through mounting |
In preparation |
| Reduction of continuous power depending on installation elevation |
|
| Starting at 500 m above sea level |
6 kW per 1000 m |
| Peak power (supply and regeneration) |
120 kW |
| Power dissipation depending on switching frequency |
|
| Switching frequency 5 kHz |
[0.065*P²+11.4*P+90] W |
| Switching frequency 10 kHz |
[0.22*P²+16.1*P+185] W |
| DC bus capacitance |
1650 µF |
| Protective measures |
|
| Overload protection |
Yes |
| Short-circuit and ground fault protection |
No |
| Variant |
ACOPOSmulti backplane |
24 VDC power supply
| Input voltage |
25 VDC ±1.6% |
| Input capacitance |
4.7 µF |
| Max. power consumption |
27 W + PSLOT1 + PSLOT2 + P24 V Out + PFan8BVF... |
| Variant |
ACOPOSmulti backplane |
24 VDC Out
| Quantity |
2 |
| Output voltage |
|
| DC bus voltage (UDC): 260 to 315 VDC |
25 VDC * (UDC / 315) |
| DC bus voltage (UDC): 315 to 800 VDC |
24 VDC ±6% |
| Fuse protection |
250 mA (slow-blow) electronic, automatic reset |
Filter fan connection
| Output voltage |
24 V +5.8% / -0.1% |
| Continuous current |
4.2 A |
| Max. overcurrent limiting |
10 A |
| Protective measures |
|
| Overload protection |
No |
| Short-circuit proof |
Yes |
| Open-circuit monitoring |
No |
| Undervoltage monitoring |
No |
Trigger inputs
| Quantity |
2 |
| Circuit |
Sink |
| Electrical isolation |
|
| Input - Power supply module |
Yes |
| Input - Input |
Yes |
| Input voltage |
|
| Nominal |
24 VDC |
| Maximum |
30 VDC |
| Switching threshold |
|
| Low |
<5 V |
| High |
>15 V |
| Input current at nominal voltage |
Approx. 10 mA |
| Switching delay |
|
| Rising edge |
52 μs ±0.5 μs (digitally filtered) |
| Falling edge |
53 μs ±0.5 μs (digitally filtered) |
| Modulation compared to ground potential |
Max. ±38 V |
Electrical properties
| Discharge capacitance |
0.9 µF |
Operating conditions
| Permissible mounting orientations |
|
| Hanging vertically |
Yes |
| Horizontal, face up |
Yes |
| Standing horizontally |
No |
| Installation elevation above sea level |
|
| Nominal |
0 to 500 m |
| Maximum |
4000 m |
| Pollution degree per EN 61800-5-1 |
2 (non-conductive pollution) |
| Overvoltage category per EN 61800-5-1 |
III |
| Degree of protection per EN 60529 |
IP20 |
Ambient conditions
| Temperature |
|
| Operation |
|
| Nominal |
5 to 40°C |
| Maximum |
55°C |
| Storage |
-25 to 55°C |
| Transport |
-25 to 70°C |
| Relative humidity |
|
| Operation |
5 to 85% |
| Storage |
5 to 95% |
| Transport |
Max. 95% at 40°C |
Mechanical properties
| Dimensions |
|
| Width |
213.5 mm |
| Height |
317 mm |
| Depth |
|
| Cold plate |
212 mm |
| Pass-through mounting |
209 mm |
| Weight |
Approx. 7.9 kg |
| Module width |
4 |
