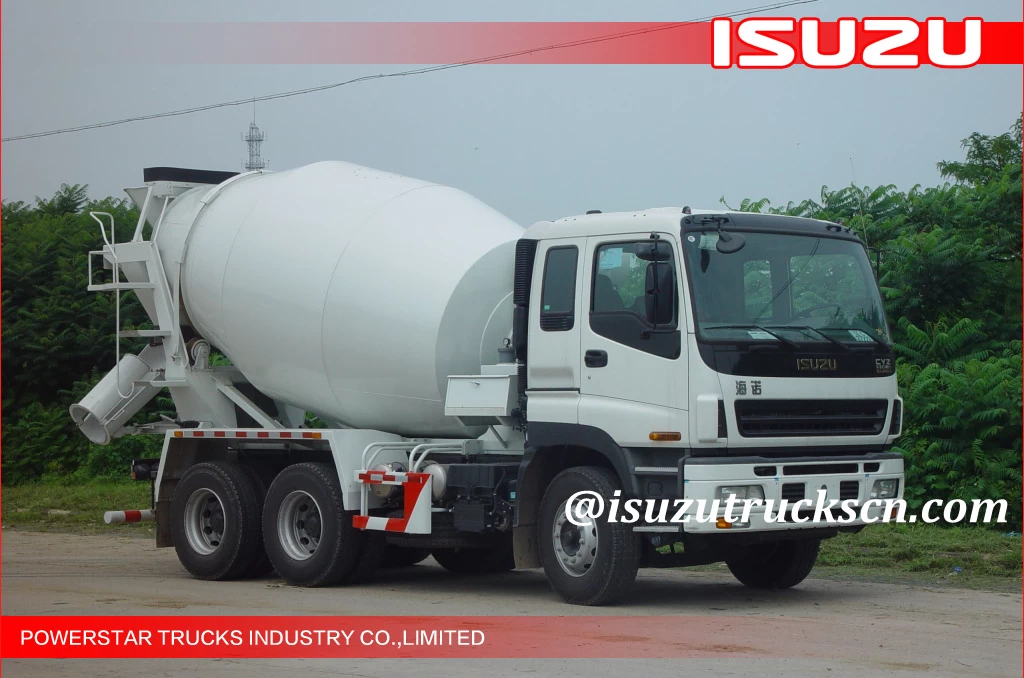

8cbm 10wheels Isuzu Brand Read Mix Concrete Truck
The concrete mixer is specially designed for mixing
and carrying the concrete to the construction worksites. All cement mixer
trucks are constructed with high-tensile steel for endurance and resistance to
friction, it’s very easy to operation.
Key Features:
◆ World-class ISUZU heavy duty Chassis, High
power and Fuel efficiency, Reliability, Uptime
◆ The hydraulic system adopts Germany Rexroth,
America EATON, Italy ARK, America Sauer;
◆ Pneumatic Water Supple System. The pressure
is provided by the air tank on the chassis with pressure protection devices
.The Water inlet connector fits for both normal water pipe and fire fitting.
◆ New technology
T-shape Blade. It is made of hard-wearing alloy steel, and thus protects the
mixer blades from abrasion, extends the service life of the agitator drum, and
enhances mixing performance;
◆ Equipped with the large diameter hopper, it
can realize the quickly feeding, not plugging and spilling, and it is easy to
clean;
◆ The optimized design of mixing drum ensure
the concrete residue ratio is less than 1%;
◆ Colors can be customized.
◆ Mixer coverage can be customized. 3cbm,
5cbm,6cbm, 8cbm, 10cbm, 12cbm, 14cbm, 16cbm.
Main
specifications:
|
Model
|
PT5250GJB -8M3
|
|
Driving Type
|
6x4
(Left hand drive)
|
|
Max. External
Diameter of Drum
|
Φ2432
|
|
Length of the
Drum
|
4811
|
|
Geometric Volume
of Drum
|
14.6
|
|
Mixing Capacity
|
8
|
|
Material of drum
& blades
|
Q345MN/B520JJ
|
|
Inclination
Angle for Drum
|
13
|
|
Padding rate
|
63
|
|
Residual Rate
|
＜1
|
|
Charging Speed
|
≥3
|
|
Discharging
Speed
|
≥2
|
|
Mixing Speed
|
0~12
|
|
Slump Range
|
70-260
|
|
Capacity for
Water Tank
|
350
|
|
Water Supply
Pressure
|
0.4
|
|
A Upper-fixing
Length
|
6115
|
|
B Sub-frame
Length
|
5045
|
|
C Chute Position
|
804
|
|
D Center of
Gravity when Fully Load
|
2430
|
|
E Hopper Height
|
2630
|
|
F Upper-fixing
Height
|
2665
|
|
Upper-fixing
Width
|
2490
|
|
Overall
Dimension(L×W×H)
|
6115×2490×2665
|
|
Weight
|
4050
|
|
Color
|
White (Any color & logos up to wish)
|
