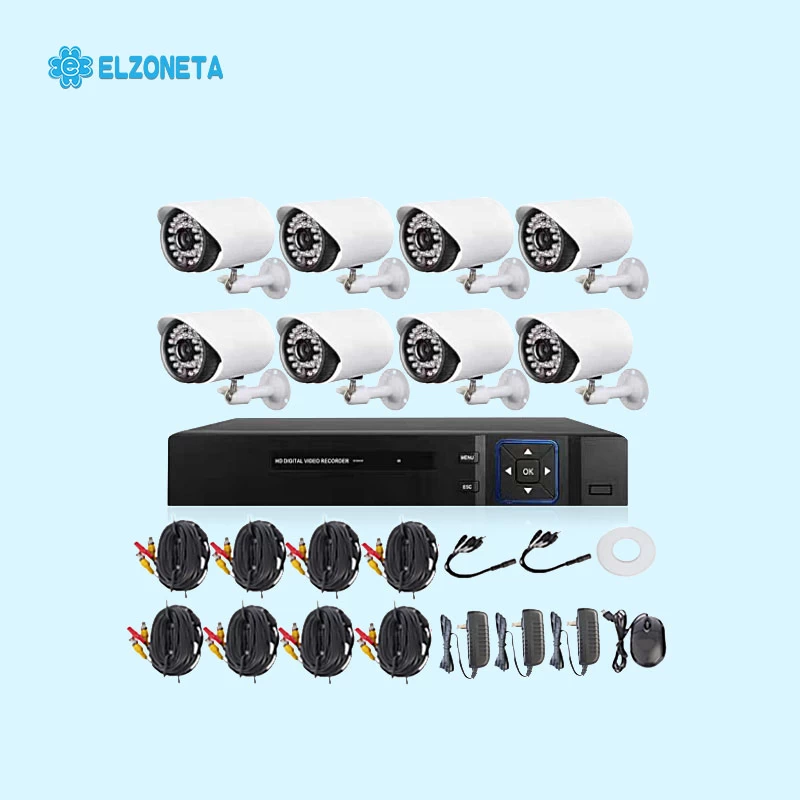

EC-DK802 8CH 1080N DVR Kits with 8 Pcs 720P Cameras
Specification
|
Model NO.
|
EC-DK802
|
|
Package
|
|
DVR
|
HD3608TVINS-51
|
|
Camera
|
8 x EC-DK802-GA
|
|
Cable
|
8 x 18.3m BNC+DC Cable, 2x
(1 to 4CH power cable splitter)
|
|
Mouse
|
1xUSB 2.0 Mouse
|
|
Power Adaptor
|
3 x DC12V/2A
|
|
Disk
|
1 Disk
|
|
HDD Screw pack
|
1 pack
|
|
Bracket
|
8 pcs (include installation screws)
|
|
User Manual
|
1
|
|
Carton Size
|
510*450*280 / 2 sets in one carton
|
|
Weight
|
6.5kg/Set
|
|
Camera Model
|
EC-DK802-GA
|
|
Image Sensor
|
1/4" Color CMOS Sensor
|
|
Effective Pixels
|
512(H)*492(V) / PAL: 512(H)*582(V)
|
|
Horizontal Resolution
|
100W
|
|
TV System
|
PAL/NTSC
|
|
S/N Ratio
|
≥48dB
|
|
Video Output
|
1.0vp-p, 75hms
|
|
Lens
|
|
Focus Length
|
3.6mm
|
|
Focus Control
|
Fixed
|
|
Lens Type
|
Fixed
|
|
Pixels
|
1M Pixel
|
|
Night Vision
|
|
Infrared LED
|
24PCS
|
|
Max Infrared Distance
|
20M
|
|
Camera Features
|
|
Day/Night
|
YES
|
|
White Balance
|
AUTO / BLC
|
|
Minimum illumination
|
0.01Lux
|
|
General
|
|
Housing
|
Metal
|
|
IR Cut Filter
|
YES
|
|
Operation Temperature
|
14℉ - 122℉ / -10℃ - 50℃
|
|
Power Source
|
DC 12V 2A
|
|
Model
|
EC-DK802
|
|
System
|
|
Main Processor
|
New
Generation High Performance Processor
|
|
Operating System
|
Embedded LINUX
|
|
System Resource
|
synchronous multiple real-time recording, multi-channel
real-time playback,
multi-channel multi-user network operation, USB backup
|
|
Operation Interface
|
16-bit true color graphical menu interface, support
Mouse operation
|
|
Video
|
|
Input
|
Anolog: 8*1080N
Support CVBS (960H/D1) Input
|
|
Video Input
|
8CH BNC
|
|
Video Output
|
1HDMI,1 VGA
|
|
Looping Through
|
NO
|
|
Coding Capacity
|
4*1080N
|
|
Decoding Capacity
|
8*1080N@12fps
|
|
Audio
|
|
Input
|
1 Channel RCA
|
|
Output
|
1 Channel RCA
|
|
Alarm
|
|
Alarm Input
|
NO
|
|
Alarm Output
|
NO
|
|
Motion Detection
|
can set 192 (16*12)detection area in every channel
screen.
can set multiple sensitivity (local channel only)
|
|
PTZ
|
|
PTZ Control
|
N/A
|
|
Interface
|
RS485
|
|
Display
|
|
Monitoring Quality
|
VGA, HDMI
|
|
Display Quality
|
1080N
|
|
Display Split
|
1Channel / 4Channel/8Channel / 9Channel
|
|
Recording
|
|
Video Compression
|
H.264
|
|
Audio Compression
|
G.711A
|
|
Record Mode
|
Manual\Timer\Motion Detection\alarm
|
|
Recording Location
|
Local Hard Disk, Network
|
|
Playback & Backup
|
|
Local Playback
|
4 Channel
|
|
Search Mode
|
Channel, Time, Date, Event
|
|
Backup Mode
|
Network, USB Mobile HDD, USB Record, SATA record
|
|
Network
|
|
Interface
|
1 RJ45 10M/100M Adaptive Ethernet Interface
|
|
Network Functions
|
DHCP,FTP,DNS,DDNS,NTP,UPnP,Email,IP Permission,IP
Search, Alarm Center.
|
|
Web Browser
|
Support
|
|
CMS Software
|
Support
|
|
Smart Phone
|
Support
|
|
Hard Disk Driver
|
|
Interface Type
|
1 SATA Interface
|
|
Capacity
|
Up to 8TB
|
|
General
|
|
Material
|
Case: Metal,
Housing: Plastic
|
|
Barometric Pressure
|
86kpa - 106kpa
|
|
USB Interface
|
2 USB Interfaces
|
|
Wifi Interface
|
N/A
|
|
Power Supply
|
DC 12V 2A
|
|
Power consumption
|
≤15W (Without Hard Disk)
|
|
Working Temperature
|
0~55℃
|
|
Working Humidity
|
10~90%
|
