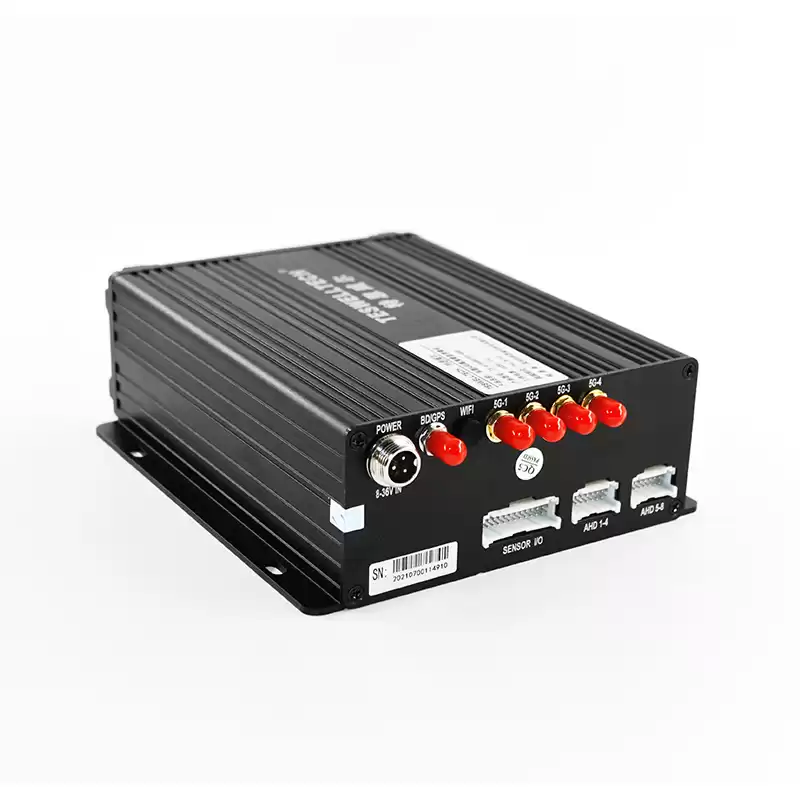

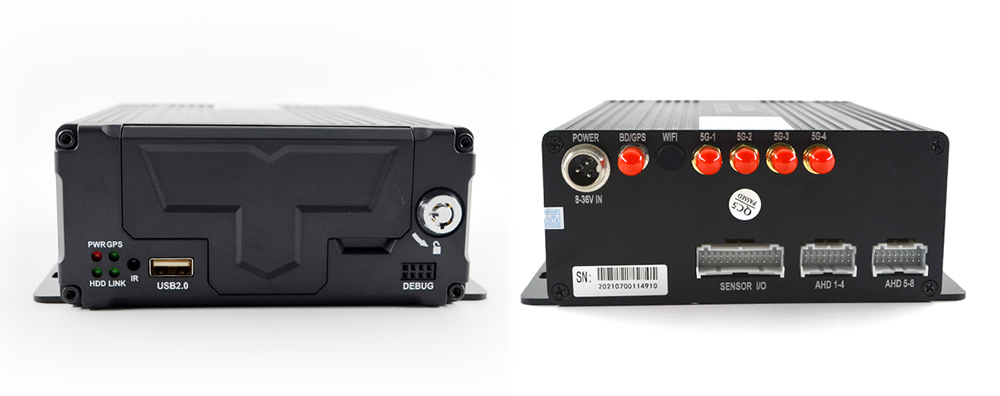

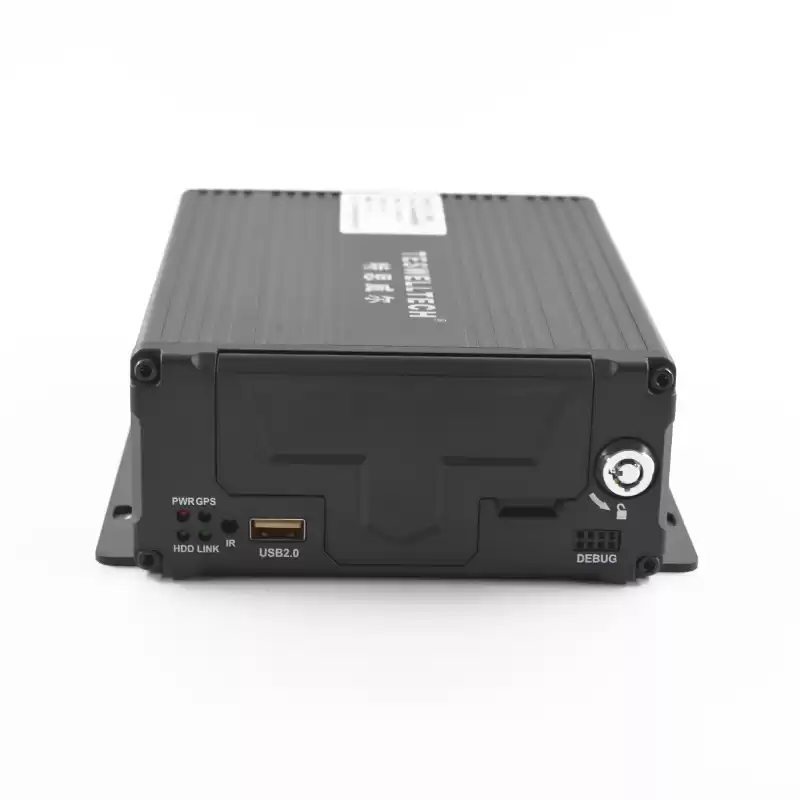

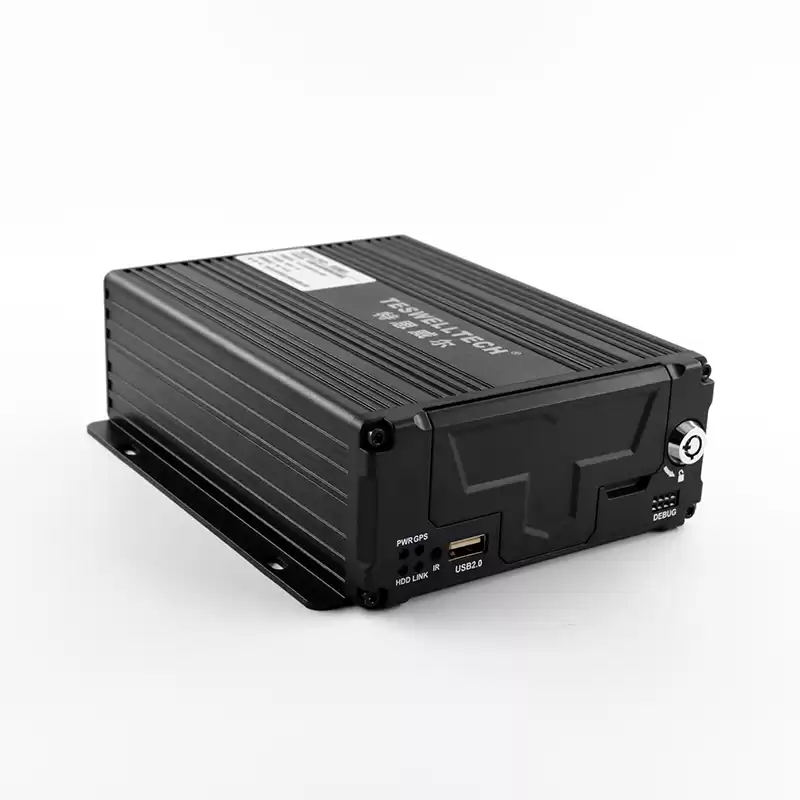

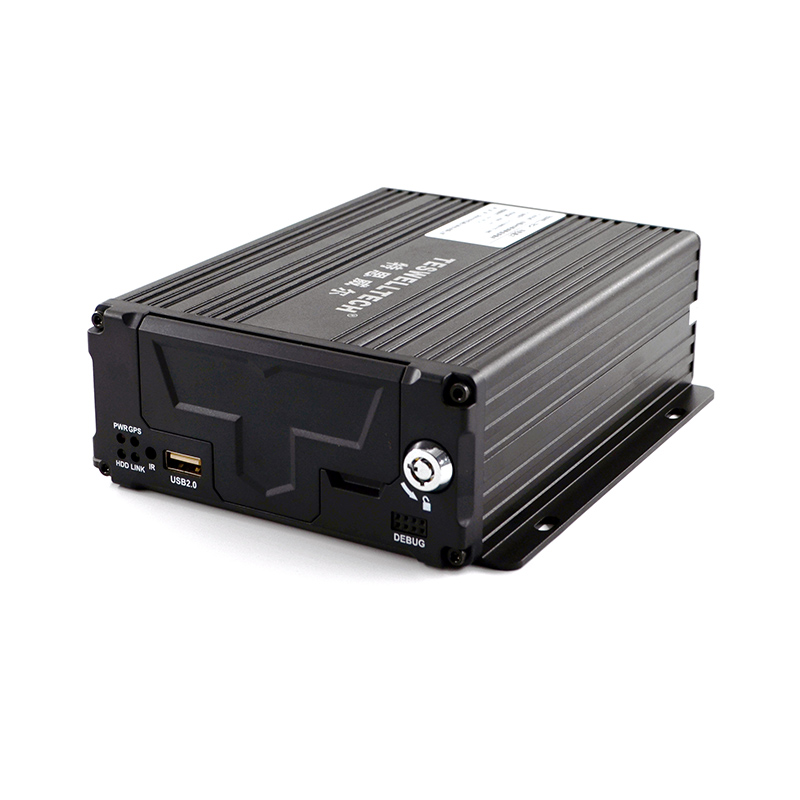

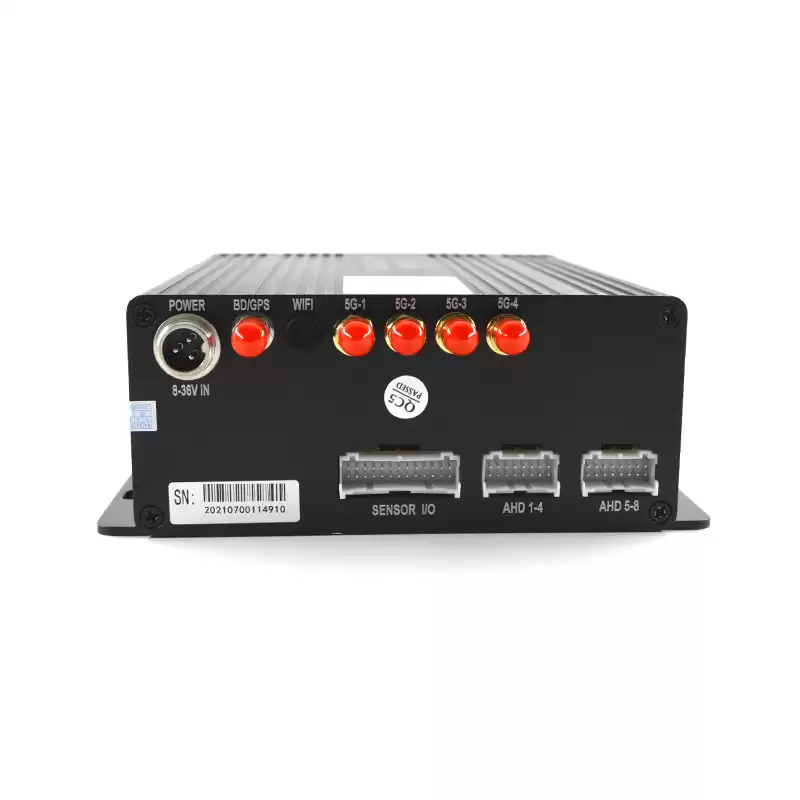

8CH 1080P HDD AI Mobile DVR
Product advantages：
TS-618X is a cost-effective device specially developed for mobile video surveillance and remote video monitoring, featuring high functional scalability. It is equipped with a high-speed processor and an embedded operating system, integrating state-of-the-art H.265 video compression/decompression technology and GPS positioning technology in the IT industry. It supports video recording in AHD 1080p, 720p, 960H and D1 formats. In addition, it supports extended AI functions to report alarms by using the Advanced Driver Assistance System (ADAS) and implement Blind Spot Detection (BSD) and Driver Status Monitor (DSM), effectively assisting drivers in safe driving and reducing traffic accidents.
Product introduction:
H.264/H.265 compression, Linux system, dual stream.
Support 2.5inch HDD, 4TB max, SD card + HDD dual storage optional .
4/8CHs 720P/1080P real time video recording, audio sync recording.
Support timing, trigger, manual JPEG picture capture function.
Intercom function optional.
Support remote download and playback(Significant time and flow savings by file segment or
precision to seconds).
TES error correcting file system to prevent data from video losing.
Support alarm pre-recording, motion detection, alarm linkage.
Can built-in 3G/4G, WiFi, GPS.
1*RS-232, 1*RS-485, 1*VGA output optional.
Support external device, such as LED monitor, station announcement, ID card reader,people counting camera etc.
With car black box function, records important information such as speed, position,
acceleration of gravity, braking, reversing, turning, and alarm etc.
DC8-36V power supply, industry embedded design, anti-shock,anti-vibration.
Product Feature:
Embedded Linux operating system
H.265/H.264 compression
AI MDVR, With ADAS & DSM & BSD extension
8CH AHD 1080P/720P real time video recording, audio sync recording.
1* HDD (max 4TB) + 1*SD card (max 256GB)
Industry embedded design, military grade anti-vibration.
High-Reliability and Cost-effective.
Product Parameter:
|
Item
|
Equipment parameter
|
performance standard
|
|
Name
|
Name
|
TS-618X Series
|
|
System
|
Operation system
|
LINUX
|
|
Operation interface
|
Graphical menu operation interface
|
|
Interface language
|
Chinese, English, Portuguese, Russian, French, Turkish
|
|
Video
|
File system
|
TES error correction encryption file management system
|
|
Video input
|
8CHs IPC/AHD 1080P input
|
|
VGA output
|
1CH, support 1920*1080, 1280*720, 1024*768 resolution
|
|
CVBS output
|
1CH aviation connector output PAL/NTSC, 1.0Vp-p, 75Ω，CVBS
|
|
Video display
|
1CH/ 4 CHs/ 8CHs
|
|
Video standard
|
PAL：25Frames /s；NTSC：30Frames /s
|
|
System resource
|
PAL：200Frames /s，NTSC：240Frames /s
|
|
Audio
|
Audio input
|
8CHs independent input，600Ω
|
|
Audio output
|
1CH output，600Ω，1.0-2.2V
|
|
Record format
|
Synchronized video & audio recording
|
|
Audio compression
|
G711A
|
|
Video standard
|
H.264/H.265
|
|
Active Safety Assisted Driving System
|
DSM
|
1CH DSM video input, support safety alarm of yawning, calling, smoking, blocked and device malfunction, etc.
|
|
ADAS
|
1CH BSD video input, support safety alarm of pedestrians, non-motorized vehicles, including front, side and back.
|
|
BSD
|
1CH BSD video input, support safety alarm of pedestrians, non-motorized vehicles(bicycles, motorcycles,
|
|
electric bicycles, tricycles,etc), including front, side and back.
|
|
Digital processing and storage
|
Image format
|
8*1080P（1920*1080）
|
|
Image quality
|
1-14 levels adjustable (1 is the best)
|
|
Video Bit-rate
|
192Kbps-8Mbps（each channel）
|
|
Video storage
|
85M-3600MByte/hour
|
|
Playback resolution
|
1-8CH*1080P
|
|
Audio Bit-rate
|
4KByte/s（each channel）
|
|
HDD storage
|
2.5inch SATA HDD (7mm), Max 4TB
|
|
SD card storage
|
1*SD card slot, Support 64GB/128GB/256GB
|
|
Alert
|
Alert input
|
4CHs independent alarm input(High/Low level voltage)
|
|
Alert output
|
2CH alarm output(High level voltage)
|
|
Motion detection
|
Support
|
|
USB
|
HOST interface
|
1*USB2.0 port in front board
|
|
Network
|
RJ45
|
1 RJ45 optional, 10M/100M/1000M adaptive
|
|
Wifi
|
Built-in WiFi module optional (IEEE 802.11b/g/n ), 2.4GHz or 5.8GHz optional
|
|
3G/4G
|
Built-in 3G/4G(FDD-LTE/TD-LTE/WCDMA/CDMA200) module optional
|
|
GPS
|
GPS
|
Built-in GPS/ GLONASS module optional
|
|
Other external port
|
TTL_UART output
|
2 TTL_UART output（can be RS232 or RS485）
|
|
RS232
|
1*RS232 optional
|
|
RS485
|
1*RS485 optional
|
|
Intercom
|
1*MIC input optional
|
|
G-Sensor
|
Built-in G-Sensor module optional
|
|
Others
|
Power supply and consumption
|
DC8-36V 5%≤12W
|
|
Operating Tem/humidity
|
-40℃~+70℃/≤80%
|
|
Size
|
170（L）*128（W）*56（H）mm
|
|
NW
|
1.14KG(without HDD)
|
|
GW
|
1.24KG(without HDD)
|
Product Application:

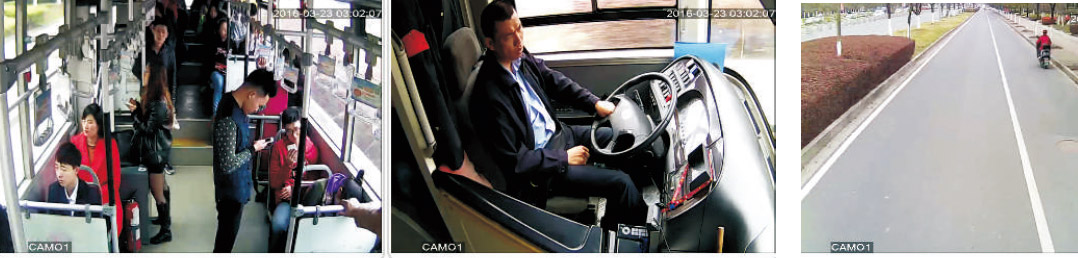

8CH Durable HDD MDVR work in bus, truck, train and forklift, etc. for vehicle security video surveillance.
FAQ:
1： MDVR does not start？
a: Please check the power supply of the host to see if the power of the host is connected correctly and whether there is real voltage to the host
b: Whether the key switch of the host is locked
c: Whether the ignition control line of the host is connected properly,
d: whether there is a control voltage input (when testing in the office, the ignition control line is directly connected to the positive pole of the host power input)
2：The hard disk video recorder automatically restarts after a few minutes of startup or often crashes？
a: Input voltage is unstable or too low
b: The hard disk wiring is loose or poorly connected
c: Hard disk has bad sectors
d: Poor heat dissipation, too much dust, and the machine operating environment is too harsh
e: Inadequate installation of anti-vibration facilities
3:The remote control does not work?
a: Check the power section on the remote control
b: If the hard disk is installed, check whether the hard disk is inserted in place
4:Can't enter the settings menu?
The factory default of this machine is to automatically record when the system is started, unless it is manually stopped or the system is powered off;
to enter the setting menu, you must first stop the recording with the stop button on the remote control, and then press the menu button to enter.
