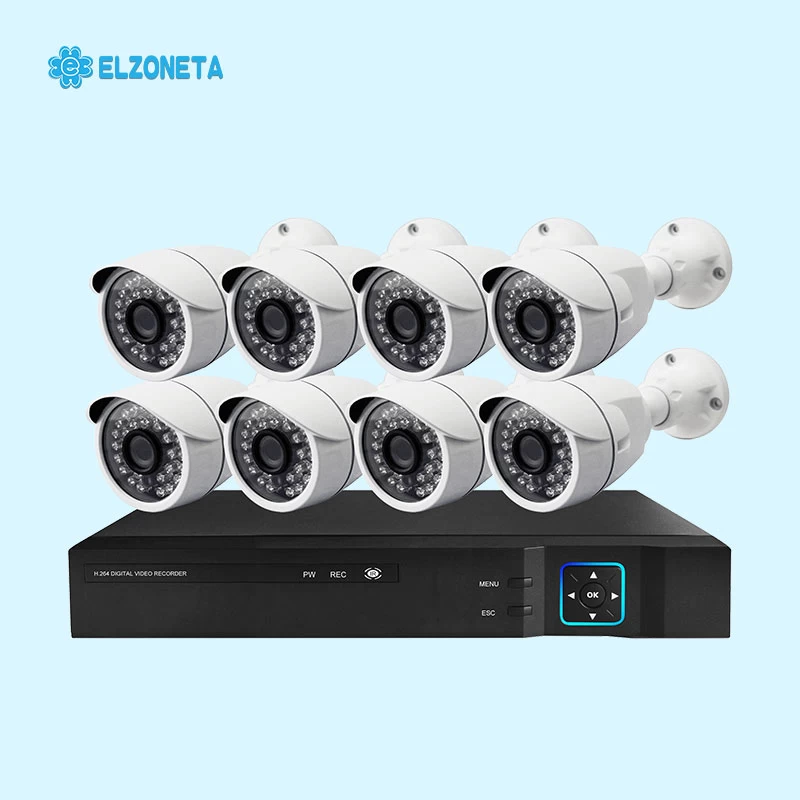

EC-DK803 8CH 1080P AHD DVR KIT
Features:
8 Channels 1080P AHD DVR Kit
1.) 8CH 1080P recording
2.) Support: HDMI/VGA/Network
3.) Support P2P, Mobile APP
AHD IR bullet camera
1.) Solution:1.0/1.3/2.0megapixel
2.) 3.6mm HD fixed lens
3.) 36pcs IR leds, 20meter IR range
4.) Product Guarantee for 2 years
Specification:
|
8CH 1080P AHD
DVR KIT
|
|
Model No.
|
EC-DK803
|
|
Package
|
|
8CH 1080P AHD DVR 1pcs
IR Bullet Camera(1.0MP) 8pcs
18.3 Meter video cable 8pcs
12/2A power adaptor 3pcs
4CH power Splitter 2pcs
|
|
Camera
|
|
Type
|
AHD Bullet Camera
|
|
Model No.
|
EC-AG81
|
|
Resolution
|
1.0Megapixel
|
|
Signal
System
|
PAL /
NTSC
|
|
Mini
Illumination
|
0.01lux(IR
off), 0.00lux(IR on)
|
|
Lens
|
3.6mm HD fixed
lens optional
|
|
Angle
of View: 74.6°(3.6mm), 92.6°(2.8mm), 49°(6mm)
|
|
Alarm
type
|
NO
|
|
PIR
distance
|
NO
|
|
Alarm
Control
|
NO
|
|
Leds
|
36pcs IR
leds
|
|
Siren
function
|
NO
|
|
Interface
|
1ch
BNC/1ch power
|
|
1080P DVR
|
|
Model No.
|
EC-DK8
|
|
Chipset
|
Hi3521
|
|
Smart
function
|
No
|
|
HDD
|
Support 1
HDD
|
|
Alarm
|
No
|
|
Audio
|
1in/1out
|
|
Output
|
HDMI/VGA
|
|
Network
|
1RJ45
Fast Ethernet
|
|
Others
|
255x225x45mm
|
