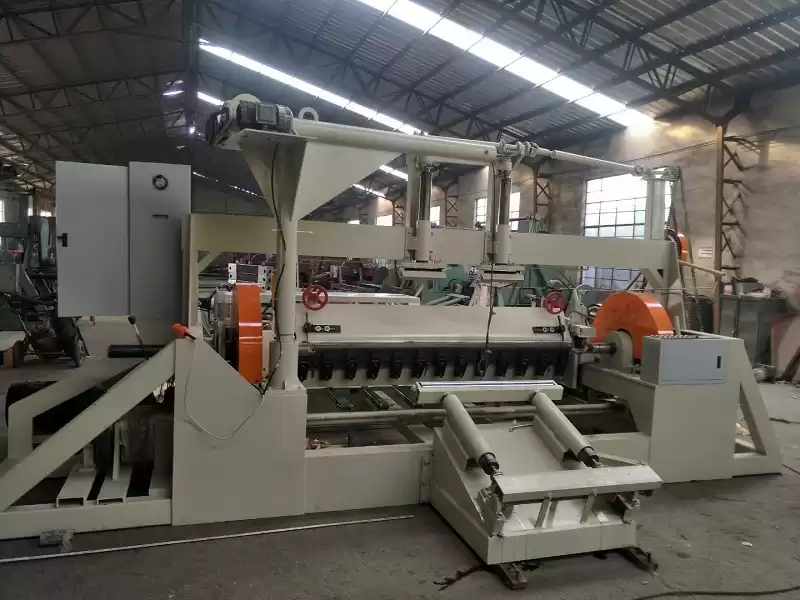

Product Name: 8ft horizontal spindle peeling lathe machine
Major Technical Parameters:
|
Specifications
|
|
|
Max.
log diameter (mm)
|
Φ900
|
|
Max.
log length (mm)
|
2000-2600
|
|
Veneer
thickness (mm)
|
0.1-2.6
|
|
Overall
dimension (mm)
|
5500*3000*2600
|
|
Total
weight (kg)
|
7000
|
|
Total
power (kw)
|
Main
power 22kw*1pcs
Clamping
power 4kw*2pcs
Fast-forward/backward
power 1.5kw*1pcs
Blade
power 1.1kw*1pcs
Hydraulic
station power 0.75kw*1pcs
Pressure
bar power
1.1kw*1pcs
Hoisting
power 1kw*1pcs
Inverter
power 22kw
|
Main features:
1. Double hydraulic clamping chucks, change chucks automaticly, more automatic and labor-saving.
2. Heavy duty, make peeling work more stable and precise.
3. All invertors are Taiwan Delta brand.
