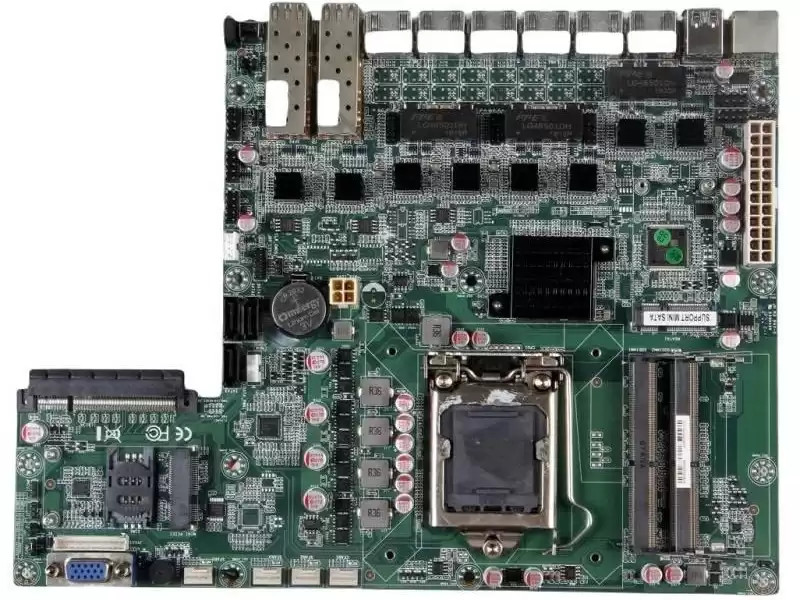

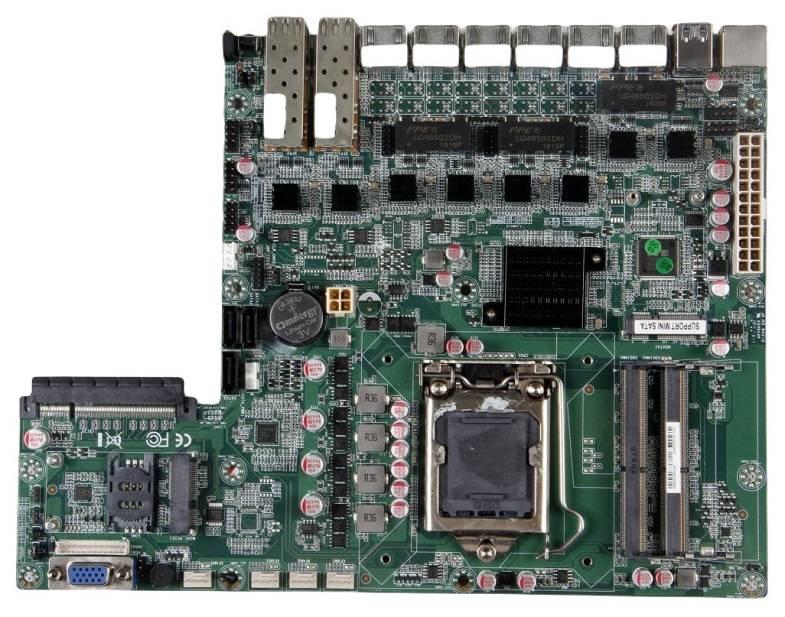

8LAN motherboard B150 chip 6LAN+2SFP or 8LAN Intel Gigabit LAN ports, PCIEx8 expansion

NSP-B150V6N-2F/B150V8N

Network Security Platform 8LAN motherboard,Intel® B150 chip support 6th 7th intel CPU, optional 6LAN+2SFP or 8LAN Gigabit ports, support Bypass function. PCIEx8 expansion



Network Security Platform 8LAN motherboard Intel® B150 chip 6LAN+2SFP or 8LAN Intel Gigabit LAN ports, Support Bypass function, PCIEx8 expansion

Product Introduction

With optional 2 SFP Gigabit ports, this motherboard offers unparalleled networking capabilities, enabling high-speed data transfers and seamless connectivity for critical applications. Whether you're managing a small business or a large enterprise, the Network Security Platform Motherboard is tailored to meet the demands of modern networking environments.

With a keen emphasis on security and stability, this motherboard is the ideal choice for building state-of-the-art network security systems, intrusion detection, and prevention solutions. Embrace the power of innovation and safeguard your network with our feature-packed Network Security Platform motherboard - the foundation for a secure and resilient network environment.



Product Features

■  Support for LGA 1151 architecture 6th/7th generation Intel® Core processors

■ 6/8 Intel Gigabit Ethernet ports, optional 2 SFP GbE

■ Optional 2 sets of BYPASS function

■ 1 PCIE x8 expansion slot for optional 2/4 GbE or 10GbE SFP  NIC

■ On-board VGA display interface; RJ45 control COM + 1 COM pin

■ 2USB3.0+4 USB2.0 (pins)

■ MSATA+3SATA, 1x MINI PCIE, SIM card holder

Intel® B150 Chip Network Security Platform Motherboard

Network Security Platform Motherboard 6/8 Intel Gigabit Lan Ports



Specification

CPU/GPU

Supports LGA 1151 architecture 6th/7th generation Intel® Core processors i7/ i5/ i3, Pentium®/ Celeron®.

System Chip

Intel@ PCH B150

Memory

2 x DDR4 SO-DIMM notebook slot,up to 32GB SDRAM

Storage

3×SATA,1×M-SATA

NIC

6 Intel Gigabit LAN (i211 chip) + 2 SFP Gigabit optical ports or 8 Intel Gigabit LAN

Graphic Card

CPU integrated graphic

Display interface

VGA (on vertical board)

USB2.0

4(board pin)

USB3.0

2

Wireless

MINI PCIE, SIM Expansion 4G, WIFI

COM

2COM  RS232(1× RJ45,1 board pin)

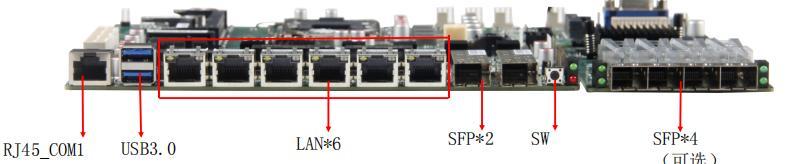

Backplane  I / O

RJ45  COM,2USB3.0,6 RJ45  LAN

BoardI / O

4USB2.0, 1COM,Vertical VGA, CLR_CMOS, CPU fan power ,System fan power , GPIO, Front  panel , 24P+4P ATX

Expansion

PCIE x8 (optional 2/4 SFP Gigabit/10 Gigabit SFP NIC)

System

Support Windows(WIN 7,  WIN 10...),  Linux

Mechanical & Environmental

Power supply

ATX

Heat dissipation

Heat sink

Size(L×W)

241mm×244mm

Working temperature

-15~55℃

Storage temperature

-40~75℃

Environmental humidity

0~90%air humidity,non-condensing

Packing List

NSP-B150V6N-2F motherboard×1,   SATA data cable×1,   SATA power cable×1

Order Information

NSP-B150V6N-2F

6RJ45 Gigabit Ethernet + 2 GbE SFP , and can be expanded with 2 or 4 SFP 10GbE

NSP-B150V8N

8RJ45 Gigabit Ethernet , expandable with 2 or 4 SFP 10GbE
